Understanding API 610 Centrifugal Pumps in Oil and Gas

In my 20 years of piping and rotating equipment engineering, I have seen many pumps fail on the test bed and in the field. The difference between a standard industrial pump and one designed for hazardous refinery service is night and day. When you are handling flammable hydrocarbons at 400°C (750°F) or high-pressure sour water, you cannot afford to compromise. That is where the American Petroleum Institute (API) Standard 610 comes into play.

I remember a project in a major Middle Eastern refinery where a non-API pump was mistakenly specified for a light hydrocarbon transfer line. Within three weeks of commissioning, the shaft deflected under transient suction pressure, destroying the mechanical seal and causing a localized fire. We replaced it with an API 610 compliant overhung (OH2) pump. That pump has now run for eight years without a single unscheduled shutdown. This article shares the technical realities, design margins, and field-tested calculations that make these machines the backbone of our industry.

Why API 610 Centrifugal Pumps Matter

API 610 Design Standards: This standard establishes the minimum requirements for centrifugal pumps used in petroleum, petrochemical, and natural gas industries to ensure operational safety and mechanical integrity.

Standard industrial pumps, such as those built to ASME B73.1 or ISO 2858, are excellent for water and light chemical services. However, they lack the robust construction required to handle the extreme thermal and mechanical stresses of refinery operations. API 610 centrifugal pumps are engineered with heavy wall thicknesses, larger shaft diameters, and advanced casing designs to withstand high nozzle loads and thermal expansion without losing alignment.

Classifying API 610 Centrifugal Pumps Correctly

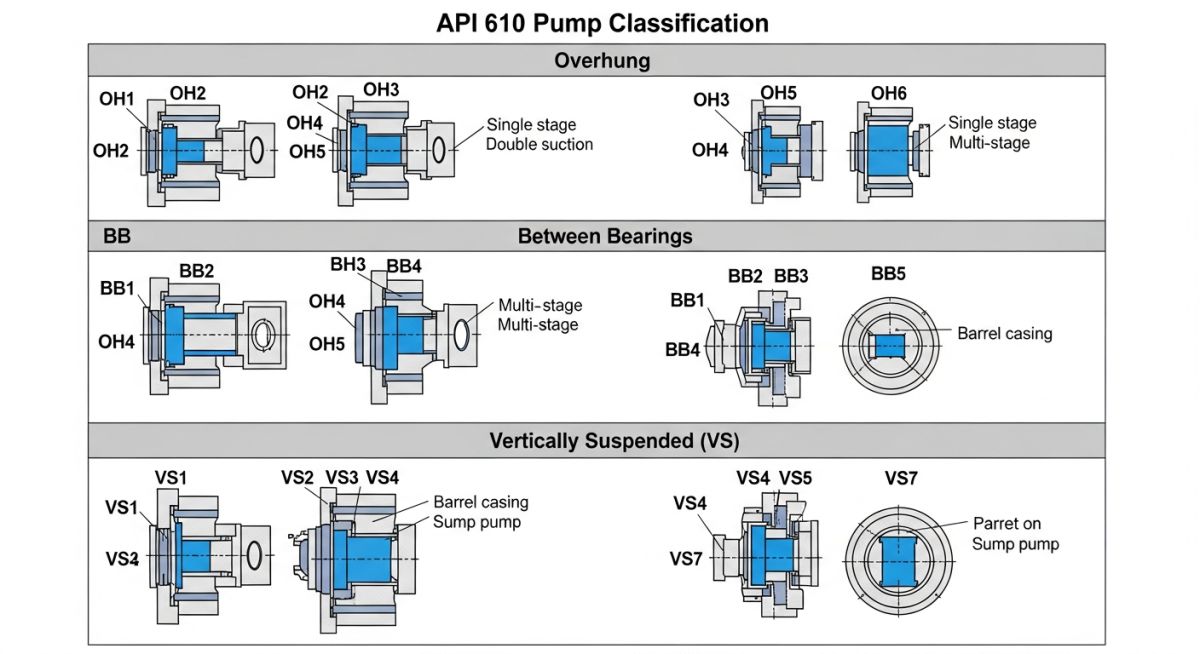

Pump Classification Framework: The API 610 standard categorizes pumps into overhung (OH), between-bearings (BB), and vertically suspended (VS) configurations to match specific pressure, temperature, and fluid properties.

Understanding these classifications is fundamental when designing a piping system or selecting equipment. Let us break down the three primary categories:

1. Overhung Pumps (OH1, OH2, OH3, OH4, OH5, OH6)

In overhung designs, the impeller is mounted on the end of a shaft that projects beyond its bearings. The most common type in refineries is the OH2 pump. This is a centerline-mounted, single-stage pump. Centerline mounting is critical because it allows the casing to expand radially and symmetrically under high temperatures, maintaining shaft alignment with the driver.

2. Between Bearings Pumps (BB1, BB2, BB3, BB4, BB5)

In between bearings designs, the impeller (or impellers) is mounted on a shaft supported by bearings at both ends. These are selected for high-flow or high-head applications. For example, the BB2 pump is a single or two-stage, radially split pump often used in hot, high-pressure services like fractionator bottoms. The BB5 pump is a double-casing, multistage barrel pump designed for extreme pressures, such as boiler feed water or high-pressure safety injection.

3. Vertically Suspended Pumps (VS1 to VS7)

These pumps are used when the available NPSH is extremely low, or when pumping from deep sumps and wet pits. The VS4 pump is a vertically suspended, single-casing sump pump with a separate discharge line, while the VS6 pump is a canned vertical pump where the liquid is contained within a suction barrel, allowing the pump to be installed below grade to maximize the available static head.

Critical Hydraulic Calculations

To prevent cavitation and ensure stable operation, we must calculate the Suction Specific Speed (N_{ss}) and verify the NPSH margin. The formula for Suction Specific Speed is:

Where:
• N = Pump rotational speed (RPM)
• Q = Flow rate at the best efficiency point (GPM) [For double-suction impellers, use Q/2]
• NPSHr = Net Positive Suction Head required at the 3% head drop (feet)

API 610 recommends that the Suction Specific Speed (N_{ss}) be limited to 11,000 (US units) to avoid internal recirculation and high vibration levels at off-design flows. If a vendor proposes a pump with an N_{ss} greater than 11,000, I advise conducting a rigorous review of their operating history and vibration data.

Selecting the correct pump type and material class is a balancing act between process conditions, safety requirements, and capital cost. The tables below provide a structured reference for making these engineering decisions.

Key Design Parameters and Calculations

Pump Design Parameters: Engineers must calculate suction specific speed, nozzle loads, and NPSH margins to prevent cavitation and mechanical seal failures in high-temperature hydrocarbon services.

Before any API 610 pump is cleared for commissioning, a series of field checks must be performed. In my experience, skipping these steps often leads to premature bearing wear or mechanical seal leaks during the first 100 hours of operation.

Field Case Study: Real-World Application

This case highlights why we must look beyond the pump datasheet. Piping geometry, hydraulic margins, and mechanical design must be evaluated as an integrated system to achieve the high reliability that API 610 is designed to deliver.
