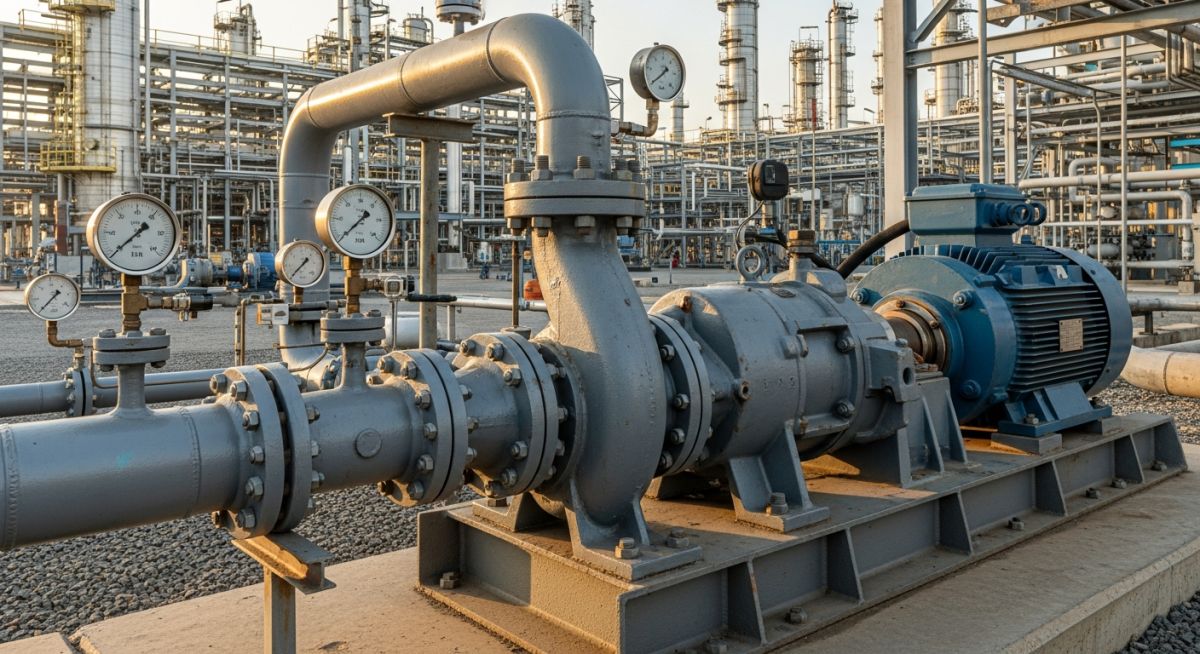

Centrifugal Pumps Archives

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the concept of industrial pumps with a high-quality, engaging graphic showing different pump types. Description: A 3D render of various industrial pumps, including centrifugal and positive displacement types, arranged neatly on a clean, modern engineering workshop floor with subtle technical blueprints in the background. SEO Alt Text: Various types of industrial pumps displayed in a modern engineering facility. Image Slug: industrial-types-of-pumps-guide Filename URL: https://epcland.com/wp-content/uploads/2026/07/industrial-types-of-pumps-guide.jpg Technical Infographic: Purpose: To explain the internal working mechanism and flow path of a standard centrifugal pump. Description: A detailed cross-sectional diagram of a centrifugal pump, showing the impeller, volute casing, suction eye, and discharge nozzle, with colored arrows indicating the direction of fluid flow. SEO Alt Text: Cross-section diagram showing the working principle of a centrifugal pump. Image Slug: centrifugal-pump-working-diagram Filename URL: https://epcland.com/wp-content/uploads/2026/07/centrifugal-pump-working-diagram.jpg Meta Data: Focus Keyword: Types of Pumps and Their Working Title: Comprehensive Guide to Types of Pumps and Their Working Principles Slug: types-of-pumps-and-their-working Meta Description: Learn about the different types of pumps, their working principles, and applications in this comprehensive engineering guide. Tags: pumps, centrifugal pumps, positive displacement pumps, fluid mechanics, engineering, hydraulic pumps, pump working principles Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 Guide to Types of Pumps and Their Working Principles Industrial Fluid Machinery: Industrial pumps are mechanical devices designed to transfer fluids by converting mechanical energy into hydraulic energy, classified primarily into kinetic (centrifugal) and positive displacement types under ASME B73.1 and API 610 standards. Over my 20 years in piping engineering, I have commissioned hundreds of pumps across petrochemical plants, water treatment facilities, and offshore platforms. I have seen how a minor misunderstanding of pump hydraulics can lead to catastrophic seal failures, destroyed impellers, and millions of dollars in unplanned downtime. In this guide, I will share my field-tested insights into the various pump designs, their operational mechanics, and how to select the right machine for your piping system. Key Engineering Takeaways Understand the fundamental hydraulic differences between kinetic and positive displacement designs. Learn how to calculate Net Positive Suction Head (NPSH) to prevent destructive cavitation. Identify key industry standards like API 610 and ASME B73.1 for robust system design. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 According to the Hydraulic Institute (HI) standard 9.6.7, when a centrifugal pump is utilized to transport a highly viscous fluid compared to its water-performance baseline, how do the pump's performance parameters—specifically Head ($H$), Flow ($Q$), Efficiency ($\eta$), and Power ($P$)—shift at the Best Efficiency Point (BEP)? $H$ decreases, $Q$ decreases, $\eta$ decreases, and $P$ increases. $H$ increases, $Q$ decreases, $\eta$ decreases, and $P$ decreases. $H$ decreases, $Q$ increases, $\eta$ increases, and $P$ increases. $H$ remains constant, $Q$ decreases, $\eta$ decreases, and $P$ increases. Next Question → Question 2 of 3 In the design and analysis of a suction piping system for a reciprocating positive displacement pump (complying with API 674), what is the physical significance of the "acceleration head" ($h_a$), and how does it mathematically impact the Net Positive Suction Head Available ($NPSHA$)? It is the head required to accelerate the liquid column in the suction line at the start of each stroke; it must be added to the static head, thereby increasing the $NPSHA$. It is the head loss due to the mass acceleration of the pulsating fluid column in the suction line; it must be subtracted from the static and atmospheric head, thereby reducing the $NPSHA$ at the pump inlet. It is a constant friction factor determined by the Reynolds number; it has no direct impact on $NPSHA$ but increases the Net Positive Suction Head Required ($NPSHR$). It represents the kinetic energy recovery at the discharge manifold; it reduces the required NPSH of the subsequent stages in a multiplex pump. Next Question → Question 3 of 3 Twin-screw positive displacement pumps (API 676) are frequently deployed in multiphase oil and gas applications. When handling a fluid stream with a high Gas Volume Fraction (GVF), what is the primary thermodynamic and mechanical purpose of injecting a liquid recycle stream into the pump suction? To increase the volumetric efficiency by increasing the viscosity of the gas phase. To act as a liquid seal within the rotor clearances, dissipate the heat of compression of the gas phase, and prevent dry running of the screws. To lower the Net Positive Suction Head Required ($NPSHR$) by condensing the gas phase back into a liquid state before it enters the screws. To increase the pressure ratio across the pump by inducing a supersonic shock wave within the screw chambers. 🎉 Quiz Completed! You have passed the engineering review criteria. Deep Dive into Pump Classifications Analyzing Types of Pumps and Their Working Pump Operational Mechanics: The operational distinction between kinetic and positive displacement pumps lies in how energy is imparted to the fluid, where kinetic pumps continuously add velocity while positive displacement pumps trap fixed volumes. To design an efficient piping system, we must first categorize these machines. The broad classification splits pumps into two main families: Kinetic (primarily Centrifugal) and Positive Displacement (PD). Each family operates on distinct physical principles and serves specific process envelopes. 1. Centrifugal Pumps (Kinetic Energy Transfer) Centrifugal pumps are the workhorses of the process industry. They operate by transferring rotational kinetic energy from an impeller to the fluid. As the impeller rotates, it draws fluid into its eye and flings it outward radially via centrifugal force. The fluid gains high velocity during this outward movement. This velocity energy is then converted into pressure energy within the expanding area of the volute casing or diffuser. This conversion is governed by Bernoulli's principle, which dictates that as fluid velocity decreases, static pressure increases. Field Warning: Centrifugal pumps are highly sensitive to fluid viscosity. As viscosity increases, the pump's head and flow capacity drop rapidly while the power consumption rises. Never use a standard centrifugal pump for highly viscous fluids without consulting the Hydraulic Institute correction charts. 2. Positive Displacement Pumps (Constant Volume Transfer) Unlike centrifugal pumps, positive displacement pumps do not rely on velocity. Instead, they physically trap a fixed volume of fluid at the suction side and force it out through the discharge nozzle. This mechanical action ensures a nearly constant flow rate regardless of the system's discharge pressure. PD pumps are divided into two primary sub-categories: Reciprocating Pumps: These use a piston, plunger, or flexible diaphragm moving back and forth. During the suction stroke, the cavity expands, drawing fluid in. During the discharge stroke, the cavity contracts, forcing fluid out through check valves. These are ideal for high-pressure, low-flow applications. Rotary Pumps: These utilize rotating elements like gears, screws, lobes, or vanes to move fluid. As these elements mesh and unmesh, they create low-pressure zones at the inlet and high-pressure zones at the outlet. They excel at handling highly viscous fluids like heavy oils and polymers. Core Hydraulic Calculations When I design a pumping system, I always perform three fundamental calculations to ensure long-term reliability: A. Net Positive Suction Head Available (NPSHa): NPSHa = (P_suction - P_vapor) / (density * gravity) + h_static - h_friction Where: P_suction = Absolute pressure at the suction source (Pascals) P_vapor = Vapor pressure of the fluid at operating temperature (Pascals) density = Fluid density (kg/m³) gravity = Acceleration due to gravity (9.81 m/s²) h_static = Static height of fluid above pump centerline (meters) h_friction = Friction losses in the suction piping (meters) B. Specific Speed (Ns): Ns = (N * Q^0.5) / (H^0.75) Where: N = Rotational speed (RPM) Q = Flow rate at Best Efficiency Point (m³/s) H = Total Dynamic Head per stage (meters) Pump Selection and Performance Parameters Mastering Types of Pumps and Their Working Pump Selection Criteria: Selecting industrial pumps requires matching system head curves with pump performance curves to ensure operation within the Preferred Operating Region as defined by API 610. To simplify the selection process, I have compiled a comprehensive performance comparison table. This table highlights the operating envelopes, advantages, and limitations of the most common pump types used in modern industrial plants. Pump Type Flow Range Pressure Range Max Viscosity Primary Advantage Centrifugal (API 610) 10 to 20,000 m³/h Up to 150 bar 150 cSt Smooth, non-pulsating flow; low maintenance Reciprocating Plunger 1 to 500 m³/h Up to 1,500 bar 100 cSt Extremely high pressure capability Rotary Screw 5 to 1,200 m³/h Up to 120 bar 1,000,000 cSt Handles highly viscous fluids with low shear Diaphragm (Air-Operated) 0.5 to 60 m³/h Up to 8 bar 10,000 cSt Excellent self-priming; runs dry without damage Technical Mapping & Specifications Matrix The following matrix maps core technical entities, structural acronyms, physical parameters, and their governing international standards. Entity / Acronym Physical Parameter Governing Standard Application Scope OH2 (Overhung Single Stage) Radial split, centerline mounted API 610 Heavy-duty refinery process services BB3 (Between Bearings) Axially split, multistage API 610 High-pressure water injection, crude pipelines AODD (Diaphragm Pump) Pneumatic displacement volume ASME B73.3 Chemical transfer, sump emptying, slurry handling VS4 (Vertical Sump) Line-shaft suspended, single casing API 610 Drainage sumps, open drain vessels Pre-Commissioning Field Checklist How to Verify Pump Installations Onsite? Pre-Commissioning Verification: Field verification of pump installations ensures mechanical alignment, piping strain elimination, and auxiliary system integrity prior to initial startup under ASME B31.3 and API 686. Before you push the start button on any newly installed pump, you must perform a rigorous physical inspection. Skipping these steps can lead to immediate mechanical seal failure or shaft breakage. Use this field-tested checklist during your next pre-commissioning phase. Onsite Pump Verification Checklist Foundation and Grouting: Verify that the baseplate is fully grouted with non-shrink epoxy grout and that all anchor bolts are torqued to specification. Shaft Alignment: Perform laser alignment between the pump and driver shafts. Ensure parallel and angular misalignments are within API 686 tolerances (typically less than 0.05 mm). Piping Strain Check: Mount dial indicators on the pump nozzles. Loosen the flange bolts and verify that nozzle movement does not exceed 0.05 mm. If it does, the piping must be re-supported. Mechanical Seal Auxiliary Systems: Verify that the seal flush piping (e.g., API Plan 11, 21, or 53) is clean, free of leaks, and that all orifice plates are installed in the correct flow direction. Direction of Rotation: Uncouple the motor and perform a brief "solo run" to verify that the motor rotates in the direction indicated by the arrow on the pump casing. Field Case Study: Cavitation Resolution Field Case Study: Real-World Application The Problem: Chronic Cavitation in a Hydrocarbon Transfer Pump At a refinery in East Asia, a heavy gas oil transfer pump (API 610 OH2 type) suffered from severe vibration, high-pitched noise resembling "pumping gravel," and mechanical seal failures every three months. The field operators suspected a mechanical defect, but my review of the piping isometric drawings revealed a different story. The suction line was 6 inches in diameter, containing three 90-degree elbows and a globe valve, which created massive friction losses. The calculated NPSHa was only 3.2 meters, while the pump's NPSHr was 3.0 meters—leaving a margin of just 0.2 meters, far below the industry-standard margin of 1.0 meter. The Outcome: Piping Re-Engineering and Hydraulic Restoration I led the engineering team to redesign the suction piping system. We replaced the 6-inch line with an 8-inch line to reduce fluid velocity and friction losses. We also replaced the restrictive globe valve with a full-port gate valve and simplified the routing to eliminate two 90-degree elbows. These modifications reduced suction friction losses from 1.2 meters to 0.3 meters, successfully raising the NPSHa to 4.1 meters. This provided a robust 1.1-meter margin over the NPSHr. Following these piping modifications, the pump's vibration levels dropped from 8.5 mm/s to a smooth 1.8 mm/s. The mechanical seals have now run for over three years without a single leak, saving the plant operator thousands of dollars in maintenance costs and preventing unscheduled production shutdowns. Frequently Asked Engineering Questions Frequently Asked Engineering Questions What is the difference between NPSHa and NPSHr? NPSHa (Net Positive Suction Head Available) is a characteristic of the piping system and is calculated based on suction pressure, fluid vapor pressure, static head, and friction losses. NPSHr (Net Positive Suction Head Required) is a characteristic of the pump design, determined by the manufacturer through testing, representing the minimum suction head required to limit head loss due to cavitation to 3 percent. Why do centrifugal pumps require priming before startup? Centrifugal pumps cannot generate a pressure differential when filled with air or gas because the density of air is too low to produce a significant centrifugal force. Priming replaces the air in the pump casing and suction line with the process liquid, allowing the impeller to generate the required differential head. How does fluid viscosity affect centrifugal pump performance? High viscosity increases the internal friction losses within the impeller channels and casing. This results in a reduction in the pump's total dynamic head, a decrease in flow capacity, a drop in hydraulic efficiency, and a significant increase in the brake horsepower required to drive the pump. What is the purpose of a minimum flow bypass line? A minimum flow bypass line ensures that the pump always operates above its Minimum Continuous Stable Flow (MCSF) limit. If the process demand drops below this limit, the bypass valve opens to route fluid back to the suction source, preventing overheating, high vibration, and mechanical damage. When should I choose a positive displacement pump over a centrifugal pump? Positive displacement pumps should be selected when handling highly viscous fluids, when the application requires high discharge pressures at relatively low flow rates, or when precise metering of the fluid is required. They are also preferred when the system head varies widely but a constant flow rate must be maintained. What are the consequences of running a pump far to the right of its BEP? Operating a pump far to the right of its Best Efficiency Point (BEP) increases fluid velocity, which dramatically increases the Net Positive Suction Head Required (NPSHr). This often leads to severe cavitation, high radial thrust loads that deflect the shaft, accelerated bearing wear, and motor overload due to high power demand. ===
