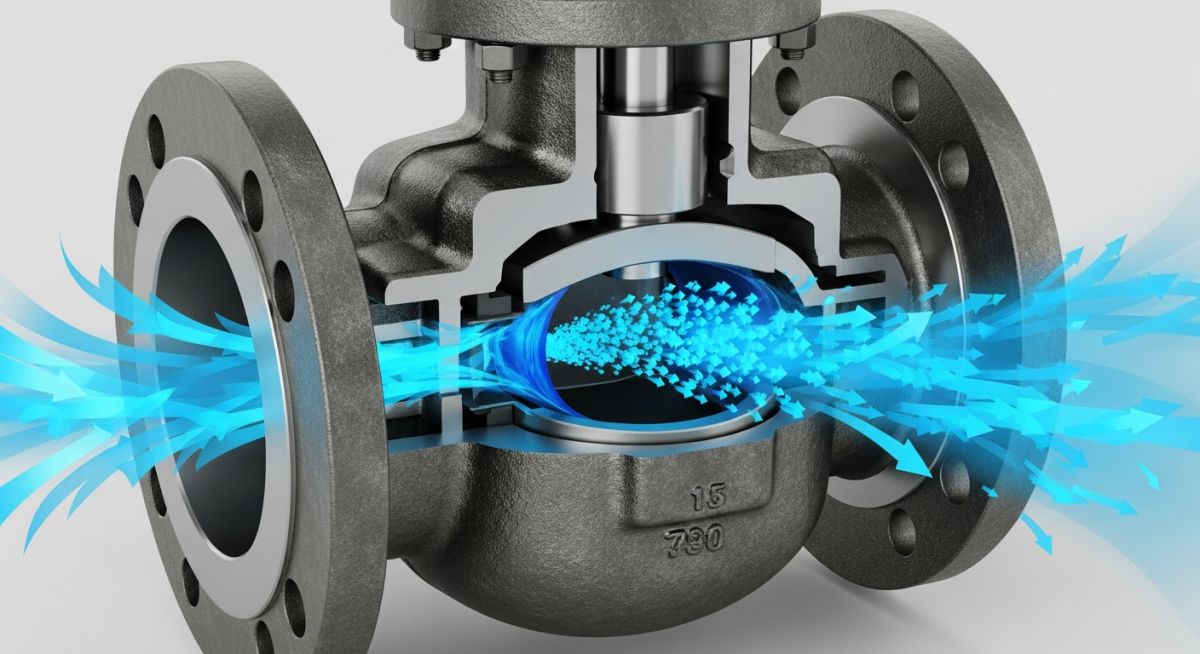

What is Valve Coefficient Cv and Why It Matters

In my 20 years of troubleshooting piping systems, I have seen countless control valves fail, cavitate, or choke simply because someone guessed the sizing. Selecting a valve based on nominal pipe size rather than the actual flow capacity is one of the most expensive mistakes you can make in process engineering. When you size a valve incorrectly, you do not just lose control accuracy; you risk destroying the valve trim, creating massive pressure drops, and shutting down entire production lines.

Understanding how to calculate and apply the flow coefficient is the foundation of reliable fluid dynamics. Whether you are dealing with high-pressure steam, viscous hydrocarbons, or simple cooling water, the math remains your only shield against system instability. Let us break down the core principles of this metric so you can design systems that operate flawlessly under any process condition.

Understanding the Valve Coefficient Cv Calculation

To calculate the capacity of a valve handling liquid flows, we rely on the fundamental relationship between flow rate, pressure drop, and specific gravity. The standard formula for non-compressible, non-vaporizing liquid flow is expressed as:

Where:

• Cv = Valve flow coefficient (gpm / psi^0.5)

• Q = Volumetric flow rate in gallons per minute (gpm)

• SG = Specific gravity of the fluid relative to water at sixty degrees Fahrenheit (dimensionless)

• delta_P = Pressure drop across the valve body in pounds per square inch (psi)

When dealing with compressible fluids like gases or steam, the calculation becomes more complex. Gases expand as pressure drops, which means we must account for the inlet pressure, temperature, and compressibility factor. The standard gas equation under non-choked conditions is defined by ISA-75.01.01 as:

Where:

• q = Gas flow rate in standard cubic feet per hour (scfh)

• Fp = Piping geometry factor (dimensionless)

• Py1 = Inlet absolute pressure (psia)

• x = Ratio of pressure drop to absolute inlet pressure (delta_P / P1)

• SG_gas = Specific gravity of the gas relative to air

• T = Absolute temperature in Rankine (Fahrenheit + 460)

• Z = Compressibility factor of the gas

In my field audits, I often find that engineers overlook the piping geometry factor (Fp). When you install a control valve that is smaller than the line size, the reducers and expanders introduce additional pressure losses. These losses effectively reduce the installed Cv of the valve. If you do not correct for these fittings using the Fp factor, your valve will not deliver the required flow rate at design conditions.

The table below provides typical maximum flow coefficient values for common valve types at 100% open positions. These values are representative of standard industrial designs complying with ANSI standards and should be used for preliminary sizing before consulting specific manufacturer catalogs.

This matrix maps the core physical parameters, engineering acronyms, and standard references used during the control valve sizing and selection process.

Verifying Valve Coefficient Cv in the Field

Before you sign off on a control valve installation or troubleshoot an unstable loop, you must verify that the physical installation matches the design calculations. Use this checklist during your next site walkdown to ensure compliance with ASME B16.34 and process requirements.

Field Case Study: Real-World Application

This case highlights why you must never size a control valve based on the nominal pipe size. Always perform the formal Cv calculations using the actual minimum, normal, and maximum flow conditions. Sizing the valve to operate in its sweet spot (typically 50% to 70% open) ensures stable control and protects your piping infrastructure from destructive hydraulic forces.
