Super Duplex Stainless Steel Oil and Gas Piping Design Guide

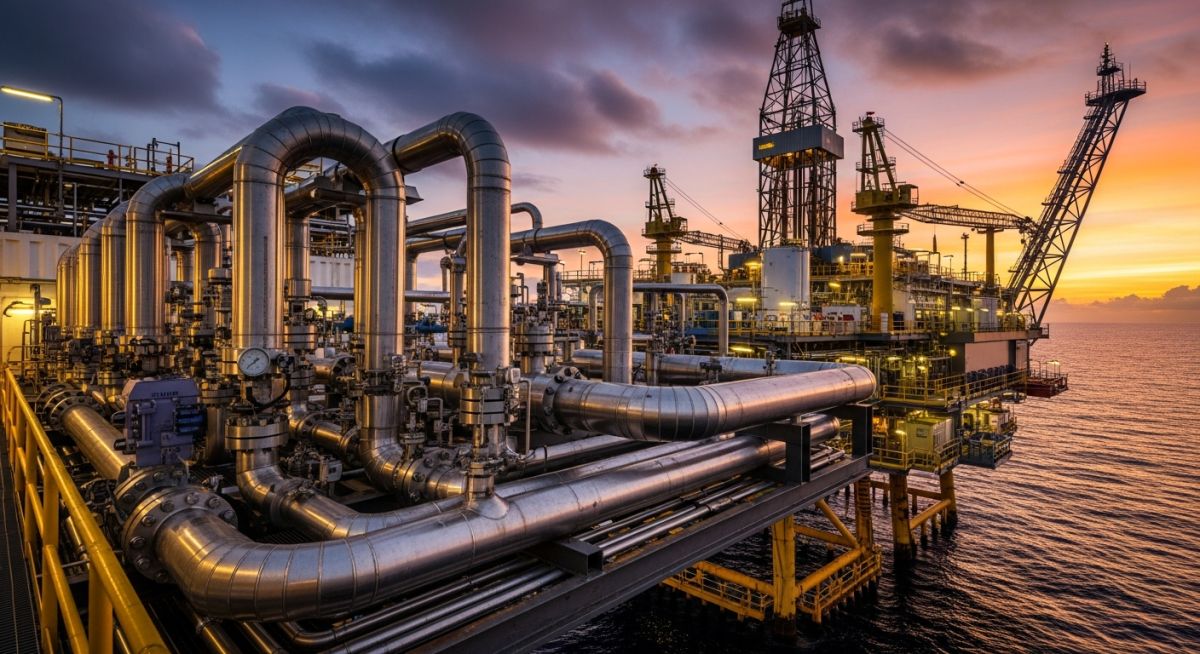

In my 20 years of designing piping systems for offshore platforms and subsea manifolds, I have seen many materials fail under the brutal combination of high chlorides, hydrogen sulfide, and extreme pressures. When standard 316L stainless steel or even standard duplex alloys reach their limits, super duplex stainless steel becomes the definitive choice. I remember a project in the North Sea where we replaced a failing carbon steel flowline with UNS S32750; the corrosion issues disappeared overnight. This guide shares my hands-on experience with these high-performance alloys.

Super Duplex Stainless Steel Oil and Gas Applications

Super Duplex Stainless Steel Oil and Gas Applications: The strategic deployment of UNS S32750 and UNS S32760 alloys in subsea manifolds, flowlines, and topside process systems to prevent localized pitting, crevice corrosion, and chloride stress corrosion cracking under high-pressure, high-temperature conditions.

The secret behind the outstanding performance of super duplex stainless steel lies in its balanced 50/50 austenitic-ferritic microstructure. This dual-phase structure provides the high strength of ferrite combined with the excellent corrosion resistance of austenite. To achieve this balance, the chemical composition is tightly controlled with high levels of chromium, molybdenum, and nitrogen.

The primary metric we use to evaluate pitting resistance is the Pitting Resistance Equivalent Number (PREN). The formula is defined as:

For an alloy to be classified as a super duplex, this PREN value must be greater than 40. This high value ensures that the material remains passive even in warm, oxygenated seawater environments where standard stainless steels would suffer rapid pitting and crevice attack.

ASME B31.3 Wall Thickness Calculations

When designing piping systems under ASME B31.3, the high yield strength of super duplex allows us to design thinner pipe walls. Let us look at a practical design calculation using the standard ASME B31.3 formula:

Where:

• P = Design Pressure = 34.5 MPa (5000 psi)
• D = Outside Diameter = 168.3 mm (6-inch NPS)
• S = Allowable Stress for UNS S32750 at 50°C = 263 MPa (38,100 psi)
• E = Quality Factor = 1.0 (Seamless pipe)
• W = Weld Joint Strength Reduction Factor = 1.0
• Y = Coefficient = 0.4

Plugging in these values:

t = (34.5 * 168.3) / (2 * (263 * 1.0 * 1.0 + 34.5 * 0.4))

t = 5806.35 / (2 * (263 + 13.8))

t = 5806.35 / 553.6 = 10.49 mm

Comparing this to standard 316L stainless steel with an allowable stress of only 115 MPa, the required thickness for 316L would be over 22 mm. This reduction in wall thickness not only saves material costs but also significantly reduces the overall structural weight of offshore topside modules.

Mechanical Properties of Super Duplex Alloys

Super Duplex Mechanical Properties: The minimum yield strength, tensile strength, and elongation limits defined by ASTM A790 and ASTM A240 that govern the structural integrity and wall thickness calculations of high-pressure piping systems.

Chemical Composition Limits (Weight %)

Super Duplex Stainless Steel Oil and Gas Design

Super Duplex Stainless Steel Oil and Gas Design: The engineering methodology and quality control framework required to specify, fabricate, and inspect high-alloy piping systems in compliance with ASME B31.3 and NACE MR0175/ISO 15156.

When executing a project utilizing super duplex alloys, field inspection is where the battle is won or lost. I have seen entire spools rejected because the contractor failed to control the purging gas during welding. The following checklist represents my personal field verification protocol that must be executed on-site.

Field Case Study: Real-World Application

Field Case Study: Real-World Application: The practical evaluation of material performance transitions from failing lower-alloy steels to highly resilient super duplex configurations in active offshore production environments.

My direct recommendation for any operator facing high-chloride sour service is to invest in super duplex alloys during the FEED (Front-End Engineering Design) phase. While the initial material cost is higher than carbon steel or standard duplex, the lifecycle cost savings and elimination of catastrophic failures make it the most economical choice over the asset’s lifetime.

Frequently Asked Engineering Questions: The technical compilation of common design, fabrication, and metallurgical inquiries regarding the implementation of high-alloy duplex steels in corrosive process environments.
