Comprehensive Guide to Types of Pipes and Industrial Classification Systems

In my 20+ years of hands-on piping engineering experience across petrochemical plants, refineries, and offshore platforms, I have seen how a single misapplied pipe specification can lead to catastrophic field failures. Selecting the correct piping component is not merely about choosing a hollow cylinder; it requires a deep understanding of metallurgy, manufacturing tolerances, and fluid dynamics.

Whether you are designing a high-pressure steam line operating at 540 degrees Celsius or a corrosive chemical transfer system, understanding the distinct characteristics of different piping materials is your first line of defense. This guide breaks down the complex world of industrial piping into structured, actionable engineering knowledge.

How Do We Classify Different Types of Pipes?

Pipe Classification Standards: The systematic categorization of industrial piping utilizes material composition, fabrication techniques, and wall thickness schedules to satisfy the structural integrity requirements of ASME B36.10M and ASME B36.19M.

To design a safe and cost-effective system, we must classify pipes based on three primary criteria: material of construction, manufacturing method, and industrial application. Let us examine these classifications in detail.

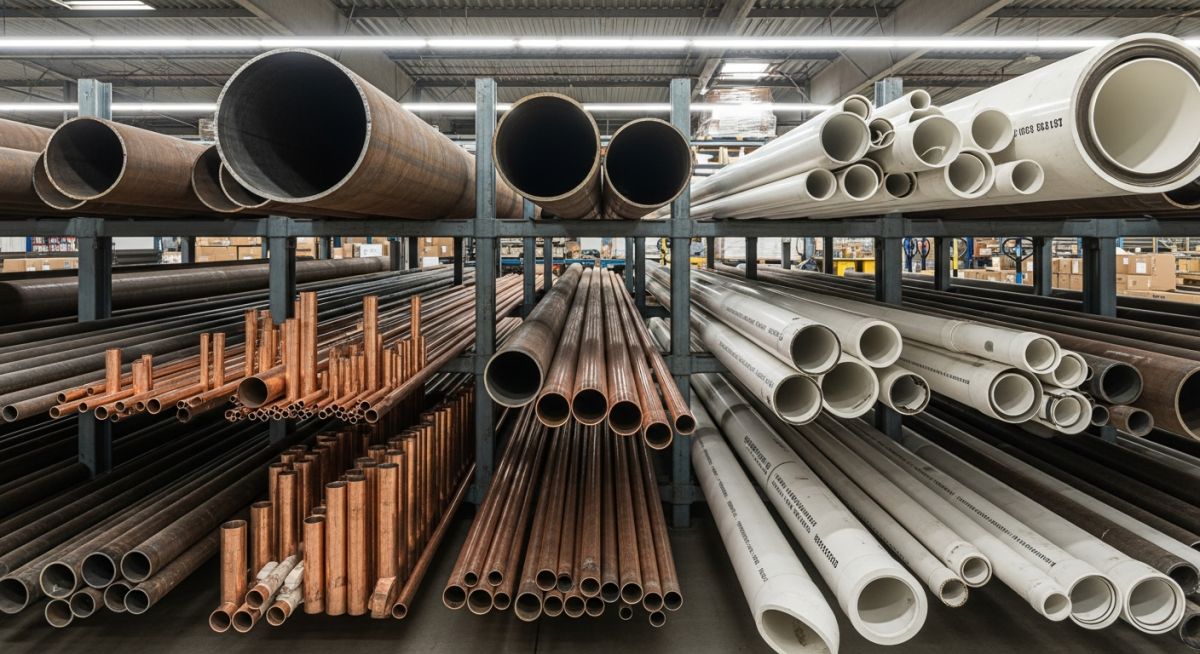

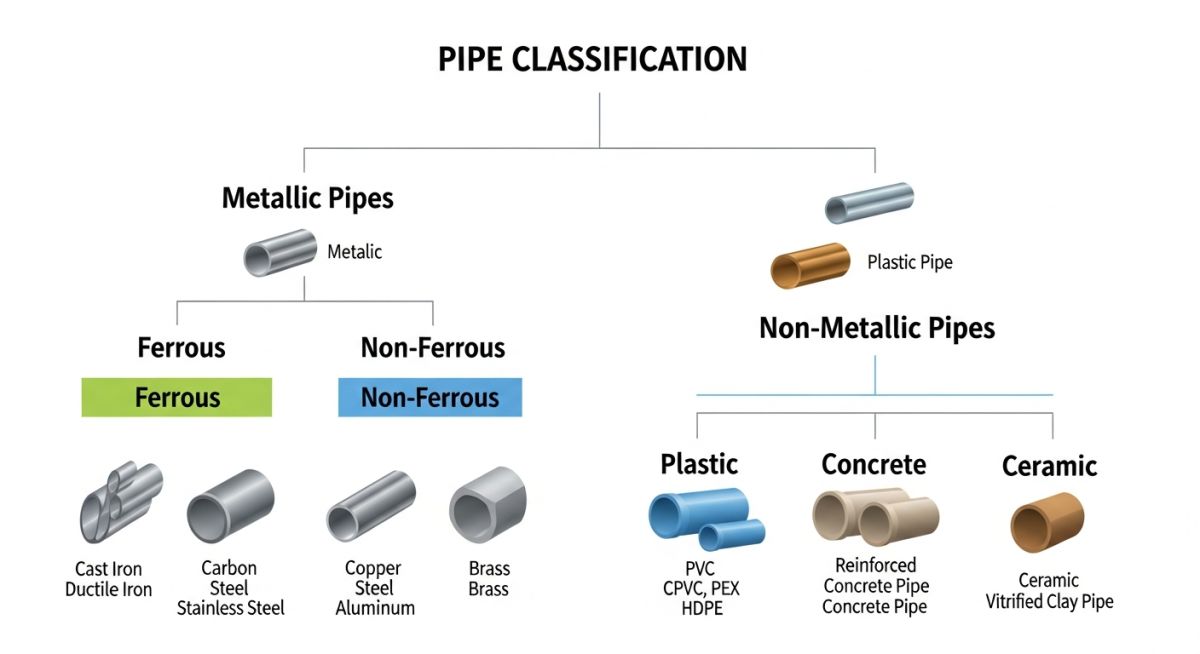

1. Classification by Material of Construction

Piping materials are broadly divided into metallic and non-metallic categories. Metallic piping is further subdivided into ferrous and non-ferrous materials:

• Carbon Steel (CS): The workhorse of industrial piping, typically specified under ASTM A106 Grade B for seamless high-temperature service, and ASTM A53 for utility lines.
• Alloy Steel (AS): Formulated with elements like chromium and molybdenum (e.g., ASTM A335 Grade P11, P22, P91) to withstand high-temperature creep and hydrogen attack in refinery power piping.
• Stainless Steel (SS): Utilized for corrosion resistance and cryogenic services. Common grades include austenitic steels like ASTM A312 TP304L and TP316L.
• Non-Ferrous Metals: Materials such as copper, nickel alloys (Inconel, Monel), and titanium, selected for highly specialized corrosive environments or heat exchanger tubing.
• Non-Metallic Pipes: Includes Thermoplastics (PVC, CPVC, HDPE) and Thermosetting plastics (FRP, GRP), which are immune to electrochemical corrosion but limited by temperature and pressure.

2. Classification by Manufacturing Method

The manufacturing process dictates the joint efficiency factor (E) used in pressure design calculations. The two primary methods are:

• Seamless (SMLS) Pipes: Manufactured by piercing a solid hot billet. Because there is no welded seam, the joint efficiency factor is 1.0, making SMLS pipes the safest choice for high-pressure, high-temperature, and hazardous services.
• Welded Pipes: Fabricated by rolling a steel plate or strip and welding the seam. Common welding techniques include Electric Resistance Welding (ERW), Longitudinal Submerged Arc Welding (LSAW), and Spiral Submerged Arc Welding (SSAW). Welded pipes generally have a joint efficiency factor ranging from 0.85 to 1.0 depending on the level of non-destructive examination (NDE) performed.

Engineering Calculations: Barlow’s Formula

To determine the minimum required wall thickness of a pipe under internal pressure, we utilize Barlow’s Formula as modified by the ASME B31.3 code:

Where:

• t = Minimum design wall thickness (inches or millimeters)
• P = Internal design gauge pressure (psi or MPa)
• D = Outside diameter of the pipe (inches or millimeters)
• S = Allowable stress value for the material at design temperature (psi or MPa)
• E = Quality factor or joint efficiency factor (dimensionless)
• W = Weld joint strength reduction factor (dimensionless, typically 1.0 for moderate temperatures)
• Y = Coefficient of temperature (dimensionless, typically 0.4 for ductile metals below 900 degrees Fahrenheit)

Once the minimum design thickness (t) is calculated, you must add the corrosion allowance (ca) and account for the manufacturer’s mill tolerance (typically 12.5% for seamless steel pipes) to select the final nominal pipe schedule.

What Are the Standard Pipe Material Specifications?

Material Specification Standards: Piping materials are standardized under ASTM and ASME specifications to define chemical composition, mechanical properties, and temperature limits for industrial applications.

The table below outlines the most common metallic piping materials used in industrial plants, along with their corresponding ASTM standards, temperature limits, and typical fluid services.

How to Verify Types of Pipes on Site?

Site Verification Protocol: Field inspection of piping materials requires systematic verification of mill test reports, physical markings, and dimensional tolerances to prevent installation of non-compliant components.

Before any pipe is welded or installed in the field, quality control inspectors must perform rigorous checks. Below is the exact checklist I use during my site audits to ensure compliance with ASME codes and project specifications.

Field Case Study: Real-World Application

Field Failure Analysis: Forensic engineering investigations of piping failures reveal that incorrect material selection and joint efficiency assumptions directly cause catastrophic pressure boundary breaches.

This case study highlights the critical importance of material control and field verification. A simple mix-up in the warehouse between seamless and welded carbon steel pipes resulted in millions of dollars in lost production and repair costs.

What Are the Primary Types of Pipes?

Piping Engineering FAQ: This technical reference addresses critical questions regarding material selection, manufacturing tolerances, and code compliance for industrial piping systems.
