What is Pipe Spacing and How to Use a Pipeline Spacing Chart

In my 20-plus years of piping engineering, I have seen minor layout oversights turn into multi-million dollar field modifications. One of the most common culprits is improper pipe spacing on multi-tier pipe racks. During my early days on a major refinery expansion project, a designer ran a hot steam line directly adjacent to a cold utility line using standard cold-spacing dimensions. When the plant went online, the thermal expansion caused the hot line to bow laterally, crushing the insulation of both lines and causing severe thermal bridging. This mistake taught me that pipe spacing is not just a drafting exercise; it is a critical safety and operational parameter.

To prevent these field clashes, we rely on a standardized pipeline spacing chart. This chart serves as our primary reference during the initial layout phase. However, as a professional engineer, you must understand the underlying physics, thermal dynamics, and mechanical constraints that govern these charts. We cannot simply copy numbers from a table without verifying the specific design conditions of our system.

Why Proper Pipe Spacing Matters in Piping Design

When designing a piping layout, we must look at the system as a dynamic, moving entity. Pipes expand, contract, vibrate, and deflect under pressure and weight. If the pipe spacing is too tight, these movements will cause adjacent lines to clash, leading to mechanical wear, insulation damage, and eventual line failure.

The Fundamental Spacing Formula

To calculate the minimum center-to-center distance between two parallel pipes, we use a basic geometric formula. This formula must be adjusted based on whether the lines are insulated, flanged, or subject to thermal movement.

Where:

• OD1 and OD2: The outside diameters of the adjacent pipes (or the outside diameter of the flanges if they are aligned).
• Clearance: The minimum required air gap, typically 25 mm to 50 mm, to allow for installation tolerances and painting access.
• Insulation1 and Insulation2: The radial thickness of the insulation on each respective pipe. If a pipe is bare, this value is zero.

Accounting for Flanges and Staggering

Flanges have a significantly larger diameter than the pipe itself. For example, a 6-inch Class 300 flange has an outer diameter of 318 mm, while the pipe itself has an OD of only 168.3 mm. If we align the flanges of two parallel pipes, the required spacing increases dramatically.

To optimize rack space, we stagger the flanges. This means the flange of Pipe 1 is positioned longitudinally away from the flange of Pipe 2. In this configuration, the spacing calculation is based on the flange OD of one pipe and the bare (or insulated) OD of the adjacent pipe. This simple design choice can reduce the required width of a pipe rack by up to 30 percent.

Thermal Expansion and Dynamic Movement

Static spacing charts assume the piping remains in its cold, installed position. In high-temperature systems, thermal expansion causes the pipe to grow in length. This longitudinal growth is often converted into lateral movement at elbows, expansion loops, and offsets.

We calculate thermal expansion using the formula: Expansion = Length * Coefficient * Delta T. If a hot line expands laterally by 50 mm, and the adjacent cold line is static, the cold spacing must be increased by at least 50 mm to prevent contact. I always recommend running a formal stress analysis in CAESAR II for any lines operating above 120 degrees Celsius to map these displacements accurately.

How to Read a Pipeline Spacing Chart Correctly

The table below provides the standard center-to-center spacing (in millimeters) for parallel pipes on a rack. These values are calculated based on carbon steel pipes conforming to ASME B36.10M, using Class 150 and Class 300 flanges with a standard 25 mm clear gap.

Note: The values above do not include insulation. If either line is insulated, you must add the full radial thickness of the insulation to the spacing values shown.

To ensure complete alignment across different engineering standards, this matrix maps the core technical entities, structural acronyms, and physical parameters used in spacing design.

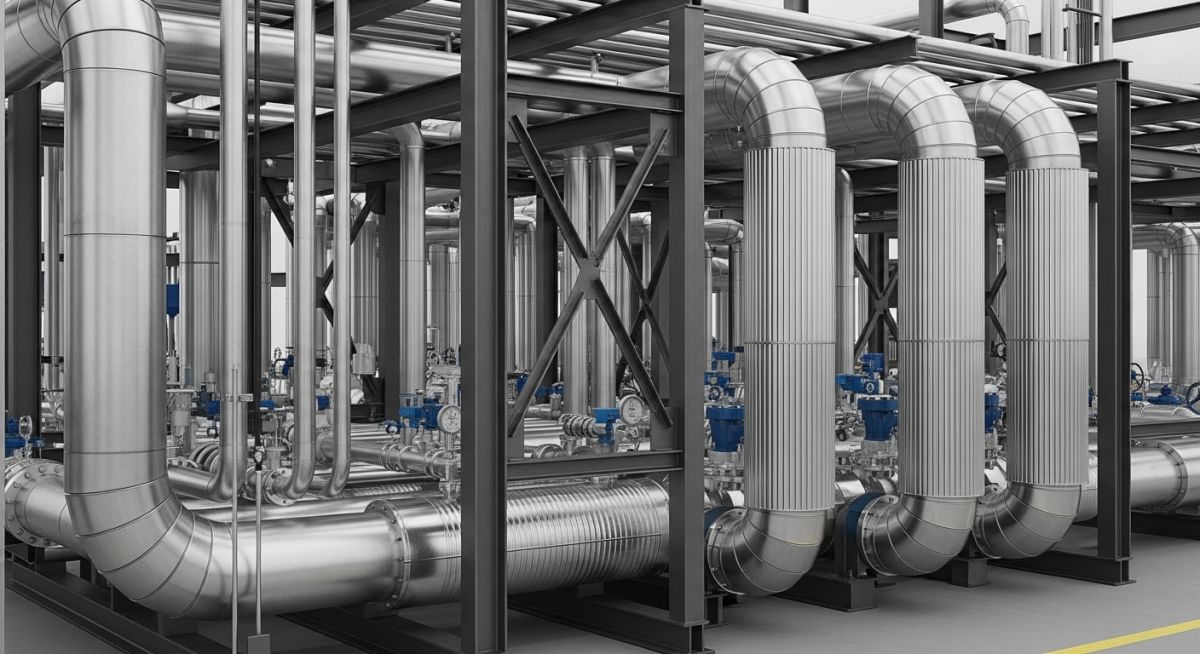

Field Verification of Pipe Spacing on Racks

Once the design leaves the 3D model, the field construction team must execute it with precision. However, site tolerances and structural deviations can compromise the designed clearances. I have developed this checklist over years of field audits to ensure that installed piping meets all safety and maintenance requirements before commissioning.

Field Case Study: Real-World Application

This case highlights why we must treat pipeline spacing charts as preliminary guides rather than absolute laws. Dynamic stress analysis is always required for high-temperature or high-pressure systems.
