How to Calculate Pipe Support Spacing for Industrial Piping Systems

In my 20 plus years of executing piping stress analysis for heavy industrial plants, I have seen many field failures that trace back to a single, fundamental mistake: incorrect support placement. When a pipeline is allowed to sag beyond its design limits, it does not just look unprofessional; it pools condensate, creates localized stress concentrations, and invites catastrophic water hammer. Determining the correct distance between supports is a balancing act between structural mechanics, thermal flexibility, and project economics.

Throughout my career, I have learned that relying solely on generic tables without understanding the underlying physics is a recipe for disaster. Whether you are routing a high-temperature steam line or a heavy slurry header, you must evaluate the specific weight of the pipe, the fluid, the insulation, and the potential environmental loads. Let us break down the exact engineering principles, formulas, and code requirements that govern this critical design step.

Why Pipe Support Spacing Matters in Design

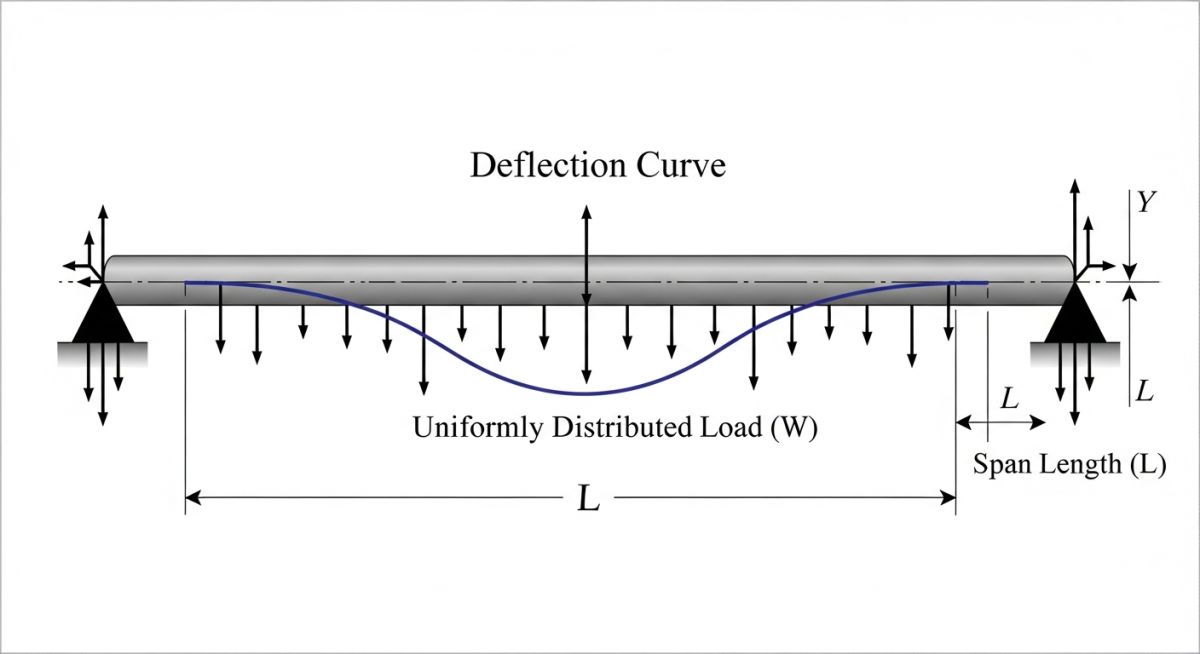

When we design a piping system, we treat the pipe as a continuous beam supported at multiple points. The spacing between these supports directly dictates the bending stress and the deflection of the pipe. If the supports are too far apart, the pipe sags. This sag, or deflection, creates low points where liquid can accumulate. In steam systems, this pooled condensate leads to steam hammer, which can rupture valves and fittings.

To prevent these issues, we design within strict limits defined by codes like ASME B31.3 for process piping and ASME B31.1 for power piping. These codes require that the longitudinal stresses due to sustained loads (pressure, weight of pipe, contents, and insulation) do not exceed the allowable stress of the material at the operating temperature.

The Governing Mathematical Formulas

To calculate the maximum allowable span, we must evaluate two primary structural criteria: bending stress and deflection.

Adjusting Spans for Concentrated Loads

The standard formulas assume a uniformly distributed load. However, real-world piping systems are loaded with heavy inline components like valves, strainers, flanges, and instruments. These concentrated loads act as point loads, which drastically increase the local bending moment and deflection.

When a heavy valve is placed in a span, the allowable span length must be reduced. A common rule of thumb in piping design is to place a support as close as possible to any heavy inline valve or instrument, ideally within a distance of three to five times the pipe diameter. This isolates the heavy component and prevents it from inducing excessive bending stresses on the adjacent pipe runs.

Standard Pipe Support Spacing Chart for Carbon Steel

The table below provides the maximum recommended pipe support spacing for standard weight (Schedule 40) carbon steel pipes filled with water or steam. These values are based on a maximum deflection limit of 0.1 inches (2.5 mm) and a maximum bending stress of 2,300 psi, which is highly conservative and safe for most industrial applications.

Technical Mapping and Support Specifications Matrix

Different piping materials and operating conditions require distinct support strategies. The matrix below maps out the relationship between material grades, temperature ranges, and the recommended support configurations to prevent structural failure.

Field Verification Checklist for Pipe Spans

Even the most precise stress analysis is useless if the field installation does not match the design. Over my career, I have developed this checklist to help field engineers verify support spans before the system is pressurized or hydrotested.

Field Case Study: Real-World Application

This case study highlights the danger of relying blindly on standard span charts. Always look at the physical layout and identify concentrated loads that require localized support modifications.
