What is Metallic Piping: Types, Advantages, Applications, and ASTM Standards

In my 20 plus years of field experience managing piping stress analysis and mechanical integrity programs, I have watched materials science evolve rapidly. Yet, despite the rise of advanced composites and high-performance plastics, metallic piping remains the undisputed backbone of heavy industrial plants. When you are dealing with superheated steam at 540 degrees Celsius or volatile hydrocarbons pressurized to 150 bar, non-metallic alternatives simply cannot survive.

I remember a critical refinery expansion project where a junior engineer suggested using reinforced thermosetting resin pipes for a high-temperature utility line to save on material costs. While the initial cost savings looked attractive on paper, a quick look at the thermal expansion coefficients and pressure-temperature derating curves proved that only a robust metallic piping system could guarantee safe, long-term operation. In this guide, I will break down the core classifications, design calculations, and ASTM standards that define industrial metallic piping systems.

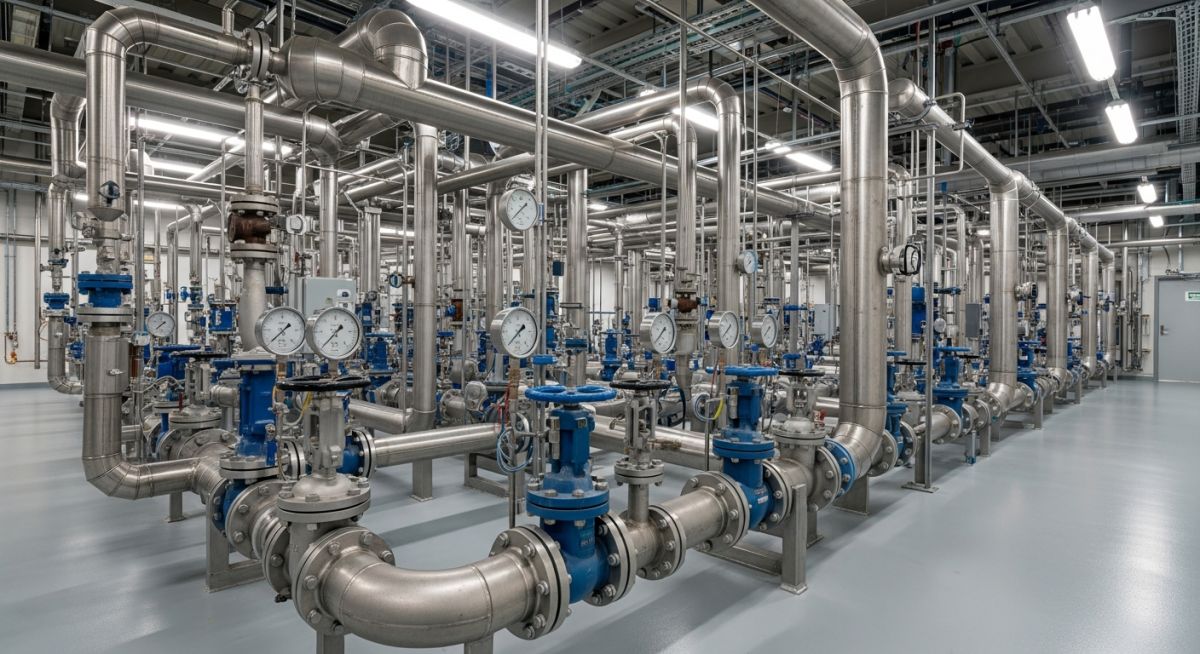

Why Choose Metallic Piping for Industrial Plants?

When selecting materials for industrial fluid transport, we classify metallic piping into two primary categories: ferrous and non-ferrous. Ferrous piping, which contains iron as the primary constituent, includes carbon steel, stainless steel, and alloy steels. Non-ferrous piping includes copper, nickel, aluminum, and titanium alloys. Each material group serves a distinct operational window defined by temperature, pressure, and chemical compatibility.

1. Carbon Steel (The Workhorse)

Carbon steel is the most widely used material in industrial piping due to its high tensile strength, excellent weldability, and cost-effectiveness. Standard specifications like ASTM A106 Grade B are the default choice for non-corrosive utility lines, steam distribution, and hydrocarbon transport. However, carbon steel is susceptible to atmospheric and process-side corrosion, requiring corrosion allowances (typically 1.5 mm to 3.0 mm) in wall thickness calculations.

2. Stainless Steel (Corrosion Resistance)

When process fluids are corrosive or when product purity is paramount, stainless steel is required. Austenitic stainless steels, such as ASTM A312 TP304L and TP316L, contain chromium and nickel, which form a passive chromium oxide layer that prevents oxidation. The “L” designation signifies low carbon content (less than 0.03 percent), which prevents carbide precipitation during welding and maintains corrosion resistance in the heat-affected zone.

3. Alloy Steel (High-Temperature Strength)

In high-temperature power piping governed by ASME B31.1, standard carbon steel loses its mechanical strength and becomes susceptible to creep deformation. Alloy steels containing chromium and molybdenum (such as ASTM A335 P11, P22, and P91) are engineered to withstand temperatures exceeding 500 degrees Celsius. Chromium provides oxidation resistance, while molybdenum increases creep strength and high-temperature tensile properties.

Pressure Design and Wall Thickness Calculations

To ensure a metallic pipe can safely contain internal pressure, we must calculate its minimum required wall thickness. Under ASME B31.3 Section 304.1.2, the basic formula for the pressure design thickness (t) of straight pipe under internal pressure is:

Where:

• P = Internal design gage pressure (psi or MPa)
• D = Outside diameter of the pipe (inches or mm)
• S = Allowable stress value for the material at design temperature from ASME B31.3 Table A-1 (psi or MPa)
• E = Quality factor (1.0 for seamless pipe, 0.85 for electric resistance welded pipe)
• W = Weld joint strength reduction factor (1.0 for typical temperatures)
• Y = Coefficient from Table 304.1.1 (0.4 for ductile metals at temperatures below 482 degrees Celsius)

Once the pressure design thickness (t) is calculated, you must add mechanical allowances (such as thread depth or groove depth), corrosion allowances (c), and account for the manufacturer’s mill tolerance (typically 12.5 percent for seamless pipe) to determine the nominal wall thickness.

How to Select Metallic Piping ASTM Specifications

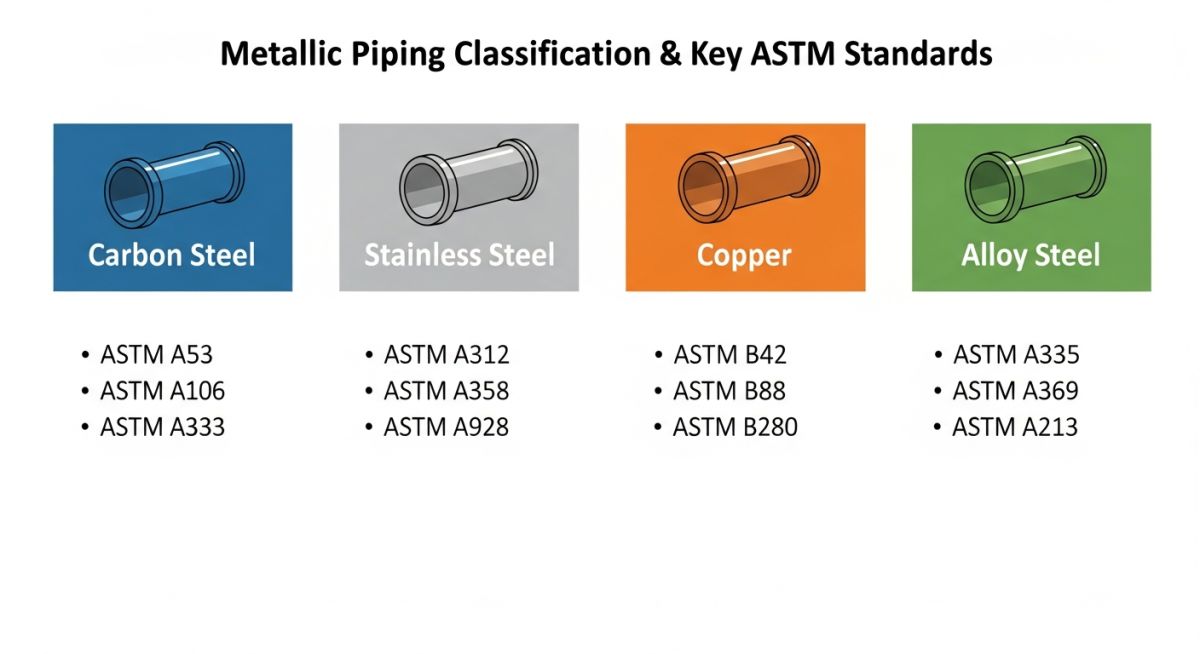

Specifying the correct ASTM standard is critical to ensuring that the piping materials delivered to your job site match the design assumptions made during stress analysis. Below is a curated reference table of the most common ASTM standards used in industrial metallic piping systems.

Technical Mapping & Specifications Matrix

To bridge the gap between design codes and physical procurement, engineers must map key physical parameters to their corresponding industry acronyms and standards.

Field Inspection Checklist for Metallic Piping

Before any metallic piping system is pressurized and put into service, a rigorous field inspection must be performed. Skipping these steps can lead to catastrophic failures during hydrotesting or, worse, during plant startup. Use this checklist on your job site to ensure compliance with engineering designs.

Field Case Study: Real-World Application

My recommendation for any high-temperature piping project is simple: never rely solely on paper documentation. Implement a mandatory PMI program for all alloy steel components prior to welding, and always perform a final walkdown of the piping system in its hot operating condition to verify clearances.
