Why Is Graphite a Better Lubricant Than Oil in Industrial Piping?

In my 20 years of commissioning high-pressure piping systems and high-temperature process plants, I have seen countless mechanical failures caused by a simple mistake: selecting the wrong lubricant. Many field engineers default to high-performance liquid oils, assuming that fluid film lubrication is always superior. However, when operating temperatures climb past 150 degrees Celsius, or when vacuum pressures drop to levels where liquid hydrocarbons instantly vaporize, traditional oils fail catastrophically.

This is where solid-state carbon chemistry changes the game. Under extreme mechanical loads and thermal stress, the physical properties of graphite allow it to maintain an incredibly low coefficient of friction without the risk of thermal degradation, outgassing, or chemical breakdown. In this guide, I will break down the exact mechanical and thermodynamic reasons why solid graphite outperforms liquid oil lubricants in demanding industrial environments.

Evaluating Graphite vs Oil Lubricant Under Extreme Thermal Stress

[Thermal Boundary Lubrication]: Solid graphite operates via weak van der Waals forces between graphene sheets, maintaining structural integrity up to 450 degrees Celsius in oxidizing environments, whereas liquid oils decompose and carbonize above 150 degrees Celsius under ASME B31.3 process conditions.

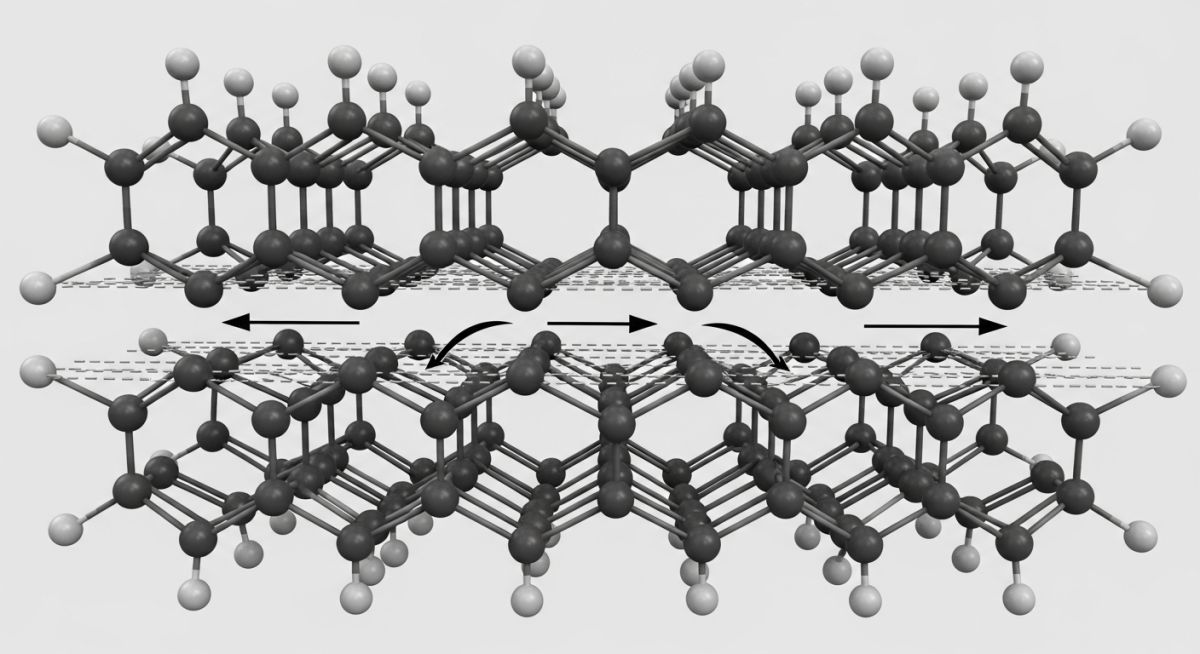

To understand why graphite outperforms oil, we must look at its atomic structure. Graphite is composed of carbon atoms arranged in hexagonal, planar rings. These individual layers, known as graphene sheets, are held together internally by incredibly strong covalent bonds. However, the bonds between the parallel layers are weak van der Waals forces. This structural anisotropy allows the layers to slide over one another with minimal shear force.

Liquid oils rely on hydrodynamic lubrication, where a continuous fluid film physically separates two moving metal surfaces. This mechanism is highly dependent on fluid viscosity. As temperature increases, the viscosity of any oil drops exponentially. If the temperature exceeds the flashpoint or thermal cracking limit of the oil, the hydrocarbon chains break down, leaving behind abrasive carbonaceous coke and exposing the metal substrates to direct, high-friction contact.

The Mathematics of Sliding Shear Stress

Let us calculate the difference in shear stress and frictional force on a heavy piping slide plate support. Consider a pipe support carrying a normal load of 50,000 Newtons. The contact area of the slide plate is 0.01 square meters.

Frictional Force (F) = Coefficient of Friction (mu) * Normal Force (N)
Shear Stress (tau) = Frictional Force (F) / Contact Area (A)

Under boundary lubrication conditions where a liquid oil film has thinned out or partially degraded due to heat, the coefficient of friction (mu) can easily rise to 0.4.

For degraded oil:
F = 0.4 * 50,000 N = 20,000 N
tau = 20,000 N / 0.01 m^2 = 2,000,000 Pa = 2.0 MPa

Now, let us substitute a solid graphite slide plate coating, which maintains a stable coefficient of friction of 0.1 under the same high-load, high-temperature conditions:

For solid graphite:
F = 0.1 * 50,000 N = 5,000 N
tau = 5,000 N / 0.01 m^2 = 500,000 Pa = 0.5 MPa

This simple calculation demonstrates a 75 percent reduction in both frictional force and shear stress on the supporting structural steel. This reduction prevents structural deformation and allows for smooth thermal expansion of the piping system, in compliance with ASME B31.3 design limits.

Why Moisture is the Secret Catalyst

A common misconception is that graphite is inherently slippery. In reality, the low friction of graphite is heavily assisted by adsorbed gases, particularly water vapor. The water molecules occupy the active bonding sites at the edges of the graphite crystallites, reducing the bonding energy between the layers.

In high-vacuum applications, such as space systems or vacuum furnaces, graphite loses this moisture and undergoes a phenomenon known as “rapid wear.” For these specific applications, engineers must specify metal-halide doped graphite or transition to alternative solid lubricants like molybdenum disulfide (MoS2), which does not require moisture to lubricate.

Comparing Graphite vs Oil Lubricant Physical Properties and Limits

[Lubricant Property Comparison]: Direct physical property mapping reveals that solid graphite maintains a low friction coefficient of 0.1 to 0.2 without fluid drag, while industrial oils exhibit viscosity degradation and volatile outgassing under high vacuum and high load conditions.

The table below outlines the critical operational envelopes for graphite compared to standard mineral and synthetic oils. These values are compiled from empirical field testing and standard reference databases.

When designing piping components, valves, and sliding mechanisms, engineers must map the correct lubricant type to the corresponding industry standards. The matrix below provides a direct reference for material selection and compliance.

Field Selection Protocol for Industrial Solid Lubricants

[Solid Lubricant Selection Protocol]: Field engineers must verify operating temperature, atmospheric moisture levels, and substrate surface roughness before substituting liquid lubricants with dry graphite powder or coatings to prevent galvanic corrosion.

Before replacing liquid oil with graphite in any piping support, valve assembly, or rotating equipment component, walk through this verification protocol on-site.

Field Case Study: Real-World Application

This case study highlights a fundamental truth in piping engineering: trying to force a liquid lubricant to work outside its thermodynamic limits is a losing battle. Transitioning to a solid-state lubricant like graphite is often the simplest and most effective solution for high-temperature mechanical interfaces.
