Hydrogen Storage Technologies: A Comprehensive Engineering and Selection Guide

In my 20 years of designing piping systems and high-pressure storage facilities, I have seen many engineers treat hydrogen like standard natural gas. That is a recipe for disaster. Hydrogen is a unique, highly challenging molecule. It is the smallest element in the universe, meaning it leaks through the tiniest microscopic pathways. It has a wide flammability range of 4 percent to 75 percent in air, and it actively degrades high-strength steels through hydrogen embrittlement.

As we transition toward clean energy, selecting and designing the right storage system is not just a matter of cost; it is a matter of safety, efficiency, and long-term mechanical integrity. In this guide, I will share my hands-on field experience and the exact engineering calculations you need to evaluate and implement these systems successfully.

Evaluating Hydrogen Storage Technologies for Industrial Applications

To design an effective storage system, we must first look at the physical properties of hydrogen. At standard temperature and pressure, hydrogen gas has an incredibly low density of approximately 0.089 kilograms per cubic meter. To store a practical mass of hydrogen, we must drastically increase its density. This is achieved through physical compression, liquefaction, or chemical bonding.

1. Compressed Hydrogen Storage

Compressed gas is the most mature technology. It is stored in pressure vessels categorized into four distinct types:

• Type I: All-metal vessels (usually carbon steel or aluminum). They are heavy, limited to pressures around 200 bar, and highly susceptible to hydrogen embrittlement.
• Type II: Metal hoop-wrapped with fiber resin composite. These offer moderate weight savings and operate up to 300 bar.
• Type III: Carbon fiber composite wrapped around a thin metal liner (aluminum or steel). These can handle up to 450 bar and are common in medium-scale transport.
• Type IV: Fully composite vessels with a non-metallic polymer liner (typically high-density polyethylene) wrapped in carbon fiber. These are the gold standard for high-pressure applications, operating at 350 bar to 700 bar with excellent weight-to-strength ratios.

The Real Gas Compressibility Calculation

When calculating the stored mass of hydrogen at high pressures, you cannot use the ideal gas law. At 350 bar and 700 bar, hydrogen behaves as a non-ideal gas because of intermolecular repulsive forces. We must use the compressibility factor (Z) in our calculations:

Let us compare the ideal gas calculation versus the real gas calculation for a 10 cubic meter vessel at 350 bar (35,000,000 Pascals) and 20 degrees Celsius (293.15 Kelvin).

Using the ideal gas law (where Z = 1.0):
m_ideal = (35,000,000 * 10) / (4124.2 * 293.15) = 289.5 kilograms.

In reality, at 350 bar and 20 degrees Celsius, the compressibility factor Z for hydrogen is approximately 1.22. Let us calculate the actual mass:
m_real = (35,000,000 * 10) / (1.22 * 4124.2 * 293.15) = 237.3 kilograms.

By failing to account for the compressibility factor, an engineer would overestimate the storage capacity by 22 percent! At 700 bar, Z increases to approximately 1.43, making this calculation even more critical.

2. Cryogenic Liquid Hydrogen Storage

To liquefy hydrogen, it must be cooled down to -253 degrees Celsius at atmospheric pressure. This process increases the volumetric density to approximately 71 kilograms per cubic meter, which is nearly double the density of compressed gas at 700 bar.

However, the thermodynamic penalty is severe. Liquefaction requires up to 30 percent to 35 percent of the lower heating value (LHV) of the hydrogen itself. Additionally, liquid storage vessels must be double-walled, vacuum-insulated, and designed to manage Boil-Off Gas (BOG) caused by ambient heat leakages.

3. Solid-State and Chemical Storage (Metal Hydrides, LOHC, Ammonia)

For stationary applications where space is limited but weight is not a primary constraint, solid-state and chemical carriers offer safer, lower-pressure alternatives:

• Metal Hydrides: Hydrogen is chemically bonded with metal alloys (like titanium-iron or lanthanum-nickel) at low pressures (10 to 30 bar). This process is highly exothermic during absorption and endothermic during desorption, requiring integrated thermal management systems.
• Liquid Organic Hydrogen Carriers (LOHC): Hydrogen is reacted with organic liquids (like toluene or dibenzyltoluene) for safe transport at ambient conditions using existing petroleum infrastructure. The main drawback is the high energy required for the dehydrogenation reaction at the end-use site.
• Ammonia (NH3): Ammonia is an excellent hydrogen carrier because it liquefies at a modest -33 degrees Celsius or under 8.5 bar of pressure at ambient temperature. It has a high volumetric hydrogen density, but cracking it back into high-purity hydrogen requires significant thermal energy and purification steps.

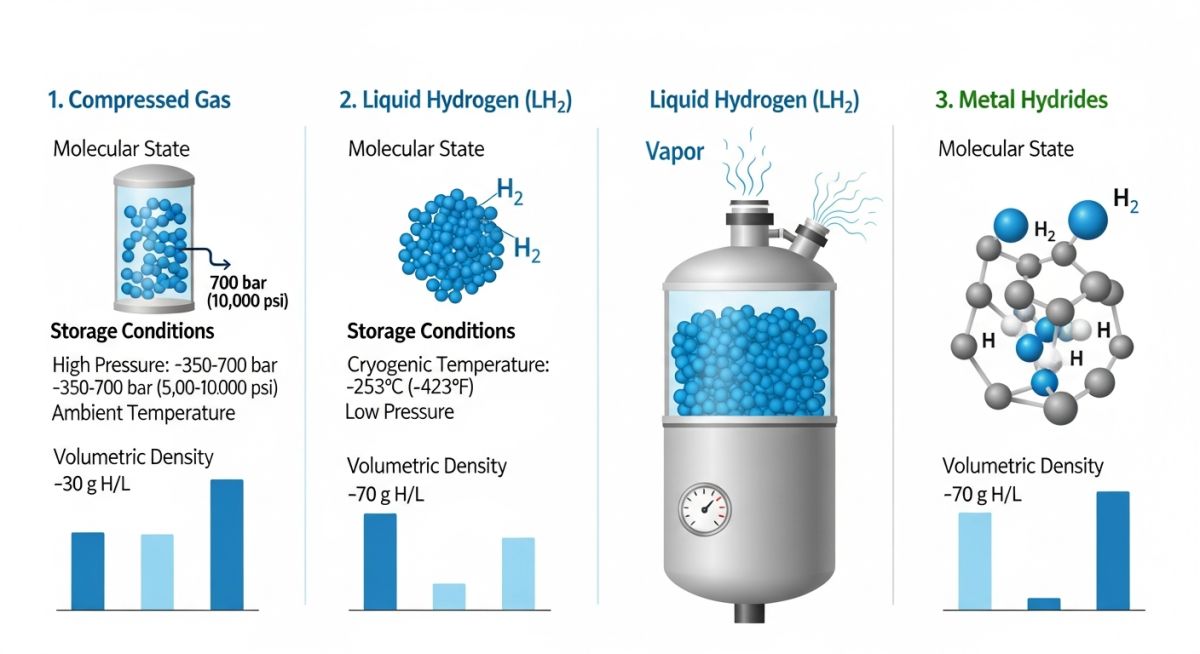

The table below provides a direct engineering comparison of the primary hydrogen storage methods. Use these values during your initial front-end engineering design (FEED) studies.

This matrix maps key technical terms, acronyms, and physical parameters to their corresponding industry standards.

Implementing Hydrogen Storage Technologies Safely on Site

Before you introduce hydrogen into any newly constructed piping manifold or storage vessel, you must execute a strict pre-commissioning protocol. In my years on site, I have found that skipping even a minor step can lead to leaks that are incredibly difficult to locate once the system is fully pressurized.

Field Case Study: Real-World Application

My Recommendation: Always mandate helium leak testing for any hydrogen system operating above 10 bar. Standard bubble tests are simply not sensitive enough to detect the micro-leaks that hydrogen can exploit.
