Mastering Hydrogen Safety in Industrial Facilities: Engineering and Design Guide

In my 20-plus years of designing piping systems for high-pressure gas applications, I have watched hydrogen transition from a niche chemical feedstock to the absolute forefront of the global clean energy transition. But let me be completely frank with you: hydrogen is an incredibly unforgiving molecule. It is the smallest, lightest, and most leak-prone element in existence. If you design a hydrogen system using the same rules of thumb you use for natural gas or propane, you are setting yourself up for a catastrophic field failure.

When I review piping and instrumentation diagrams (P&IDs) for modern hydrogen facilities, the first things I look for are not just the pipe schedules, but the fundamental safety layers. Hydrogen has an extremely wide flammability range (4% to 75% by volume in air) and an incredibly low minimum ignition energy of just 0.02 millijoules. A tiny static spark, or even the friction of a high-pressure leak escaping a flange, can ignite it. This guide is my attempt to download two decades of hard-won field experience directly into your design workflow, ensuring your facility remains safe, compliant, and highly efficient.

Why Hydrogen Safety in Industrial Facilities Demands Precision

To design a safe facility, we must first look at the physics of the molecule. Hydrogen’s density is only about 7% of air’s density. This means that when a leak occurs, the gas rises rapidly at a velocity of up to 9 meters per second. While this high buoyancy is a massive advantage in open-air environments—where the gas quickly disperses upward—it becomes a major hazard indoors. If your facility has unventilated ceiling pockets, structural I-beams, or roof peaks, hydrogen will trap there, quickly reaching explosive concentrations.

Calculating Sonic Leak Rates for Hydrogen

When hydrogen escapes from a high-pressure line, the flow is almost always choked (sonic). This occurs because the upstream pressure is significantly higher than the atmospheric pressure. To size your ventilation systems and determine the placement of your detectors, you must calculate the mass flow rate of a potential leak.

The choked mass flow rate through a sharp-edged orifice can be calculated using the following standard thermodynamic equation:

Where:

• m_dot = Mass flow rate of the leak (kilograms per second)
• Cd = Discharge coefficient of the leak orifice (dimensionless, typically 0.62 for a sharp-edged pinhole)
• A = Area of the leak orifice (square meters)
• P1 = Upstream absolute pressure (Pascals)
• k = Ratio of specific heats for hydrogen (1.41 at 20 degrees Celsius, dimensionless)
• MW = Molecular weight of hydrogen (0.002016 kilograms per mole)
• R = Universal gas constant (8.314 Joules per mole-Kelvin)
• T1 = Upstream temperature (Kelvin)

Let us walk through a real-world design scenario. Suppose we have a hydrogen buffer vessel operating at 350 bar (35,000,000 Pascals) at a temperature of 293 Kelvin (20 degrees Celsius). We want to calculate the leak rate through a 1.0-millimeter diameter pinhole in a weld joint.

First, calculate the cross-sectional area of the leak:

Next, substitute the values into our choked flow equation:

Let’s break down the terms inside the square root:

Now, multiply by the external terms:

This 1 mm pinhole leak results in a continuous release of 10.6 grams of hydrogen per second. While 10.6 grams sounds small, at standard temperature and pressure, this equates to approximately 127 liters of gas per second escaping into your facility. If this occurs in an enclosed compressor room, it will reach the lower flammability limit in seconds without massive, immediate ventilation.

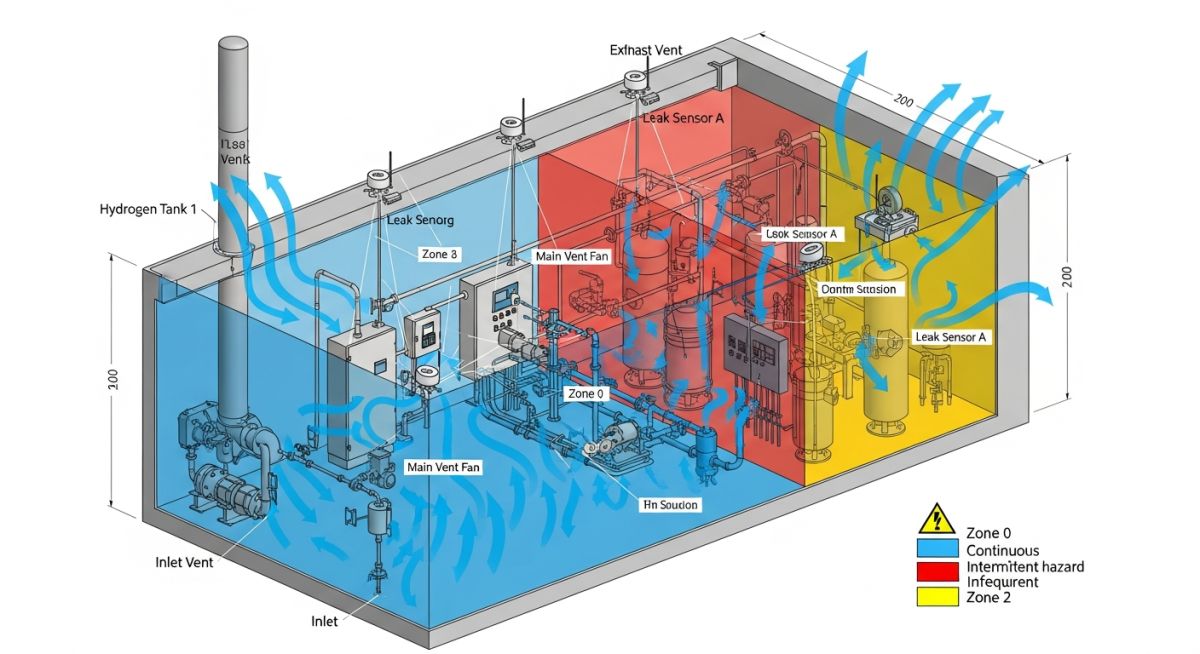

Designing Dilution Ventilation Systems

To prevent a leak of this magnitude from forming an explosive cloud, we must design a dilution ventilation system. The goal is to maintain the average hydrogen concentration below 25% of the Lower Flammability Limit (LFL). Since the LFL of hydrogen is 4.0% by volume, our target concentration (C) must not exceed 1.0% (0.01 volume fraction).

The required volumetric airflow rate (Q) for dilution ventilation is calculated as:

Where:

• Q = Required fresh airflow rate (cubic meters per second)
• V_leak = Volumetric leak rate of hydrogen at room temperature (cubic meters per second)
• S = Safety factor (typically 4.0 for industrial facilities to account for imperfect mixing)
• C_target = Target concentration limit (0.01 for 25% of LFL)

Using our calculated leak rate of 127 liters per second (0.127 cubic meters per second):

This means your ventilation fans must move 50.8 cubic meters of air per second (approximately 107,000 CFM) to safely dilute a single 1 mm pinhole leak in that room. This calculation highlights why we must combine ventilation with rapid, automated isolation valves to shut off the hydrogen source immediately upon leak detection.

To design safe systems, we must compare the physical properties of hydrogen against other common industrial gases. The table below outlines these critical differences, highlighting why hydrogen requires specialized engineering controls.

This matrix maps the core technical entities, structural acronyms, physical parameters, and hyperlinked standard references required for a compliant hydrogen facility design.

Pre-Commissioning Hydrogen Safety Checklist

Before you introduce a single molecule of hydrogen into a newly constructed or modified piping system, you must execute a rigorous pre-commissioning protocol. In my experience, most start-up incidents occur because of simple installation errors—such as reversed check valves, loose flange bolts, or uncalibrated gas detectors. Use this checklist to verify your facility’s safety systems before startup.

Implementing Hydrogen Safety in Industrial Facilities Safely

To illustrate the critical importance of proper engineering controls, let us look at a real-world project I audited in 2022. A green hydrogen production facility experienced a series of micro-leaks that could have resulted in a major explosion if not for the multi-layered safety systems we implemented during the design phase.

Direct Engineering Recommendation

Never rely on a single layer of protection. A safe hydrogen facility must utilize the “Defense in Depth” principle: robust mechanical containment (ASME B31.12), rapid automated isolation (ESD), continuous high-point monitoring, and active dilution ventilation. If any one of these layers fails, the others must be capable of preventing a catastrophic event.
