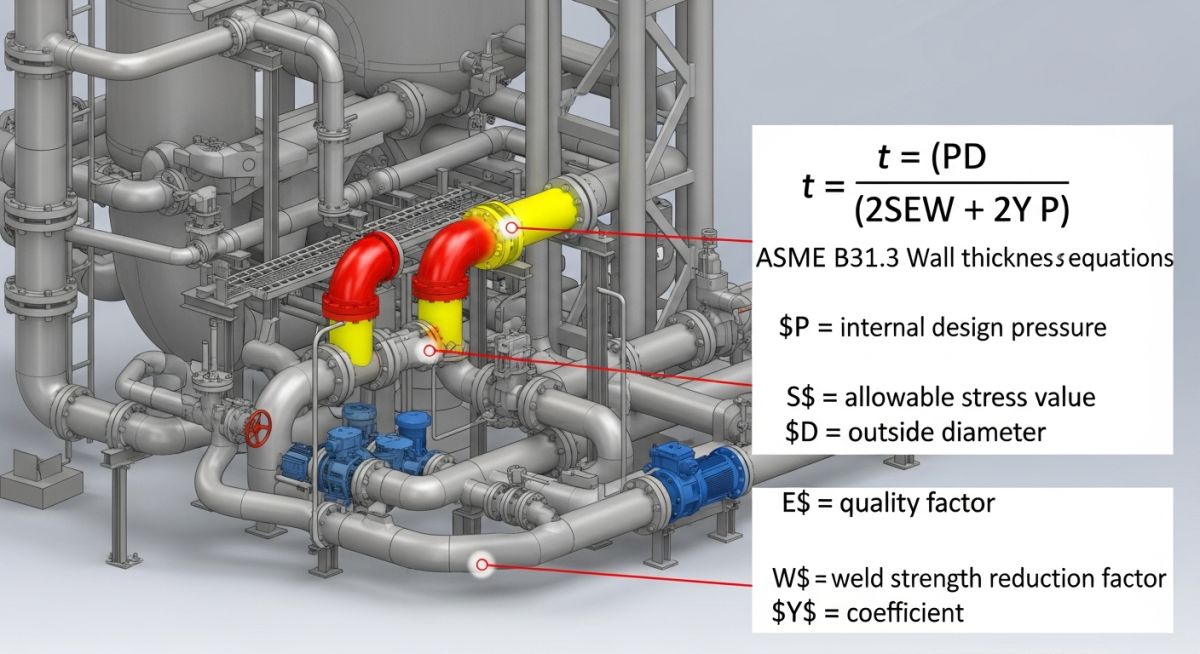

3D CAD model of industrial process piping with ASME B31.3 design formula overlays.
Author: Atul Singla | Piping Engineering Expert | Updated: May 2026
ASME B31.3 Piping Design CAD Model

Understanding the Critical Role of Y Factor in ASME B31.3

ASME B31.3 Y Factor: A dimensionless coefficient used in pressure piping design to adjust the calculated minimum wall thickness based on material creep properties and operating temperature. This factor accounts for the redistribution of stress across the pipe wall at elevated temperatures, ensuring compliance with ASME B31.3 process piping standards.

In my 20 years of experience designing high-temperature piping systems for refineries and petrochemical plants, I have seen minor design oversights lead to catastrophic field failures. One of the most misunderstood parameters in the ASME B31.3 wall thickness equation is the Y factor. This simple-looking coefficient is the thin line between an optimized, safe piping system and a ticking time bomb operating in the creep range.

When designing piping for ambient conditions, we rely on elastic stress distribution. However, as operating temperatures climb into the creep regime, materials begin to behave plastically. The Y factor is the code’s mathematical bridge that transitions our calculations from pure elastic theory to plastic stress redistribution. Ignoring its temperature-dependent nature can lead to under-designed pipe walls, accelerated creep-rupture, and premature system failure.

Key Engineering Takeaways

  • The Y factor is not a constant; it varies dynamically from 0.4 to 0.7 based on material structure and design temperature.
  • At lower temperatures, Y represents the elastic stress distribution across the pipe wall thickness.
  • At elevated temperatures, Y increases to account for plastic deformation and creep stress relaxation.
  • Incorrect selection of the Y factor directly violates ASME B31.3 compliance and compromises structural integrity.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

In ASME B31.3, the coefficient $Y$ in the pipe wall thickness equation (Paragraph 304.1.1) varies with material type and design temperature. What is the primary engineering reason for the increase in the value of $Y$ (for example, from 0.4 to 0.7) for certain materials at elevated design temperatures?




Complete Course on
Piping Engineering

Check Now

Key Features

  • 125+ Hours Content
  • 500+ Recorded Lectures
  • 20+ Years Exp.
  • Lifetime Access

Coverage

  • Codes & Standards
  • Layouts & Design
  • Material Eng.
  • Stress Analysis
Deep-Dive: Stress Redistribution and the Y Factor

Why Y Factor in ASME B31.3 Matters

High-Temperature Stress Redistribution: The physical phenomenon where thermal creep relaxes outer-fiber bending stresses and redistributes pressure loading uniformly across the pipe wall. The Y factor mathematically represents this transition from elastic behavior at low temperatures to plastic creep behavior at elevated temperatures.

To understand why the Y factor is so important, we must look at the fundamental equation for pressure design thickness (t) under ASME B31.3 Paragraph 304.1.2:

t = (P * D) / (2 * (S * E * W + P * Y))

Where:
P = Internal design gage pressure
D = Outside diameter of the pipe
S = Allowable stress value for the material from Table A-1
E = Quality factor from Table A-1A or Table A-1B
W = Weld joint strength reduction factor
Y = Coefficient from Table 304.1.1 (The Y Factor)

In an elastic state (at lower temperatures), the stress across a thick-walled cylinder is non-uniform. The hoop stress is highest at the inner bore and lowest at the outer surface. This is represented by Lame’s equations. When we design in this regime, a Y factor of 0.4 acts as an interpolation coefficient to approximate this non-linear stress distribution.

However, when the operating temperature enters the creep range, the material undergoes continuous plastic deformation under constant stress. This plastic flow relaxes the highly stressed inner fibers and shifts the load toward the outer fibers. Over time, the stress distribution across the pipe wall becomes almost completely uniform.

To reflect this uniform stress state, the Y factor increases. For ferritic steels, it transitions from 0.4 to 0.5, and eventually up to 0.7 for other materials at extreme temperatures. If you fail to update the Y factor in your calculations, you are assuming the material is still behaving elastically, which leads to an incorrect calculation of the required wall thickness.

CRITICAL WARNING: Never use a default Y factor of 0.4 for high-temperature designs. For example, using Y = 0.4 instead of Y = 0.7 for an austenitic stainless steel line operating at 750°C (1382°F) will result in an under-designed wall thickness. This violates the code and increases the risk of sudden creep-rupture failure.
ASME B31.3 Y Factor Temperature Chart

Material Classifications and Temperature Limits

The Y factor is highly dependent on the microstructure of the material. ASME B31.3 Table 304.1.1 divides materials into distinct groups: Ferritic steels, Austenitic steels, Other ductile materials, and Cast iron. Cast iron has a Y factor of 0.0 because it is a brittle material that does not undergo plastic stress redistribution; it fails in a brittle manner before any creep-induced relaxation can occur.

ASME B31.3 Table 304.1.1 Values

Applying Y Factor in ASME B31.3 Calculations

ASME B31.3 Table 304.1.1 Values: The standardized coefficients categorized by material class and design temperature used to compute minimum wall thickness. These values range from 0.4 for low-temperature elastic design to 0.7 for high-temperature creep-regime design.

When performing wall thickness calculations, you must reference the exact values from ASME B31.3 Table 304.1.1. Below is a structured reference table showing how the Y factor changes as design temperatures rise.

Material Type ≤ 482°C (≤ 900°F) 510°C (950°F) 538°C (1000°F) 566°C (1050°F) 593°C (1100°F) ≥ 621°C (≥ 1150°F)
Ferritic Steels 0.4 0.5 0.7 0.7 0.7 0.7
Austenitic Steels 0.4 0.4 0.4 0.4 0.5 0.7
Nickel Alloys 0.4 0.4 0.4 0.4 0.4 0.5
Other Ductile Materials 0.4 0.4 0.4 0.4 0.4 0.4
Cast Iron 0.0 N/A N/A N/A N/A N/A

For intermediate temperatures, ASME B31.3 allows linear interpolation between the values shown in the table. This is a critical step that many junior engineers miss, leading to either over-designed piping or non-compliant wall thicknesses.

Technical Mapping & Specifications Matrix

To help you navigate the relationship between material grades, temperature thresholds, and code references, I have compiled this technical mapping matrix.

Material Grade Common Standard Creep Threshold Y Factor at Threshold ASME B31.3 Reference
Carbon Steel (A106 Gr. B) ASTM A106 371°C (700°F) 0.4 Table 304.1.1 / Table A-1
Low Alloy Steel (P22) ASTM A335 454°C (850°F) 0.4 to 0.5 (Interpolated) Table 304.1.1 / Table A-1
Austenitic SS (316H) ASTM A312 538°C (1000°F) 0.4 Table 304.1.1 / Table A-1
Alloy 800H (UNS N08810) ASTM B407 593°C (1100°F) 0.4 to 0.5 (Interpolated) Table 304.1.1 / Table A-1

Site Verification Checklist

Verifying Y Factor in Piping Design

Design Verification Protocol: The systematic engineering review process used to validate that the correct Y factor has been selected based on the actual operating temperature and material grade. This protocol prevents catastrophic creep-rupture failures in high-temperature process piping systems.

Before releasing any piping isometric drawings or stress analysis reports for construction, I always run through a strict verification checklist. This ensures that the Y factor used in the calculations matches the actual physical properties of the piping system under design conditions.

Y Factor Design Verification Checklist

  • Verify Material Grouping: Cross-reference the specified material grade (e.g., ASTM A335 P91) with the material classifications in ASME B31.3 Table 304.1.1.
  • Confirm Design Temperature: Ensure the design temperature used in the wall thickness calculation matches the process design conditions, not just the normal operating temperature.
  • Check for Linear Interpolation: If the design temperature falls between the values listed in Table 304.1.1, verify that linear interpolation was performed correctly. Do not round up or down to the nearest table value.
  • Validate Thickness-to-Diameter Ratio: Confirm that the ratio of design thickness to outside diameter (t/D) is less than 0.16. If t/D is greater than or equal to 0.16, the standard wall thickness equation and standard Y factors do not apply; you must use the thick-wall equations in Paragraph 304.1.2(b).
  • Software Input Audit: Audit the piping stress analysis software (e.g., CAESAR II) and 3D modeling software to ensure the Y factor has not been hardcoded to a default value of 0.4.

Field Case Study

Field Case Study: Real-World Application

The Problem: Creep Deformation in a Steam Line

During a routine turnaround at a combined-cycle power plant, inspectors discovered localized bulging and minor cracking on a high-pressure superheated steam line. The line was constructed from ASTM A335 Grade P22 (2.25Cr-1Mo) low-alloy steel and operated at 540°C (1004°F) with an internal design pressure of 4.2 MPa.

Upon reviewing the original design calculations, I discovered that the engineering contractor had used a default Y factor of 0.4. Because 540°C is well into the creep range for P22 steel, the correct Y factor should have been interpolated as 0.5. By using Y = 0.4, the calculated minimum wall thickness was under-designed, leading to high localized stresses and accelerated creep deformation within just 18 months of operation.

The Outcome: Recalculation and Remediation

I led the forensic engineering team to resolve this issue. We recalculated the minimum required wall thickness using the correct Y factor of 0.5 as per ASME B31.3 Table 304.1.1.

The recalculation showed that the pipe wall needed to be 8% thicker than originally installed. We replaced the damaged section of piping with the correct heavier schedule. To ensure long-term safety, we installed continuous high-temperature strain gauges to monitor for any future creep deformation. The system has now been operating safely for over five years without any further issues.

My recommendation to all piping engineers is simple: treat the Y factor as a dynamic variable. Always verify your design temperatures and material grades against the code tables. Never let a software default value dictate the safety of your high-temperature piping systems.

Frequently Asked Engineering Questions

What is the physical meaning of the Y factor in ASME B31.3?

The Y factor is a dimensionless coefficient that accounts for the stress distribution across the pipe wall. At lower temperatures, it approximates the non-uniform elastic stress distribution. At high temperatures (in the creep range), it increases to reflect the uniform plastic stress distribution that occurs as the material deforms plastically.
How do I calculate the Y factor for intermediate temperatures?

For design temperatures that fall between the values listed in ASME B31.3 Table 304.1.1, you must perform linear interpolation. For example, if your design temperature is 496°C (which lies between 482°C and 510°C), you must interpolate between the Y values of 0.4 and 0.5.
Why is the Y factor for cast iron always 0.0?

Cast iron is a brittle material that does not exhibit plastic deformation or creep-induced stress relaxation. Because it cannot redistribute stress across its wall thickness, it behaves purely elastically until failure. Therefore, the code assigns it a constant Y factor of 0.0.
What happens if the t/D ratio is greater than or equal to 0.16?

If the design thickness-to-diameter ratio (t/D) is greater than or equal to 0.16, the pipe is classified as thick-walled. The standard wall thickness equation and standard Y factors from Table 304.1.1 can no longer be used. Instead, you must use the thick-wall design equations outlined in ASME B31.3 Paragraph 304.1.2(b).
Can I use a Y factor of 0.4 for all carbon steel piping?

Yes, because carbon steel piping is generally limited to design temperatures below 427°C (800°F) due to graphitization risks. Since this temperature is below the 482°C (900°F) threshold where the Y factor begins to change for ferritic steels, a Y factor of 0.4 is correct for all standard carbon steel applications.
How does the Y factor affect the calculated minimum wall thickness?

The Y factor is located in the denominator of the ASME B31.3 wall thickness equation. As the Y factor increases (e.g., from 0.4 to 0.7 at high temperatures), the denominator increases, which results in a smaller calculated minimum wall thickness. This reflects the material’s ability to distribute stress more uniformly when operating in the plastic creep regime.
