What are Tube Fittings and How Do They Work?

In my 20 years of commissioning refinery piping systems, I have seen my share of spectacular failures. I still remember a cold morning in a hydrogen pilot plant when a poorly installed compression fitting blew clean off its tubing run at 350 bar. The culprit? A technician had mixed up a standard pipe thread with a tube fitting connection, assuming they were interchangeable. They are not.

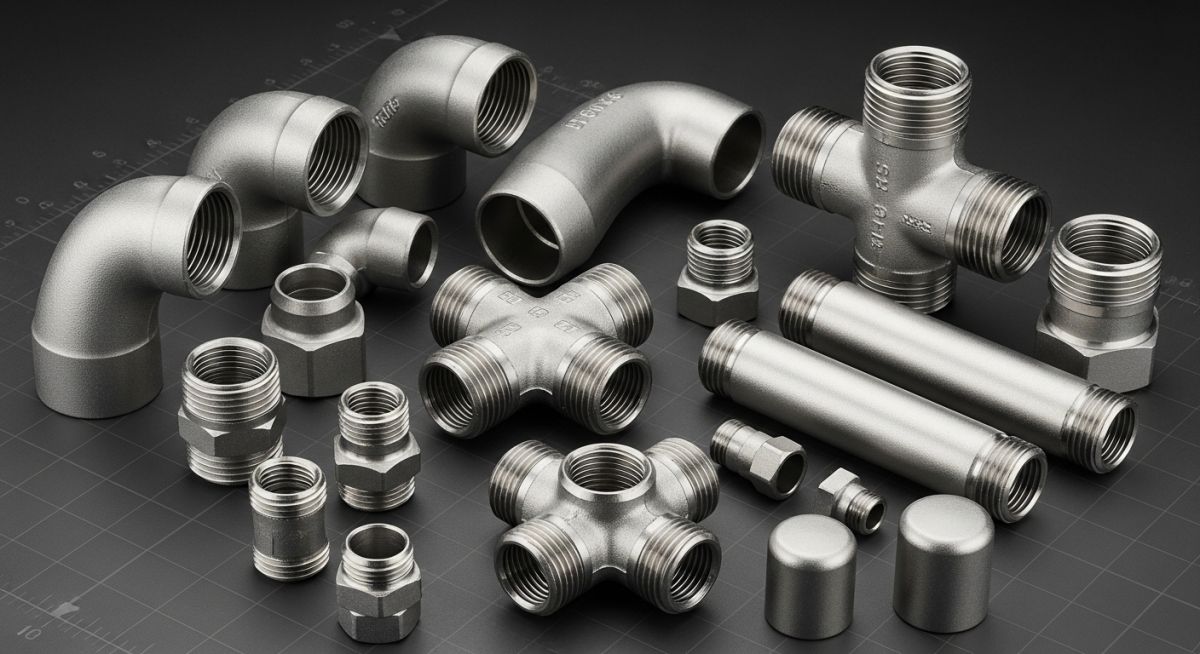

Understanding the mechanics of tube fittings is not just about making a tight connection; it is about safety, system integrity, and long-term reliability. Tubing systems require a level of precision that standard piping simply cannot match. In this guide, I will break down the engineering principles behind these components, their distinct types, and how they differ fundamentally from pipe fittings.

The primary reason we turn to tubing and tube fittings is the wall thickness of the conduit. Standard pipes have thick walls designed to be threaded or welded. Tubing, on the other hand, features thinner walls with highly controlled outside diameters. Because you cannot safely cut threads into thin-walled tubing without compromising its structural integrity, we rely on mechanical fittings to do the heavy lifting.

The Mechanics of the Double-Ferrule Design

The double-ferrule compression fitting is the gold standard in industrial instrumentation. When you tighten the fitting nut, it drives the back ferrule forward, which in turn pushes the front ferrule into the fitting body’s angled seat.

• The Front Ferrule: Creates the primary seal against the fitting body and the tubing outside diameter.
• The Back Ferrule: Mechanically grips the tubing, preventing it from backing out under high pressure. It also dampens system vibration, protecting the primary seal.

Calculating Allowable Working Pressure

To determine if a tubing system can safely handle your process pressures, we use Barlow’s Formula. This calculation is fundamental when designing systems under ASME B31.3:

Where:
P = Allowable working pressure (psi)
S = Maximum allowable stress of the material (psi) at design temperature (from ASME B31.3 Table A-1)
t = Nominal wall thickness of the tubing (inches)
D = Nominal outside diameter of the tubing (inches)

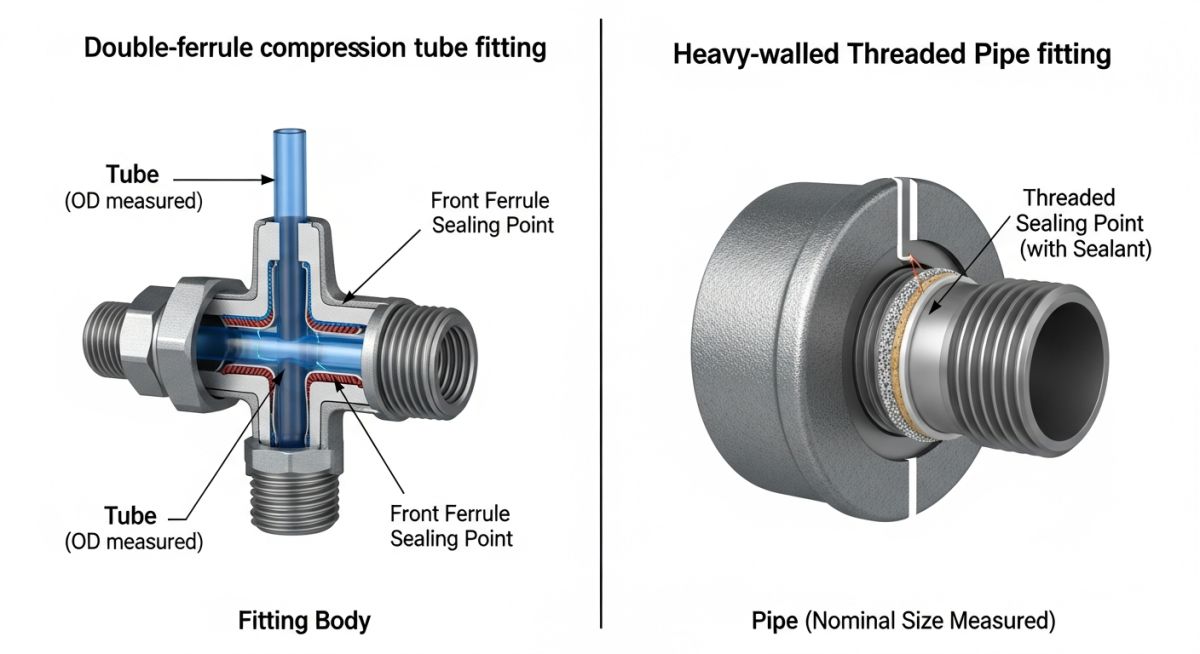

Key Differences: Tube Fittings vs. Pipe Fittings

The table below highlights the fundamental differences that every piping designer must keep in mind when selecting components for a fluid system.

The following data represents the allowable working pressures (psi) for fully annealed 316/316L stainless steel tubing conforming to ASTM A269 or equivalent standards. These values are calculated with a 4:1 safety factor.

This matrix maps common tube fitting configurations to their primary design standards, typical applications, and material specifications.

Selecting the wrong fitting can lead to system leaks, premature wear, or catastrophic failure. Over my career, I have developed a rigorous verification process that must be completed before any tubing system is released for construction.

Field Case Study: Real-World Application

My Recommendation: Always establish a strict material control program on-site. Color-code or segregate fittings from different manufacturers to prevent accidental mixing, and verify tubing hardness certificates before installation begins.
