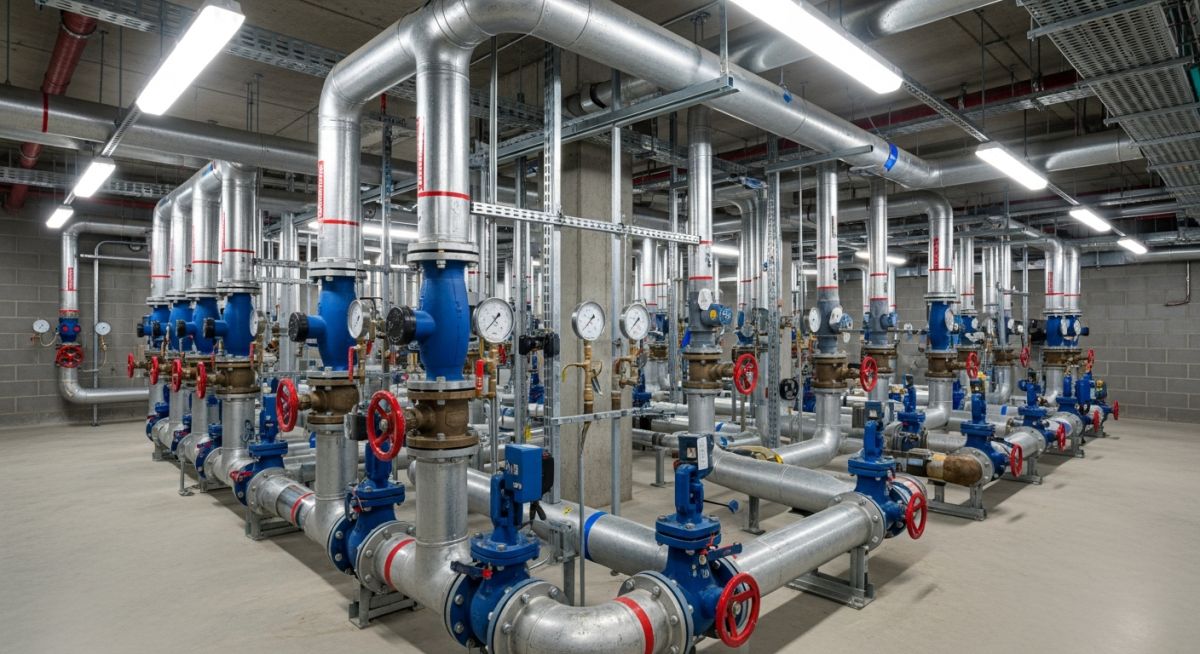

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the concept of HVAC piping in a professional, clean, and modern commercial mechanical room setting. Description: A high-quality, wide-angle photograph of a modern commercial mechanical room showing neatly arranged, insulated HVAC piping with color-coded lines, valves, and pressure gauges. SEO Alt Text: Insulated HVAC piping systems with valves and gauges in a commercial mechanical room. Image Slug: modern-commercial-hvac-piping-system Filename URL: https://epcland.com/wp-content/uploads/2026/06/modern-commercial-hvac-piping-system.jpg Technical Infographic: Purpose: To illustrate and compare the different types of piping materials commonly used in HVAC systems. Description: An infographic diagram displaying labeled examples of HVAC piping materials, including copper, carbon steel, PEX, and PVC, highlighting their typical applications. SEO Alt Text: Infographic comparing HVAC piping materials like copper, steel, PEX, and PVC. Image Slug: hvac-piping-materials-comparison-chart Filename URL: https://epcland.com/wp-content/uploads/2026/06/hvac-piping-materials-comparison-chart.jpg Meta Data: Focus Keyword: HVAC piping Title: Guide to HVAC Piping: Types, Materials, and Design Standards Slug: hvac-piping-types-materials-standards Meta Description: Learn about HVAC piping types, common materials like copper and steel, and key design standards for efficient heating and cooling systems. Tags: HVAC piping, piping materials, HVAC design, copper piping, steel piping, HVAC standards, piping systems Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 What is HVAC Piping? Types, Materials, and Standards HVAC Piping Systems: These closed-loop and open-loop fluid networks transport chilled water, hot water, steam, and refrigerants to facilitate thermal energy transfer within commercial and industrial environmental control systems under ASME B31.5 and ASME B31.9 design codes. In my 20 years of piping engineering, I have seen many projects succeed or fail based on the design of their hydronic and refrigerant networks. HVAC piping is the circulatory system of any modern building. If you select the wrong material, miscalculate thermal expansion, or ignore code-mandated velocity limits, you will face system-wide failures. Whether it is a chilled water loop for a data center or a high-pressure steam line for an industrial facility, understanding the physical properties of your piping media is the first step toward building a reliable system. Throughout my career, I have guided field teams through complex installations where thermal stress threatened to tear apart welded joints. By adhering strictly to established standards and selecting materials based on fluid chemistry and temperature limits, we can prevent these costly field failures. Let us explore the core types, materials, and standards that define modern HVAC piping design. Key Engineering Takeaways Material Matching: Copper remains the standard for refrigerant lines, while carbon steel dominates large-bore hydronic loops. Code Compliance: Always design building service lines to ASME B31.9 and refrigerant lines to ASME B31.5. Velocity Limits: Keep hydronic water velocity below 8 feet per second to prevent erosion-corrosion and excessive noise. Thermal Management: Incorporate expansion loops to absorb dimensional changes caused by temperature swings. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 Under ASME B31.9 (Building Services Piping), which is the primary code governing HVAC hydronic piping within buildings, what are the maximum design pressure and temperature limits for water piping systems to remain within the scope of this code? 150 psi (10.3 bar) and 200°F (93°C) 400 psi (27.6 bar) and 300°F (149°C) 350 psi (24.1 bar) and 250°F (121°C) 125 psi (8.6 bar) and 180°F (82°C) Next Question → Question 2 of 3 When specifying copper piping for HVAC systems, what is the primary difference between ASTM B88 Type L copper tube and ASTM B280 ACR copper tube of the same nominal size? ASTM B280 tube is specified by its actual outside diameter (OD) and is cleaned, dehydrated, and capped/nitrogen-charged, whereas ASTM B88 Type L is specified by nominal size and is not pre-cleaned/capped for refrigeration. ASTM B280 tube has a thicker wall than ASTM B88 Type L to withstand higher refrigerant pressures. ASTM B88 Type L is only available in hard-drawn temper, while ASTM B280 is exclusively available in annealed (soft) coils. ASTM B280 uses a different copper alloy (C10200) compared to ASTM B88 (C12200) to prevent refrigerant degradation. Next Question → Question 3 of 3 According to ASHRAE guidelines and standard engineering practices for refrigerant piping design, what is the primary purpose of maintaining a minimum velocity in suction risers, and how is this addressed during part-load operation in variable capacity systems? To prevent liquid refrigerant slugging; addressed by installing a liquid-line solenoid valve. To minimize pressure drop; addressed by increasing the pipe diameter in vertical sections. To prevent flash gas formation; addressed by subcooling the liquid refrigerant before the expansion valve. To ensure proper oil entrainment and return to the compressor; addressed by using double suction risers or variable speed controls. 🎉 Quiz Completed! You have passed the engineering review criteria. Core Technical Principles & Design Calculations What is HVAC Piping? Core Engineering Principles HVAC Piping Design: The systematic selection of pipe schedules, insulation thicknesses, and routing configurations to safely contain and transport thermal media while minimizing pressure drop and thermal losses in compliance with ASHRAE guidelines. To design an efficient HVAC piping system, you must first categorize the system by its fluid medium. The four primary categories are hydronic (chilled and hot water), steam, condensate drainage, and refrigerant piping. Each system operates under distinct thermodynamic and physical constraints. 1. Hydronic Piping Systems Hydronic systems use water or water-glycol mixtures as the heat transfer fluid. Chilled water loops typically operate between 40 degrees Fahrenheit and 55 degrees Fahrenheit, while heating water loops operate from 120 degrees Fahrenheit up to 200 degrees Fahrenheit. The primary design challenge here is balancing flow rates and managing pressure drops. 2. Refrigerant Piping Systems Refrigerant piping connects compressors, condensers, and evaporators. These systems operate under high pressures and must transport both liquid and gaseous refrigerant along with compressor oil. Because of these dual-phase requirements, line sizing is critical. If the pipe is too large, refrigerant velocity drops, and oil will not return to the compressor, leading to mechanical failure. Field Warning: Never oversize suction lines in refrigerant systems. A minimum velocity of 500 feet per minute in horizontal runs and 1000 feet per minute in vertical risers is required to ensure proper oil entrainment and return to the compressor crankcase. Engineering Calculations: Friction Loss and Thermal Expansion Friction loss in hydronic piping is calculated using the Darcy-Weisbach equation: head loss equals the friction factor multiplied by the ratio of pipe length to inside diameter, multiplied by the velocity squared divided by two times the acceleration due to gravity. In practice, engineers often use the Hazen-Williams equation for water systems: pressure drop per hundred feet equals 0.2083 multiplied by the ratio of 100 over the roughness coefficient raised to the power of 1.85, multiplied by flow rate in gallons per minute raised to the power of 1.85 divided by the inside pipe diameter in inches raised to the power of 4.8655. Thermal expansion is another critical calculation. The change in pipe length is calculated using the formula: change in length equals the original length multiplied by the material coefficient of thermal expansion multiplied by the temperature difference. For carbon steel, the coefficient is approximately 0.0000065 inches per inch per degree Fahrenheit, whereas copper is significantly higher at 0.0000093 inches per inch per degree Fahrenheit. Failure to design adequate expansion loops will result in high structural stresses on anchors and equipment nozzles. HVAC Piping Material Selection Guide Material Standard Specification Temperature Range Typical HVAC Application Joining Method Copper (Type L & K) ASTM B88 -40°F to 400°F Refrigerant lines, domestic water, small hydronic runs Brazing, Soldering, Press-connect Carbon Steel (Sch 40/80) ASTM A53 Grade B -20°F to 800°F Large chilled water, hot water, steam, condenser loops Butt-welding, Threaded, Grooved mechanical Stainless Steel (304/316) ASTM A312 -325°F to 1000°F Corrosive environments, cleanrooms, high-temp steam TIG welding, Press-fit PP-R / PP-RCT (Plastic) ASTM F2389 0°F to 180°F Chilled water, condenser water, geothermal loops Heat fusion welding Technical Mapping & Specifications Matrix System Service Governing Code Velocity Limit (fps) Corrosion Allowance Recommended Insulation Chilled Water (CHW) ASME B31.9 4.0 to 8.0 0.0625 inches Closed-cell elastomeric foam Condenser Water (CDW) ASME B31.9 5.0 to 10.0 0.1250 inches Not typically insulated (unless outdoor) Low-Pressure Steam (LPS) ASME B31.1 / B31.9 80.0 to 120.0 0.0625 inches Fiberglass mineral wool Refrigerant (REF) ASME B31.5 Gas: 15-50 / Liquid: 2-4 0.0000 inches (non-corrosive) Elastomeric foam (suction line only) HVAC Piping Pre-Commissioning Checklist HVAC Piping Installation Field Checklist Pre-Commissioning Verification: A structured quality assurance protocol executed prior to system charging to verify structural support integrity, pressure test compliance, and insulation continuity under ASME B31.9. Before you hand over any HVAC piping system to the commissioning agent, you must verify that the physical installation matches the design drawings and engineering specifications. Use this checklist on-site to prevent catastrophic startup failures. Field Verification Checkpoints Hydrostatic Pressure Testing: Verify that the hydronic piping has been pressure tested at 1.5 times the design working pressure for a minimum of 4 hours in accordance with ASME B31.9. Hanger and Support Spacing: Confirm that pipe hangers are spaced according to MSS SP-58 standards. Ensure that insulated lines use high-density inserts with vapor barriers to prevent crushing. Air Venting and Drainage: Check that manual or automatic air vents are installed at all high points of the hydronic loop, and drain valves are present at all low points. Expansion Loop Clearance: Inspect all expansion loops and joints. Ensure that shipping bars have been removed and that the piping has room to expand without hitting structural elements. Flushing and Chemical Treatment: Verify that the system has been thoroughly flushed with clean water and treated with corrosion inhibitors before being put into continuous service. Field Case Study: Real-World Application What is HVAC Piping? Case Study HVAC Piping Remediation: The forensic analysis and physical modification of a failing hydronic loop to resolve severe thermal expansion stress and flow imbalances. The Problem: Chilled Water Riser Joint Failures On a 15-story commercial office tower project, the field team reported recurring leaks at the main 8-inch chilled water riser joints on floors 4 and 8. The system used Schedule 40 carbon steel piping with grooved mechanical couplings. Upon inspection, I discovered that the original design had omitted expansion loops, assuming the grooved couplings would absorb all axial movement. However, because the pipe anchors were improperly placed, the thermal contraction during the 42°F chilled water cycle pulled the joints past their maximum deflection limits, tearing the gaskets. The Outcome: Redesign and Stress Relief I performed a thermal stress analysis and redesigned the riser support system. We installed a massive U-shaped expansion loop at the midpoint of the riser (floor 7) and anchored the pipe securely at the basement and the roof. We replaced the damaged grooved couplings with flexible expansion joints rated for the system's dynamic movement. After re-testing the system at 150 psi for 4 hours, the leaks were completely resolved, and the system has operated without a single failure for over five years. My recommendation for any multi-story hydronic installation is simple: never rely solely on standard mechanical couplings to absorb thermal expansion. Always calculate the actual physical movement and design dedicated expansion loops or bellows-type expansion joints to handle the load. HVAC Piping Frequently Asked Questions HVAC Piping FAQ: A technical reference addressing common design queries, material limitations, and code compliance requirements for hydronic and refrigerant systems. What is the difference between Type K, Type L, and Type M copper pipes in HVAC? The primary difference lies in the wall thickness. Type K has the thickest wall and is used for heavy-duty applications like underground lines. Type L has medium wall thickness and is the standard choice for most commercial HVAC refrigerant and hydronic systems. Type M has the thinnest wall and is generally restricted to low-pressure domestic water lines; it should not be used for high-pressure refrigerant lines. Why is carbon steel preferred over copper for large HVAC piping systems? Carbon steel is preferred for large-bore systems (typically 2.5 inches and larger) because of its superior structural strength, lower material cost per foot, and lower coefficient of thermal expansion compared to copper. Steel pipes can handle much higher structural loads and are easily joined using butt-welding or grooved mechanical systems, which are more practical for large commercial installations. Which ASME code governs HVAC piping design? HVAC piping is governed by two primary codes depending on the service. Hydronic heating and cooling systems within buildings are designed under ASME B31.9 Building Services Piping. Refrigerant piping systems are designed under ASME B31.5 Refrigeration Piping. High-pressure steam systems may fall under ASME B31.1 Power Piping. How do you prevent galvanic corrosion in HVAC piping? Galvanic corrosion occurs when dissimilar metals, such as copper and carbon steel, are in direct physical contact in the presence of an electrolyte (water). To prevent this, you must install dielectric unions, dielectric waterways, or bronze isolation valves at all transition points between different metals to break the electrical path. What is the purpose of a balancing valve in a hydronic piping loop? Balancing valves are used to adjust the flow rate through individual branches of a hydronic system to match the design flow rates. Without proper balancing, water will take the path of least resistance, causing short-circuiting where terminal units closest to the pump receive excess flow while remote units receive insufficient flow, leading to poor temperature control. Can plastic piping like PP-R be used for all HVAC applications? While PP-R and PP-RCT are excellent for chilled water and low-temperature heating loops due to their corrosion resistance and smooth interior walls, they have strict temperature and pressure limitations. They cannot be used for steam systems, high-temperature hot water loops exceeding 180°F, or high-pressure refrigerant lines, where metallic piping remains mandatory. ===FAQ_BLOCK===
