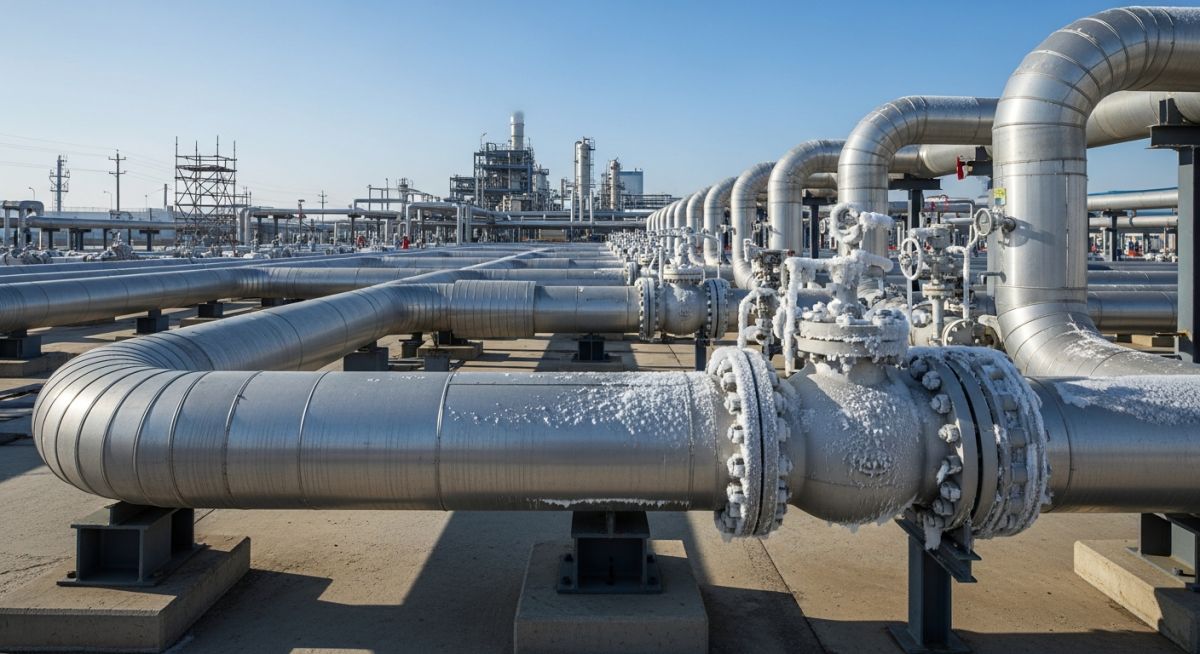

Field-Verified Article Published: May 2026 | Author: Atul Singla | Technical Review: EPC Land Piping Board What is a Pipe Wear Pad? Functions, ASME Coding, and Field Installation Practices During a turnaround commissioning at a heavy crude tank farm back in 2018, I walked down a 24-inch overhead transfer line that was vibrating violently against its structural steel sleeper. The constant, metal-on-metal hammering had already worn away 2.5mm of the pipe's nominal wall thickness, putting the unit on the brink of an environmental disaster. We didn't need a complex structural redesign; we needed immediate localized protection. That is the exact moment where a properly engineered pipe wear pad saves your asset from catastrophic wall thinning. In my experience on the field, these simple metallic or composite plates are the unsung heroes of mechanical integrity, separating structural loads from pressure containment boundaries. Key Takeaways from the Field ✔ A pipe wear pad strictly isolates process lines from mechanical wear, abrasion, and local stress concentrations at support points. ✔ They must match the base metallurgy of the pipe or utilize non-metallic composite isolation materials to completely eliminate galvanic corrosion cells. ✔ Every welded metallic wear pad requires an open 1/4 inch NPT vent hole to prevent pressure buildup during welding and to act as a leak indicator. ✔ Never confuse them with RF pads; wear pads handle structural support loads while reinforcement pads reinstate pressure boundary strength around nozzle openings. Google SGE Featured Snippet Definition A pipe wear pad is a curved sacrificial plate welded or bonded to the exterior of a process pipe at support locations. Its primary function is to protect the pressure containment pipe wall from mechanical wear, structural friction, local stress concentrations, and galvanic corrosion caused by structural steel supports. Quick Navigation Index → What is a Pipe Wear Pad? → Core Engineering Functions → Metallurgy & Material Selection → Sizing and Length Rules → When to Specify a Wear Pad? → RF Pad vs Pipe Wear Pad → Step-by-Step Field Installation Interactive Field Engineering Review Click on any card below to flip it. Review core engineering concepts, ASME references, and field-proven tips directly from my project logs. Voice Query / 01 What is the primary mechanical purpose of a pipe wear pad? Tap to Reveal Answer → It isolates the pressure-retaining pipe wall from friction, structural abrasion, and local stresses at support beams. ASME Reference ASME B31.3 Non-Pressure Attachment Pro-Tip: Use them on uninsulated carbon steel lines resting on bare structural steel to completely stop line thinning. Voice Query / 02 Why must every metallic pipe wear pad have a vent hole? Tap to Reveal Answer → To safely vent trapped gases during hot-work welding and serve as an immediate visual leak detection point. ASME Reference 1/4 Inch NPT Vent Requirement Pro-Tip: Make sure field crews leave this vent unsealed and point it downward to avoid pooling water. Voice Query / 03 What is the standard wrap angle for a typical piping wear pad? Tap to Reveal Answer → The standard circumferential coverage spans between 120 degrees and 180 degrees around the pipe bottom. Standard Spec 120° to 180° Bedding Segment Pro-Tip: 120 degrees works for basic supports, but use full 180-degree wrap pads for lines prone to heavy axial displacement. Voice Query / 04 Does ASME B31.3 classify a pipe wear pad as a pressure component? Tap to Reveal Answer → No, it is classified strictly as a non-pressure piping attachment governed by structural reinforcement logic. Code Paragraph ASME B31.3 Chapter II Structural Attachments Pro-Tip: Even though it is non-pressure, the pressure-retaining pipe wall must be integrity-tested before welding the pad. Voice Query / 05 Can you weld a carbon steel wear pad directly onto a stainless steel pipe? Tap to Reveal Answer → Never, this direct welding creates a galvanic corrosion cell and causes carbon migration that ruins the stainless steel. Metallurgy Rule Galvanic Isolation / Cross-Contamination Pro-Tip: Always match the pipe material or shift to a high-density non-metallic composite wear pad. Voice Query / 06 What is the minimum standard thickness for a process pipe wear pad? Tap to Reveal Answer → It should match the standard pipe wall thickness or be at least 6mm thick to maintain rigidity. Sizing Baseline Min 6mm or Nominal Pipe Wall Thickness Pro-Tip: Avoid using pads thicker than the pipe itself, as this creates structural stress mismatches during thermal flexing. Voice Query / 07 How far should a wear pad extend beyond the width of the support shoe? Tap to Reveal Answer → The pad must extend at least 50mm (2 inches) beyond each edge of the support shoe structural surface. Dimensional Layout Min 50mm Extension Clearance Pro-Tip: This extension handles unexpected piping thermal movements during startup without slipping off the pad surface. Voice Query / 08 What distinguishes a reinforcement pad (RF Pad) from a wear pad? Tap to Reveal Answer → RF pads restore pressure boundary strength at pipe branches, while wear pads only distribute local structural support weights. Design Purpose Pressure Boundary vs Structural Weight Pro-Tip: RF pads require full pneumatic pressure testing; structural wear pads only need visual or dye-penetrant checks. Voice Query / 09 What type of NDT is mandatory for a newly welded metallic wear pad? Tap to Reveal Answer → A Dye Penetrant Inspection (DPI) or Magnetic Particle Inspection (MPI) is standard practice for fillet weld verification. NDT Requirement DPI/MPI Fillet Weld Testing Pro-Tip: Always check the root pass on heavy wall lines before laying down the final capping pass. Voice Query / 10 When are composite non-metallic wear pads preferred over metallic plates? Tap to Reveal Answer → They are preferred on painted, coated, or stainless steel piping systems to avoid hot-work welding and eliminate corrosion cells. Material Variant FRP / Epoxy Glass Composites Pro-Tip: Ensure your adhesive is fully rated for the continuous operating temperature of the internal process fluid. Voice Query / 11 What long-term piping risk occurs if a wear pad vent hole is plugged? Tap to Reveal Answer → Trapped air expands during hot work, cracking the weld, while moisture entry causes hidden corrosion under insulation. Field Asset Risk CUI / Pressure Expansion Crack Pro-Tip: Check older units; painting crews constantly plug these vital holes by mistake. Keep them clear. Voice Query / 12 How do you protect insulated piping systems from sliding support wear? Tap to Reveal Answer → Welding a wear pad directly to the pipe beneath a clamped piping shoe keeps structural movement loads isolated. Insulation Setup Pre-Insulation Pad Anchoring Pro-Tip: This configuration protects the cold-conservation or hot thermal barriers from breaking down over time. Field Validation: Pipe Wear Pad Engineering Quiz Test your technical knowledge on ASME compliance, sizing limits, and installation rules. 100% Pure CSS Engine (No JavaScript). SECTION A: CODE AND COMPLIANCE QUESTION 1 OF 4 Under ASME B31.3 framework, what core attribute separates a standard pipe wear pad from a reinforcement pad (RF Pad)? A. Wear pads require higher thickness than the nominal pipe shell wall. B. Wear pads manage external structural weight profiles, while RF pads reinforce internal pressure integrity limits at junctions. C. Wear pads mandate full structural pneumatic structural tests before commissioning. Correct! Exactly right. Wear pads isolate local support abrasion and structural weight stresses without acting as a pressure retention component. Incorrect. Option B is right. Wear pads protect against external friction loads; RF pads replace lost pressure area at branch openings. Next Question → SECTION B: FIELD INSTALLATION MECHANICS QUESTION 2 OF 4 Why is sealing or plug-welding the 1/4 inch NPT vent hole on a metallic pipe wear pad strictly prohibited during field construction? A. It prevents structural technicians from performing magnetic particle inspections on the parent line. B. Plugging the hole changes the chemical grain metallurgy of the surrounding weld run. C. It traps outgassing pocket pressures that crack hot welds and masks future pressure failures on the main runner line. Correct! In my field experience, keeping this vent clear vents gases during welding and acts as a vital structural leak indicator. Incorrect. Option C is accurate. Unvented holes build thermal pressure during installation, blowing out the cooling weld puddle. ← Back Next Question → SECTION C: MATERIAL SELECTION RULES QUESTION 3 OF 4 What immediate structural failure risk exists when welding a Carbon Steel (CS) wear pad directly to a Stainless Steel (SS) process pipeline? A. It triggers galvanic corrosion cells and carbon contamination, driving severe intergranular stress cracking. B. The pipeline loses its entire volumetric flow optimization due to electromagnetic interference. C. It violates local thermal insulation densities but does not present physical structural damage risks. Correct! Never cross-contaminate metallurgies. Carbon migration destroys the corrosion resistance profile of stainless steel. Incorrect. Option A is right. Always match the pipe metallurgy or use epoxy non-metallic composite pads to protect the line. ← Back Next Question → SECTION D: GEOMETRIC LAYOUT & MOTION QUESTION 4 OF 4 What is the minimum recommended length extension a wear pad must maintain beyond the width of its structural steel support shoe? A. It must match the precise internal diameter of the primary main runner line. B. At least 50 mm (2 inches) on each side to absorb axial thermal movements safely. C. Exactly 12.5 mm regardless of the expected hot operating temperature profile. Correct! Brilliant. This 50mm clearance threshold stops the support shoe from slipping past the pad during thermal shifts. Incorrect. Select Option B. Thermal displacement calculations require a buffer zone so the shoe never binds on uninsulated pipe metal. ← Back Quiz Completed! What is a Pipe Wear Pad? In my years navigating refinery pipe racks, I have seen millions of dollars wasted on piping failures that started with a simple, preventable problem: mechanical friction. So, what is a pipe wear pad? It is a curved reinforcement plate, shaped to match the outer diameter of your process pipe, that fits securely between the pipe shell and its structural support element. Think of it as a sacrificial shield. But here is the catch that rookies miss: it does not contain fluid pressure. Instead, a pipe wear pad absorbs the punishing frictional forces caused by thermal expansion, contraction, and high-frequency structural vibrations. By welding or bonding this sacrificial plate to the line, you ensure that the inevitable mechanical wear destroys the pad, leaving the pressure-retaining pipe wall completely untouched. Field Warning from Atul Singla Never leave a metallic wear pad unvented. Trapped air pockets will expand during field welding, blowing out your root pass and creating micro-cracks that compromise the structural attachment. Core Engineering Functions of a Pipe Wear Pad In the field, we actually look at these components through three distinct structural lenses. First, they provide critical **load distribution**. When a heavy-wall process line rests on a narrow I-beam, the localized point load can cause local buckling or severe stress concentrations. The pad spreads this weight across a wider surface area. Second, it functions as a critical barrier against **abrasive wear**. As process temperatures fluctuate, pipelines move axially and laterally. Without a pipe wear pad, the structural steel support acts like a file, grinding away the base pipe metal with every thermal cycle. Third, it serves a vital role in **galvanic isolation** when processing lines require exotic metallurgies. You can review standard support classifications directly through the official ASME Official Portal to align your stress models with global standards. Advance Your Career Lifecycle Master Piping Design and Stress Analysis Want to eliminate field errors and design piping systems that comply perfectly with ASME B31.3? Join my comprehensive premium masterclass on EPC Land. Access the Complete Course on Piping Engineering by Atul Singla on EPCLAND → Metallurgy and Material Selection for a Pipe Wear Pad When I am reviewing isometric drawings during design audits, the first thing I check is material compatibility. If your process pipeline is 316L Stainless Steel, your pipe wear pad must be 316L Stainless Steel. It is that simple. I still see rookie engineers try to save a few dollars by welding a carbon steel plate onto an exotic alloy line. Let me tell you what happens next on the field: carbon atoms migrate into the stainless steel during welding, causing severe sensitization. This ruins the alloy's chromium oxide layer and initiates rapid, aggressive intergranular corrosion. If you must support a stainless line on a carbon steel structure without welding matching alloys, skip the hot work entirely and specify a composite material pad. Standard Sizing and Length Rules of a Pipe Wear Pad How big should your pad be? In my experience, there are strict dimensional constraints you must follow to guarantee mechanical stability. The plate thickness usually matches the nominal wall thickness of the carrier pipe, but it should never drop below 6mm. For large-bore piping, keep the plate thin enough to stay flexible, typically topping out around 12mm to avoid introducing extreme structural rigidity points. Circumferentially, the plate must wrap around the bottom of the line, spanning an arc angle between 120 degrees and 180 degrees. Longitudinal length requires a calculated buffer. You must calculate your maximum thermal displacement from your stress analysis software, then size the pad length so it extends at least 50mm beyond the edges of the steel support shoe in both directions at all operating extremes. Field Criteria: When to Specify a Pipe Wear Pad? Direct Applications of Metallic Wear Pads Metallic configurations are your primary choice for uninsulated, heavy-wall carbon steel or matching alloy process lines that endure intense structural movements or high-frequency acoustic vibrations. They handle extreme operating temperature profiles stretching past 400°C without breaking down. Direct Applications of Composite and Non-Metallic Pads On the other hand, non-metallic options like fiberglass-reinforced polymers (FRP) or epoxy glass composites are perfect for pre-painted utility lines or stainless steel systems. They rely on heavy-duty structural adhesives, completely eliminating hot-work permits, pre-heating setups, and radiographic NDT cycles. Strict Code Differences: RF Pad vs Pipe Wear Pad Let us clear up a major point of confusion on the floor: a reinforcement pad (RF Pad) and a pipe wear pad are completely different components. They look similar because they are both curved steel plates welded to a line, but their code requirements are completely distinct. Design Attribute Pipe Wear Pad Reinforcement Pad (RF Pad) Primary Code Objective Structural weight distribution and external friction protection. Restores localized pressure containment strength at branch cuts. ASME B31.3 Status Classified as a non-pressure structural piping attachment. Governed strictly as a pressure boundary reinforcement element. Vent Hole Purpose Vents welding gases and reveals main pipe leaks. Left wide open. Enables pneumatic test verification. Plugged with grease post-test. Mandatory NDT Profile Visual check and surface Dye Penetrant Testing (DPI) on fillet welds. Pneumatic pressure bubble testing (0.3 to 0.5 bar) is mandatory. Field Estimator: Minimum Pipe Wear Pad Length Calculator Input your planned structural support shoe width and expected maximum thermal movement from your stress model. Support Shoe Width (mm) Max Thermal Displacement (± mm) Minimum Required Pad Length 250 mm *Formula applied: Length = Shoe Width + (2 × Max Displacement) + 100mm safety margin (50mm extension per side). Field Execution: Step-by-Step Pipe Wear Pad Installation Over the years, I have seen dozens of field crews botch basic pad installations simply because they rushed the surface preparation or ignored pre-heating steps. If you want to ensure your pipe wear pad does not trap moisture or cause structural cracking, follow this strict, non-negotiable field protocol: 01 Surface Prep & Thickness Verification: Grind away all surface rust, protective paint coatings, and scale from the parent pipe section using a clean wire wheel. Measure the main wall thickness with an ultrasonic gauge to verify structural base integrity before firing up any torches. 02 Fit-Up Verification & Root Gap Alignment: Roll the pad to match the outer circumference of the pipe exactly, ensuring a tight fit with zero physical rocking. Clamp the pad firmly into place, leaving an even boundary gap for the oncoming root weld pass. 03 Tack Welding & Vent Orientation Check: Apply small tack welds to secure the layout geometry, ensuring the 1/4 inch NPT vent hole is located at the absolute lowest point of the pad assembly. This allows gravity to naturally drain any condensation. 04 Continuous Fillet Welding Execution: Lay down a continuous fillet weld around the entire outer perimeter of the plate using low-hydrogen electrodes matching your base pipe chemistry. Do not stop midway, or you risk creating local thermal stress cracks. 05 Surface NDT Testing (DPI/MPI): Let the assembly cool down naturally to ambient field temperature. Never quench hot welds with water. Run a thorough Dye Penetrant Inspection across the complete weld surface to confirm it is 100% free of pinholes or surface porosity. Field Diagnostics Logbook Case Study: Resolving Vibration-Induced Abrasion on a 24-Inch Crude Transfer Line When I was working on a major coastal refinery expansion project in 2021, the inspection crew alerted me to a critical anomaly. A heavy-duty, uninsulated 24-inch carbon steel crude runner line was vibrating violently against a structural steel H-beam sleeper support. The constant friction from structural vibration had ground a deep, visible gouge directly into the bottom of the line, stripping away nearly 35% of its structural design wall thickness. The turnaround window was tight, and the operations team was panicking about a full structural pipeline rupture. Some structural consultants pushed for a massive pipe shoe modification and an expensive structural re-routing scheme. I stepped in and rejected that approach. Instead, I drafted an emergency field modification plan using a sacrificial wrap-around metallic pipe wear pad made of matching A106 Grade B carbon steel. We built a custom 180-degree wrap plate, machined a dedicated 1/4 inch vent hole, and welded it directly over the worn out zone after repairing the primary wall profile with a code-compliant build-up weld run. It successfully isolated the vibration wear profile. Four years later, during a routine maintenance shutdown inspection, the main pipeline wall remained entirely unmarred. The structural sleeper had rubbed against the sacrificial pad, proving that localized engineering fixes can easily save high-pressure industrial assets. Figure 1.2: Side-by-side verification of structural frictional wear on an unprotected pipe wall versus a sacrificial protection plate shield. About the Author: Atul Singla Founder of EPCLAND & Principal Piping Integrity Consultant For over two decades, I have lived and breathed heavy industrial engineering across refineries, petrochem units, and mega tank farms. My career focus rests on translating complex design codes like ASME B31.3 and API 570 into practical, error-free field construction protocols. I established EPCLAND to bridge the gap between academic theory and real-world construction site execution. LinkedIn Professional Profile Follow Atul on LinkedIn Direct Email Consultation Join WhatsApp Group Chat Telegram Job Post Alerts Telegram Global Engineering News Telegram Oil & Gas Blogs Subscribe on YouTube Official Industry Codes & Standards Bibliography Verify the structural parameters, stress calculations, and non-pressure attachment logic using these foundational standards directories: ▸ ASME B31.3 - Official Directory for Process Piping Guidelines ▸ API 570 - Official Portal for Piping Inspection, Repair, and Alteration Codes ▸ ISO 15614 - International Standards Matrix for Welding Procedure Specifications Frequently Asked Questions Regarding a Pipe Wear Pad What is the exact purpose of a vent hole on a metallic pipe wear pad? The vent hole serves two non-negotiable purposes in industrial piping. First, it prevents dangerous pressure build-up from expanding gases trapped behind the plate during perimeter fillet welding. Second, it serves as an immediate visual tell-tale leak detection point during plant operations, revealing a breach in the main process pipe pressure boundary. Can you install a pipe wear pad on an insulated pipeline? Yes, you absolutely do this on the field by mounting the pad directly onto the bare pipe beneath clamped structural supports or sliding shoes. The thermal or cold insulation system is then layered completely over the pad body, while the support hardware extends safely through the insulation wrap matrix. How do you calculate the minimum thickness for a custom wear pad wrapper? In my design review logs, the baseline rule is that the plate must match the nominal thickness of the main run pipe shell. However, to maintain adequate structural rigidity and prevent local structural warping during field welding cycles, it should maintain a minimum hard threshold of 6mm. Why is a circumferential wrap angle between 120 and 180 degrees standard? This bedding wrap configuration maximizes weight distribution efficiency where gravity stresses converge at support cradles or structural steel sleepers. A smaller wrap angle fails to prevent structural cross-sectional line ovalization, whereas exceeding 180 degrees creates a closed water-trap envelope that drives rapid external line decay. What non-destructive testing (NDT) is required for a pipe wear pad fillet weld? Because a wear pad is a non-pressure attachment structural component, it does not require volumetric radiographic inspection. Standard field protocol requires 100% Visual Testing (VT) augmented by surface Dye Penetrant Inspection (DPI) or Magnetic Particle Inspection (MPI) to confirm the fillet run is free of structural surface pinholes. Can you weld a carbon steel plate wear pad to a stainless steel pipe run? Never do this under any circumstances. Direct fusion welding of carbon steel to stainless steel drives carbon migration and forms an active galvanic electrochemical cell. This destroys the local molecular chromium passivated layer, creating severe localized rust cells and rapid stress corrosion cracking. 📚 Recommended Resources: pipe wear pad Read these Guides 📄 What is a Multiport Selector Valve or MSV? Importance of MSV Skids 📄 Valve Stems: The Critical Link in Piping Systems (2026 Engineering Guide) 📄 Interactive Hydrotest Troubleshooting Quiz: Master Leak Detection Skills 📄 Why Mist Eliminators Are Essential in Separator Design 🎥 Watch Tutorials Flanges in Piping: Types, Ratings & Standards (Certification Course) Piping Reinforcement Pad Calculation Explained | EPC Piping ASME B36.10: Welded vs. Seamless Pipe Dimensions Explained
