How to Prepare an RFP for Topographical Surveys

Survey Scope Definition: The comprehensive identification of physical site features, underground utilities, and elevation data required to support engineering design and construction activities.

When I draft an RFP for topographical surveys, I prioritize the definition of the “Area of Interest” (AOI). It is not enough to simply provide a property boundary. You must explicitly state the buffer zones required for tie-ins, access roads, and potential future expansion. In brownfield projects, the scope must include existing pipe racks, structural foundations, and overhead power lines, as these are critical for clash detection in 3D modeling.

The technical requirements must reference NSPS standards. I always require the surveyor to provide a point cloud density that supports a minimum grid spacing of 5 meters for general terrain, but I tighten this to 1 meter for areas surrounding critical equipment foundations. This density is vital for calculating cut-and-fill volumes accurately.

Coordinate systems are the backbone of your project. I insist on using a project-specific local coordinate system that is tied to a known geodetic datum, such as NAD83 or WGS84. Never allow the surveyor to use an arbitrary “assumed” coordinate system unless the project is completely isolated from existing infrastructure. If you are working on a plant expansion, the survey must match the existing plant grid exactly to ensure seamless integration of new piping runs.

Finally, the accuracy requirements must be quantified. I typically specify a vertical accuracy of 0.05 feet for hard surfaces and 0.10 feet for soft terrain. These tolerances are non-negotiable when designing gravity-fed drainage systems or high-precision equipment pads. By embedding these specific metrics into the RFP, you provide the surveyor with a clear benchmark for their QA/QC processes.

Survey RFP Strategic Impact: The systematic evaluation of procurement benefits versus potential operational risks inherent in externalizing site data collection.

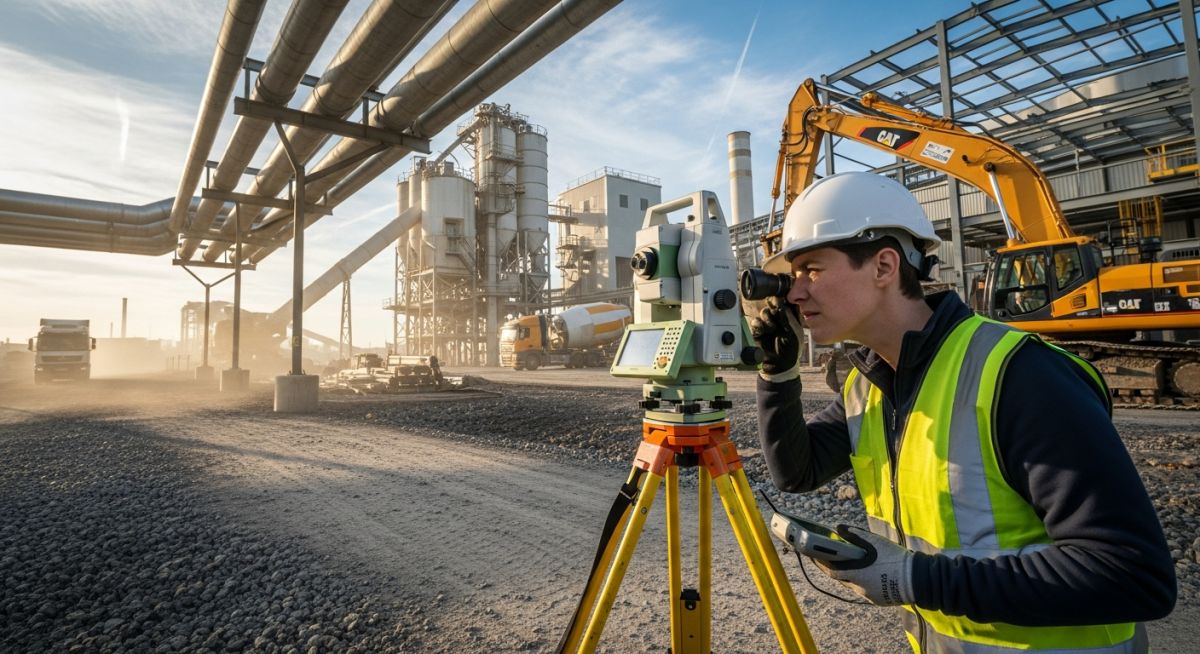

Topographical Survey Implementation: The application of precise spatial data across diverse industrial sectors to facilitate safe and efficient infrastructure development.

When drafting an RFP for topographical surveys, defining the required accuracy class is the most critical step to prevent cost overruns and rework. In my experience, engineers often default to generic “survey grade” requirements without specifying the underlying ASCE or FGDC standards. The table below outlines the typical accuracy thresholds required for various stages of piping and site development projects, ranging from preliminary feasibility studies to high-precision construction layout.

Selecting the correct class depends entirely on the project phase. For early-stage routing, lower-density data is acceptable, but for brownfield tie-ins or underground utility mapping, you must mandate higher vertical and horizontal precision. Always ensure your RFP explicitly references the NSPS standards to provide a legal and technical baseline for the surveyor’s performance.

Note that these tolerances are cumulative. If your project involves high-pressure gas lines or sensitive instrumentation, I recommend tightening these requirements further to account for potential settlement or construction-induced ground movement.

Managing the technical data flow between the surveyor and the engineering team requires a standardized approach to coordinate systems and file formats. In my years of project management, I have seen countless hours lost due to mismatched coordinate systems or incompatible CAD layers. This matrix serves as a foundational guide for defining the technical requirements within your RFP, ensuring that the data received is immediately usable by your design team.

By enforcing these specific standards, you eliminate the ambiguity that often leads to “data translation” errors. Whether you are working in a local site grid or a global geodetic system, the requirements must be clearly stated to ensure the surveyor provides the correct metadata, projection files, and point cloud density required for modern BIM and 3D modeling workflows.

Always verify that the surveyor has the capability to export in the specific version of your design software. A common pitfall is requesting a format that the surveyor’s software cannot natively support, leading to loss of data integrity during conversion.

Before finalizing your RFP for topographical surveys, use this checklist to ensure all technical and administrative bases are covered. A well-structured RFP is the first line of defense against project delays and budget overruns. In my experience, the most successful projects are those where the surveyor understands the site constraints and the engineering team’s specific data needs before they ever step foot on the property.

By validating these items, you ensure that the surveyor is not just providing “data,” but providing actionable engineering intelligence. Always require a pre-survey site walk-through with the lead surveyor to discuss these points in person, as this often uncovers site-specific challenges that are not apparent on paper.

My recommendation is to always treat the topographical survey as a high-risk activity. Never assume that a “standard” survey will cover the complexities of a brownfield industrial site; always define the scope with the assumption that the subsurface is unknown until proven otherwise.
