How to Use a Pump Commissioning Checklist for Start-Up

In my 20-plus years of commissioning heavy industrial piping systems, I have seen millions of dollars in machinery reduced to scrap metal in a matter of seconds. The culprit is almost always the same: a rushed start-up. Skipping a single pre-start step can lead to dry running, catastrophic mechanical seal failure, or bent shafts. That is why a structured, field-verified pump commissioning checklist is not just a piece of paperwork—it is your primary defense against operational disaster.

When we commission a pump, we are not just turning on a switch. We are integrating a complex hydraulic machine into a pressurized piping network. Every valve position, instrument calibration, and shaft alignment tolerance must be verified under strict engineering guidelines. In this guide, I will share the exact field protocols and calculations I use to ensure a safe, efficient, and reliable pump start-up.

Why a Pump Commissioning Checklist Prevents Failures

Before the first drop of fluid is pumped, several critical engineering parameters must be calculated and verified. The most common cause of early-stage pump failure is cavitation, which occurs when the Net Positive Suction Head Available (NPSHa) is less than the Net Positive Suction Head Required (NPSHr).

Net Positive Suction Head (NPSH) Calculation

To ensure the pump does not cavitate during start-up, I always calculate the NPSHa using the following formula:

Where:

• hp = Absolute pressure on the liquid surface in the suction vessel (expressed in meters of liquid head).
• hs = Static height of the liquid level above or below the pump centerline (positive for flooded suction, negative for suction lift).
• hf = Friction losses in the suction piping system at the design flow rate.
• hvp = Vapor pressure of the liquid at the operating temperature.

To prevent cavitation, NPSHa must exceed the NPSHr (provided by the pump manufacturer) by a safety margin of at least 1.0 meter or a ratio of 1.15, in accordance with ANSI/HI 9.6.1.

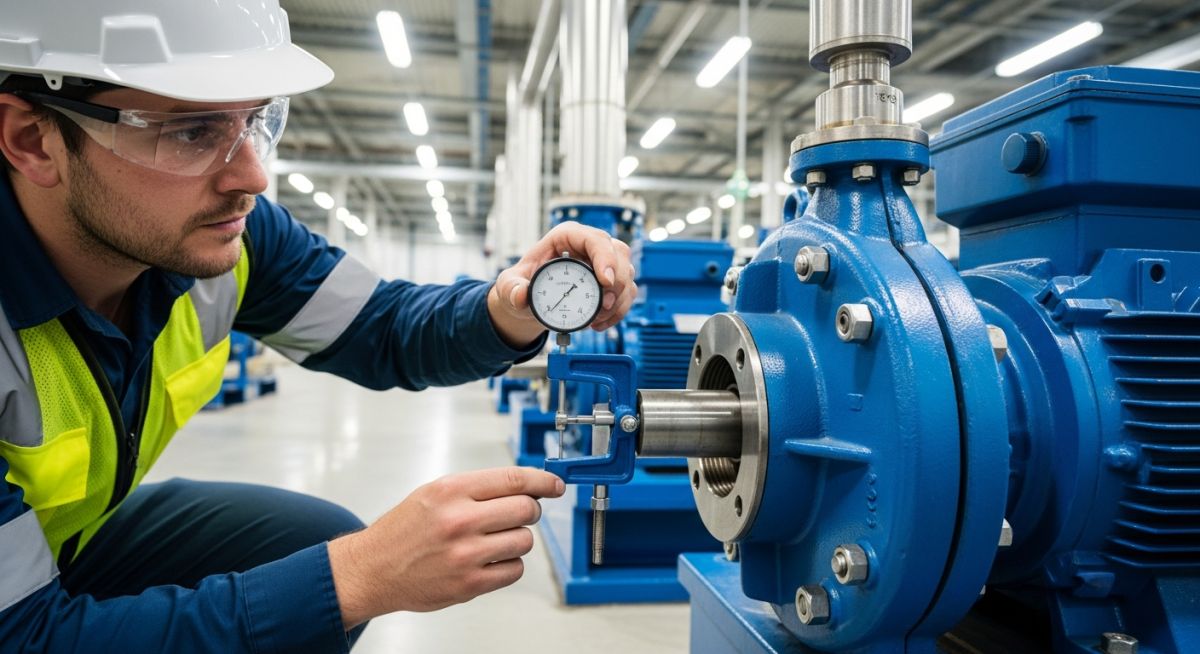

Thermal Expansion and Shaft Alignment

Another critical calculation is the vertical thermal growth of the pump and driver. When pumping hot fluids, the pump casing expands vertically. If this is not compensated for during cold alignment, the shafts will become misaligned at operating temperature, leading to high vibration and bearing failure.

Where:

• DY = Vertical thermal growth (in millimeters).
• alpha = Coefficient of thermal expansion of the material (e.g., 0.000012 per degree Celsius for carbon steel).
• L = Distance from the machine base to the shaft centerline (in millimeters).
• DT = Temperature difference between operating and ambient conditions (in degrees Celsius).

Minimum Flow Bypass Sizing

Operating a pump below its Minimum Continuous Stable Flow (MCSF) causes internal recirculation, high vibration, and rapid temperature rise. The minimum flow bypass line must be sized using the thermal rise formula:

Where:

• Qmin = Minimum continuous stable flow rate (cubic meters per hour).
• P = Power input at shutoff (kilowatts).
• density = Liquid density (kilograms per cubic meter).
• Cp = Specific heat capacity of the liquid (kilojoules per kilogram Kelvin).
• DTmax = Maximum allowable temperature rise (typically 5 to 10 Kelvin to prevent vapor flashing).

Standard Alignment Tolerances for Industrial Pumps

Key Commissioning Parameters and Code References

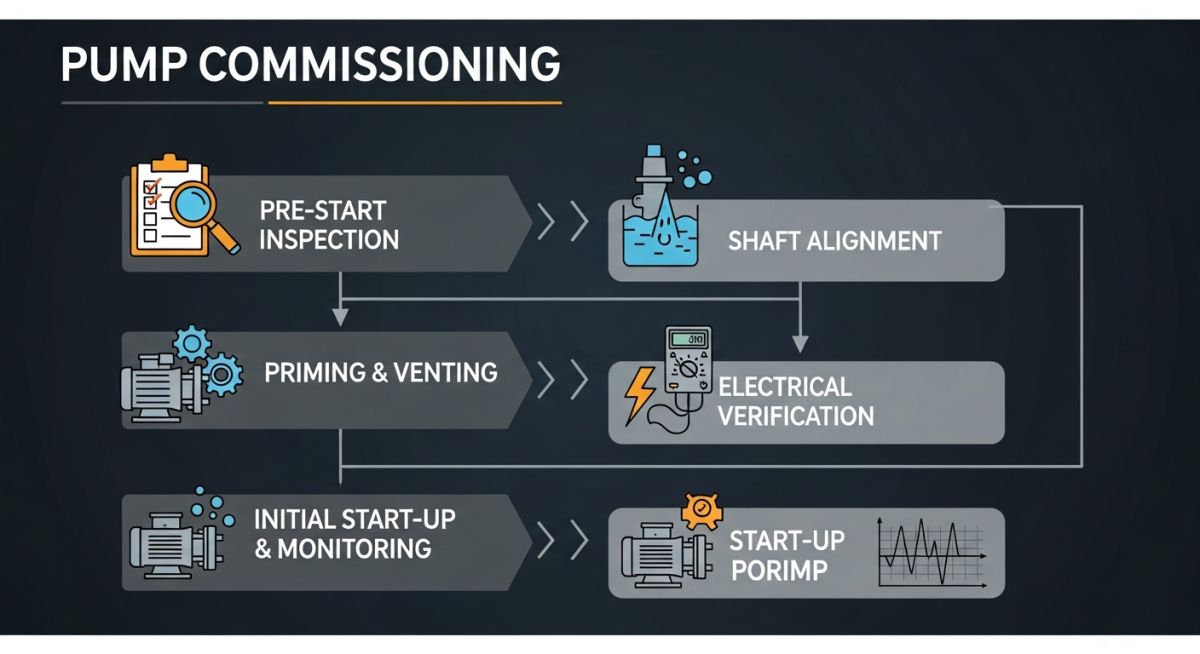

Executing the Pump Commissioning Checklist Onsite

This checklist must be executed in sequence by qualified mechanical technicians and signed off by the commissioning engineer before power is applied to the driver.

Field Case Study: Real-World Application

This case proves that skipping steps on a pump commissioning checklist to save a few hours always results in days of downtime and thousands of dollars in repair costs.
