What is an Industrial Pump Skid and Its Key Advantages?

In my 20 years of designing process plants, I have seen field construction timelines completely derailed by piping misalignment, welding delays, and instrumentation calibration issues. That is why the industry has shifted heavily toward modularization. When you specify a pre-engineered system, you are not just buying hardware; you are buying guaranteed performance, factory-tested integrity, and a massive reduction in field labor hours. Let me walk you through the engineering realities of these systems.

Why Choose an Industrial Pump Skid Package?

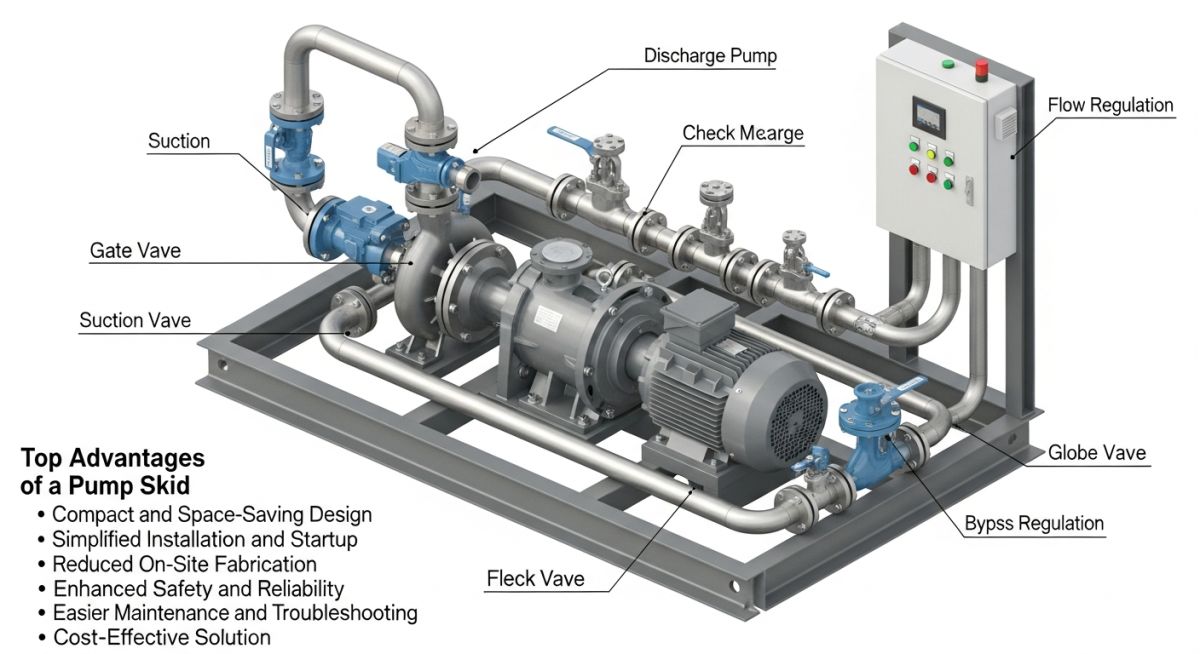

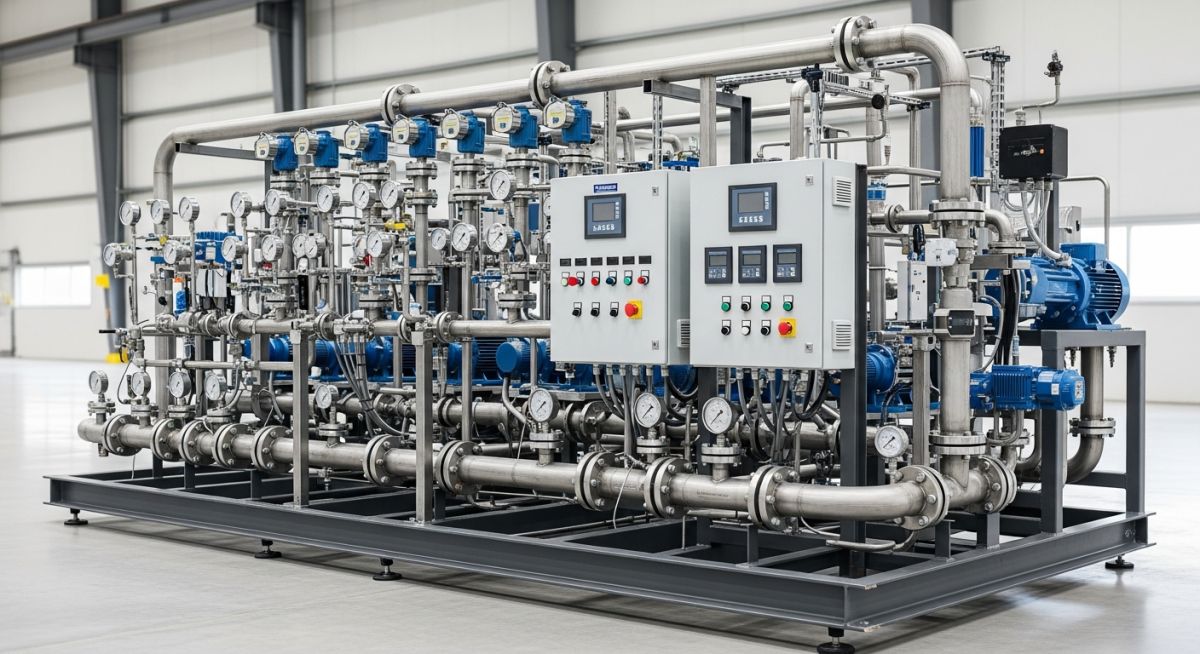

When designing an industrial pump skid, the engineering team must balance hydraulic performance, structural rigidity, and maintenance accessibility. In my experience, the mechanical design of the structural steel baseplate is just as critical as the pump selection itself. If the baseplate flexes during transport or operation, it introduces severe shaft misalignment, leading to premature bearing failure and mechanical seal leaks.

Hydraulic Calculations & NPSH Margin

A primary advantage of shop-fabricated skids is the ability to precisely control the suction piping geometry. To prevent cavitation, the Net Positive Suction Head Available (NPSHa) must exceed the Net Positive Suction Head Required (NPSHr) by a safe margin. We calculate NPSHa using the following standard formula:

Where:
Hp = Absolute pressure on the surface of the liquid in the suction vessel (expressed in feet or meters of head).
Hz = Static elevation head of the liquid level above or below the pump centerline (positive for flooded suction, negative for suction lift).
Hf = Friction losses in the suction piping, valves, and fittings.
Hvp = Vapor pressure of the liquid at the operating temperature.

In a modular design, we minimize Hf by utilizing long-radius elbows, full-port isolation valves, and straight pipe runs directly preceding the pump suction nozzle (typically a minimum of 5 to 10 times the pipe diameter, in accordance with HI 9.6.6 standards).

Structural Rigidity and Vibration Mitigation

The structural frame must be designed to withstand both static operating loads and dynamic forces generated by the rotating machinery. We utilize finite element analysis (FEA) to ensure the natural frequency of the skid structure is at least 20% away from the pump operating speed (and its harmonics) to avoid resonance, complying with API 686 machinery installation standards.

The following table outlines the standard engineering parameters and applicable codes that govern the design and fabrication of high-performance industrial pump skids.

This matrix maps the core physical components of a modular pumping system to their typical material specifications and critical inspection checkpoints.

How to Inspect an Industrial Pump Skid?

Before you sign off on the installation of any modular pumping package, a rigorous field inspection is required. In my experience, skipping these steps often leads to catastrophic failures during water runs or initial startup. Use this checklist to verify your installation:

Field Case Study: Real-World Application

This case highlights why shop fabrication is superior. By moving the labor from the field to a controlled shop environment, we eliminated environmental variables and ensured strict adherence to quality standards.
