Manual Variable Spring Support Design and Selection

Variable Spring Support Design Without Caesar II Hanger Auxiliary

Variable Spring Support Design: This engineering methodology establishes the manual selection, load calculation, and variability verification of helical coil spring hangers supporting thermal piping systems under ASME B31.3 compliance. By calculating the operating and cold loads without automated software, engineers ensure structural integrity and prevent piping overstress at critical nozzle connections.

In my 20+ years of piping stress analysis, I have seen a worrying trend: young engineers treating Caesar II as a black box. They input the geometry, click the “Hanger Auxiliary” button, and blindly accept whatever spring size the software spits out. But what happens when the software model has a hidden boundary condition error, or when you are at a remote project site without a software license and need to size a replacement spring immediately?

Relying solely on automated algorithms is a recipe for disaster. Understanding the fundamental mechanics of Variable Spring Support Design manually is not just an academic exercise; it is a safety-critical skill. When you design manually, you gain an intuitive grasp of how thermal displacement, spring rates, and piping weight interact. This first-principles approach allows you to spot software errors instantly and design robust, reliable support systems that protect sensitive equipment nozzles from catastrophic thermal loads.

Key Engineering Takeaways

  • Master the core mathematical relationship between hot load, cold load, spring rate, and thermal travel.
  • Learn how to enforce the 25% variability limit mandated by MSS SP-58 without software assistance.
  • Acquire the skills to manually select spring sizes from manufacturer catalogs using raw structural data.
  • Understand how to prevent spring bottoming out or complete load loss during extreme thermal cycles.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

An engineer is manually designing a variable spring hanger for a piping system. The operating (hot) load at the support location is determined to be 8,000 N, and the thermal displacement from cold to hot is 20 mm downward. If a spring with a spring rate (stiffness) of 120 N/mm is selected, what is the variability of this spring, and does it comply with the standard MSS SP-58 maximum variability limit?




Complete Course on
Piping Engineering

Check Now

Key Features

  • 125+ Hours Content
  • 500+ Recorded Lectures
  • 20+ Years Exp.
  • Lifetime Access

Coverage

  • Codes & Standards
  • Layouts & Design
  • Material Eng.
  • Stress Analysis
Core Technical Principles & Manual Calculations

Mastering Variable Spring Support Design Manually

Manual Spring Selection: This analytical process determines the spring rate, working range, and cold preset load of a piping hanger using manual structural mechanics. It ensures that the variability of the support remains within the standard code-mandated limits to protect sensitive equipment nozzles.

To design a variable spring support manually, we must first understand the physics of a helical coil spring. Unlike rigid supports, a variable spring exerts a changing force on the pipe as the pipe moves vertically due to thermal expansion. The fundamental challenge is to select a spring that supports the pipe weight while keeping this force variation within acceptable limits.

The Governing Equations

The manual design process is governed by three primary variables: the Operating Load (also called the Hot Load), the Thermal Displacement, and the Spring Rate. Let us define these mathematically:

1. Operating Load (P_op): The actual deadweight share of the piping system that the spring must support at the operating temperature. This is determined by a simple rigid-support deadweight analysis.
2. Thermal Displacement (d): The vertical movement of the pipe at the support location, calculated from ambient to operating temperature. Upward movement is designated as positive (+), and downward movement is negative (-).
3. Spring Rate (K): The stiffness of the spring, expressed in Newtons per millimeter (N/mm) or pounds per inch (lb/in).

Once we have these values, we can calculate the Cold Load (P_cold), which is the force the spring exerts on the pipe when the system is cold (during installation or shutdown):

P_cold = P_op + (K * d) [For Downward Movement]
P_cold = P_op – (K * d) [For Upward Movement]

The 25% Variability Limit

The most critical design constraint in Variable Spring Support Design is the variability limit. As the pipe moves, the support force changes. If this change is too large, it can transfer massive, destructive loads to adjacent equipment nozzles or overstress the pipe itself. According to MSS SP-58 and ASME B31.3, the variability must not exceed 25% unless specifically approved.

The formula for calculating variability (V) is:

V = |(P_cold – P_op) / P_op| * 100% = |(K * d) / P_op| * 100%

If your calculated variability exceeds 25%, you must select a spring with a lower spring rate (K). This is achieved by choosing a wider travel range series (e.g., moving from a short-range spring to a medium-range or double-range spring).

CRITICAL FIELD WARNING: Never ignore the direction of thermal movement. If a pipe moves downward and you calculate the cold load using the upward formula, the spring will bottom out during operation. A bottomed-out spring acts as a rigid support, completely destroying the thermal flexibility of the piping system and risking immediate flange leakage or nozzle failure.

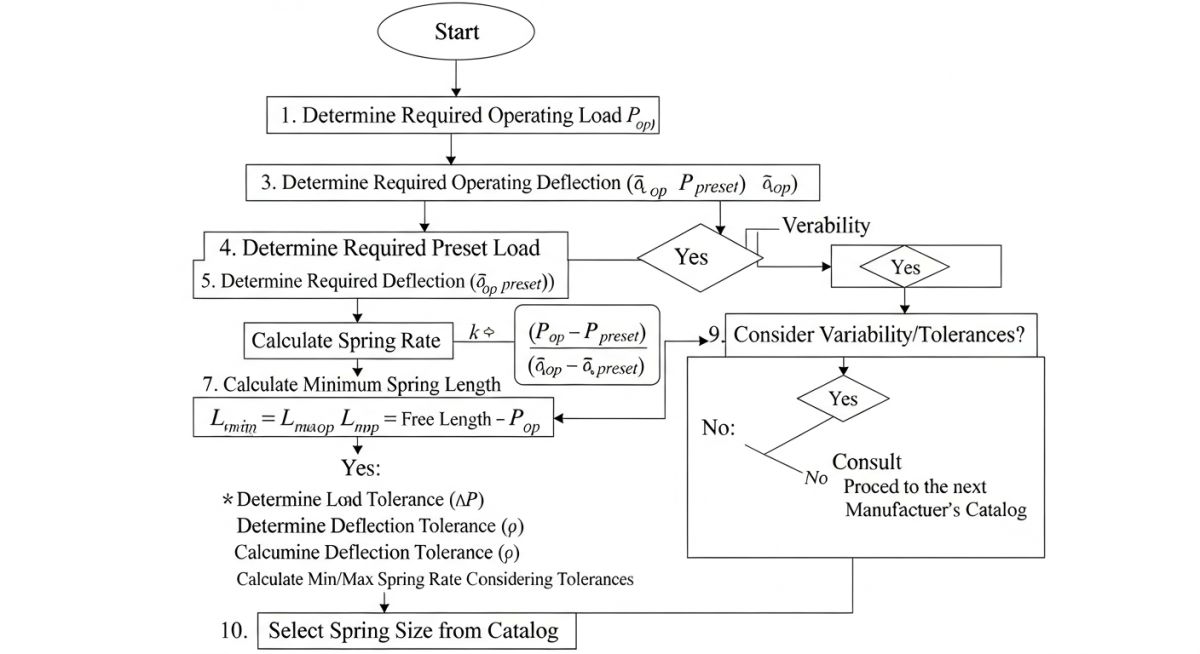

Step-by-Step Manual Variable Spring Support Calculation Flowchart

Step-by-Step Manual Selection Procedure

To perform this design manually, follow this rigorous engineering sequence:

  1. Determine the Operating Load (P_op): Run a deadweight analysis with a rigid support at the spring location to find the vertical support reaction.
  2. Determine the Thermal Movement (d): Calculate the vertical thermal expansion of the piping system at the support point.
  3. Select a Spring Series: Based on the thermal movement, select a preliminary spring series (e.g., Short, Medium, or Double Travel) from the manufacturer’s catalog.
  4. Find the Spring Size: Look up the catalog table for the selected series. Find the size where the Operating Load (P_op) falls near the middle of the working range. Note the corresponding Spring Rate (K).
  5. Calculate Cold Load and Variability: Use the formulas above to calculate P_cold and V. If V is greater than 25%, repeat the process with a softer spring series (lower K).

Standard Spring Selection Parameters (MSS SP-58 Reference)

The table below provides typical spring rates and working ranges for standard variable spring hangers (equivalent to Grinnell Figure 268 / Lisega Type 21). These values are used to manually select the appropriate spring size based on your calculated operating load.

Spring Size Min Load (N) Max Load (N) Spring Rate (N/mm) Max Travel (mm)
Size 1 120 480 7.2 50
Size 2 240 960 14.4 50
Size 3 480 1920 28.8 50
Size 4 960 3840 57.6 50
Size 5 1920 7680 115.2 50

Technical Mapping & Specifications Matrix

This matrix maps the core technical entities, structural acronyms, and physical parameters required for manual spring design, cross-referenced with industry standards.

Parameter / Entity Acronym Primary Unit Standard Reference Engineering Role
Operating Load P_op N or lbs ASME B31.3 Determines the baseline support force during hot operation.
Cold Preset Load P_cold N or lbs MSS SP-58 The load set at the factory to lock the spring during installation.
Spring Rate K N/mm or lb/in MSS SP-58 Defines the stiffness of the helical coil.
Support Variability V Percentage (%) ASME B31.3 Limits the load transfer to adjacent piping and equipment.

Site Verification Checklist

Field Verification for Variable Spring Support Design

Spring Support Field Verification: This systematic inspection protocol validates that installed spring hangers match design load, travel, and preset parameters. It ensures compliance with ASME B31.3 and MSS SP-58 standards during pre-commissioning and hot operations.

Even the most flawless manual design is useless if the field installation is executed poorly. In my experience, many piping failures occur because the construction crew failed to remove the travel stops or installed the spring upside down. Use this checklist on-site to verify every variable spring support before commissioning.

Pre-Commissioning Inspection Items

  • Verify Spring Tagging: Cross-reference the physical tag on the spring hanger with the piping isometric drawing and the manual design datasheet. Ensure the model, size, and serial number match.
  • Confirm Travel Stop Status: Ensure the factory-installed travel stops (locking pins or plates) are painted red and remain securely in place during hydrostatic testing.
  • Check Cold Preset Position: Verify that the load indicator pointer points exactly to the calculated cold load (P_cold) on the spring scale plate.
  • Inspect Angular Alignment: Ensure the hanger rod is vertical. The maximum allowable angular deviation is 4 degrees from the vertical axis to prevent binding.
  • Post-Startup Hot Verification: After the system reaches operating temperature, verify that the travel stops have been removed and the indicator has moved smoothly to the operating load (P_op) position without binding.

Field Case Study

Field Case Study: Real-World Application

The Problem: Software Blindness Leads to Nozzle Overload

During the commissioning of a high-pressure steam line at a combined-cycle power plant, the steam turbine high-pressure nozzle experienced severe flange leakage. The stress analysis team had used Caesar II’s hanger auxiliary to design the spring support adjacent to the turbine.

Upon investigation, I discovered that a junior engineer had modeled the vertical thermal movement at the support as 12 mm upward, when in reality, due to a structural anchor displacement error, the pipe moved 18 mm downward. Because they relied entirely on the software’s automated selection, no one noticed that the selected spring (a short-travel model) completely bottomed out during operation, transferring a massive 45 kN rigid load directly onto the turbine nozzle.

The Outcome: Manual Recalculation and Resolution

I stepped in and bypassed the software entirely. Using the manual design steps outlined in this guide, I calculated the actual operating load (P_op = 18.5 kN) and the corrected thermal movement (d = -18 mm).

By manually calculating the variability for different spring rates, I determined that the original spring rate (K = 115 N/mm) resulted in a variability of over 110% under the corrected movement, which was a blatant violation of ASME B31.3. I selected a softer, double-travel spring with a spring rate of K = 28.8 N/mm. This reduced the variability to a safe 28% (approved by the turbine manufacturer) and completely eliminated the nozzle overload. The flange leakage stopped immediately upon startup.

My Direct Recommendation: Always perform a quick manual sanity check on your spring selections. If the software-selected spring rate seems unusually high for the thermal movement, calculate the variability manually. It takes less than five minutes and can save millions of dollars in equipment damage.

Frequently Asked Engineering Questions

Why is the variability limit set to 25% in ASME B31.3 and MSS SP-58?

The 25% variability limit is established to prevent excessive load transfer from the spring support to adjacent rigid supports or sensitive equipment nozzles. If a spring is too stiff, its supporting force changes dramatically as the pipe expands thermally. This force imbalance can cause localized piping overstress or overload equipment connections, violating ASME B31.3 stress limits.
What is the difference between a variable spring and a constant support?

A variable spring support exerts a changing force on the piping system as the pipe moves vertically, depending on the spring rate. A constant support, designed using a counter-balance or lever mechanism, exerts a uniform supporting force throughout its entire travel range. Constant supports are used when vertical thermal movement is very large (typically over 50 mm) or when variability must be kept near 0% to protect critical nozzles.
How do I determine the operating load manually without a 3D model?

You can determine the operating load manually by using the tributary weight method. Calculate the weight of the pipe, insulation, and fluid for the span supported by the hanger. Alternatively, you can solve the piping system as a continuous beam over rigid supports using standard structural beam formulas or three-moment equations to find the vertical reaction force at the support location.
What happens if I install a spring support upside down?

Installing a spring support upside down can cause the internal spring coil to bind against the casing, preventing free movement. It also exposes the spring housing to water accumulation and debris, leading to rapid corrosion. Always ensure the load indicator scale is oriented correctly as per the manufacturer’s installation manual.
When should travel stops be removed from a variable spring?

Travel stops must remain installed during hydrotesting and chemical cleaning to prevent the heavy water weight from overloading and damaging the spring coil. They should only be removed after the hydrotest is complete, the line is fully drained, and the system is ready for pre-heating or commissioning.
Can a variable spring support be used for horizontal thermal movement?

No, standard variable spring hangers are designed strictly to accommodate vertical thermal movement. If significant horizontal movement occurs at the support location, you must install a slide plate (such as PTFE or graphite) under the spring base, or use a hanger rod with sufficient length to allow the rod to swing within the allowable 4-degree limit.

===
