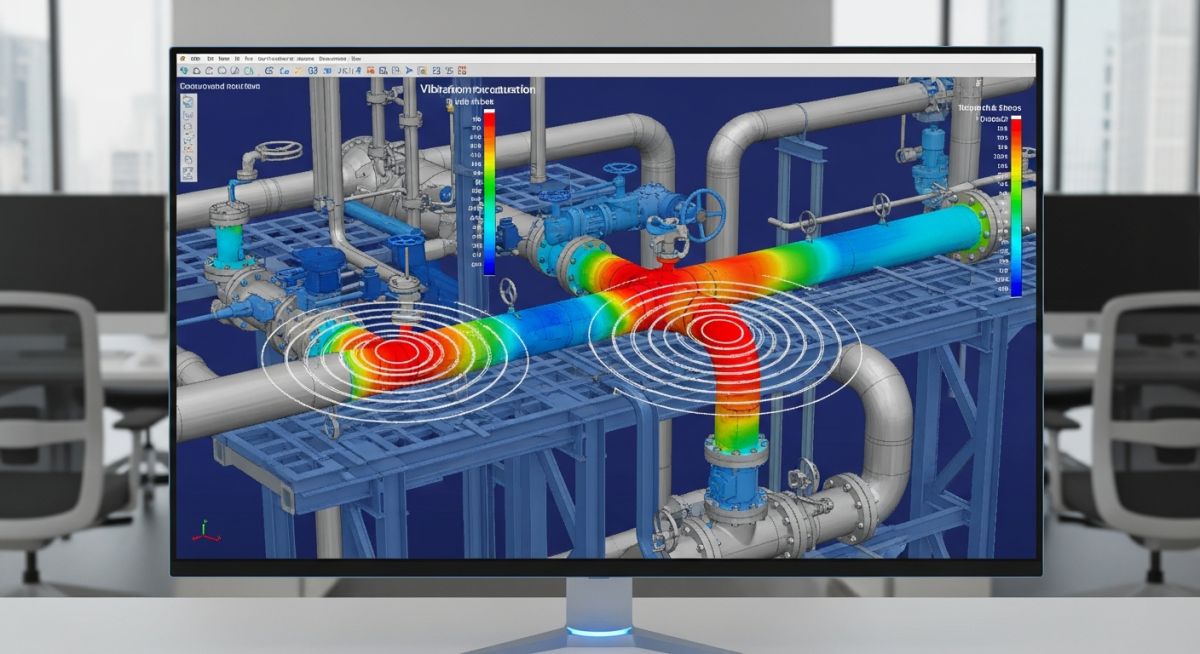

3D CAD model of piping system showing dynamic stress analysis heat map on a monitor
Author: Atul Singla | Piping Engineering Expert | Updated: July 2026
Dynamic Pipe Stress Analysis CAD Model

Master Your Next Technical Interview With These Dynamic Pipe Stress Analysis Interview Questions

Dynamic Pipe Stress Analysis: A specialized engineering evaluation that calculates the time-dependent response of piping systems subjected to transient, cyclic, or high-frequency loads in compliance with ASME B31.3 and ASME B31.1 codes.

In my 20+ years of piping engineering experience, I have sat on both sides of the interview table. I can tell you that general static stress questions are easy to pass, but the real filter for senior roles lies in dynamic analysis. When a plant experiences a steam hammer or reciprocating compressor vibration, static calculations are useless.

Interviews for senior stress engineers focus heavily on your physical understanding of mass, stiffness, and damping. This guide compiles the exact technical questions, mathematical concepts, and code requirements I use to evaluate candidates.

Key Takeaways from This Guide:

  • Master the core differences between static and dynamic piping behavior.
  • Understand how to calculate natural frequencies and dynamic amplification factors.
  • Learn to explain complex transient events like water hammer and slug flow.
  • Discover how to apply ASME B31.3 and API 618 standards to dynamic problems.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

In a Response Spectrum Analysis (RSA) of a piping system, what is the minimum recommended cumulative mass participation factor (in each of the principal translational directions) required to ensure that the dynamic behavior of the system is adequately captured, and how are the remaining “missing mass” effects typically accounted for?




Core Technical Deep-Dive

Mastering Dynamic Pipe Stress Analysis Interview Questions

Dynamic Analysis Verification: The systematic process of validating piping system structural integrity under time-varying loads using modal, response spectrum, or time-history analysis methods to satisfy ASME B31.3 requirements.

To excel in dynamic stress analysis, you must understand that dynamic loads are time-dependent. Unlike static loads where force is constant, dynamic forces change in magnitude, direction, or point of application over time. This introduces inertial forces and damping effects that require solving the governing differential equation of motion.

The Governing Equation of Motion

Every dynamic piping problem is governed by the classic second-order differential equation:

M * x”(t) + C * x'(t) + K * x(t) = F(t)

Where M represents the mass matrix (including pipe, fluid, insulation, and components), C is the damping matrix, K is the stiffness matrix of the piping system and its supports, and F(t) is the time-varying external force vector. The terms x”(t), x'(t), and x(t) represent acceleration, velocity, and displacement respectively.

Modal Analysis and Natural Frequency

In my project reviews, I always ask candidates to explain modal analysis first. Modal analysis determines the natural frequencies and mode shapes of the piping system. The undamped free vibration natural frequency (fn) of a single degree of freedom system is calculated as:

fn = (1 / (2 * pi)) * square_root(K / M)

If an external excitation frequency matches one of these natural frequencies, resonance occurs. This leads to massive displacement amplification, high cyclic stresses, and eventual fatigue failure.

Field Warning: Never rely solely on static equivalent static analysis for high-frequency transient events like relief valve discharge or water hammer. Static equivalents often underestimate the peak dynamic stresses by failing to capture high-frequency modal responses.

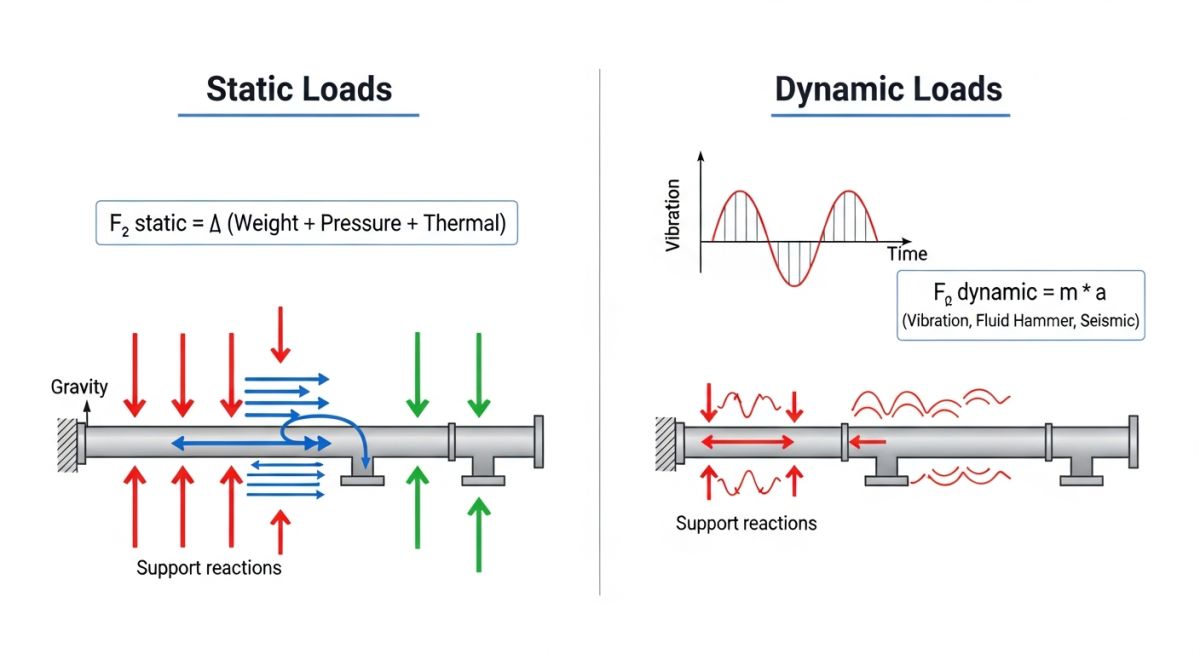

Static vs Dynamic Piping Loads Infographic

Understanding the Dynamic Amplification Factor

The Dynamic Amplification Factor (DAF) is the ratio of dynamic deflection to static deflection. It is a function of the frequency ratio (r = excitation frequency / natural frequency) and the damping ratio (zeta):

DAF = 1 / square_root((1 – r^2)^2 + (2 * zeta * r)^2)

When r approaches 1 (resonance), the DAF is limited only by damping. For typical piping systems, damping is low (usually 2% to 5% of critical damping), meaning the DAF can easily reach values of 10 to 25, leading to rapid mechanical failure.

Dynamic Load Classifications

Preparing for Dynamic Pipe Stress Analysis Interview Questions

Dynamic Load Classification: The categorization of transient and steady-state dynamic forces acting on piping systems to determine the appropriate analytical method under ASME B31.3.

To systematically evaluate dynamic problems, we classify loads based on their time-history profiles. The table below outlines the primary dynamic loads encountered in industrial process plants, their mathematical nature, and standard mitigation strategies.

Load Type Mathematical Profile Typical Source Mitigation Strategy
Harmonic / Steady-State Continuous sinusoidal excitation Reciprocating compressors, pumps Stiffness tuning, analog bottles, pulsation dampeners
Transient / Impulsive Short duration, high amplitude shock Water hammer, relief valve pop Snubbers, fast-acting valves, rigid struts
Random / Stochastic Non-periodic, statistical distribution Wind, seismic ground motion Guide supports, limit stops, sway braces

Technical Mapping & Specifications Matrix

This matrix maps critical dynamic parameters to their corresponding engineering standards, software inputs, and physical significance.

Parameter / Entity Acronym Physical Significance Governing Standard
Dynamic Amplification Factor DAF Quantifies structural resonance response ASME B31.3
Pulsation Frequency Limits API 618 Prevents acoustic-mechanical resonance API Standard 618
Response Spectrum Analysis RSA Calculates peak seismic response envelope ASCE 7 / IBC
Time History Analysis THA Step-by-step transient response tracking ASME B31.1 / B31.3

Site Verification Checklist

How to Verify Dynamic Piping Support Designs

Dynamic Support Verification: The field and analytical validation of piping restraints, snubbers, and spring hangers to ensure they accommodate dynamic displacements without exceeding allowable stress limits.

When reviewing dynamic piping systems on-site, standard static support checks are insufficient. Dynamic loads require specific restraint characteristics to control high-frequency movements and absorb energy. Use this checklist during design reviews or field walkdowns.

Dynamic Support Field Validation Checklist

  • Verify Snubber Lock-up Velocity: Ensure hydraulic or mechanical snubbers are specified with correct activation thresholds (typically 0.02 to 0.04 g acceleration or specific velocity limits) to lock up during dynamic events while allowing free thermal expansion.
  • Check Support Gap Tolerances: Confirm that dynamic guides and limit stops have tight tolerances (typically 1.5 mm or 1/16 inch maximum) to prevent impact loading and structural hammering during dynamic oscillations.
  • Assess Structural Steel Stiffness: Validate that the supporting structural steel is at least 10 times stiffer than the piping system itself to prevent dynamic coupling and structural resonance.
  • Inspect Spring Hanger Travel Limits: Ensure variable and constant spring hangers have sufficient travel margin (minimum 20% or 12 mm, whichever is greater) beyond calculated dynamic displacements to prevent bottoming out.
  • Review Mass Distribution: Verify that heavy inline components like control valves, actuators, and flow meters are supported independently to minimize cantilevered mass effects on adjacent piping.

Field Case Study

Field Case Study: Real-World Application

The Problem: A major petrochemical plant experienced severe, visible vibration in the discharge piping of a reciprocating compressor operating at 375 RPM. The vibration was so intense that it caused repeated fatigue failures of small-bore instrument connections within 48 hours of startup. The original design team had performed only a static stress analysis, completely ignoring the acoustic pulsation frequencies generated by the compressor cylinders.
The Solution & Outcome: I was brought in to resolve the issue. We performed a comprehensive dynamic field vibration measurement and built a dynamic model in CAESAR II. The analysis revealed that the second harmonic of the compressor operating speed (12.5 Hz) was in direct resonance with the first natural frequency of the piping span (12.2 Hz).

We redesigned the piping layout by adding rigid, heavy-duty dynamic restraints to shift the piping natural frequency up to 24 Hz, well away from the excitation zone. We also installed pulsation dampening bottles designed in accordance with API 618. The vibration amplitudes dropped by 92%, and the plant has operated without a single small-bore failure for over five years.

This case highlights why dynamic analysis is not optional for reciprocating machinery. When interviewing candidates, I look for this level of practical problem-solving. It is not just about running software; it is about understanding the physics of the system.

Frequently Asked Engineering Questions

What is the difference between static and dynamic pipe stress analysis?

Static analysis assumes loads are applied slowly and do not vary with time, ignoring inertial forces. Dynamic analysis accounts for time-varying loads, incorporating mass, damping, and stiffness to solve the equation of motion. Dynamic analysis is required for transient events like water hammer, relief valve discharge, and seismic activity under ASME B31.3.
How do you model a water hammer event in CAESAR II?

Water hammer is modeled using a Dynamic Time History analysis. First, you calculate the fluid transient force-time profiles at each elbow using fluid flow simulation software. These force-time profiles are then imported into CAESAR II as dynamic load vectors, and the software solves the system response step-by-step over the transient duration.
What is the significance of the cutoff frequency in seismic analysis?

The cutoff frequency (typically 33 Hz for seismic events) represents the point beyond which higher modes do not contribute significantly to the dynamic response. Modes above this frequency are considered rigid. In Response Spectrum Analysis, modes below the cutoff are calculated dynamically, while the remaining mass is accounted for using a static correction (left-out-force) method.
How do you mitigate high-frequency acoustic induced vibration (AIV)?

Acoustic Induced Vibration (AIV) is caused by high-frequency acoustic energy downstream of pressure-reducing devices. Mitigation involves increasing the pipe wall thickness (which increases stiffness and mass), using asymmetric fittings, avoiding thin-walled branch connections, or installing acoustic silencers to reduce the sound power level below critical thresholds.
What is the role of damping in dynamic piping analysis?

Damping represents the dissipation of energy within the piping system through material friction, support sliding, and fluid resistance. It limits the peak response at resonance. For typical industrial piping, a damping ratio of 2% to 5% of critical damping is assumed in accordance with regulatory guidelines like PVRC recommendations.
When should you use a snubber instead of a rigid strut?

A snubber is used when a piping location experiences significant thermal expansion during normal operation but also requires rigid restraint during dynamic events (like seismic or water hammer). A rigid strut would block thermal expansion, causing high thermal stresses, whereas a snubber allows slow thermal movement but locks up instantly during rapid dynamic displacements.
