What are Modulating Valves? Types, Applications, and Benefits

[Modulating Valves]: Modulating valves are advanced flow control devices designed to continuously adjust the position of a valve plug, disc, or ball to precisely regulate fluid flow, pressure, or temperature in accordance with dynamic process demands and ISA 75.01.01 standards.

In my 20+ years of commissioning petrochemical plants, I have seen countless systems fail simply because engineers treated control valves as simple on-off switches. When you are managing a high-pressure steam line or a volatile chemical feed, a standard gate valve won’t cut it. You need dynamic, real-time adjustments. That is where modulating valves come into play. I remember a project in 2014 where replacing a cycling on-off valve with a properly sized pneumatic modulating globe valve reduced our pressure fluctuations by 94% and saved the downstream turbine from catastrophic cavitation.

Unlike standard isolation valves that operate in a binary open-or-closed state, modulating valves position their internal trim anywhere between 0% and 100% open. This continuous adjustment is driven by an external controller, such as a PLC or DCS, which processes real-time sensor data and sends a variable signal (typically 4-20mA or 0-10V) to the valve actuator. This level of control is critical for maintaining system stability, optimizing energy efficiency, and preventing severe piping wear.

Key Engineering Takeaways

  • Continuous positioning from 0% to 100% stroke allows for precise flow, pressure, and temperature regulation.
  • Closed-loop feedback integration with PLC/DCS systems ensures rapid response to dynamic process changes.
  • Minimization of water hammer and thermal shock significantly extends the service life of downstream piping.
  • Compliance with ASME B16.34 and ANSI/FCI 70-2 leakage classes is mandatory for high-performance applications.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

A modulating control valve is being selected for a liquid piping system where the pressure drop across the valve decreases significantly as the flow rate increases (i.e., a low valve authority system with high line friction losses). Which inherent flow characteristic should the valve trim possess to achieve a relatively linear installed flow characteristic?




Core Technical Analysis & Engineering Physics

How Do Modulating Valves Regulate Flow?

[Modulating Valve Regulation]: The continuous positioning mechanism of modulating valves relies on a closed-loop feedback system where an electronic or pneumatic actuator receives a variable signal to position the valve trim anywhere between fully open and fully closed, complying with IEC 60534 control standards.

To truly understand modulating valves, we must look at the physics of fluid dynamics. The primary parameter we calculate during design is the Valve Flow Coefficient (Cv). This coefficient represents the volume of water in US gallons per minute that will flow through a wide-open valve with a pressure drop of 1 PSI. For modulating applications, we do not just calculate a single Cv; we must map the Cv across the entire operating range of the system.

The fundamental equation for liquid flow through a control valve is:

Cv = Q * sqrt(SG / dP)

Where:
Q = Flow rate in Gallons Per Minute (GPM)
SG = Specific Gravity of the fluid (water = 1.0)
dP = Pressure drop across the valve in PSI (P1 – P2)

In my field experience, the most common mistake is oversizing the valve. If a valve is oversized, it will modulate very close to its seat (typically below 10% open). This causes a phenomenon known as “seat hunting” or “wire drawing,” where high-velocity fluid rapidly erodes the plug and seat, leading to premature leakage and unstable control.

Field Warning: Cavitation and Flashing

When modulating valves operate under high pressure drops, the localized pressure can drop below the vapor pressure of the liquid. This causes vapor bubbles to form (flashing). If the pressure recovers downstream, these bubbles collapse violently, generating micro-jets that can destroy hardened steel trim in a matter of weeks. Always calculate the cavitation index (sigma) using ISA-75.01.01 guidelines before finalizing your trim selection.

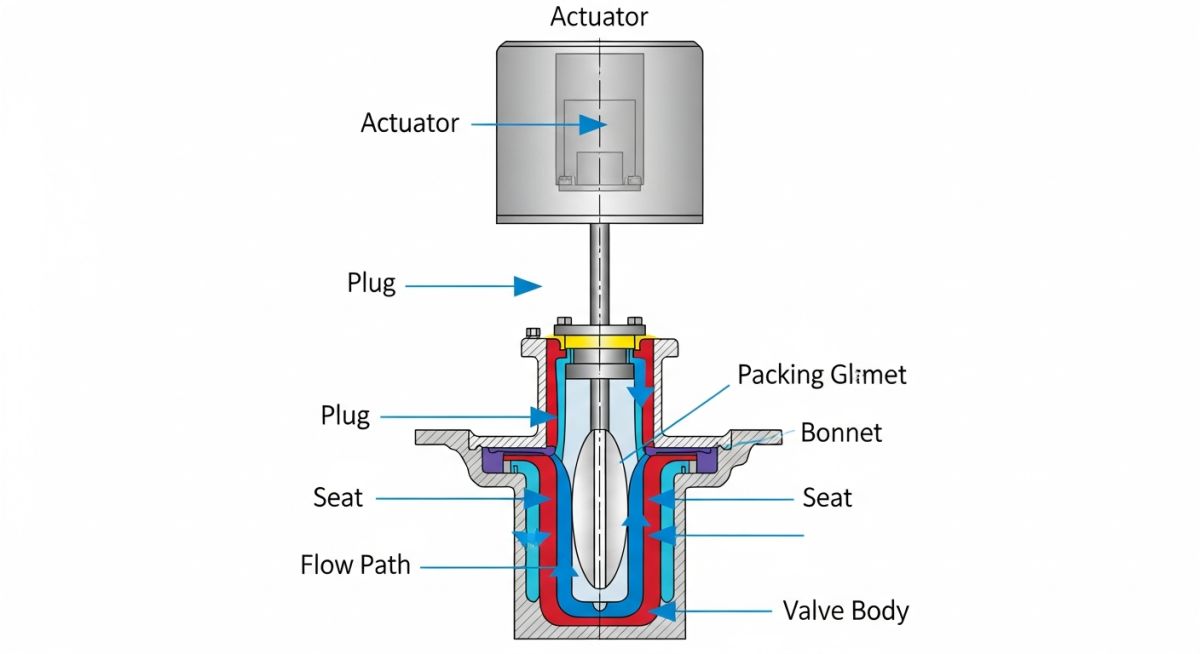

Cross-section diagram of a modulating globe valve showing trim, plug, and actuator

Trim Characteristics and Selection

The relationship between valve lift and flow capacity is defined by the trim characteristic. There are three primary types used in modulating service:

  • Equal Percentage: Equal increments of valve lift produce equal percentage changes in flow. This is the most common choice for systems where the pressure drop across the valve decreases as the flow rate increases.
  • Linear: Flow rate is directly proportional to valve lift. This is ideal for systems with a constant pressure drop across the valve, such as liquid level control loops.
  • Quick Opening: Provides maximum flow capacity immediately upon opening. This is rarely used for modulation and is typically reserved for on-off safety systems.

Comparing Key Types of Modulating Valves
[Modulating Valve Selection]: Selecting the correct modulating valve type requires matching the process fluid characteristics, pressure drop limits, and leakage classes defined by ASME FCI 70-2 to the specific mechanical limits of globe, ball, or butterfly trims.

Different valve designs offer distinct advantages depending on the process conditions. The table below outlines the primary mechanical and operational differences between the most common modulating valve configurations used in heavy industry.

Valve Type Flow Characteristic Pressure Recovery (FL) Max Leakage Class Typical Applications
Globe Valve Linear / Equal % High (0.85 – 0.90) Class V / VI High-pressure steam, boiler feedwater, precise chemical dosing
Segmented Ball Equal % Low (0.60 – 0.70) Class IV Slurries, fibrous pulp, high-flow gas systems
High-Performance Butterfly Equal % Low (0.55 – 0.65) Class VI Large diameter cooling water, low-pressure gas utility lines
Diaphragm Valve Linear Medium (0.75) Class VI (Bubble-tight) Corrosive chemicals, sanitary food/pharma processing

Technical Mapping & Specifications Matrix

To ensure compliance with international engineering standards, use this technical mapping matrix during the procurement and engineering design phases.

Parameter / Entity Standard Reference Technical Definition Engineering Significance
ANSI/FCI 70-2 ANSI/FCI 70-2 Control Valve Seat Leakage Defines allowable leakage rates from Class I (highest) to Class VI (bubble-tight).
ASME B16.34 ASME B16.34 Valves – Flanged, Threaded, and Welding End Governs pressure-temperature ratings, wall thickness, and material specifications.
ISA 75.25.01 ISA 75.25.01 Test Procedure for Control Valve Response Establishes testing methods for step response and hysteresis in modulating service.
Hysteresis IEC 60534-4 Maximum difference in output for the same input High hysteresis causes lag and oscillation in the control loop; must be kept under 1%.

Pre-Commissioning Checklist for Modulating Valves
[Pre-Commissioning Verification]: The systematic field inspection of modulating valves ensures that actuator calibration, positioner feedback loops, and pressure boundary integrity conform to ASME B16.34 and ISA standards before process startup.

Before introducing process fluid into a newly installed piping system, the modulating valve assembly must undergo rigorous field verification. Skipping these steps often leads to erratic control loop behavior, packing leaks, or actuator damage during startup.

Field Verification Steps

  • Verify Flow Direction Arrow: Ensure the physical arrow cast on the valve body matches the actual process flow direction. Installing a globe valve backward can cause the plug to slam shut, causing severe water hammer.
  • Perform Actuator Calibration (Stroke Test): Input a 4mA (or 0%) signal and verify the valve is fully closed. Input a 20mA (or 100%) signal and verify full rated travel. Check intermediate steps (8mA/25%, 12mA/50%, 16mA/75%) to ensure linearity.
  • Inspect Instrument Air Supply: Verify that the pneumatic supply pressure matches the actuator nameplate rating (typically 35 to 60 PSI). Ensure the air is clean, dry, and filtered per ISA 7.0.01 standards.
  • Check Packing Gland Tightness: Adjust the packing gland nuts to the manufacturer’s specified torque. Over-tightening increases stem friction (stiction), which degrades modulating performance, while under-tightening causes fugitive emissions.
  • Confirm Positioner Feedback Loop: Verify that the digital positioner is communicating correctly with the DCS. Check that the analog output feedback signal matches the physical stem position within +/- 0.5% of span.

Field Case Study: Real-World Application

Field Case Study: Real-World Application

[Field Case Study]: This real-world engineering analysis demonstrates how replacing an on-off bypass valve with a high-performance modulating globe valve resolved severe cavitation and piping vibration in a high-pressure boiler feed system.

The Problem: Severe Cavitation and Piping Vibration

At a combined-cycle power plant, a high-pressure boiler feedwater pump bypass system was experiencing extreme vibration (exceeding 18 mm/s RMS) and loud, metallic popping noises resembling gravel flowing through the pipe. The original design utilized a heavy-duty on-off ball valve to dump excess flow back to the deaerator. Because the valve could not modulate, opening it caused an instantaneous pressure drop from 120 bar to 3 bar. This massive pressure drop triggered severe cavitation, which eroded the downstream piping wall thickness by 40% in less than six months of operation, threatening a catastrophic rupture.

The Solution: Multi-Stage Modulating Globe Valve

As the lead piping consultant, I recommended replacing the on-off ball valve with a pneumatic modulating globe valve equipped with a multi-stage, anti-cavitation trim (drilled-hole cage design). This trim splits the high pressure drop into four distinct, manageable stages, ensuring the localized fluid pressure never drops below the vapor pressure of the water. We integrated a smart digital positioner configured with an equal-percentage flow characteristic to match the pump’s performance curve.

The Outcome and Performance Metrics

The results were immediate and highly successful. By transitioning from binary on-off control to continuous modulation, we achieved the following improvements:

  • Vibration Reduction: Piping vibration dropped from 18 mm/s to a safe level of 1.2 mm/s, well within ASME OM3 guidelines.
  • Noise Mitigation: Near-field noise levels decreased from 104 dBA to 78 dBA, eliminating the need for expensive acoustic insulation.
  • Process Stability: Deaerator level control stabilized, reducing pressure surges in the low-pressure steam system by 85%.
  • Extended Asset Life: Ultrasonic thickness testing performed 12 months post-installation showed zero measurable wall loss in the downstream piping.

Frequently Asked Engineering Questions

[Modulating Valve FAQs]: This comprehensive reference addresses critical engineering questions regarding modulating valve selection, sizing, maintenance, and troubleshooting in accordance with international piping standards.
What is the difference between a modulating valve and a control valve?

A modulating valve is a specific type of control valve. While “control valve” is a broad term that can include on-off valves used for safety shutdown (ESD) or batching, a modulating valve specifically refers to a valve designed for continuous positioning between 0% and 100% stroke to regulate process variables. All modulating valves are control valves, but not all control valves are modulating valves.
How do I prevent “stiction” in modulating valve actuators?

Stiction (static friction) occurs when the valve stem sticks to the packing, causing the actuator to jump rather than move smoothly. To prevent this, use live-loaded PTFE packing systems for temperatures below 200°C, or graphite packing with ultra-smooth stem finishes for higher temperatures. Additionally, installing a high-quality digital positioner with a “stiction detection” algorithm helps identify and mitigate this issue before it destabilizes the control loop.
Why is an equal percentage trim preferred over linear trim in most applications?

In most piping systems, as the flow rate increases, the pressure drop across the piping and fittings increases, which leaves less pressure drop across the control valve. An equal percentage trim compensates for this system pressure loss by providing progressively larger increments of flow area as the valve opens. This results in a linear overall system control loop response, which is much easier to tune and stabilize.
What are the consequences of oversizing a modulating valve?

Oversizing forces the valve to operate very close to its seat to achieve the required flow restriction. This leads to “hunting” (where the valve constantly cycles open and closed), rapid wear of the plug and seat due to high-velocity fluid erosion, and poor control resolution. A well-designed modulating valve should operate between 20% and 80% open during normal process conditions.
Can I use a standard ball valve for modulating service?

Standard full-port ball valves are highly discouraged for modulating service. They have a very high pressure recovery factor, making them highly susceptible to cavitation, and their flow characteristic is extremely non-linear. If you require a rotary valve for modulation, you must use a segmented “V-port” ball valve designed specifically for throttling control per ISA-75.01.01.
What is the role of a positioner on a modulating valve?

The positioner acts as the “brain” of the valve assembly. It compares the control signal from the DCS with the actual physical position of the valve stem. If there is a discrepancy due to packing friction, process pressure, or actuator hysteresis, the positioner adjusts the air pressure to the actuator until the exact target position is reached, ensuring precise closed-loop control.

===FAQ_BLOCK===
