Understanding Land Mapping and the True Topographic Survey Cost

Topographic Land Surveying: A highly specialized geodetic mapping process that identifies and maps the contours, elevations, and physical features of a specific land parcel in strict accordance with ALTA/NSPS and local civil engineering standards.

In my 20+ years of managing major civil infrastructure and piping projects, I have seen countless developers make the fatal mistake of skipping or underfunding their initial site mapping. They treat land surveying as a mere administrative box to check, only to face millions of dollars in structural foundation failures or pipeline alignment clashes later. When you are designing drainage systems, grading plans, or routing heavy industrial piping, you need absolute spatial precision. Understanding the true topographic survey cost upfront is not just about budgeting; it is about mitigating catastrophic engineering risks before the first excavator ever touches the dirt.

Key Engineering Takeaways:

  • Accurate elevation data prevents costly foundation redesigns and drainage failures.
  • The total topographic survey cost varies based on acreage, terrain density, and required contour intervals.
  • Standard compliance with NSPS standards ensures legal and engineering validity for municipal approvals.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

In topographic surveying, when generating a Triangulated Irregular Network (TIN) to model terrain relief, how do “breaklines” mathematically and structurally influence the interpolation of contour lines?




Technical Principles of Topographic Mapping

Key Factors Influencing Your Topographic Survey Cost

Topographic Survey Pricing: The total financial expenditure required to execute a comprehensive land elevation mapping project, calculated based on field labor hours, equipment overhead, and drafting complexity under professional engineering guidelines.

To accurately estimate the topographic survey cost for any civil or piping project, we must break down the technical parameters that dictate field hours. Surveyors do not just walk a site with a GPS rover; they establish a highly precise control network. The density of vegetation, the steepness of the terrain, and the required contour interval resolution directly impact the time spent on-site. For instance, a 1-foot contour interval requires significantly more data points than a 5-foot contour interval, directly increasing the drafting and field collection time.

The Mathematics of Contour Interpolation

To calculate the exact horizontal position of a contour line between two measured elevation points, we use linear interpolation. Let Point A have an elevation of 102.4 meters and Point B have an elevation of 105.8 meters. The horizontal distance between them is 15.0 meters. If we want to find the exact location of the 104.0-meter contour line:

1. Calculate total elevation difference: 105.8 – 102.4 = 3.4 meters
2. Calculate elevation difference from Point A to target contour: 104.0 – 102.4 = 1.6 meters
3. Calculate horizontal distance from Point A to the contour line:
Distance = (Total Distance * Elevation Difference to Contour) / Total Elevation Difference
Distance = (15.0 * 1.6) / 3.4 = 7.06 meters

This mathematical precision ensures that our grading plans and piping alignments match the physical reality of the site. Any error in this interpolation can lead to pooling water or incorrect pipe slopes, which is why hiring licensed professionals who follow ASCE guidelines is non-negotiable.

Field Warning: Relying solely on cheap drone-only photogrammetry without ground control points (GCPs) is a recipe for disaster. In my experience, uncalibrated aerial data can introduce vertical errors of up to 0.5 meters in heavily wooded areas, completely ruining gravity-flow piping designs. Always insist on a hybrid survey that combines aerial mapping with ground-based RTK GPS verification.

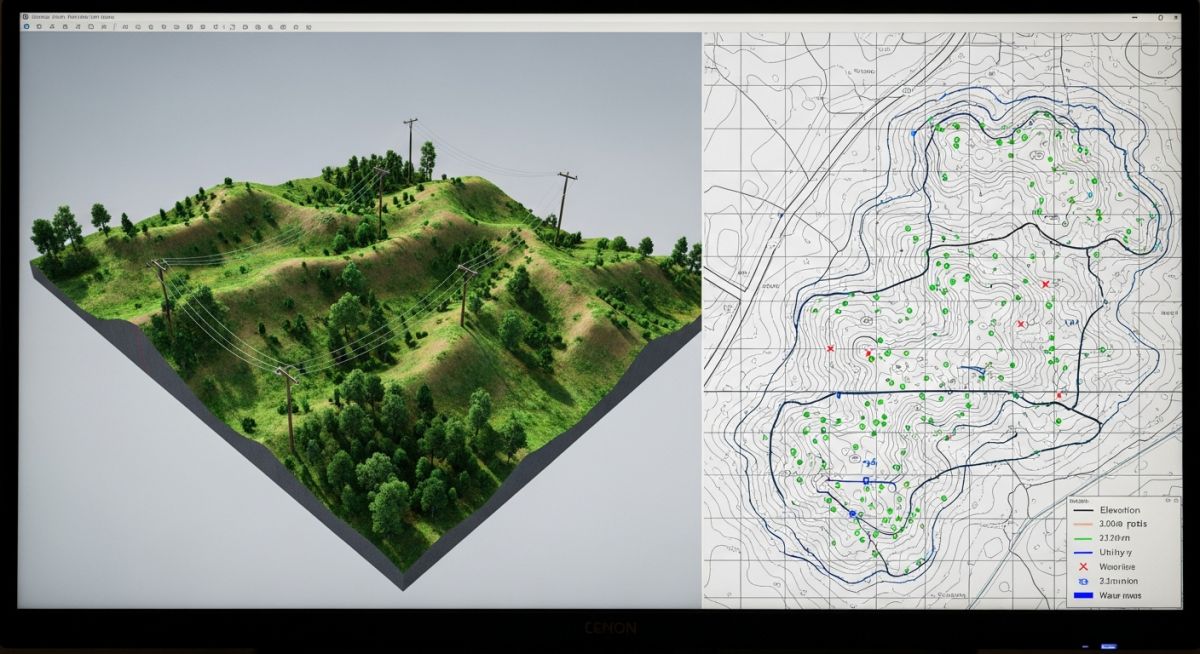

Topographic survey map showing detailed contour lines and elevation points

Topographic Survey Cost Breakdown by Project Scale

How to Estimate Your Topographic Survey Cost

Survey Cost Estimation: The systematic calculation of field and office labor rates, equipment depreciation, and site accessibility factors to establish a binding professional land surveying quote.

When budgeting for land development, you must understand how scale and complexity scale the pricing. Below is a realistic breakdown of costs based on typical project parameters I have managed across various industrial and residential sites.

Project Scale Typical Acreage Terrain Complexity Average Cost Range (USD) Primary Equipment Used
Small Residential 0.25 to 1 Acre Flat, Clear 800 – 2,000 Total Station, RTK GPS
Medium Commercial 1 to 5 Acres Moderate Vegetation 2,500 – 6,000 Robotic Total Station, 3D Scanner
Large Industrial 5 to 20 Acres Heavy Brush, Slopes 6,500 – 15,000 LiDAR Drone, Ground Control RTK
Infrastructure Corridor Linear (Piping/Roads) Variable, Complex 10,000 – 30,000+ Mobile LiDAR, Terrestrial Scanning

Technical Mapping & Specifications Matrix

To ensure your survey is legally compliant and technically viable for engineering design, it must map specific physical entities. The table below outlines these critical entities and their corresponding standards.

Survey Entity Technical Acronym Physical Parameter Measured Standard Reference Engineering Application
Benchmark Elevation BM Vertical Datum Height (NAVD88) NGS Standards Foundation leveling, structural design
Right of Way ROW Horizontal property boundaries ALTA/NSPS Land Title Utility routing, setback compliance
Invert Elevation IE Lowest inside point of pipe/channel ASCE 38-02 Gravity sewer and storm drain design
Ground Control Point GCP X, Y, Z coordinate calibration FGDC Accuracy Standards Drone photogrammetry calibration

Field Verification and Quality Assurance Checklist

Field Verification Checklist for Survey Accuracy

Quality Assurance Checklist: A structured sequence of field verification steps and instrument calibration checks designed to guarantee that topographic survey data meets strict engineering tolerances.

Before you sign off on a surveyor’s deliverable and release payment, you must verify that the data is technically sound. As a project manager, I use this exact checklist to audit incoming CAD files and survey reports.

Topographic Survey QA/QC Checklist:

  • Datum Verification: Confirm that the survey references the correct horizontal datum (typically NAD83) and vertical datum (typically NAVD88).

  • Control Point Loop Closure: Ensure the surveyor provides a loop closure report showing a vertical error of closure within acceptable limits (typically 0.05 feet times the square root of the distance in miles).

  • Utility Invert Mapping: Verify that all storm and sanitary sewer manholes show invert elevations, pipe sizes, and materials, rather than just surface rim elevations.

  • Contour Line Smoothness: Check CAD files for jagged or overlapping contour lines, which indicate interpolation errors or bad data points.

  • Tree Canopy Penetration: For wooded sites, confirm that ground shots were taken manually where dense foliage prevents GPS or LiDAR from reaching the actual soil surface.

Industrial Site Development Case Study

Field Case Study: Real-World Application

The Problem: The Cost of a Cheap Survey

On a 12-acre industrial chemical plant expansion in Louisiana, the client opted for a low-bid surveyor to minimize their initial topographic survey cost. The surveyor relied heavily on uncalibrated drone photogrammetry without establishing adequate ground control points in a marshy, heavily vegetated zone. During the piping design phase, we relied on these contours to route a 24-inch gravity-flow wastewater line. Once construction began, we discovered the actual ground elevations were 1.4 feet lower than mapped, meaning the wastewater line would have had to flow uphill to reach the treatment facility.

The Outcome: Remediation and Savings

I immediately halted excavation and brought in a premium surveying crew equipped with robotic total stations and terrestrial LiDAR. We executed a highly precise topographic re-survey costing 8,500. The new data allowed us to redesign the piping slope and add a small lift station. While the re-survey and redesign added 15,000 to the engineering budget, it saved the client over 180,000 in potential field rework, trench backfilling, and structural foundation modifications that would have occurred had we proceeded with the faulty initial data.

The lesson here is clear: attempting to cut corners on your initial topographic survey cost almost always results in exponentially higher construction change orders. Invest in high-quality, licensed surveying from day one.

Frequently Asked Engineering Questions

What is the difference between a boundary survey and a topographic survey?
A boundary survey identifies and legally documents the property lines and corners of a land parcel. In contrast, a topographic survey maps the physical features, elevations, contours, utilities, and structures on that land. While a boundary survey tells you where your property ends, a topographic survey tells you what is physically on and under the ground so you can design structures safely.
How long does a topographic survey remain valid for engineering design?
Generally, a topographic survey is considered valid for 1 to 2 years, provided no major grading, excavation, or natural erosion has occurred on the site. If significant weather events, flooding, or adjacent construction have taken place, a professional surveyor must perform a field verification to update the elevation data.
What specific equipment is used to determine topographic survey cost?
Surveyors utilize high-precision instruments including Robotic Total Stations for angle and distance measurements, RTK (Real-Time Kinematic) GPS for satellite-based positioning, and Terrestrial 3D Laser Scanners (LiDAR) for dense data collection. The choice of equipment depends on site vegetation and required accuracy, which directly influences the overall project cost.
Can drone photogrammetry completely replace traditional ground-based topographic surveys?
No, drone photogrammetry cannot completely replace ground surveys. While drones are excellent for rapid data collection over large, open areas, they cannot penetrate dense tree canopies or accurately map underground utility inverts. A professional survey must combine aerial data with ground-based physical measurements to ensure engineering-grade accuracy.
How do contour intervals affect the overall topographic survey cost?
The contour interval is the vertical distance between contour lines on a map. A 1-foot contour interval requires the surveyor to capture significantly more data points on the ground than a 5-foot interval. This increased data density requires more field labor and drafting time, which can increase the survey cost by 50% to 100%.
What are the standard accuracy tolerances for civil engineering topographic surveys?
According to ASCE and ALTA/NSPS standards, typical topographic surveys for design purposes require a horizontal accuracy of plus or minus 0.1 feet and a vertical accuracy of plus or minus 0.05 feet on hard surfaces like concrete, and plus or minus 0.2 feet on natural ground surfaces.

===
