pipe hangers Archives

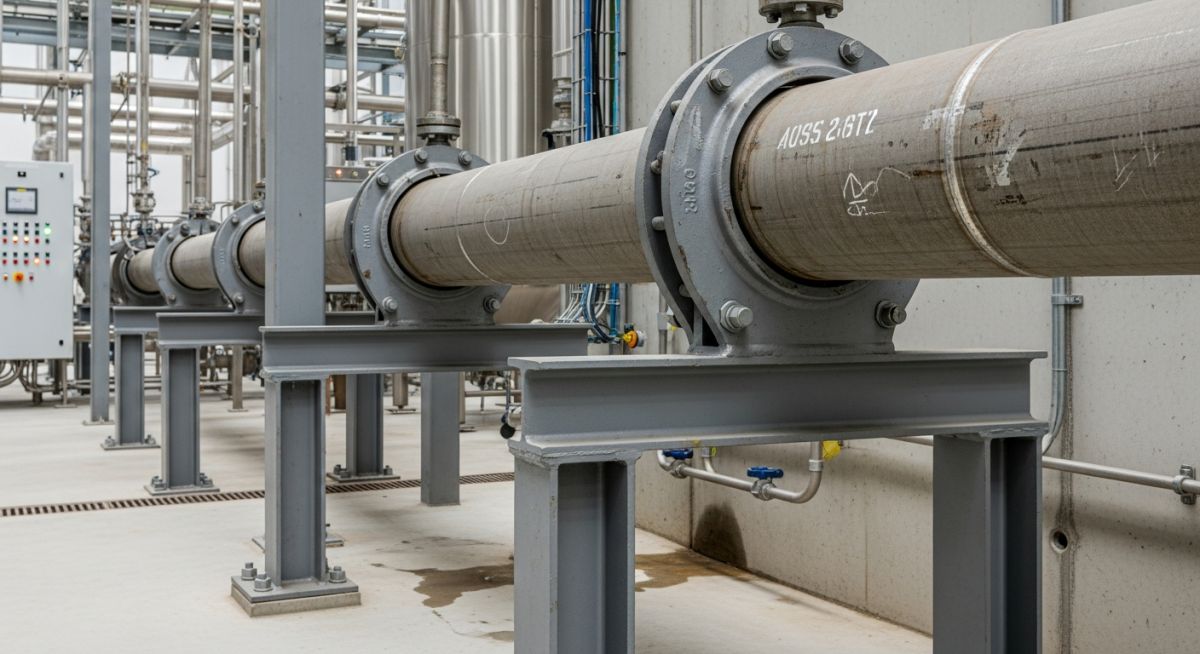

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: Visually introduce the concept of industrial pipe supports and hangers compliant with engineering standards. Description: A high-quality, close-up photograph of heavy-duty industrial pipe hangers and supports holding a large steel pipeline in a modern processing plant. SEO Alt Text: Industrial pipe hangers and supports holding a steel pipeline in compliance with MSS SP-58 standards. Image Slug: industrial-pipe-hangers-supports-mss-sp-58 Filename URL: https://epcland.com/wp-content/uploads/2026/07/industrial-pipe-hangers-supports-mss-sp-58.jpg Technical Infographic: Purpose: Illustrate the different types of pipe supports categorized under the MSS SP-58 standard. Description: A detailed technical diagram or schematic showing various types of pipe hangers, clamps, and anchors with labels indicating their MSS SP-58 classifications. SEO Alt Text: Technical diagram showing different types of pipe hangers and supports classified under MSS SP-58. Image Slug: mss-sp-58-pipe-support-types-diagram Filename URL: https://epcland.com/wp-content/uploads/2026/07/mss-sp-58-pipe-support-types-diagram.jpg Meta Data: Focus Keyword: MSS SP-58 Title: Understanding MSS SP-58: The Standard for Pipe Hangers and Supports Slug: mss-sp-58-pipe-hangers-standard Meta Description: Learn what MSS SP-58 is, why it matters for piping systems, and how it governs the design, selection, and installation of pipe hangers. Tags: MSS SP-58, pipe hangers, pipe supports, piping engineering, industrial standards, MSS standards Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 What is MSS SP-58 and Why Is It Important? MSS SP-58 Standard Compliance: This comprehensive standard serves as the universal benchmark governing the design, material selection, fabrication, testing, and installation of pipe hangers and supports in industrial piping systems. It ensures structural integrity, thermal displacement accommodation, and safety compliance across power, process, and municipal piping networks. In my 20-plus years of walking refinery decks and power plant platforms, I have seen my share of piping failures. More often than not, the culprit is not a ruptured pipe wall or a blown valve gasket. It is a failed pipe support. When a support fails, it triggers a catastrophic domino effect of unbalanced loads, flange leaks, and equipment nozzle overstress. That is why understanding the Manufacturers Standardization Society (MSS) SP-58 standard is not just an academic exercise; it is a fundamental requirement for keeping your plant safe, compliant, and operational. Historically, the industry struggled with fragmented guidelines. We had separate standards for design, materials, and selection. MSS SP-58 changed the game by consolidating five distinct standards into a single, comprehensive master document. This unified standard acts as the ultimate bridge between the piping stress engineer's computer model and the physical reality of the pipe rack. Key Engineering Takeaways Unified Framework: Consolidates design, selection, fabrication, and installation into one cohesive standard. Safety Factors: Mandates a strict five-to-one safety factor for tension members based on ultimate tensile strength. Standardized Types: Defines 59 distinct pipe support types to eliminate field-fabricated guesswork. Code Alignment: Integrates seamlessly with ASME B31.1 and ASME B31.3 piping codes. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 In its current comprehensive form, MSS SP-58 ("Pipe Hangers and Supports - Materials, Design, Manufacture, Selection, Application, and Installation") consolidates several previously independent standards to provide a single source of reference. Which of the following sets of standards were integrated into the modern MSS SP-58? MSS SP-69, MSS SP-75, MSS SP-89, and MSS SP-110 MSS SP-69, MSS SP-89, MSS SP-90, and MSS SP-127 MSS SP-55, MSS SP-89, MSS SP-97, and MSS SP-135 MSS SP-44, MSS SP-69, MSS SP-112, and MSS SP-127 Next Question → Question 2 of 3 According to MSS SP-58, when designing or rating standard catalog pipe hanger components, what is the minimum safety factor applied to the minimum ultimate tensile strength of the material at room temperature to determine the allowable design load? 3.0 4.0 5.0 2.0 Next Question → Question 3 of 3 When establishing the maximum recommended span (spacing) between pipe hangers for horizontal steel piping systems carrying water under MSS SP-58, what are the primary structural deflection and bending stress criteria used to calculate these limits? A maximum mid-span deflection of 0.1 inches (2.5 mm) and a maximum bending stress of 2,300 psi (15.86 MPa). A maximum mid-span deflection of 0.25 inches (6.35 mm) and a maximum bending stress of 5,000 psi (34.47 MPa). A maximum mid-span deflection of L/360 of the span length and a maximum bending stress of 10,000 psi (68.95 MPa). A maximum mid-span deflection of 0.5 inches (12.7 mm) and a maximum bending stress equal to 33% of the material's yield strength. 🎉 Quiz Completed! You have passed the engineering review criteria. Core Technical Deep-Dive How Does MSS SP-58 Govern Piping Design? MSS SP-58 Design Criteria: The standard establishes strict engineering limits for allowable stresses, load-carrying capacities, and temperature-based material selection for pipe support assemblies. It bridges the gap between piping stress analysis and structural steel design by defining standardized component types and safety factors. When I design a piping system, I must ensure that the supports can handle the deadweight of the pipe, the fluid, the insulation, and any transient dynamic loads like water hammer or wind. MSS SP-58 provides the exact mathematical and metallurgical boundaries to make this happen. It dictates that the allowable stress for hanger components must not exceed the lower of one-fifth of the minimum tensile strength or two-thirds of the yield strength of the material at the operating temperature. Let us look at the math. If we are using standard carbon steel with an ultimate tensile strength of 60,000 pounds per square inch and a yield strength of 36,000 pounds per square inch, the allowable design stress is calculated as follows: Allowable Stress based on Tensile Strength = 60,000 / 5 = 12,000 psi Allowable Stress based on Yield Strength = (36,000 * 2) / 3 = 24,000 psi Governing Design Allowable Stress = Minimum of (12,000 psi, 24,000 psi) = 12,000 psi This conservative approach ensures a robust safety margin, protecting the system against unexpected pressure surges or thermal excursions. Furthermore, the standard classifies supports into 59 distinct types, ranging from simple clevis hangers (Type 1) to complex constant support hangers (Type 54). This classification allows engineers to specify exact, pre-engineered components rather than relying on unrated, field-fabricated solutions. CRITICAL FIELD WARNING: Never substitute a standard structural clamp for an MSS SP-58 rated pipe clamp. Structural clamps are designed for static beam loads and do not account for the thermal expansion, pipe rotation, or cyclic loading inherent in active piping systems. Doing so can lead to localized pipe wall crushing or sudden support shear failure. Another critical aspect of the standard is how it handles thermal movement. In high-temperature systems, pipes expand significantly. If you restrain this movement with rigid supports, you will generate massive thermal stresses that can buckle the pipe or tear the support from the structural steel. MSS SP-58 provides detailed selection criteria for variable spring hangers and constant support hangers, ensuring that the thermal displacement is absorbed without transferring excessive loads back to sensitive equipment nozzles, such as those on pumps or turbines. MSS SP-58 Support Types & Temperature Limits Support Type MSS Type Designation Temperature Range Primary Application Clevis Hanger Type 1 Ambient to 450°F (232°C) Suspension of non-insulated or insulated stationary lines. Riser Clamp Type 26 Ambient to 650°F (343°C) Supporting vertical piping runs by transferring load to structural floors. Variable Spring Type 51 -20°F to 650°F (-29°C to 343°C) Supporting lines subject to moderate vertical thermal expansion. Constant Support Type 54 Cryogenic to 1200°F (649°C) Critical high-temperature piping with large vertical displacements. Technical Mapping & Specifications Matrix Engineering Parameter MSS SP-58 Requirement Reference Standard Compliance Verification Method Material Traceability Certified Material Test Reports (CMTR) for load-bearing components ASTM Material Specs Mill certificate review and heat number stamping verification. Load Testing Proof load testing at 1.5 times the rated design capacity MSS SP-58 Section 7 Hydrostatic test witness or certified factory test reports. Thread Engagement Minimum engagement equal to hanger rod diameter plus 0.25 inches ASME B1.1 Visual inspection via sight holes in rod couplings and turnbuckles. Corrosion Protection Hot-dip galvanizing or epoxy coating based on environmental class ASTM A123 / A153 Dry film thickness (DFT) gauge testing during receiving inspection. Site Verification Checklist Why Is MSS SP-58 Critical for Field Installation? MSS SP-58 Field Verification: Field installation compliance requires systematic verification of support spacing, spring pre-loads, and structural attachment integrity against engineered design drawings. This process guarantees that the physical piping system behaves exactly as modeled in the stress analysis software. During construction, I have often seen field crews install hangers in the wrong locations or fail to remove travel stops from spring supports. This checklist is designed to prevent those critical field errors, ensuring that your installation complies fully with the rigorous requirements of the standard. Field Quality Control Checklist Verify Support Spacing: Ensure the actual span between supports does not exceed the maximum allowable spacing specified in the piping design drawings and ASME B31.3. Confirm Thread Engagement: Check that all hanger rods have full thread engagement in turnbuckles, clevises, and concrete anchors. Remove Spring Travel Stops: Verify that all red travel stops or shipping pins are removed from variable and constant spring hangers after hydrostatic testing but before commissioning. Inspect Weld Quality: Ensure all structural attachment welds (such as dummy legs or welded shoes) are executed by qualified welders in accordance with ASME Section IX. Check Angular Deviation: Confirm that hanger rods are vertical within 4 degrees of the design axis to prevent excessive lateral loading on the piping system. Field Case Study Field Case Study: Real-World Application The Problem: Catastrophic Vibration and Sagging At a combined-cycle power plant in Texas, a 12-inch high-pressure steam line operating at 650 degrees Fahrenheit was experiencing severe, low-frequency vibration. During my site walkdown, I noticed that the line had sagged by nearly 2 inches between two structural columns. The field team had installed generic, unrated rigid supports fabricated from scrap structural steel. These rigid restraints were fighting the thermal expansion of the pipe, causing the pipe to bow downward and transferring massive, uncalculated loads to the steam turbine nozzle. The Outcome: Engineered Compliance Restores Integrity I immediately halted operations on that line and performed a comprehensive piping stress analysis. We replaced the rigid field-fabricated supports with engineered, MSS SP-58 compliant Type 51 variable spring hangers and Type 26 riser clamps. The new spring hangers were sized to handle the 4,500-pound operating load while accommodating 1.2 inches of vertical thermal growth. Once commissioned, the vibration ceased, the pipe returned to its design elevation, and the turbine nozzle loads dropped well within the allowable limits specified by NEMA SM 23. This case highlights why we cannot afford to treat pipe supports as an afterthought. Relying on unrated, non-standardized supports is a recipe for structural failure. By adhering strictly to the MSS SP-58 standard, we ensured the long-term reliability of the plant's critical steam system. Frequently Asked Engineering Questions What is the difference between MSS SP-58 and ASME B31.3 regarding pipe supports? ASME B31.3 is the overarching process piping code that defines the safety and design criteria for the entire piping system, including pressure containment. However, it does not provide detailed manufacturing or design specifications for individual support components. MSS SP-58 acts as the companion standard, providing the specific engineering, material, and testing requirements for the hangers and supports themselves, ensuring they meet the safety margins required by ASME B31.3. Why did MSS consolidate multiple standards into SP-58? Prior to consolidation, the industry had to navigate five separate standards: SP-58 (materials and design), SP-69 (selection and application), SP-77 (guidelines for pipe hangers), SP-89 (fabrication and installation), and SP-90 (guidelines on terminology). This fragmentation caused confusion and compliance gaps. Consolidating them into a single document streamlined the engineering, procurement, and inspection processes. What is the safety factor required by MSS SP-58 for load-bearing components? The standard mandates a minimum safety factor of five-to-one (5:1) for all tension members based on the ultimate tensile strength of the material. This high safety margin is designed to protect the piping system against dynamic transients, water hammer, and localized thermal stresses that may not be fully captured in static stress models. Can I use carbon steel supports for stainless steel piping under this standard? Direct contact between carbon steel and stainless steel must be avoided to prevent galvanic corrosion and carbon contamination of the stainless steel. MSS SP-58 requires the use of non-metallic isolation pads, stainless steel liners, or galvanized/coated carbon steel components to physically isolate the dissimilar metals while maintaining structural support. How does MSS SP-58 address variable spring hanger calibration? The standard requires that all spring hangers be calibrated and tested at the factory. They must feature a highly visible load travel scale showing both the cold (installed) and hot (operating) design positions. This allows field engineers to easily verify that the spring is operating within its calibrated range and has not bottomed out or topped out during thermal cycles. Are field-fabricated supports permitted under MSS SP-58? Field-fabricated supports are permitted only if they are designed, calculated, and welded in strict accordance with the engineering principles outlined in the standard. They must undergo the same load-rating and material traceability verifications as factory-manufactured components. In practice, utilizing pre-engineered, catalog-standardized MSS SP-58 supports is highly recommended to minimize engineering costs and field installation errors. ===
