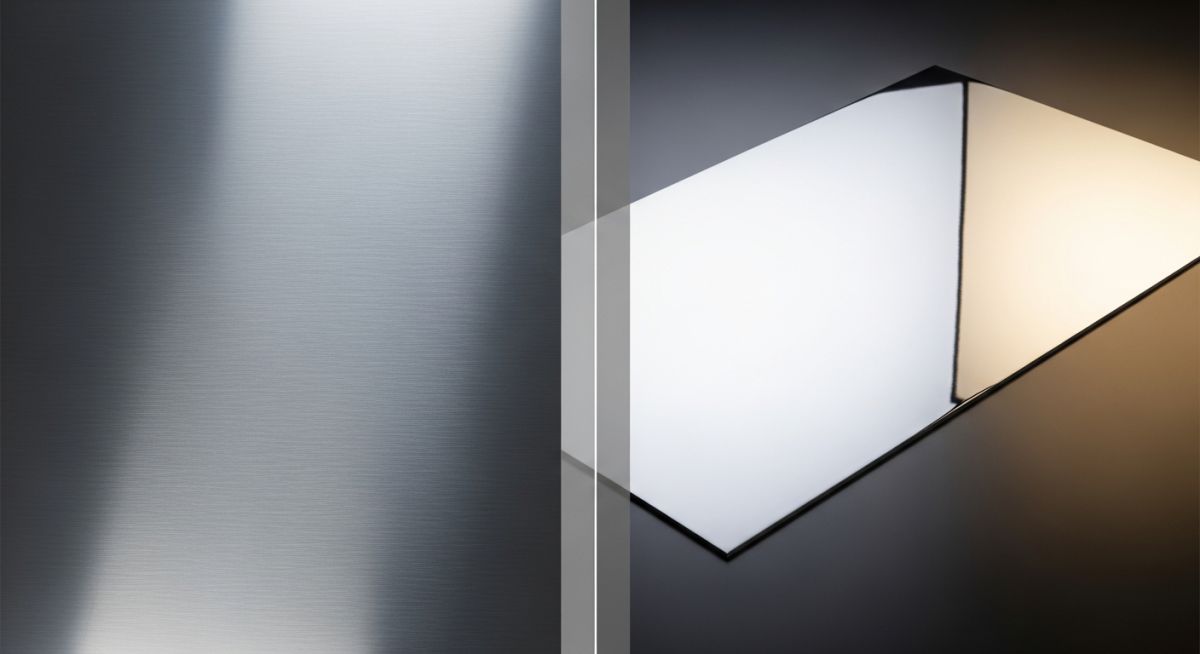

Side-by-side comparison of brushed stainless steel and polished aluminum sheets showing surface texture differences.
Join telegram
Author: Atul Singla | Piping Engineering Expert | Updated: May 2026
Stainless Steel vs Aluminum Comparison

Stainless Steel vs Aluminum: 12 Major Differences for Engineers

Material Selection Criteria: The comparative analysis of stainless steel vs aluminum involves evaluating mechanical strength, corrosion resistance, thermal conductivity, and fabrication characteristics under ASME B31.3 and structural design codes. While stainless steel offers superior tensile strength and high-temperature performance, aluminum provides exceptional strength-to-weight ratios and cryogenic ductility.

In my 20+ years of piping and structural engineering, I have seen countless projects stumble because of a fundamental misunderstanding of material selection. Choosing between stainless steel and aluminum is not just about comparing price tags or aesthetic appeal. It is a complex engineering decision that dictates the structural integrity, fatigue life, and safety of your entire system.

Whether you are designing a high-pressure chemical process line under ASME B31.3 or a lightweight structural frame, you must understand how these two metals behave under stress, temperature fluctuations, and corrosive environments. Let us dive deep into the physical, chemical, and mechanical realities of these materials.

Key Engineering Takeaways

  • Density Disparity: Stainless steel is roughly three times denser than aluminum, making aluminum the default choice for weight-sensitive aerospace and structural applications.
  • Thermal Performance: Aluminum loses structural strength rapidly above 150 degrees Celsius, whereas stainless steel maintains its integrity at temperatures exceeding 800 degrees Celsius.
  • Corrosion Mechanisms: Stainless steel relies on a chromium oxide passive layer to resist aggressive chemicals, while aluminum forms an aluminum oxide layer that excels in atmospheric and marine environments but fails in highly acidic or alkaline services.
  • Cryogenic Ductility: Aluminum does not undergo a ductile-to-brittle transition, making it highly effective for liquefied natural gas (LNG) piping systems.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

When welding 304L Stainless Steel versus 5083 Aluminum, which metallurgical phenomenon dictates the specific welding process controls for each material?




Mechanical and Thermal Performance Analysis

Why Stainless Steel vs Aluminum Selection Matters

Engineering Material Selection: Choosing between stainless steel vs aluminum requires a rigorous assessment of yield strength, density, and galvanic compatibility under ASTM and ASME standards. This decision directly impacts structural integrity, fatigue life, and lifecycle costs in industrial piping and structural systems.

To truly appreciate the differences, we must look at the underlying metallurgy. Stainless steel is an iron-based alloy containing a minimum of 10.5% chromium. This chromium content reacts with atmospheric oxygen to form an ultra-thin, self-healing passive layer of chromium oxide. Aluminum, on the other hand, is a non-ferrous element that naturally forms an aluminum oxide barrier.

1. Strength-to-Weight Ratio and Density

In structural design, the strength-to-weight ratio is a primary metric. Aluminum has a density of approximately 2.7 g/cm³, compared to stainless steel’s 8.0 g/cm³. While stainless steel has a much higher absolute tensile strength, certain high-strength aluminum alloys (such as 7075-T6) can match or exceed the specific strength (strength-to-weight ratio) of standard 304 stainless steel.

2. Thermal Stress and Expansion Calculations

When piping systems undergo thermal cycling, the coefficient of thermal expansion (CTE) dictates the magnitude of thermal stress generated. Let us calculate the thermal stress developed in a fully constrained pipe run for both materials.

Thermal Stress Formula:

S = E * alpha * dT

Where:

  • S = Thermal Stress (MPa)
  • E = Modulus of Elasticity (GPa)
  • alpha = Coefficient of Thermal Expansion (10^-6 / K)
  • dT = Temperature Change (100 K)

Case A: 304 Stainless Steel

E = 193 GPa | alpha = 17.2 x 10^-6 / K

S = 193,000 * (17.2 x 10^-6) * 100 = 331.96 MPa

Case B: 6061-T6 Aluminum

E = 68.9 GPa | alpha = 23.6 x 10^-6 / K

S = 68,900 * (23.6 x 10^-6) * 100 = 162.60 MPa

Even though aluminum expands more than stainless steel (higher alpha), its significantly lower Modulus of Elasticity (E) results in roughly half the thermal stress under fully constrained conditions. This makes aluminum highly forgiving in systems with moderate temperature fluctuations, provided the operating temperature remains below its softening point.

CRITICAL FIELD WARNING: Never couple stainless steel directly to aluminum in wet or marine environments. The difference in galvanic potential between stainless steel (typically -0.1V to -0.2V) and aluminum (typically -0.7V to -0.9V) creates a highly active galvanic cell. The aluminum will act as a sacrificial anode and corrode rapidly, leading to catastrophic structural failure. Always use non-conductive isolation gaskets, sleeves, and washers.

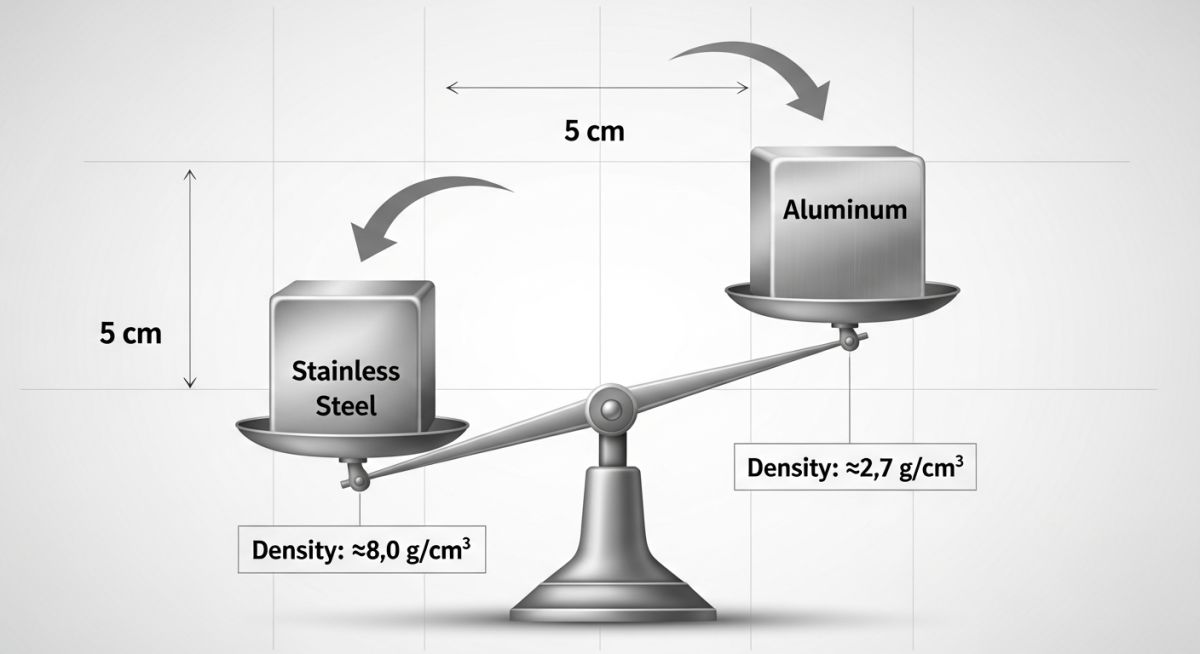

Stainless Steel vs Aluminum Density and Strength Comparison

3. Cryogenic and High-Temperature Limits

In my field experience with liquefied natural gas (LNG) facilities, material selection at cryogenic temperatures (down to -196 degrees Celsius) is critical. Carbon steels become extremely brittle at these temperatures. Stainless steels (specifically austenitic grades like 304 and 316) and aluminum alloys (such as 5083 or 6061) remain ductile. Aluminum actually increases in tensile strength at cryogenic temperatures without losing impact toughness, making it an incredibly cost-effective choice for low-temperature storage tanks and piping.

Engineering Property Comparison

Comparing Stainless Steel vs Aluminum Properties

Mechanical Property Comparison: The physical and mechanical differences between stainless steel vs aluminum define their respective operating envelopes under ASME Section II. These parameters dictate wall thickness calculations, support spacing, and structural load limits.

The table below outlines the 12 major differences between these two metals, focusing on the mechanical, physical, and chemical properties that matter most to design engineers.

Property / Feature Stainless Steel (e.g., Grade 304) Aluminum (e.g., Grade 6061-T6) Engineering Significance
1. Density ~8.0 g/cm³ ~2.7 g/cm³ Aluminum reduces structural dead load by 66%.
2. Tensile Strength 505 MPa (High) 310 MPa (Moderate) Stainless steel handles higher pressure and mechanical loads.
3. Yield Strength 215 MPa 276 MPa (T6 tempered) Heat-treated aluminum can resist permanent deformation well.
4. Modulus of Elasticity 193 GPa 68.9 GPa Stainless steel is three times stiffer; aluminum deflects more.
5. Thermal Conductivity 16.2 W/m·K (Low) 167 W/m·K (Very High) Aluminum is ideal for heat exchangers and cooling fins.
6. Melting Point 1400°C to 1450°C 580°C to 650°C Stainless steel is mandatory for fire-safe designs.
7. Corrosion Resistance Excellent (Acids/Chlorides) Good (Atmospheric/Marine) Stainless steel resists pitting in harsh chemical environments.
8. Weldability Excellent (Standard TIG/MIG) Difficult (Requires high heat input) Aluminum welding requires specialized training and clean environments.
9. Raw Material Cost High (Driven by Nickel/Chrome) Moderate Aluminum is generally more cost-effective per unit volume.
10. Magnetic Response Non-magnetic (Austenitic) Non-magnetic Both are suitable for sensitive electronic enclosures.
11. Cryogenic Performance Excellent (No transition temp) Outstanding (Strengthens at low temp) Both avoid low-temperature brittle fractures.
12. Hardness & Wear High (Resists abrasion) Low (Prone to scratching) Stainless steel is preferred for abrasive slurry handling.

Technical Mapping & Specifications Matrix

To assist procurement and quality assurance teams, this matrix maps common alloy grades to their respective international standards and typical industrial applications.

Alloy Family Common Grades ASTM Standard ASME Code Section Primary Application
Austenitic Stainless 304L, 316L ASTM A312 Section II, Part A Chemical process piping, corrosive fluids
Duplex Stainless 2205, 2507 ASTM A790 Section II, Part A Offshore oil and gas, high-chloride environments
Al-Mg Alloys 5083, 5086 ASTM B209 Section II, Part B Marine vessels, cryogenic storage tanks
Al-Mg-Si Alloys 6061-T6, 6063-T6 ASTM B221 Section II, Part B Structural frames, architectural extrusions

Material Verification and Site Inspection Checklist

How to Verify Materials on Site

Site Material Verification: Positive Material Identification and visual inspection protocols ensure that the correct alloy grade is installed in compliance with ASME B31.3. These field checks prevent catastrophic failures resulting from accidental material substitution in corrosive or high-pressure systems.

In my years auditing construction sites, I have caught several instances where aluminum and stainless steel components were mixed up or improperly installed. Use this checklist to ensure your field installations comply with engineering specifications.

Field Inspection Protocol

  • Positive Material Identification (PMI): Perform handheld X-ray fluorescence (XRF) testing on all critical piping and structural components to verify elemental composition (e.g., chromium and nickel levels in stainless steel).

  • Galvanic Isolation Check: Verify that non-conductive isolation kits (neoprene, Teflon, or G10 gaskets) are installed wherever stainless steel contacts aluminum structural members.

  • Weld Procedure Specification (WPS) Compliance: Ensure that aluminum welding is performed using clean argon shielding gas and the correct filler wire (e.g., ER4043 or ER5356) in accordance with AWS D1.2.

  • Visual Inspection for Contamination: Inspect stainless steel surfaces for iron contamination (rust spots) caused by using carbon steel grinding wheels or wire brushes.

  • Material Test Report (MTR) Verification: Cross-reference heat numbers stamped on the pipes or plates with the supplied mill test certificates to ensure full traceability.

Industrial Field Case Study Analysis

Field Case Study: Real-World Application

The Problem: Galvanic Failure in a Coastal Chemical Plant

During a routine inspection at a coastal chemical processing facility, I discovered severe structural degradation on an overhead pipe rack. The design team had specified lightweight aluminum 6061-T6 structural supports to hold heavy 316L stainless steel piping carrying hot acidic slurry.

Because the plant was located less than 500 meters from the ocean, salt-laden moisture acted as a highly conductive electrolyte. The installer had failed to place isolation pads between the stainless steel pipe clamps and the aluminum support beams. Within 14 months of operation, the aluminum beams suffered severe localized pitting and galvanic corrosion, losing over 40% of their load-bearing cross-sectional area.

The Outcome: Engineering Remediation and Redesign

We immediately executed an emergency shutdown and shored up the piping system. The damaged aluminum supports were replaced with hot-dip galvanized structural steel. To prevent future galvanic cells, we implemented the following engineering controls:

  • Installed 6mm thick UV-resistant neoprene isolation pads between all pipe clamps and structural steel.
  • Replaced all standard steel fasteners with Teflon-coated stainless steel bolts equipped with non-conductive washers.
  • Applied a high-build epoxy coating system to the structural steel to provide an additional physical barrier against the marine atmosphere.

This remediation completely halted the galvanic corrosion. Subsequent inspections over the next five years showed zero signs of material degradation.

My recommendation for any engineer working in coastal or industrial environments is simple: never assume a physical barrier will remain intact without regular inspection. Design for isolation from day one, and always verify the installation quality on-site.

Frequently Asked Engineering Questions

Which material is better for high-temperature piping systems?
Stainless steel is far superior for high-temperature applications. While aluminum begins to lose its mechanical strength and temper at temperatures above 150 degrees Celsius, austenitic stainless steels (such as 304 or 316) can safely operate at temperatures exceeding 800 degrees Celsius without significant creep or oxidation, in compliance with ASME B31.3.
How do I prevent galvanic corrosion between stainless steel and aluminum?
To prevent galvanic corrosion, you must electrically isolate the two metals. This is achieved by using non-conductive isolation gaskets (such as neoprene, Teflon, or G10), non-conductive bolt sleeves, and washers. Additionally, applying protective coatings or keeping the joint dry will eliminate the electrolyte required for galvanic action.
Why does aluminum perform better than stainless steel in cryogenic applications?
Both materials perform exceptionally well at cryogenic temperatures because they do not undergo a ductile-to-brittle transition. However, aluminum is often preferred because its tensile strength and fracture toughness actually increase as the temperature drops, and it is significantly lighter and more cost-effective than stainless steel for large-scale LNG storage tanks.
Is stainless steel always more expensive than aluminum?
On a per-pound basis, stainless steel is generally more expensive due to the cost of alloying elements like nickel and chromium. However, when evaluating the total lifecycle cost, stainless steel may be more economical in highly corrosive environments because it requires less maintenance and has a much longer service life compared to aluminum.
Which material is easier to weld in a field fabrication shop?
Stainless steel is generally easier to weld using standard TIG or MIG welding processes. Aluminum has high thermal conductivity and a rapid oxide formation rate, which requires specialized cleaning, high heat input, and precise gas shielding to avoid weld porosity and cracking under AWS D1.1 or D1.2 standards.
Can I use stainless steel fasteners on an aluminum structure?
Yes, but only with proper isolation. If you must use stainless steel fasteners on aluminum, you should use non-conductive washers (such as nylon or Teflon) and apply an anti-seize compound or zinc-chromate primer to the threads to minimize the risk of galvanic corrosion and thread galling.
