What is Process Flow Diagram (PFD)? Purpose, Symbols, Examples, & Development of 2026

Professional engineer reviewing a complex Process Flow Diagram (PFD) for plant optimization

Imagine walking into a multi-billion dollar petrochemical facility where a critical pump has just tripped. The alarm logs show a pressure surge, but the site layout is a maze of steel. Without a clear “GPS” for the molecules, your troubleshooting is blind.

The Process Flow Diagram (PFD) is that GPS. It strips away the mechanical clutter of valves and supports to reveal the thermodynamic heartbeat of your plant. In this guide, we dive deep into how a well-constructed PFD serves as the foundational document for mass balances, energy optimization, and safe engineering design.

Key Takeaways

  • The Foundation: Understand why the PFD is the primary document for Heat and Material Balance (HMB) data.
  • Standardization: Learn the critical difference between ISO 10628 and local tagging conventions.
  • Operational Logic: Discover how PFDs bridge the gap between initial conceptual design and detailed P&ID development.

What is a Process Flow Diagram (PFD)?

A Process Flow Diagram (PFD) is a specialized schematic used in chemical and process engineering to illustrate the general flow of plant processes and equipment. It highlights the relationship between major components, showing process stream ratings, fluid compositions, and operating conditions like temperature and pressure.

“In my 20 years of plant commissioning, the biggest mistakes I’ve seen stem from engineers treating the PFD as just a drawing. It’s not a drawing; it’s a living simulation of your plant’s thermodynamics. If your mass balance is off on the PFD, your plant will never reach nameplate capacity.”

— Atul Singla

Table of Contents

Complete Course on
Piping Engineering

Check Now

Key Features

  • 125+ Hours Content
  • 500+ Recorded Lectures
  • 20+ Years Exp.
  • Lifetime Access

Coverage

  • Codes & Standards
  • Layouts & Design
  • Material Eng.
  • Stress Analysis

Engineering Mastery: PFD Proficiency Quiz

Test your knowledge on Process Flow Diagram standards and logic

Question 1 of 5

What is a Process Flow Diagram (PFD)?

A Process Flow Diagram (PFD) is a critical engineering schematic that provides a high-level overview of a chemical process or industrial facility. Unlike detailed mechanical drawings, the PFD focuses on the "topology" of the process—how raw materials are transformed into products through various unit operations. It serves as the primary communication tool between process engineers, project managers, and stakeholders during the conceptual and basic engineering phases.

In the hierarchy of engineering documents, the PFD sits directly below the Block Flow Diagram (BFD) and above the Piping and Instrumentation Diagram (P&ID). It defines the design intent by illustrating major equipment such as reactors, distillation columns, and heat exchangers, while omitting minor details like utility lines or pipe sizes that are not essential to the process chemistry.

The Core Purpose of a Process Flow Diagram (PFD)

The fundamental purpose of a PFD is to document the Heat and Material Balance (HMB). This ensures that the law of conservation of mass is respected across the entire plant. By studying a PFD, an engineer can instantly identify the flow rates, temperatures, and pressures at any given node in the system.

  • Process Validation: Ensuring that the chemical reactions and physical separations are theoretically sound.
  • Equipment Sizing: Providing the necessary data for mechanical engineers to specify the dimensions and metallurgy of vessels.
  • Control Philosophy: Laying out the primary control loops (Level, Flow, Temperature, Pressure) required to keep the process stable.
  • Safety Analysis: Serving as the baseline for early-stage Hazard and Operability (HAZOP) studies.

Step-by-Step Development of Process Flow Diagram (PFD)

Developing a PFD is a logical progression that begins with a simulation. Engineers typically use software like Aspen HYSYS or AVEVA Process Simulation to generate the thermodynamic data before a single line is drawn on a drafting board.

1

Define the Design Basis

Establishing the feed composition, required product purity, and environmental constraints. This stage often references the ISO 10628 standards for diagram consistency.

2

Identify Unit Operations

Determining which equipment is needed (e.g., flash drums, centrifugal pumps, or shell-and-tube heat exchangers) to achieve the desired transformation.

3

Map the Interconnections

Drawing the primary process lines. Remember: in a PFD, flow usually goes from left to right, with heavy components exiting the bottom and light components exiting the top of vessels.

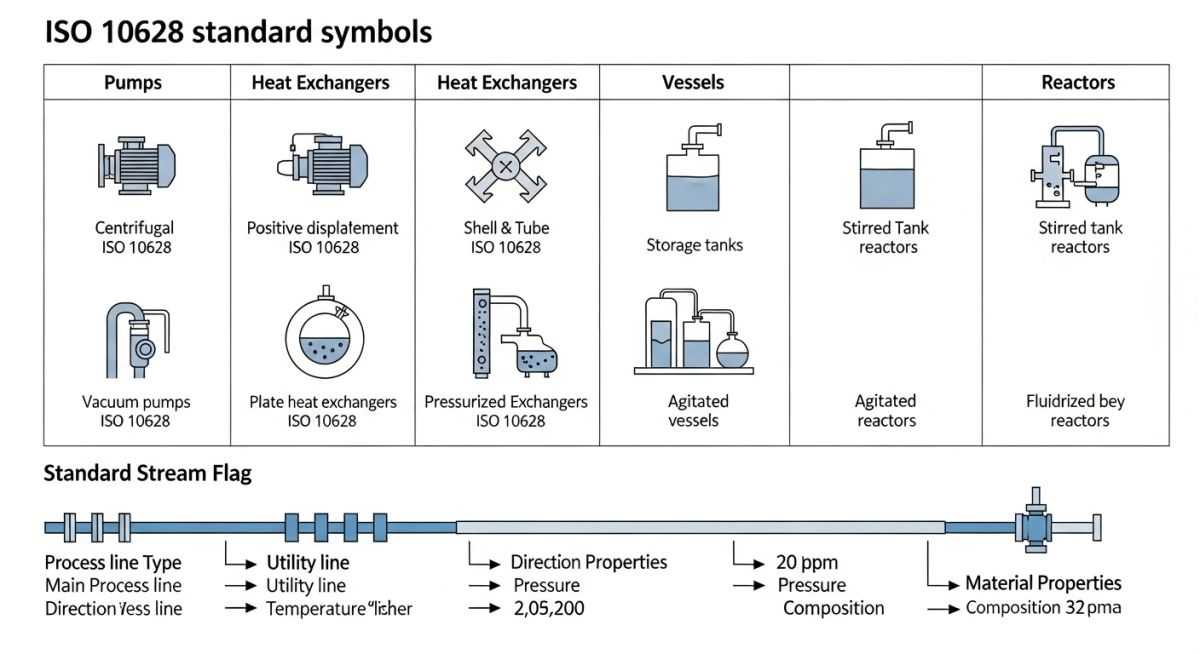

ISO 10628 standard symbols and equipment icons used in a Process Flow Diagram (PFD)

Critical Information Contained in a Process Flow Diagram (PFD)

A professional PFD is more than just icons; it is a data-rich document. Every line and symbol represents a physical reality that must be accounted for in the project budget and safety plan.

Design Basis and Material Balance

The Material Balance is often provided as a "Stream Summary Table" at the bottom of the sheet. It includes mass flow, molar flow, and vapor fraction for every numbered stream flag.

Energy Balance and Physical Data

Thermal loads for heaters and coolers are specified (usually in MW or BTU/hr), allowing utilities like cooling water or steam to be sized accurately.

Standard Symbols for Process Flow Diagram (PFD)

Consistency in symbology is the bedrock of global engineering. To ensure a PFD created in Tokyo can be read in Houston, industry professionals adhere to ISO 10628 and ANSI/ISA-5.1. These standards define the geometry of equipment icons and the shorthand for process connections.

Stream Identification and Equipment Conventions

Every line on a PFD represents a process stream. These are identified by Stream Flags (diamond or rectangular callouts) containing a unique number. This number serves as the primary key for the Heat and Material Balance (HMB) table.

Equipment Category Common Tag Prefix Standard Reference
Vessels / Columns V / C ASME Section VIII
Heat Exchangers E / HX TEMA Standards
Pumps / Compressors P / K API 610 / API 617
Reactors R ISO 10628

PFD vs P&ID: Understanding the Key Differences

A common point of confusion for junior engineers is the distinction between a PFD and a Piping and Instrumentation Diagram (P&ID). While they share similar icons, their "intent" is vastly different. The PFD is a conceptual document, whereas the P&ID is a mechanical and construction document.

Included in PFD

  • Major equipment names and IDs
  • Process flow paths (Left to Right)
  • Stream compositions & physical properties
  • Operational pressure and temperature
  • Major bypass and recirculation lines

Excluded (Reserved for P&ID)

  • Detailed pipe sizes and schedules
  • Isolation valves (Gate, Ball, Globe)
  • Vents, drains, and sample points
  • Electrical wiring and I/O signals
  • Piping metallurgy and insulation specs

Codes and Standards for Process Flow Diagram (PFD) Design

To maintain regulatory compliance and safety, PFDs must be developed in accordance with recognized engineering practices. For instance, the relief valve sizing paths shown on a PFD often reference the American Petroleum Institute (API) Standards, specifically API 520 and 521.

Adherence to ASME codes ensures that the pressure and temperature ratings specified on the PFD are achievable within the mechanical limits of the materials chosen during the later design stages.

📊 PFD Stream Mass Balance Calculator

Use this interactive tool to calculate the Mass Flow Rate or Density of a process stream, a critical step in developing the Heat and Material Balance (HMB) for your Process Flow Diagram (PFD).

Calculated Mass Flow Rate
85,000
kg/hr

Formula: Mass Flow (ṁ) = Volumetric Flow (Q) × Density (ρ)

Real-World Case Study: PFD Optimization in a Crude Distillation Unit (CDU)

Scenario: Resolving Heat Integration Bottlenecks

In 2026, a major refinery in Southeast Asia faced a 15% energy cost spike due to inefficient heat recovery in their atmospheric distillation column. By performing a deep-dive audit of the existing Process Flow Diagram (PFD), engineering teams identified that the crude preheat train was bypassing a critical pinch point in the Heat and Material Balance (HMB).

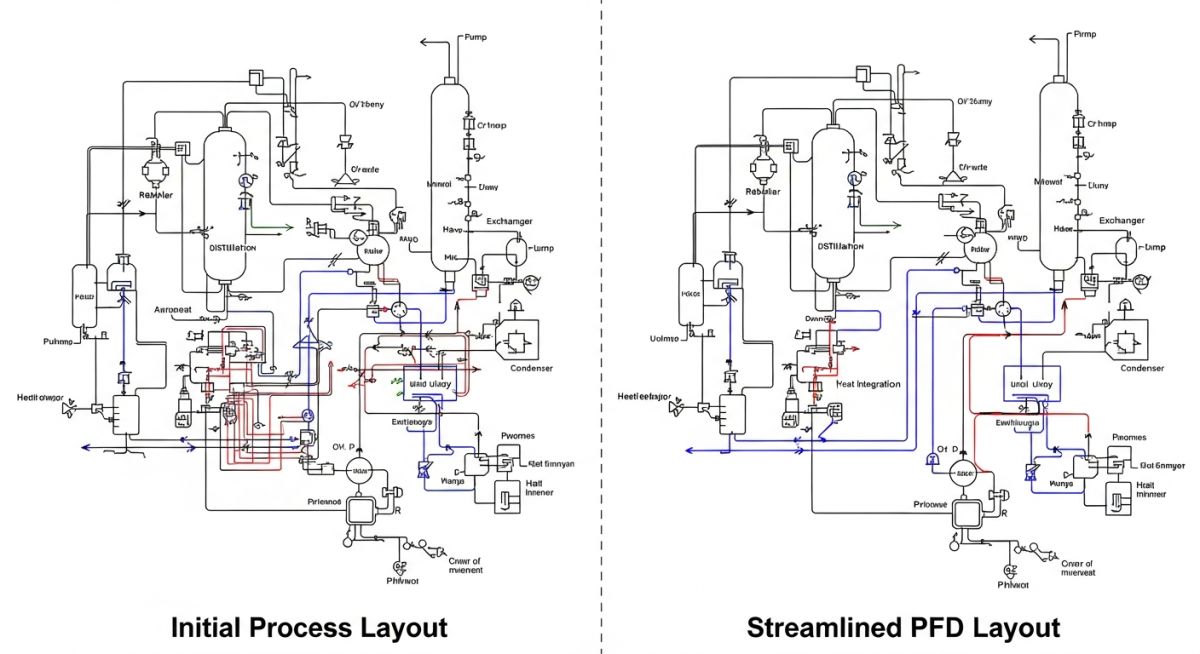

Case study comparison of a simplified and optimized Process Flow Diagram (PFD) for a refinery unit

The Problem

The original PFD lacked detailed enthalpy data for stream #42 (Crude Feed), leading to an undersized shell-and-tube exchanger. This resulted in excessive fuel gas consumption in the fired heater.

The Solution

Engineers revised the Process Flow Diagram (PFD) to include a secondary heat exchange loop. This modification was validated using the ASME Boiler and Pressure Vessel Code (BPVC) for the new vessel ratings.

Key Result:

  • Reduction in furnace fuel consumption by 12%.
  • Payback period for equipment modifications: 8 months.
  • Updated PFD now serves as the primary training document for new plant operators.

Interactive PFD Stream Summary Table (Example)

Stream No. Description Temp (°C) Press. (kg/cm²) Phase
101 Crude Feed Inlet 35.0 5.5 Liquid
102 Pre-heated Crude 145.0 4.8 Liquid
103 Flash Zone Vapor 360.0 1.2 Vapor

Expert Insights: Lessons from 20 years in the field

💡

Avoid "P&ID Creep" on your PFD

One of the most common mistakes is cluttering a Process Flow Diagram (PFD) with minor valves or instrumentation details. Keep the PFD clean to ensure the thermodynamics and mass balance remain the focus. If you can't see the flow path at a glance, you've added too much mechanical detail.

⚖️

Validate Mass Balance Closures

In every PFD audit, check that the sum of the inlets equals the sum of the outlets within a 0.5% margin. Large deviations often hide calculation errors in recycle loops or flash calculations that can lead to massive equipment undersizing during procurement.

🔧

Streamline the Naming Convention

Standardize your stream numbering logic (e.g., 100-series for Feed, 200-series for Reactor section). This makes the Process Flow Diagram (PFD) much easier to navigate during multidisciplinary reviews and HAZOP sessions.

Master PFD Design

Enhance your professional portfolio by mastering industrial drawing standards through these curated engineering programs.

Note: 2026 certification requirements may vary by region. Check local IChemE or AIChE chapters for PE requirements.

EPCLand YouTube Channel

2,500+ Videos • Daily Updates

Subscribe 💎 Join Exclusive Education
Videos Playlists Community Posts Youtube Courses

Process Flow Diagram (PFD) Authority FAQ

What is the difference between a PFD and a Block Flow Diagram (BFD)?
A Block Flow Diagram (BFD) is the most basic schematic, using simple rectangles to represent entire plant sections or processes. In contrast, a Process Flow Diagram (PFD) provides significantly more engineering depth, showing specific equipment, stream compositions, and thermodynamic data like heat and material balances.
Which software is commonly used to create professional PFDs?
Industry leaders typically use Aspen HYSYS, AVEVA Process Simulation, or Honeywell UniSim for the thermodynamic backend. For the actual drafting of the Process Flow Diagram (PFD), AutoCAD, MicroStation, or specialized P&ID/PFD modules within SmartPlant (SPPID) are standard in 2026.
Are utility lines shown on a standard PFD?
Generally, no. Utility lines (like steam, cooling water, or plant air) are only shown where they enter or leave a major process unit (e.g., entering a heat exchanger). Full utility networks are documented in separate Utility Flow Diagrams (UFDs) or detailed P&IDs.
How do I handle a "Recycle Loop" in a PFD mass balance?
Recycle loops require iterative calculation. On the Process Flow Diagram (PFD), ensure the recycle stream flag is clearly marked. If the recycle causes an accumulation of impurities, a "purge" stream must be visually represented and calculated to maintain a steady-state mass balance.
Why did my HAZOP chairman ask for the PFD instead of the P&ID?
During early-stage safety reviews, the chairman uses the Process Flow Diagram (PFD) to understand the "global" hazards—high-temperature zones or reactive chemistry paths—without getting distracted by small-bore piping or instrumentation logic.
What happens if my PFD stream temperature exceeds the pipe rating?
This indicates a fundamental design failure. The Process Flow Diagram (PFD) sets the "Process Design Conditions." If these conditions exceed standard metallurgy limits (e.g., carbon steel limits), the PFD data must trigger a change to high-alloy materials or a redesign of the heat exchange system.
