Piping Fasteners: Engineering Selection, Torque Calculations, and Installation Standards

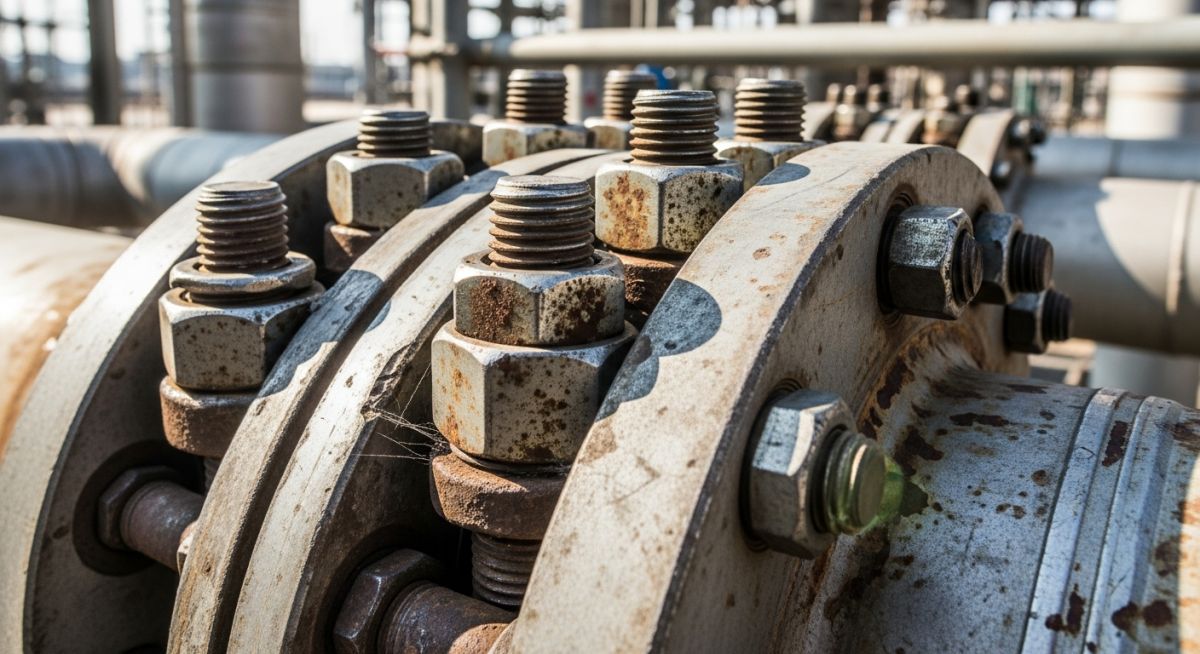

In my 20+ years of active piping engineering on refinery and petrochemical projects, I have seen many field failures. Most of these did not stem from pipe wall thinning or valve body ruptures. Instead, they occurred at the bolted flange joint. The selection of your piping fasteners is not a minor detail to be left to chance or delegated without strict oversight. It is a core design decision that directly impacts the pressure-containing capability of your entire system.

When we design under ASME B31.3 Process Piping, we treat the flange, the gasket, and the fasteners as an integrated structural system. If any one of these three elements is incorrectly specified or poorly installed, the joint will fail during hydrotesting or, worse, during hot operation. Let us dive deep into the engineering principles that govern these critical components.

How to Select Piping Fasteners for High-Pressure Systems

Piping Fasteners Selection: The process of choosing appropriate bolting materials, grades, and dimensions based on operating temperature, pressure, and fluid compatibility in compliance with ASME B31.3. This engineering step ensures that the joint remains within allowable stress limits during thermal cycles.

In industrial piping, we primarily choose between two types of fasteners: stud bolts and machine bolts. In my practice, I do not permit machine bolts for any process piping above Class 150 or temperatures exceeding 200°C. A stud bolt, which is a threaded rod with nuts on both ends, offers a major mechanical advantage. The tensile stress is distributed symmetrically along the entire length of the stud. Conversely, a machine bolt has an integral head on one side, which introduces a stress concentration point at the head-to-shack transition.

The Mechanics of Bolt Preload and Torque Calculations

To achieve a leak-tight seal, the fasteners must exert sufficient compressive force on the gasket to flow it into the flange serrations. This force is called the bolt preload. If the preload is too low, internal pressure will blow past the gasket. If it is too high, you risk crushing the gasket or yielding the bolts.

The relationship between applied torque and the resulting bolt tension is calculated using the standard torque-tension equation:

Where:

T = Target torque (ft-lbs)

K = Nut factor (dimensionless friction coefficient)

D = Nominal bolt diameter (inches)

F = Target bolt tension or preload (pounds)

Practical Engineering Calculation Example:

Let us calculate the required torque for an 8-inch Class 300 flange joint using ASTM A193 Grade B7 stud bolts (7/8-inch diameter, 9 UNC threads).

• Determine Yield Strength: ASTM A193 B7 has a minimum yield strength of 105,000 psi for diameters under 2.5 inches.
• Target Stress: We typically target 50% of the yield strength for assembly preload to allow a safety margin for thermal expansion. Target Stress = 52,500 psi.
• Calculate Tensile Stress Area (As): For a 7/8-inch UNC bolt, the tensile stress area is 0.462 square inches.
• Calculate Target Tension (F): F = Stress * As = 52,500 psi * 0.462 sq in = 24,255 lbs.
• Select Nut Factor (K): With a high-quality copper-based anti-seize lubricant, K is approximately 0.15. (Unlubricated steel-on-steel can exceed 0.20).
• Calculate Torque (T): T = (0.15 * 0.875 inches * 24,255 lbs) / 12 = 265.3 ft-lbs.

Code Compliance and Standards

All bolting materials must comply with ASME B16.5 for flanges up to 24 inches, and ASME B16.47 for larger sizes. The dimensions of heavy hex nuts must conform to ASME B18.2.2, which provides a larger width across flats than standard nuts to distribute the heavy clamping loads safely.

Material Specifications for Piping Fasteners and Bolting

Bolting Material Specifications: The standardized physical and chemical properties of fasteners defined by ASTM and ASME codes to guarantee mechanical integrity. These specifications dictate the temperature limits, tensile strength, and yield strength of bolts used in pressurized joints.

Selecting the correct material grade is a safety-critical step. Below is the engineering reference table I use during the design phase to match bolting materials with process operating temperatures.

Technical Mapping & Specifications Matrix

To ensure complete traceability and compliance across international standards, use this mapping matrix for procurement and quality assurance.

Field Installation Checklist for Bolted Joints

Bolted Joint Installation Checklist: A systematic field verification protocol designed to ensure correct alignment, lubrication, and torque application during flange assembly. This quality control measure prevents uneven gasket compression and subsequent joint failure.

During my time managing construction sites, I established a strict rule: no flange is to be closed without a signed-off inspection checklist. Below is the exact protocol that must be followed by the mechanical crew before and during the tightening process.

Field Case Study: Real-World Application

Flange Leak Case Study: An analysis of a high-pressure steam line failure caused by improper fastener selection and uneven torque distribution. The investigation and subsequent remediation demonstrate the critical nature of controlled bolting procedures.

This case highlights why we must treat piping fasteners as engineered components. A simple substitution of a bolt grade can lead to catastrophic failures, production losses, and severe safety hazards.
