What are Pipeline Block Valves and How to Design Stations

In my 20 years of designing pipeline systems across the globe, I have seen how a single design oversight at a valve station can jeopardize an entire transmission network. When you are dealing with high-pressure pipelines stretching hundreds of miles, you cannot simply shut down the entire line for a minor repair or during an emergency. This is where pipeline block valves (PBVs) become the unsung heroes of pipeline integrity.

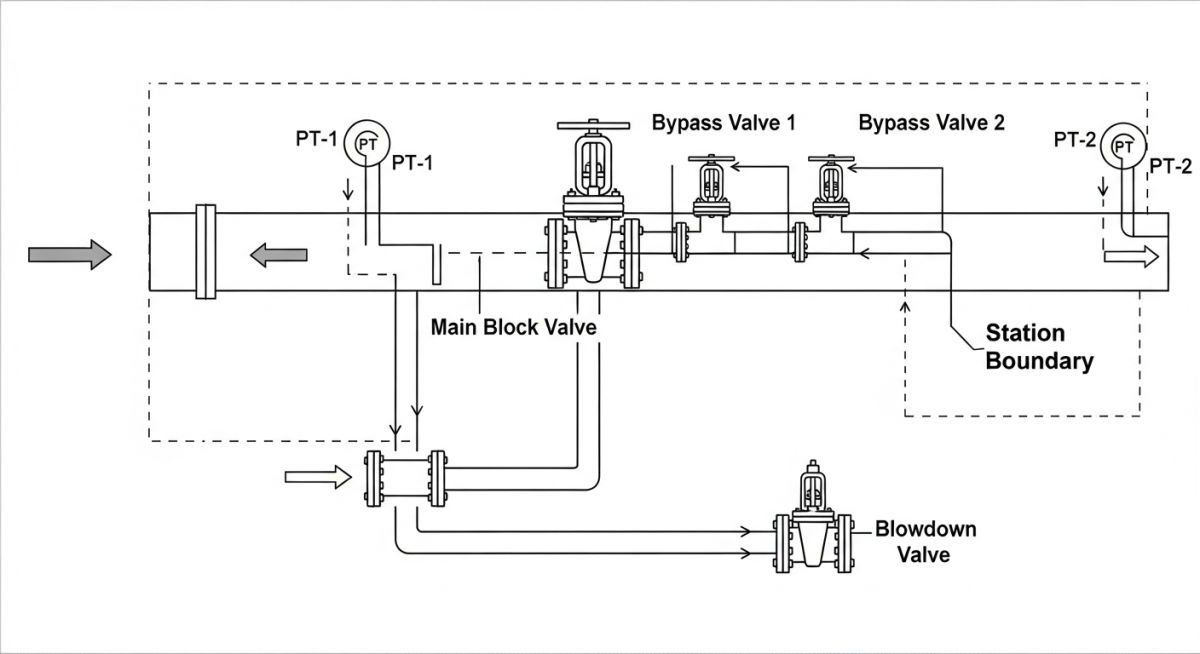

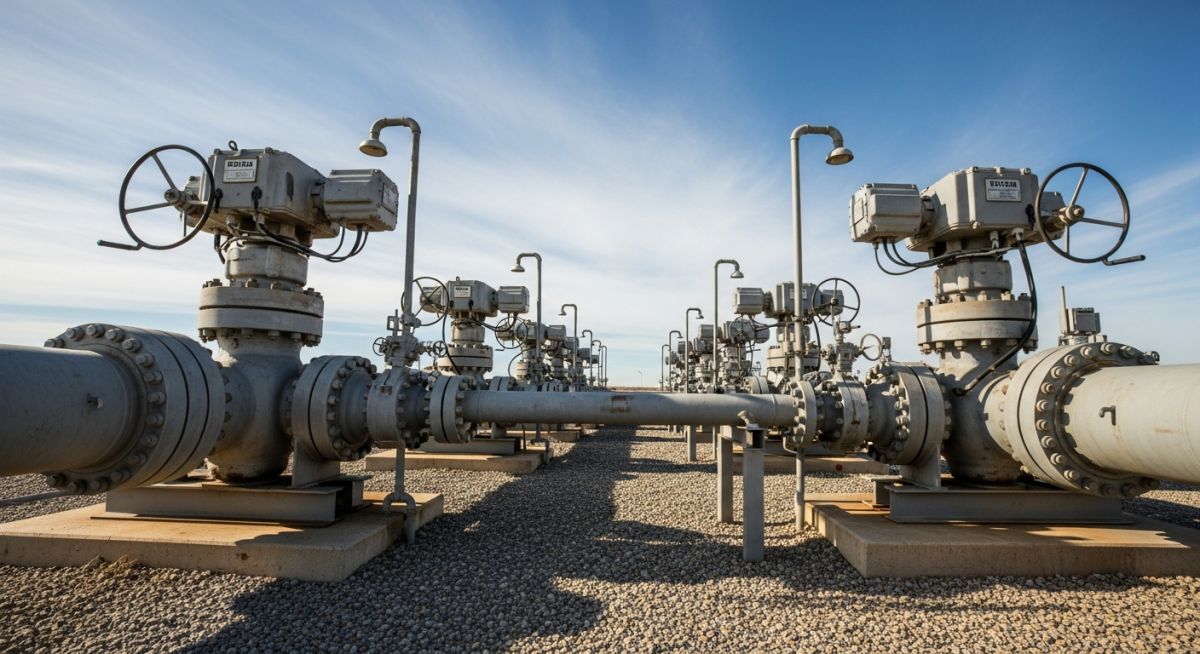

These stations are not just valves dropped into a trench; they are highly engineered facilities designed to withstand extreme environmental conditions, soil settlements, and massive hydraulic forces. In this guide, I will walk you through the exact engineering principles, spacing calculations, and station design practices that I use to ensure these systems operate flawlessly when lives and environments are on the line.

Why We Install Pipeline Block Valves Safely

When designing a pipeline, the spacing of block valves is one of the first critical decisions we make. We do not place them arbitrarily. The spacing is strictly governed by the class location (for gas) or the proximity to high-consequence areas (HCAs) and water bodies (for liquids).

Regulatory Spacing Criteria

For liquid pipelines, ASME B31.4 dictates that block valves must be installed on the upstream and downstream sides of major water crossings, near residential areas, and at maximum intervals of 15 miles (24 kilometers) for industrial zones. For highly volatile liquids (HVLs), this spacing is often reduced to 7.5 miles (12 kilometers) to limit the vapor cloud hazard in the event of a release.

For gas pipelines, ASME B31.8 establishes spacing based on Class Locations, which reflect population density:

• Class 1 (Rural/Desert): Maximum spacing of 20 miles (32 kilometers).
• Class 2 (Semi-rural/Suburban): Maximum spacing of 15 miles (24 kilometers).
• Class 3 (Residential/Commercial): Maximum spacing of 10 miles (16 kilometers).
• Class 4 (Dense Urban with multi-story buildings): Maximum spacing of 5 miles (8 kilometers).

Valve Selection: API 6D Compliance

In my practice, I specify valves manufactured and tested in strict accordance with API Specification 6D. The two primary valve types used are:

1. Trunnion-Mounted Ball Valves: These are preferred for most modern pipelines. They offer low operating torque, excellent sealing capabilities, and are inherently double-block-and-bleed (DBB) capable.
2. Through-Conduit Slab Gate Valves: These are highly robust and provide a flat, continuous bore when fully open. They are excellent for heavy crude oil or pipelines where mechanical scraping (pigging) is frequent.

Calculating Potential Spill Volume

To justify valve spacing to environmental regulators, we must calculate the maximum potential spill volume between two block valves. The total volume of fluid trapped between two closed valves is calculated using the internal volume of the pipe segment:

Where:

• V: Total isolated volume (cubic meters)
• Di: Inside diameter of the pipe (meters)
• L: Distance between the block valves (meters)

For example, let us calculate the isolated volume for a 30-inch crude oil pipeline with a 0.500-inch wall thickness, where the block valves are spaced 15 miles (24,140 meters) apart:

• Outside Diameter (OD) = 30 inches = 0.762 meters
• Wall Thickness (t) = 0.500 inches = 0.0127 meters
• Inside Diameter (Di) = 0.762 – (2 * 0.0127) = 0.7366 meters
• Cross-sectional Area (A) = (pi / 4) * (0.7366)^2 = 0.4261 square meters
• Total Volume (V) = 0.4261 * 24,140 = 10,286 cubic meters (approximately 64,698 barrels of oil)

This calculation highlights why we must design fast-acting actuators. If a leak occurs, the volume released before the valves close is a function of the leak rate multiplied by the detection and closure time, added to this static inventory volume.

The following table outlines the maximum allowable spacing for pipeline block valves based on the transported medium and the surrounding population density, in compliance with ASME B31.4 and ASME B31.8.

This matrix maps the core technical entities, structural acronyms, physical parameters, and standard references required for complete valve station design.

How to Inspect Pipeline Block Valves Onsite

During my site audits, I often find that installation errors cause more valve failures than manufacturing defects. Use this checklist during your next field inspection to ensure the valve station is built to last.

Field Case Study: Real-World Application
