Piping systems in industrial facilities need to operate safely and efficiently under various conditions, including temperature fluctuations, pressure changes, and external forces like wind or seismic activity. Pipe supports and restraints play a crucial role in ensuring that these systems function correctly. This article explores the different types of pipe supports and restraints, their functions, and how they contribute to the overall safety and performance of piping systems.
Quiz on Pipe Supports and Restraints
1. What is the primary function of pipe supports in a piping system?
Choose the correct answer:
Explanation: Pipe supports primarily bear the weight of the pipe, its contents, insulation, and other components to prevent sagging due to gravitational forces.
2. What role do pipe restraints play in a piping system?
Choose the correct answer:
Explanation: Pipe restraints control and limit movement due to thermal expansion, pressure variations, or dynamic forces such as earthquakes and wind.
3. Which of the following is NOT a typical load component that pipe supports handle?
Choose the correct answer:
Explanation: Pipe supports do not directly handle thermal expansion forces, which are instead managed by pipe restraints.
What are Pipe Supports and Restraints?
In a piping system, supports and restraints are essential for maintaining structural integrity. They absorb loads, limit movement, and ensure the stability of the piping under operating and occasional loads.
- Pipe Supports: These elements primarily bear the weight of the pipe, its contents, insulation, and other load components. They prevent the pipe from sagging due to gravitational forces.
- Pipe Restraints: Restraints control the movement of the piping system due to thermal expansion, pressure variations, or dynamic forces like earthquakes and wind. Restraints limit or guide the movement to prevent damage or failure.
Difference Between Pipe Support and Restraint
The ASME B31.3 code, while not explicitly defining the distinction, implies the following differences:
- Pipe Support: A structural element that bears the weight of the pipe and its components, preventing vertical downward movement and keeping the longitudinal stress within allowable limits.
- Pipe Restraint: A structural element designed to control or limit the thermal movement of the piping system, preventing displacement due to expansion, contraction, or other external forces.
Functions of Pipe Supports and Restraints
- Supporting Pipe Weight: The primary function of pipe supports is to carry the weight of pipes, fittings, valves, and fluid content.
- Controlling Thermal Movement: Restraints help manage the dimensional changes caused by temperature variations, ensuring that thermal stresses stay within allowable limits.
- Limiting Transfer of Thermal Loads: Restraints minimize the transfer of loads from thermal expansion to connected equipment like pumps and turbines.
- Absorbing Dynamic Loads: Restraints can absorb other loads, such as wind, earthquake, or water hammer loads, to ensure the piping system remains stable.

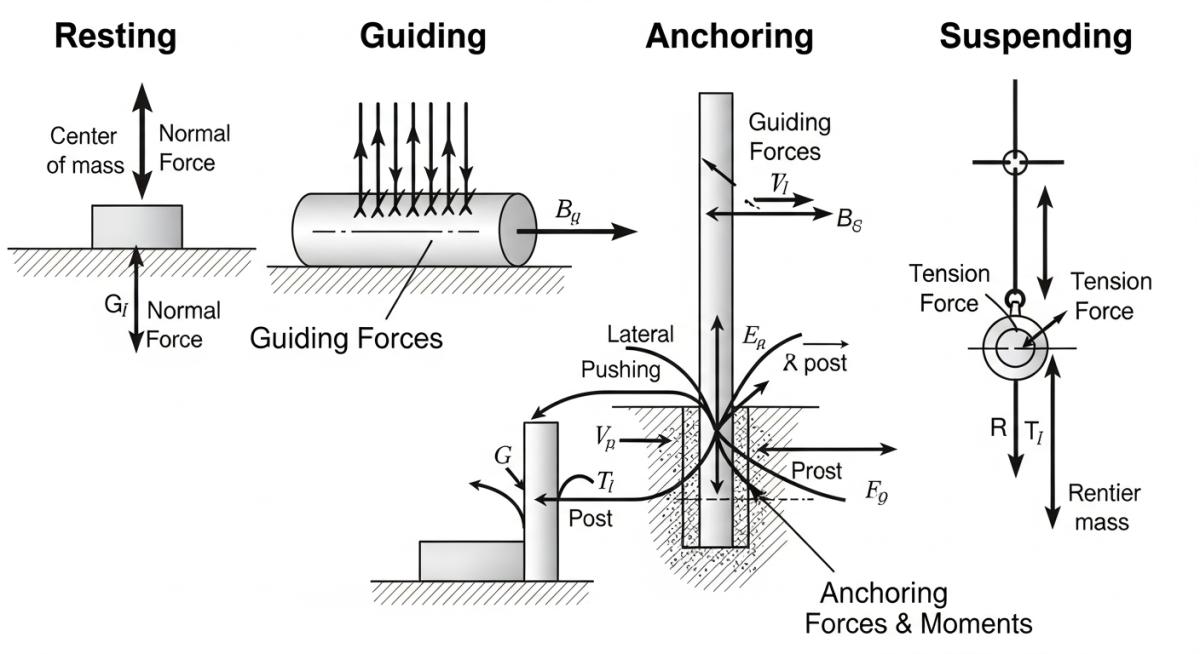

Types of Pipe Supports
Rigid Pipe Supports
Rigid supports are used in most piping systems to bear the weight of the pipe and its contents. These supports prevent vertical downward movement and are typically classified into the following types:
- Pipe Shoe Supports
Pipe shoes are welded to the pipe, and the shoe rests on the supporting structure, offering greater contact surface than a bare pipe. Shoes also provide slope adjustments on lines routed on pipe racks.Types of Pipe Shoes:- Single T-Section: For smaller pipes and lighter loads.Shoe with Saddle: For larger, heavier pipes. These shoes spread the load over a larger area, reducing local pipe wall stresses. A reinforcement saddle is welded to the bottom of the pipe to reduce the load concentration.
- Pipe Trunnion or Dummy Supports
These supports consist of a tubular member welded to the pipe and are commonly used to support vertical pipes. They may also be welded to elbows in horizontal pipes to provide support.
Flexible or Resilient Pipe Supports
Flexible supports, such as spring supports, allow movement while still supporting the pipe, making them ideal for systems with substantial thermal expansion. They can be classified into two categories:

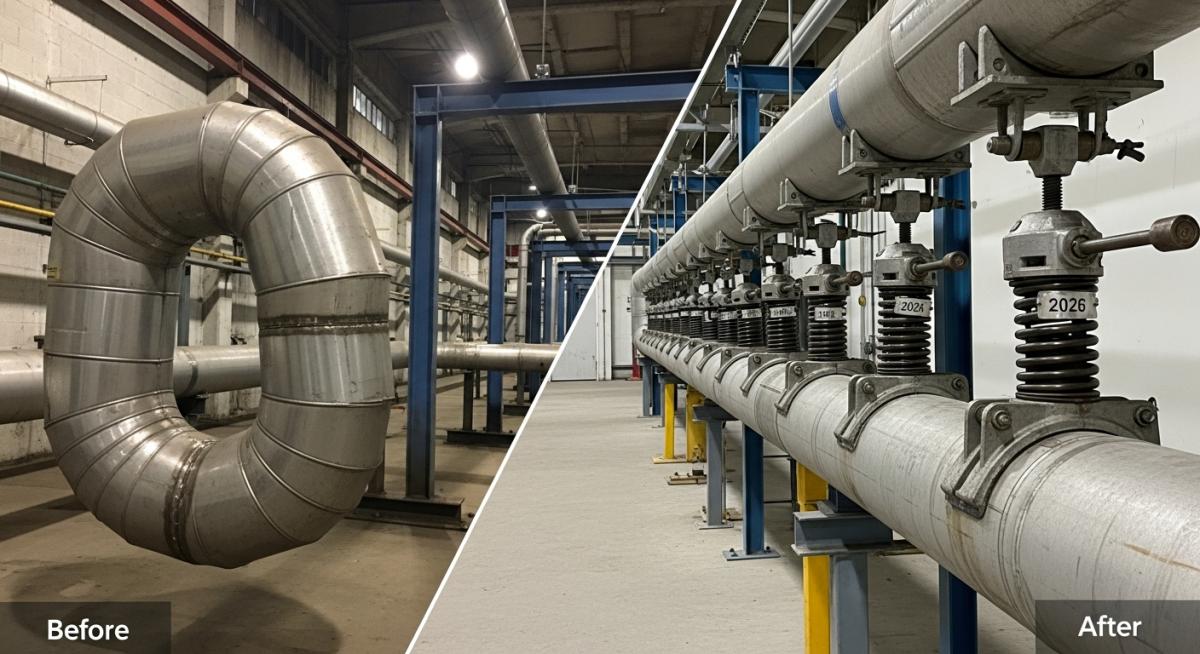

- Variable Spring Supports
These supports are used when the thermal movement is moderate. The load varies with the deflection of the pipe, and the spring’s constant determines the variation. - Constant Spring Supports
Constant supports are used when significant vertical movement is expected. The load on the pipe remains constant throughout the range of movement, making them suitable for sensitive equipment like pumps.
Types of Pipe Restraints
Restraints prevent unwanted pipe movement, ensuring that the system operates safely. Common types of pipe restraints include:
Pipe Guides
- Function: Guides allow axial movement but restrain lateral and rotational movement, keeping the pipe in place during expansion and contraction cycles.
- Applications: Used on pipe racks and pump suction nozzles to prevent excessive stress on equipment.
Limit Stops (Axial Limit Restraints)
- Function: These restraints limit the axial movement of the pipe but allow movement in the perpendicular direction. They are commonly used to prevent over-expansion.
- Applications: Often combined with guides to create a secure anchor point.
Anchors
- Function: Anchors prevent all translational and rotational movement of the pipe relative to the structure. They are often flexible and designed to allow a small amount of thermal displacement.
- Applications: Commonly used at equipment nozzles and where pipes connect to sensitive systems.
Importance of Pipe Stress Analysis
Pipe stress analysis is critical for selecting the appropriate supports and restraints. The analysis determines:
- The optimal placement of supports to avoid excessive stress on piping and equipment.
- The types of restraints needed to control thermal and dynamic loads.
By conducting a thorough stress analysis, piping engineers can ensure that the system operates safely under a variety of conditions.
Common Pipe Support and Restraint Configurations
Depending on the configuration, supports and restraints may be combined at a single location. Some common configurations include:
- Shoe with Guide: Combines support and restraint to prevent lateral movement while supporting the pipe’s weight.
- Trunnion with Spring: Used for vertical or horizontal runs, allowing movement while supporting the pipe.
Quiz on Common Pipe Support and Restraints
1. What type of pipe support is typically used to support pipe weight on racks or structural members?
Choose the correct answer:
Explanation: A Pipe Shoe Support is typically used to support the weight of pipes on racks or structural members.
2. Which type of support is used to restrain lateral movement in piping systems?
Choose the correct answer:
Explanation: A Pipe Guide is used to restrain lateral movement in piping systems.
3. Which support type is suitable for expansion control in long runs of piping?
Choose the correct answer:
Explanation: A Limit Stop is used for expansion control in long runs of piping.
Table: Common Pipe Support and Restraint Types
Type | Function | Typical Application |
---|---|---|
Pipe Shoe Support | Supports pipe weight | Piping on racks or structural members |
Trunnion Support | Supports vertical or horizontal pipe runs | Control valve stations, pump piping |
Variable Spring Support | Allows moderate thermal movement | Systems with low to medium movement |
Constant Spring Support | Allows significant thermal movement | Sensitive equipment like pumps, turbines |
Pipe Guide | Restrains lateral movement | Piping on racks, pump nozzles |
Limit Stop | Limits axial movement | Expansion control in long runs |
Anchor | Restrains all movement | Nozzle connections, sensitive systems |
Applications of Pipe Supports and Restraints in Various Industries
- Oil and Gas: Critical for maintaining safety in high-pressure systems and preventing equipment damage.
- Chemical Plants: Required to manage both weight and thermal expansion, especially in high-temperature systems.
- Power Plants: Pipe supports and restraints control thermal expansion in high-pressure steam systems, ensuring safe operation.
Conclusion
The correct selection and installation of pipe supports and restraints are essential for ensuring the structural integrity and operational safety of piping systems. Understanding the differences between rigid and flexible supports, as well as the function of various restraints, helps in designing systems that operate safely under various load conditions.
FAQs
- What is the primary function of pipe supports?
Pipe supports carry the weight of the piping, its contents, and associated equipment, preventing excessive sagging or downward movement. - What is the difference between a pipe support and a pipe restraint?
A pipe support primarily handles weight, while a restraint controls movement caused by thermal expansion, pressure changes, or external forces. - When are spring supports used in piping systems?
Spring supports are used when there is significant thermal expansion, allowing the pipe to move vertically without causing stress on the piping system. - What is a pipe trunnion support?
A pipe trunnion, or dummy support, is a tubular structure welded to a pipe, used to support the pipe by resting on structural members. - Why is stress analysis important in piping systems?
Stress analysis ensures that pipes and equipment are not subject to excessive forces, allowing for the optimal placement of supports and restraints.
