What are Mechanical Fasteners and How to Select Them

Why Do We Use Mechanical Fasteners in Piping

In piping systems, the primary objective of any joint is to maintain a leak-free seal under varying thermal and pressure cycles. While welding provides a permanent, leak-proof joint, it lacks the flexibility required for maintenance, inspection, and component replacement. This is where mechanical fasteners become indispensable. They allow for rapid disassembly of valves, pumps, and instruments while providing the structural integrity needed to contain hazardous fluids.

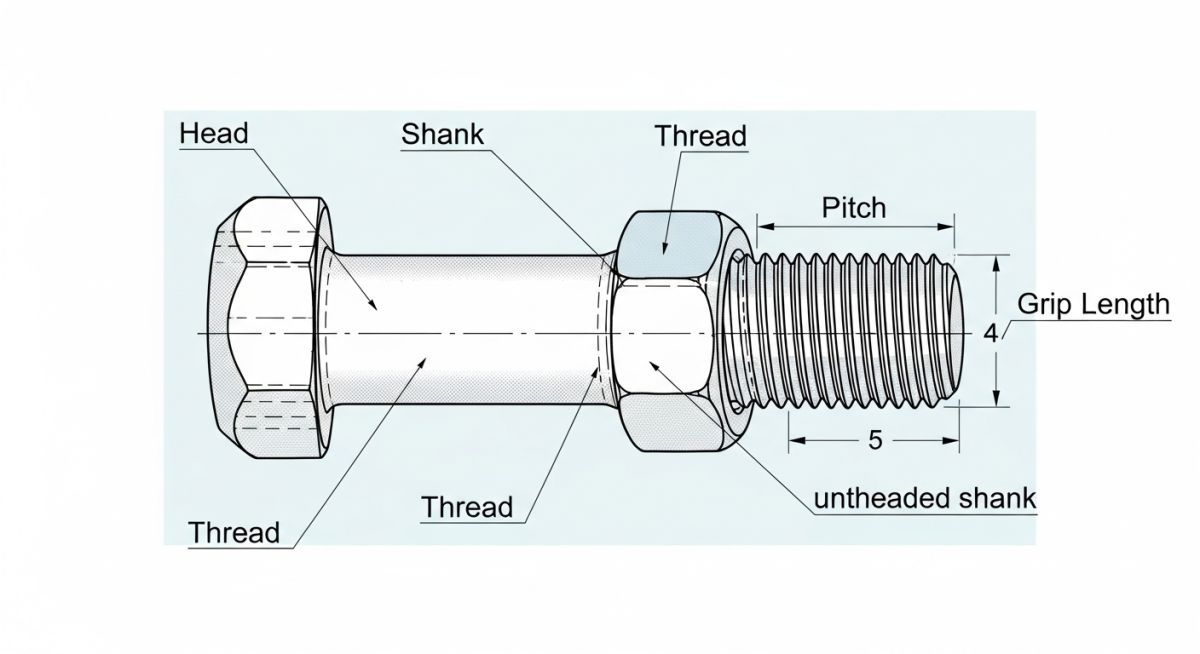

The engineering behind a bolted flange joint relies on the concept of elastic deformation. When we tighten a bolt, we are essentially stretching it like a very stiff spring. This stretch creates a tensile force known as bolt preload. The preload, in turn, exerts a compressive clamping force on the gasket, compressing it into the flange faces to fill any microscopic imperfections and prevent fluid bypass.

The Physics of Bolt Preload and Torque

Calculating the correct torque is a fundamental step in joint design. Under-tightening leads to insufficient gasket compression and subsequent leaks, while over-tightening can yield the bolt or crush the gasket. The relationship between applied torque and the resulting preload is expressed by the classic elastic torque formula:

Where:
– T is the target tightening torque (expressed in Newton-meters or Foot-pounds).
– K is the dimensionless nut factor (torque coefficient), which accounts for friction. For dry steel, K is typically 0.20; for lubricated threads, K drops to 0.15 or lower.
– D is the nominal bolt diameter (expressed in meters or inches).
– F is the target bolt preload or tension (expressed in Newtons or Pounds).

To determine the maximum allowable preload without yielding the fastener, we use the tensile stress area of the thread:

Where S_y is the yield strength of the material (for example, 105,000 PSI for ASTM A193 B7 studs under 2.5 inches) and A_t is the thread tensile stress area. This safety margin ensures the fastener remains within its elastic limit during operation.

Selecting the correct material grade is critical to ensure the mechanical joint can withstand the operating temperature and pressure of the process fluid. The table below outlines the most common fastener materials specified in industrial piping systems under ASTM standards.

This matrix maps the core technical entities, load characteristics, and standard references for mechanical fasteners used across industrial piping and structural applications.

How to Inspect Mechanical Fasteners on Site

Before any pressure test or commissioning phase, a rigorous field inspection of all bolted connections must be completed. Skipping these steps often results in costly rework, gasket blowouts, or hazardous leaks during startup. Use the checklist below to verify your installations.

Field Case Study: Real-World Application

My recommendation for any high-temperature or high-pressure service is to strictly enforce a “studs-only” policy for pressure-retaining flanges. Studs provide more uniform tension along their entire length compared to headed bolts, reducing the risk of localized stress concentrations and joint relaxation.
