Flange Leakage Checking by Pressure Equivalent Method in Caesar II

Pressure Equivalent Method: A standardized engineering procedure that maps external piping forces and moments onto a flange face to determine if the total stress exceeds the allowable pressure-temperature rating defined by ASME standards.

When performing a stress analysis, the primary goal is to ensure that the flange assembly maintains a seal under all operating conditions. The Pressure Equivalent Method simplifies this by calculating an equivalent pressure (P_eq) using the formula: P_eq = P_internal + (16 * M) / (pi * G^3) + (4 * F) / (pi * G^2), where M is the bending moment, F is the axial force, and G is the effective gasket diameter.

In Caesar II, this calculation is automated within the flange leakage check module. You must input the correct flange class, material, and gasket properties to ensure the software accurately references the ASME B16.5 tables. If the calculated P_eq exceeds the rated pressure for the given temperature, the software flags the joint as a potential leakage point.

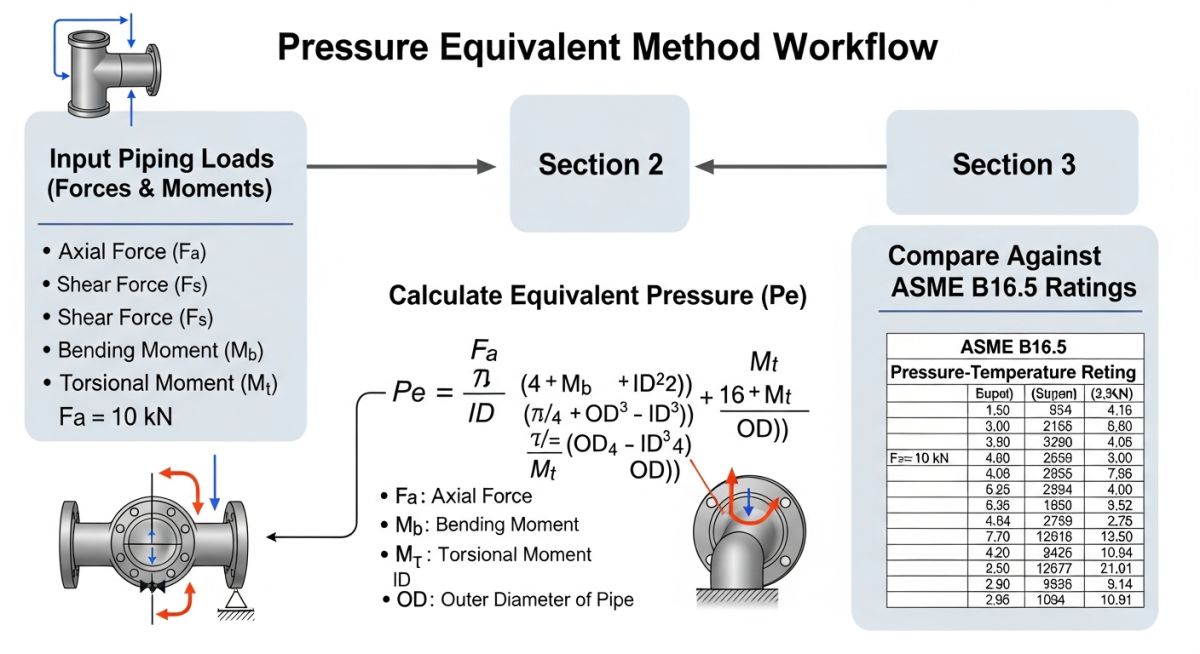

To execute this in Caesar II, navigate to the ‘Flange Leakage’ tab in the input processor. You must define the flange type (e.g., Weld Neck, Slip-on) and the pressure rating. The software then extracts the forces and moments from the load cases (Operating, Sustained, and Occasional) to perform the check. Always verify that your load cases include the thermal expansion effects, as these are the most common contributors to flange leakage in high-pressure steam lines.

If a flange fails the check, you have three primary mitigation strategies: increasing the flange rating (e.g., from 150# to 300#), reducing the piping stiffness by adding expansion loops, or utilizing a higher-performance gasket material. In my experience, the most common error is failing to update the gasket diameter (G) in the Caesar II input, which leads to overly conservative or dangerously optimistic results.

Flange Leakage Analysis Trade-offs: A technical comparison between the efficiency of the Pressure Equivalent Method and the precision of advanced numerical modeling techniques.

Industrial Flange Integrity: Practical deployment scenarios where the Pressure Equivalent Method ensures operational safety and regulatory compliance across diverse process sectors.

When performing a Flange Leakage Checking by Pressure Equivalent Method in Caesar II, the software relies on the conversion of external piping loads into an equivalent pressure value. This value is then compared against the allowable pressure-temperature ratings defined in ASME B16.5. The following table outlines the critical parameters required to map these mechanical loads into the software’s internal leakage check algorithm.

Engineers must ensure that the input values for axial force and bending moment are extracted from the operating load case (usually OPE) and converted into the equivalent pressure formula: P_eq = (16 * M) / (pi * G^3) + (4 * F) / (pi * G^2). Failure to accurately define the gasket effective diameter (G) will lead to non-conservative leakage predictions, potentially resulting in fugitive emissions during thermal cycling.

Always verify that the “Pressure Equivalent Method” is enabled in the Caesar II configuration file. If the calculated equivalent pressure exceeds the flange rating, the software will flag a warning in the output report, necessitating a redesign of the piping support layout or the addition of expansion loops to reduce the moment arm at the flange interface.

The following matrix provides a structured mapping of the physical entities and mathematical variables involved in the Flange Leakage Checking process. By standardizing these inputs, piping stress engineers can maintain consistency across complex models involving multiple pressure classes and varying material grades.

It is imperative to distinguish between the “Design Pressure” used for wall thickness calculations and the “Equivalent Pressure” used for leakage checks. The latter accounts for the dynamic interaction between the piping system’s thermal expansion and the flange’s structural stiffness, as governed by the ASME BPVC Section VIII guidelines.

Utilizing this matrix ensures that every node in the Caesar II model is correctly assigned the appropriate flange properties. Discrepancies in these values often lead to false-positive leakage reports, which can waste significant engineering hours during the design verification phase of a project.

Flange Leakage Checking by Pressure Equivalent Method in Caesar II is only as reliable as the input data provided. Before finalizing your stress report, perform a comprehensive site verification to ensure that the physical installation matches the theoretical model. This checklist is designed to bridge the gap between digital simulation and field reality.

By systematically validating these points, you mitigate the risk of flange leakage during commissioning. Always document these checks in your project’s quality assurance log to maintain compliance with ASME B31.3 requirements.

This case highlights that software analysis is only as effective as the engineer’s ability to interpret the results. Always look beyond the “Pass/Fail” status and investigate the underlying load distribution at critical joints.
