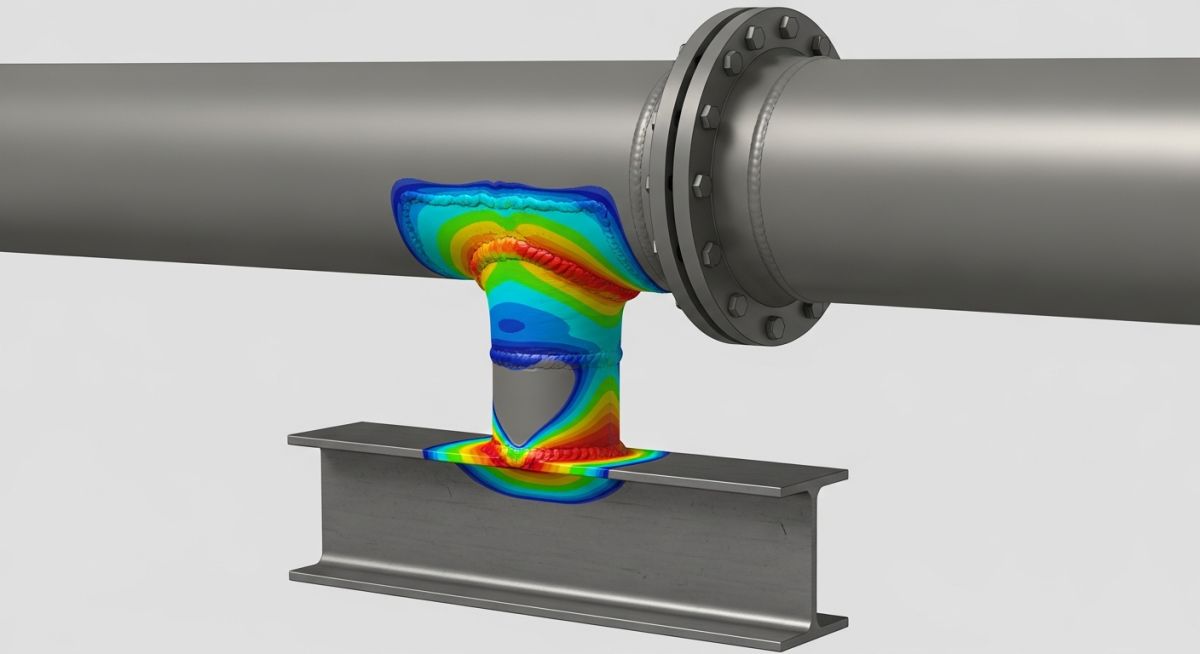

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce a pipe trunnion dummy support welded to a main process piping run in an industrial plant setting. Description: A high-quality 3D CAD model rendering of a horizontal process pipe supported by a welded vertical dummy pipe trunnion resting on a structural steel beam, with stress concentration heatmaps highlighted at the weld junction. SEO Alt Text: 3D CAD model of a pipe trunnion dummy support welded to a process pipeline resting on structural steel. Image Slug: pipe-trunnion-dummy-support-cad-model Filename URL: https://epcland.com/wp-content/uploads/2026/06/pipe-trunnion-dummy-support-cad-model.jpg Technical Infographic: Purpose: To illustrate the geometric parameters, dimensions, and force vectors used in pipe trunnion stress calculations. Description: A detailed engineering schematic diagram of a pipe trunnion showing critical dimensions like diameter, thickness, and length, alongside applied loads, bending moments, and the weld line interface. SEO Alt Text: Engineering diagram of a pipe trunnion showing dimensions, weld details, and applied force vectors for stress calculation. Image Slug: pipe-trunnion-stress-calculation-diagram Filename URL: https://epcland.com/wp-content/uploads/2026/06/pipe-trunnion-stress-calculation-diagram.jpg Meta Data: Focus Keyword: Pipe Trunnion Stress Calculation Title: Pipe Trunnion and Dummy Support Design and Stress Calculation Guide Slug: pipe-trunnion-stress-calculation Meta Description: Learn how to design pipe trunnions and dummy supports, understand their structural behavior, and perform accurate stress calculations. Tags: Pipe Support, Trunnion Design, Dummy Support, Stress Analysis, Piping Engineering, CAESAR II, Structural Integrity Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 How to Perform Pipe Trunnion Stress Calculation for Piping Systems Pipe Trunnion Stress Calculation: This structural evaluation determines the localized shear, bending, and membrane stresses at the junction of a piping run and its welded dummy support attachment. It ensures compliance with ASME B31.3 and ASME Section VIII Division 2 limits under sustained, thermal, and occasional loading conditions. In my 20 years of piping engineering experience, I have seen many young engineers treat dummy supports as simple structural steel extensions. This is a dangerous mistake. A pipe trunnion, or dummy support, is welded directly to the run pipe wall. This direct attachment means that every kilonewton of thermal thrust, deadweight, and wind load is transferred directly into the thin shell of your process piping. Without a rigorous stress check, you risk localized wall buckling, plastic deformation, or pinhole leaks at the weld toe. When I review stress packages for high-temperature steam lines or heavy crude headers, the trunnion junction is always a focal point. We must balance structural stiffness with local flexibility. If the support is too rigid, it overstresses the pipe wall; if it is too weak, it buckles. This guide walks you through the exact analytical steps, code requirements, and practical field realities of designing safe, reliable pipe trunnions. Key Engineering Takeaways Understand the structural difference between a load-bearing trunnion and a non-structural dummy guide. Learn when to transition from simplified Kellogg calculations to advanced finite element analysis. Identify the geometric limits of WRC 107 and WRC 297 to avoid invalid stress results. Determine the exact thickness and width requirements for reinforcing pads on thin-walled run pipes. Establish a robust field verification workflow to ensure fabrication matches your stress model. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 When evaluating local stresses at a hollow pipe trunnion (dummy support) welded directly to a run pipe using Welding Research Council (WRC) bulletins, which of the following statements correctly identifies the limitation or application of WRC 107 versus WRC 297? WRC 107 directly calculates the stresses in both the run pipe and the hollow trunnion pipe, whereas WRC 297 only calculates stresses in the run pipe. WRC 107 assumes a solid attachment and does not account for the flexibility of a hollow trunnion, whereas WRC 297 is specifically formulated for cylinder-to-cylinder intersections and calculates stresses in both the run pipe and the hollow trunnion. WRC 297 is only applicable when the ratio of the trunnion diameter to the run pipe diameter (d/D) is greater than 0.8, while WRC 107 is used for d/D up to 1.0. Both WRC 107 and WRC 297 inherently account for the reinforcing pad (re-pad) thickness as an equivalent monolithic run pipe wall thickness without any modification. Next Question → Question 2 of 3 When a reinforcing pad (re-pad) is utilized with a pipe trunnion to distribute local stresses on a run pipe, how must the design and fabrication details be handled in accordance with ASME B31.3 and standard piping engineering practices? The reinforcing pad thickness can be directly added to the run pipe thickness (T_eff = T_run + T_pad) for all WRC 107 stress calculations without restriction. A vent hole (tell-tale hole) must be provided in the reinforcing pad to prevent pressure buildup during welding and thermal service, and the weld strength must be evaluated to ensure proper load transfer. The reinforcing pad must be fully welded to the trunnion first, then the assembly is welded to the run pipe without welding the pad outer circumference to the run pipe. ASME B31.3 prohibits the use of reinforcing pads on dummy supports if the run pipe operating temperature exceeds 400°C (750°F). Next Question → Question 3 of 3 When local stresses at a pipe trunnion support calculated via WRC 107/297 exceed the allowable limits of ASME B31.3, engineers often perform a Finite Element Analysis (FEA) and evaluate the stresses per ASME Section VIII, Division 2, Part 5 (Design by Analysis). How are the local membrane and bending stresses in the run pipe wall classified under this code for sustained mechanical loads? Local membrane stress is classified as Primary General Membrane (Pm), and bending stress is classified as Primary Bending (Pb). Local membrane stress is classified as Primary Local Membrane (PL), and bending stress is classified as Primary Bending (Pb) regardless of the load source. Both local membrane and bending stresses are classified as Peak Stresses (F) because they occur at a structural discontinuity. Local membrane stress is classified as Primary Local Membrane (PL), and the local bending stress through the run pipe wall thickness due to external mechanical loads is classified as Secondary Stress (Q). 🎉 Quiz Completed! You have passed the engineering review criteria. Subject: Structural Mechanics & Stress Analysis How to Run Pipe Trunnion Stress Calculation Pipe Trunnion Stress Calculation Methods: The analytical verification of localized stresses at the trunnion-to-run pipe junction relies on Kellogg's method, WRC 107/297, or finite element analysis. These methodologies calculate the combined stress intensity to prevent localized plastic deformation and fatigue cracking. To perform an accurate stress check, we must first identify all forces and moments acting on the trunnion. These loads are typically extracted from global piping stress analysis software like CAESAR II. The forces acting at the junction are categorized into three orthogonal axes: axial force, radial force, in-plane bending moment, out-of-plane bending moment, and torsional moment. In my practice, I utilize three primary methods depending on the complexity and criticality of the piping system: Kellogg's Method: A classical, conservative hand-calculation technique suitable for standard pipe sizes and moderate temperatures. It simplifies the geometry by treating the trunnion as a hollow circular beam welded to a cylindrical shell. WRC 107 / WRC 297 Bulletins: Semi-analytical methods based on shell theory. They are highly accurate but have strict geometric limits regarding the ratio of the trunnion diameter to the run pipe diameter. Finite Element Analysis (FEA): The gold standard for critical, high-temperature, or thin-walled piping where analytical methods fall outside their validity limits. Step-by-Step Analytical Calculation Workflow Let us look at the mathematical framework behind the localized stress evaluation. First, we calculate the nominal longitudinal stress in the run pipe due to internal pressure: S_pressure = (P * D_outer) / (4 * t_run) Where: P = Internal design pressure (MPa) D_outer = Outside diameter of the run pipe (mm) t_run = Nominal wall thickness of the run pipe minus corrosion allowance (mm) Next, we calculate the localized bending stress caused by the external moments transferred through the trunnion. The local bending stress on the run pipe wall is given by: S_local_bending = (C_local * M_combined) / (Z_run_local) Where: C_local = Local stress concentration factor derived from WRC 107 curves or Kellogg coefficients M_combined = Vectorial sum of in-plane and out-of-plane bending moments (N-mm) Z_run_local = Section modulus of the run pipe wall interface (mm³) The total combined stress (Stress Intensity) at the junction must satisfy the allowable limits defined by ASME B31.3. For sustained loads (weight + pressure), the combined stress must not exceed the basic allowable stress (S_h) of the run pipe material at design temperature. For expansion loads (thermal displacement), the stress range must remain within the allowable displacement stress range (S_A). CRITICAL DESIGN WARNING: Never perform a standard WRC 107 calculation if the ratio of the trunnion outer diameter to the run pipe outer diameter (d/D) exceeds 0.5. WRC 107 curves lose accuracy beyond this limit, leading to highly under-predicted local stresses. In such cases, you must use WRC 297 (valid up to d/D = 1.0 under specific shell parameters) or perform a dedicated FEA. Reinforcing Pad (Re-pad) Design Rules When the local stress exceeds the allowable limit, the most cost-effective solution is to add a reinforcing pad (re-pad). The re-pad increases the effective wall thickness of the run pipe at the junction, distributing the local loads over a larger surface area. In my experience, the re-pad thickness should match the run pipe thickness, and its outer diameter should be at least 1.5 times the trunnion outer diameter. Always ensure a vent hole (typically 1/4 inch NPT) is drilled in the re-pad to prevent pressure buildup during welding and to serve as a weep hole for leak detection during service. Standard Dimensions for Pipe Trunnion Supports Why Pipe Trunnion Stress Calculation Prevents Failures Trunnion Failure Prevention: Performing rigorous stress checks prevents localized wall buckling, shear tear-out, and thermal expansion constraints at the support interface. This engineering practice ensures that high-temperature piping systems maintain structural integrity under cyclic thermal loads. The table below outlines the standard recommended dummy support sizes based on the run pipe nominal diameter. These dimensions serve as an initial engineering estimate before running formal stress verification. Run Pipe Size (NPS) Recommended Dummy Size (NPS) Minimum Dummy Schedule Max Allowable Length (mm) Re-pad Requirement Trigger 3" to 4" 2" Sch 80 450 Run pipe Sch 60 14" to 18" 8" Sch 40 900 D/t ratio > 50 20" to 24" 10" Sch XS 1000 Mandatory for all cases Technical Mapping & Specifications Matrix To ensure seamless integration between stress analysts and structural designers, the following matrix maps the core technical entities, design parameters, and their governing code references. Design Entity Acronym Primary Physical Parameter Governing Code / Standard Welding Research Council WRC Local Shell Stress Coefficients WRC Bulletin 107 / 297 Process Piping Code ASME B31.3 Allowable Stress Limits (S_h, S_A) ASME B31.3 Chapter II Pressure Vessel Code ASME BPVC Alternative Local Stress Evaluation ASME Sec VIII Div 2 Finite Element Analysis FEA Mesh-based Stress Intensity Mapping ASME BPVC Annex 5.F Site Verification Checklist for Trunnion Installation Site Verification Checklist for Trunnion Installation Trunnion Installation Verification: This quality control protocol ensures that the physical fabrication, welding, and alignment of dummy supports match the approved stress analysis design. It prevents field modifications from introducing uncalculated localized stresses on the run pipe. In my years of field auditing, I have frequently discovered that field welders cut dummy supports shorter or longer than specified to fit structural steel variations. This alters the moment arm and invalidates the stress calculation. Use this checklist to verify compliance before line commissioning. Trunnion Quality Control Checkpoints Dimensional Verification: Measure the exact length of the fabricated dummy support. Verify that the length matches the CAESAR II model input within a tolerance of +/- 10mm. Material Grade Match: Confirm that the dummy support pipe material is compatible with the run pipe material to prevent galvanic corrosion and differential thermal expansion. Reinforcing Pad Vent Hole: Verify that a 1/4" NPT vent hole is drilled in the reinforcing pad and left unplugged or packed with heavy grease to prevent moisture ingress. Welding Profile: Inspect the fillet weld size at the trunnion-to-run pipe (or re-pad) junction. The weld throat must meet the minimum requirements of ASME B31.3 Paragraph 328.5.4. Non-Destructive Testing (NDT): Ensure Dye Penetrant (DP) or Magnetic Particle Testing (MPT) is performed on the root and final weld passes to check for surface cracks. Support Clearance: Check that the end of the dummy support has adequate clearance to slide on the structural steel shoe or beam without binding during thermal expansion. Drain Hole Presence: For vertically oriented dummy supports, ensure a drain hole is drilled at the lowest point of the dummy pipe to prevent water accumulation and internal corrosion. Field Case Study: Real-World Application Field Case Study: Real-World Application The Problem: A high-pressure superheated steam line (12-inch NPS, Sch 40, ASTM A106 Gr. B, operating at 350°C and 4.2 MPa) suffered localized wall deformation at a 6-inch dummy support. The original design team had bypassed a formal pipe trunnion stress calculation, relying instead on a standard "rule of thumb" size. During thermal expansion, the line expanded axially by 45mm, causing the dummy support to bind against a structural steel stop. This binding generated a massive bending moment at the unguided support, leading to localized wall thinning and a micro-crack at the weld toe. The Outcome: I was brought in to perform a finite element analysis (FEA) using FE Pipe. We modeled the exact geometry and discovered that the local stress intensity exceeded the ASME B31.3 allowable limit by 145%. The solution involved replacing the 6-inch dummy with an 8-inch Sch 80 trunnion equipped with a 12mm thick reinforcing pad (re-pad) to distribute the local load. The subsequent stress calculation showed local stresses dropped to 68% of the allowable limit, completely resolving the issue. This case highlights why relying on "rules of thumb" for high-temperature piping is a recipe for disaster. A simple, proactive stress check during the detail engineering phase would have saved the plant three days of unscheduled shutdown and thousands of dollars in emergency weld repairs. Frequently Asked Engineering Questions What is the difference between a pipe trunnion and a dummy support? A pipe trunnion is a load-bearing structural attachment welded to the run pipe, designed to transfer heavy vertical, lateral, or axial loads to structural steel. A dummy support is a specific type of trunnion, often non-load-bearing or lightly loaded, used primarily to extend the piping system to a nearby support beam or to act as a guide. Both require localized stress checks if they transfer significant forces. When is a reinforcing pad (re-pad) required for a pipe trunnion? A reinforcing pad is required when the localized membrane and bending stresses at the trunnion-to-run pipe junction exceed the allowable stress limits defined by ASME B31.3. This typically occurs on thin-walled pipes (high D/t ratio) or in systems subjected to high thermal expansion loads. Why does WRC 107/297 have limitations for pipe trunnion stress calculation? WRC 107 and WRC 297 are based on analytical shell theories that assume specific geometric boundaries. For example, WRC 107 is highly inaccurate when the attachment diameter to shell diameter ratio (d/D) exceeds 0.5. If your geometry falls outside these limits, the mathematical models cannot accurately predict stress concentrations, making finite element analysis (FEA) necessary. How do you model a pipe trunnion in CAESAR II? In CAESAR II, a trunnion is modeled as a rigid element or a pipe element branching off the run pipe. To capture the local flexibility of the run pipe wall, you should input the local stiffnesses calculated via WRC 297 or FEA. Bypassing local flexibility modeling can lead to overestimating the global piping stresses and underestimating the local junction stresses. What are the typical allowable stress limits for dummy supports under ASME B31.3? Under ASME B31.3, the local sustained stress (due to pressure and weight) must not exceed the basic allowable stress (S_h) of the run pipe material. The local expansion stress range (due to thermal cycles) must not exceed the displacement allowable stress range (S_A), which is calculated based on both the hot and cold allowable stresses of the material. Can a pipe trunnion be used on insulated piping systems? Yes, but the trunnion length must be extended beyond the insulation thickness to prevent thermal bridging and to allow the piping insulation to be sealed properly. The stress calculation must account for this increased length, as a longer trunnion increases the bending moment arm acting on the run pipe wall. ===FAQ_BLOCK===
