Expansion Joints Archives

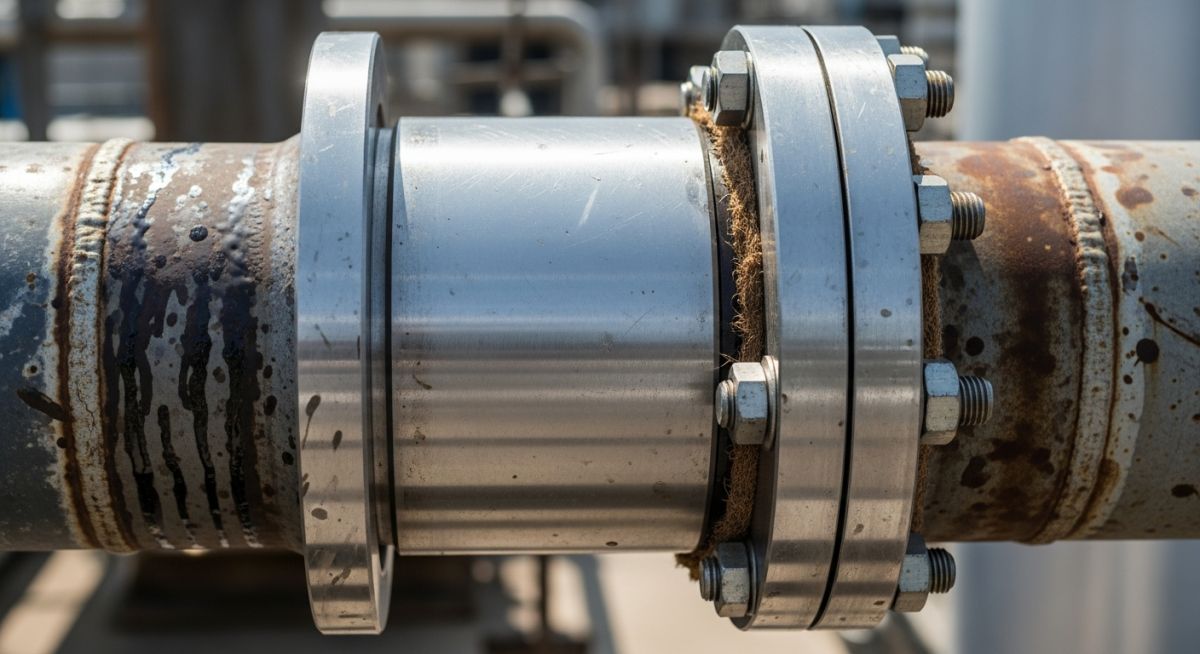

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: Visually introduce a slip joint installed in an industrial piping system to set the context of the article. Description: A close-up shot of a metallic slip-type expansion joint installed on an industrial pipeline, showing the sleeve and packing gland. SEO Alt Text: A metallic slip joint installed on an industrial pipeline to handle thermal expansion. Image Slug: industrial-piping-slip-joint-installation Filename URL: https://epcland.com/wp-content/uploads/2026/06/industrial-piping-slip-joint-installation.jpg Technical Infographic: Purpose: Illustrate the internal components and working mechanism of a piping slip joint. Description: A detailed cross-sectional diagram of a piping slip joint, labeling the sleeve, body, packing, and slip pipe. SEO Alt Text: Cross-sectional diagram showing the internal components of a piping slip joint. Image Slug: piping-slip-joint-cross-section-diagram Filename URL: https://epcland.com/wp-content/uploads/2026/06/piping-slip-joint-cross-section-diagram.jpg Meta Data: Focus Keyword: slip joints in piping Title: What Are Slip Joints in Piping? A Complete Engineering Guide Slug: slip-joints-in-piping Meta Description: Learn how slip joints in piping accommodate thermal expansion, prevent pipe damage, and ensure system integrity in industrial piping systems. Tags: slip joints, piping engineering, thermal expansion, pipe joints, expansion joints, piping systems, mechanical engineering Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 What Are Slip Joints in Piping and How Do They Work? Slip joints in piping: These specialized mechanical expansion joints accommodate axial thermal movement by allowing one pipe section to telescope inside another. They utilize a packed stuffing box to maintain a pressure-tight seal while preventing structural deformation in high-temperature utility lines. In my 20 years of commissioning steam distribution networks and industrial utility lines, I have watched many young engineers struggle with thermal expansion. When a carbon steel pipe carrying superheated steam heats up, it expands with immense force. If you do not give that pipe room to grow, it will buckle, destroy its supports, or tear itself apart at the welds. While expansion loops are the traditional choice, space constraints in dense industrial plants often make them impractical. That is where the packed slip joint becomes an invaluable tool in your design arsenal. Unlike bellows-type expansion joints that rely on thin, flexible metal walls, slip joints use a rugged, heavy-wall telescoping sleeve that slides inside a larger body. This mechanical sliding action provides massive axial travel capabilities—often up to 12 inches or more in a single unit—without risking the catastrophic fatigue failures common to thin-walled bellows. However, managing these components requires a deep understanding of packing friction, pressure thrust, and strict alignment protocols. Key Engineering Takeaways Massive Axial Travel: Slip joints easily handle long straight runs of piping where thermal expansion exceeds the limits of standard metallic bellows. Rugged Construction: The heavy-wall design resists external mechanical damage, water hammer, and torsional stresses far better than corrugated bellows. Maintenance Requirements: Because they rely on mechanical packing to seal the sliding sleeve, they require periodic inspection and packing adjustments to prevent leaks. Strict Alignment Needs: Any lateral or angular deflection will cause the internal sleeve to bind, leading to localized stress concentration and joint failure. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 In piping system design, packed slip-type expansion joints are highly directional. Which of the following correctly describes their mechanical capabilities and structural constraints regarding piping system degrees of freedom? They can accommodate large axial thermal expansion and moderate lateral offset, but must be isolated from torsional rotation. They are designed strictly for axial movement; any lateral deflection or angular rotation will cause binding of the slip sleeve, packing degradation, and subsequent joint failure. They utilize internal bellows to absorb multi-axial movements while the slip sleeve acts purely as a flow liner. They can absorb torsional rotation up to 15 degrees but require external limit rods to prevent axial over-travel. Next Question → Question 2 of 3 Under ASME B31.3 (Process Piping), what is the primary restriction regarding the application of packed slip-type expansion joints in hazardous fluid services? They are permitted in Category M Fluid Service provided they are equipped with secondary containment bellows. They are prohibited in Category D Fluid Service due to the low-temperature embrittlement risks of standard packing materials. They shall not be used in Category M Fluid Service or severe cyclic conditions due to the inherent risk of packing leakage and joint binding. They are permitted in any fluid service as long as the design pressure does not exceed 150 psi (10 bar) and the temperature is below 200°F (93°C). Next Question → Question 3 of 3 When integrating a packed slip joint into a high-pressure steam piping system designed per ASME B31.1, which of the following installation and anchoring configurations is mandatory to prevent catastrophic joint separation? The piping must be left unanchored at one end to allow the slip joint to self-balance the internal pressure thrust force. Main anchors must be designed to withstand the full pressure thrust force (internal pressure multiplied by the effective cross-sectional area of the slip sleeve) plus packing friction forces, accompanied by close-proximity pipe alignment guides. Intermediate anchors are sufficient, provided the slip joint is equipped with internal limit stops that absorb the pressure thrust force during operation. The joint must be installed immediately adjacent to a 90-degree bend to allow the piping flexibility to absorb any lateral forces generated by the packing friction. 🎉 Quiz Completed! You have passed the engineering review criteria. Technical Mechanics & Design Calculations Why Use Slip Joints in Piping Systems? Slip joints in piping: These components provide a cost-effective method for managing large axial thermal expansions in straight pipe runs. They eliminate the massive footprint required by traditional expansion loops while keeping pressure drops to an absolute minimum. To design a safe piping system using slip joints, you must master the physics of thermal expansion and the mechanical forces acting on the joint. When a pipeline undergoes a temperature change, its change in length is calculated using the standard thermal expansion equation: Delta L = L * alpha * Delta T Where: - Delta L = Total axial thermal expansion (inches or mm) - L = Total length of the straight pipe run between anchors (feet or meters) - alpha = Mean coefficient of thermal expansion for the pipe material (in/in/°F or mm/mm/°C) - Delta T = Temperature difference between installation and maximum operating conditions (°F or °C) Let us look at a real-world scenario. Suppose we have a 200-meter run of 10-inch carbon steel pipe operating at 250°C, with an installation temperature of 20°C. The mean coefficient of thermal expansion for carbon steel over this range is approximately 0.0125 mm/m°C. Delta L = 200 m * 0.0125 mm/m°C * (250°C - 20°C) Delta L = 200 * 0.0125 * 230 Delta L = 575 mm (approximately 22.6 inches) Accommodating 575 mm of expansion using traditional expansion loops would require multiple massive loops, consuming valuable space in your pipe rack. A single double-end slip joint, or two single-end slip joints placed strategically, can handle this movement easily within the run's native footprint. Calculating System Forces and Anchor Loads One of the most common mistakes I see in the field is underestimating the loads acting on the main anchors. When you install a slip joint, the pipe is essentially cut in half. The internal pressure of the fluid acts directly on the cross-sectional area of the slip sleeve, trying to blow the joint apart. This is known as the pressure thrust force. The total force (F_total) that your main anchors must withstand is the sum of the pressure thrust force (F_p) and the packing friction force (F_f): F_total = F_p + F_f Where: - F_p = P * A (Internal pressure multiplied by the effective cross-sectional area of the slip sleeve) - F_f = Packing friction force (typically provided by the manufacturer, based on packing tightness and sleeve diameter) For a 10-inch pipe operating at 300 PSI, the effective area (A) is approximately 78.5 square inches. The pressure thrust force alone is: F_p = 300 PSI * 78.5 sq in = 23,550 lbs (approx. 10.7 metric tons) If your structural team designs the anchors assuming only simple thermal friction, those anchors will fail during hydrostatic testing. You must design your structural steel to handle this massive pressure thrust in compliance with ASME B31.3 and ASME B31.1. CRITICAL FIELD WARNING: Lateral Deflection Risks Slip joints are strictly designed for axial (straight-line) movement. They have zero capability to absorb lateral offset, angular rotation, or torsional twisting. If the piping system experiences even minor lateral movement, the sliding sleeve will bind against the stuffing box. This binding stops all thermal movement, transferring massive structural loads back into the piping system, which inevitably leads to flange leaks, pipe buckling, or catastrophic anchor failure. Slip Joint Selection & Performance Parameters Selecting the correct slip joint requires matching the system's operating temperature, pressure, and fluid medium with the appropriate packing material and sleeve design. The table below outlines standard industrial selection parameters. Nominal Pipe Size (NPS) Max Axial Travel (Single End) Max Operating Pressure Recommended Packing Typical Fluid Service 2" to 6" 4 to 8 inches 300 PSI (20.7 bar) PTFE / Graphite Filament Low-Pressure Steam, Condensate 8" to 16" 8 to 12 inches 400 PSI (27.6 bar) Flexible Graphite with Inconel Wire High-Pressure Steam, Hot Water 18" to 24" 12 to 18 inches 250 PSI (17.2 bar) Molded Graphite Rings District Heating, Utility Steam 26" and Above Custom (Up to 24") 150 PSI (10.3 bar) Injectable Packing Compounds Water Transmission, Low-Temp Gas Technical Mapping & Specifications Matrix To ensure seamless communication between piping designers, structural engineers, and field installers, use this technical mapping matrix to identify key components, their acronyms, and governing standards. Technical Entity Structural Acronym Physical Parameter Governing Standard Reference Slip Sleeve (Inner Pipe) SSV Wall Thickness, Surface Finish (Ra) ASME B31.3 Chapter II Stuffing Box (Outer Body) SBX Chamber Depth, Packing Width ASME Section VIII Div 1 Compression Gland Flange CGF Bolt Torque, Gland Depth ASME B16.5 / B16.47 Main Anchor MAN Structural Load Capacity (Kips/kN) ASCE 7 / AISC 360 Alignment Guide ALG Guide Spacing (L1, L2, L3) EJMA Standards Site Verification & Installation Checklist How to Install Slip Joints in Piping Safely? Slip joints in piping: Proper installation requires precise alignment, strict adherence to guide spacing rules, and correct packing compression to prevent binding. Field teams must verify that anchors are fully rated to withstand the combined forces of pressure thrust and packing friction. In my years of field auditing, I have found that over 80% of slip joint failures are caused by poor installation practices. If the pipe is not perfectly aligned, or if the guides are placed too far from the joint, the sleeve will bind, causing localized stress concentration. Use this checklist on-site before commissioning any system containing slip joints. Pre-Commissioning Field Checklist Verify Guide Spacing (L1 & L2): Ensure the first alignment guide is located within 4 pipe diameters from the slip joint, and the second guide is within 14 pipe diameters. This is critical to prevent lateral buckling. Check Cold-Spring / Preset: Confirm the joint has been preset to account for the ambient temperature at the time of installation. If you install a joint fully collapsed on a freezing winter day, it will pull apart when the system cools down during a shutdown. Inspect Anchor Integrity: Double-check that the main structural anchors are fully welded and bolted to the civil foundations. Never pressurize the line if temporary shipping bars are still installed or if anchors are incomplete. Gland Packing Torque: Tighten the gland bolts evenly in a cross-pattern. Over-tightening will lock the sleeve and prevent sliding, while under-tightening will cause immediate packing leaks during startup. Sleeve Surface Inspection: Ensure the polished sliding sleeve is completely free of weld spatter, paint, rust, or physical gouges. Any surface defect will shred the packing rings as the sleeve moves. Field Case Study: Real-World Application Field Case Study: Real-World Application The Problem: Repeated Bellows Failures in a District Steam Tunnel In 2018, I was called to a municipal district heating plant that was experiencing chronic failures on a 16-inch steam main running through a tight underground concrete tunnel. The original design utilized metallic bellows expansion joints. Because of the tight space, the piping team could not install adequate lateral guides. As a result, the bellows suffered from minor lateral deflection and torsional twisting during startup cycles. Within 18 months of commissioning, three bellows suffered catastrophic fatigue cracking, filling the tunnel with high-pressure steam and shutting down heating to a major hospital complex. The Solution: Retrofitting with Heavy-Duty Packed Slip Joints We analyzed the system and determined that expansion loops were physically impossible due to the tunnel's concrete walls. We replaced the failed bellows with heavy-duty, externally guided slip joints equipped with injectable graphite packing. We redesigned the structural anchors at the tunnel ends to handle the 45,000 lbs of pressure thrust and packing friction. We also installed rigid pipe alignment guides directly adjacent to the slip joints to eliminate any chance of lateral binding. The Outcome: The retrofitted system has been operating flawlessly for over eight years. The maintenance team performs a quick visual inspection every six months and injects a small amount of fresh packing compound under full system pressure once a year. The plant has experienced zero unplanned shutdowns, and the structural integrity of the tunnel piping remains perfect. Frequently Asked Engineering Questions What is the primary difference between a slip joint and a bellows expansion joint? A slip joint relies on a mechanical telescoping sleeve sliding inside a packed body to absorb axial movement, offering massive travel but requiring regular packing maintenance. A bellows joint uses a thin, flexible, corrugated metal membrane that flexes to absorb movement. Bellows require zero maintenance but are highly susceptible to fatigue, water hammer, and mechanical damage. How do you calculate the pressure thrust force generated by a slip joint? The pressure thrust force is calculated by multiplying the internal operating pressure of the system by the effective cross-sectional area of the sliding sleeve (F = P * A). This force acts axially, trying to push the joint apart, and must be fully absorbed by heavy-duty main anchors designed in accordance with ASME B31.3. Can slip joints handle lateral or angular piping movements? No. Slip joints are strictly designed for axial movement along the centerline of the pipe. Any lateral offset or angular deflection will cause the sliding sleeve to bind against the stuffing box, locking the joint and transferring destructive forces to the piping system and anchors. What type of packing material is recommended for high-temperature steam slip joints? For high-temperature steam applications, flexible graphite packing rings reinforced with Inconel wire or specialized injectable graphite compounds are highly recommended. These materials maintain their sealing integrity at temperatures exceeding 500°F (260°C) and offer excellent self-lubricating properties to minimize sliding friction. Why are pipe guides critical when installing slip joints? Pipe guides are critical because they force the expanding pipe to move in a perfectly straight line into the slip joint. Without proper guiding (specifically the L1 and L2 guides defined by EJMA), the pipe will buckle laterally under the compressive thermal loads, causing the slip joint to bind and fail. How do you perform a hydrostatic test on a piping system containing slip joints? Before performing a hydrostatic test, you must ensure that all main anchors and pipe guides are fully installed and rated for the test pressure. The shipping bars or limit travel bolts on the slip joint must be set correctly. Because hydrostatic test pressures are typically 1.5 times the design pressure, the pressure thrust force will be exceptionally high, and any structural weakness in the anchors will result in immediate joint separation.
