In my 20-plus years of piping and metallurgical engineering, I have seen materials fail in ways that would surprise most junior designers. When you are dealing with process temperatures exceeding 1500 degrees Celsius, standard stainless steels and nickel alloys simply turn to butter. That is where refractory metals step in. These elements are the unsung heroes of the extreme-temperature industrial world, holding their shape and strength where other metals liquefy.

Throughout my career, specifying these materials has always required a deep understanding of their unique physical properties and temperamental fabrication limits. They are not easy to work with, they are expensive, and they do not tolerate oxygen at high temperatures. However, when your process demands absolute structural integrity under extreme thermal loads, there is simply no substitute.

Understanding the Core Properties of Refractory Metals

Refractory Metal Properties: The physical and mechanical characteristics of these elements are defined by their high atomic density, low thermal expansion coefficients, and exceptional resistance to thermal shock. These attributes ensure structural integrity in high-vacuum and high-temperature environments governed by ASTM B387 and ASTM B386 standards.

To design successfully with these materials, we must look closely at their atomic structures. The five classic refractory metals (tungsten, molybdenum, niobium, tantalum, and rhenium) share a body-centered cubic (BCC) crystal structure, except for rhenium which is hexagonal close-packed (HCP). This atomic arrangement gives them their immense strength but also makes them susceptible to a distinct ductile-to-brittle transition temperature (DBTT).

Thermal Stress and Expansion Calculations

In high-temperature piping and vessel design, thermal stress is the primary cause of premature failure. Because refractory metals have low coefficients of thermal expansion (CTE), they generate significantly lower thermal stresses than stainless steels when subjected to temperature gradients.

The thermal stress (S) generated in a constrained component can be calculated using the following engineering formula:

Where:

• S: Thermal stress (Pascals)
• E: Modulus of Elasticity (Pascals)
• alpha: Coefficient of Thermal Expansion (per Kelvin)
• delta_T: Temperature difference across the component (Kelvin)
• nu: Poisson’s ratio (dimensionless)

Because the CTE (alpha) of tungsten is roughly one-third that of austenitic stainless steel, the resulting thermal stress under identical temperature gradients is dramatically reduced. This makes refractory alloys highly resistant to thermal shock and thermal fatigue cracking.

Individual Element Profiles

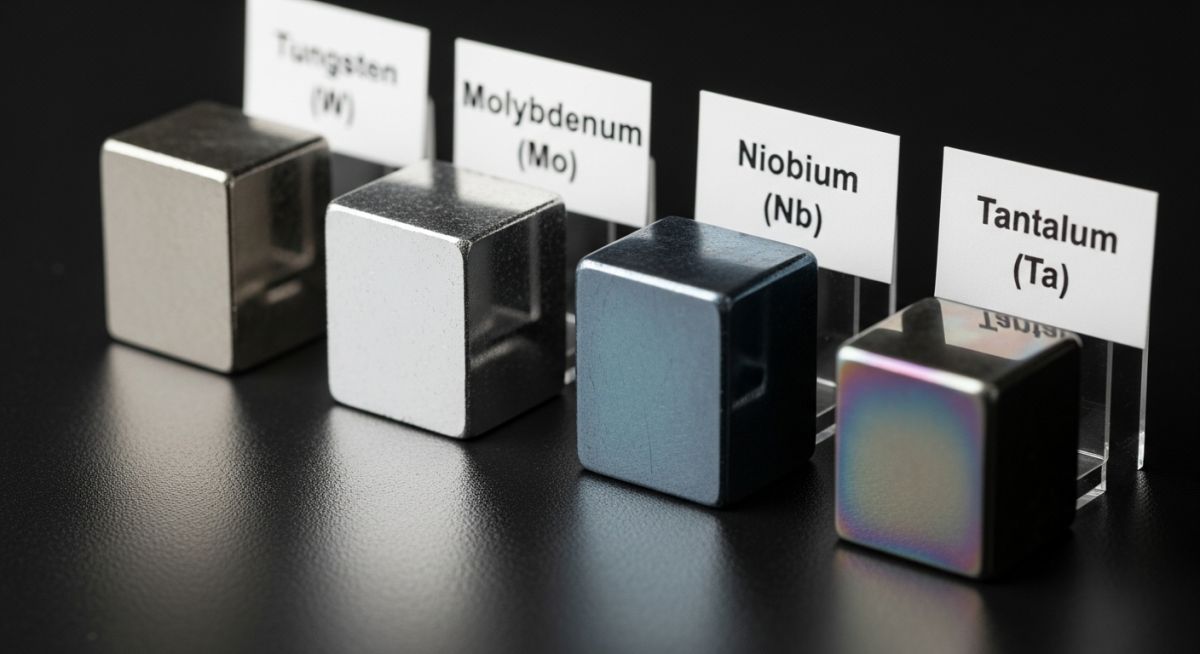

Each of the primary refractory elements has a distinct personality in the workshop and on the project site:

• Tungsten (W): The king of melting points. It is incredibly heavy, hard, and brittle at room temperature. It is used for rocket nozzles, electrical contacts, and radiation shielding.
• Molybdenum (Mo): The workhorse of the group. It is more ductile and easier to fabricate than tungsten while still maintaining excellent strength at temperatures up to 1900 degrees Celsius.
• Tantalum (Ta): The corrosion champion. Tantalum is almost completely inert to acid attack at temperatures below 150 degrees Celsius, making it invaluable for chemical reactors and pharmaceutical equipment.
• Niobium (Nb): The lightweight option. With a lower density than the others, niobium is alloyed with titanium for aerospace applications and superconducting magnets.

Comparing Key Engineering Data of Refractory Metals

Refractory Metal Specifications: The comparative physical properties of tungsten, molybdenum, tantalum, and niobium outline their specific operational limits under extreme thermal loads. These values dictate material selection for aerospace, nuclear, and chemical processing systems operating under ASME Section VIII Division 1 guidelines.

Technical Mapping & Specifications Matrix

Quality Control Checklist for Refractory Alloys

Refractory Quality Control: The inspection and verification of high-temperature metallic components require strict adherence to non-destructive testing and dimensional tolerance protocols. These procedures prevent premature brittle failure and ensure compliance with ASTM E1417 and ASME Section V standards.

When receiving or installing refractory metal components on-site, standard inspection methods are not enough. Because of their high ductile-to-brittle transition temperatures, minor surface scratches can act as severe stress risers, leading to catastrophic cracking during thermal cycling.

Field Case Study: Real-World Application

Refractory Field Performance: The practical application of molybdenum alloy components in high-temperature vacuum furnaces demonstrates the critical need for precise thermal stress management. This analysis highlights the mitigation of thermal cracking through proper material selection and structural design under ASME Section VIII guidelines.

The Outcome and Engineering Recommendation

The results were immediate. The new lanthanated molybdenum elements operated continuously for over four years without a single failure. The sagging issue was completely eliminated due to molybdenum’s high modulus of elasticity and creep resistance at 1350 degrees Celsius.

My recommendation for any engineer facing similar high-temperature structural failures is to evaluate the total cost of ownership. While the initial material cost of the molybdenum elements was four times higher than the nickel-chromium elements, the elimination of maintenance downtime paid for the upgrade within the first six months of operation.
