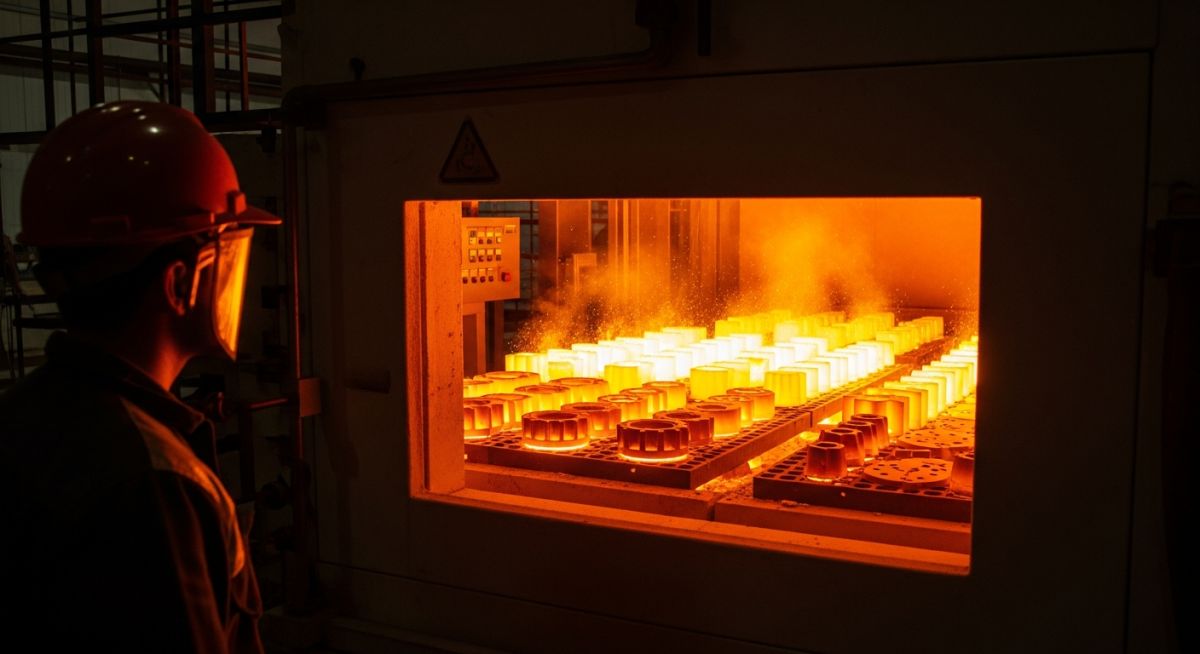

industrial nitriding process heat treatment furnace steel surface hardening
Join telegram
industrial nitriding process heat treatment furnace steel surface hardening
Author: Atul Singla | Senior Piping Engineer | Last Updated: May 2026

What is Nitriding Process? Benefits, Types & Real Field Applications

I still remember a shutdown job where a high-load gearbox failed within months of commissioning. The vendor blamed material quality, but when we opened it, the truth hit hard—the nitriding process was poorly controlled. Case depth was uneven, hardness dropped under load, and the entire system paid the price. In real engineering, surface treatment isn’t theory—it’s what decides whether your equipment runs for years or fails overnight.

✅ Key Takeaways

  • Nitriding process is a surface hardening technique using nitrogen diffusion into steel.
  • It improves wear resistance, fatigue strength, and corrosion protection without distortion.
  • Main types include gas nitriding, plasma nitriding, and salt bath nitriding.
  • Unlike carburizing, nitriding operates at lower temperatures (~500–550°C), avoiding dimensional changes.
  • Process control is critical—errors in time, temperature, or atmosphere can lead to expensive failures.
SGE Quick Answer: The nitriding process is a heat treatment method where nitrogen diffuses into the surface of steel at controlled temperatures, forming hard nitrides. It enhances wear resistance, fatigue life, and corrosion resistance without causing distortion, making it ideal for precision components like gears, shafts, and dies.

🧠 Quick Knowledge Check

1. What is the primary purpose of the nitriding process?

What is Nitriding Process?

In my field work across rotating equipment and high-load gear systems, I rely heavily on the nitriding process when I need surface performance without risking dimensional distortion. Nitriding is a thermochemical heat treatment where nitrogen atoms diffuse into the steel surface at ~500–550°C, forming hard nitrides (Fe4N, Fe2-3N and alloy nitrides like CrN, AlN). The key advantage is simple—no phase transformation, so your machined tolerances stay intact.

Purposes of the Nitriding Process

  • Increase surface hardness (900–1200 HV typical)
  • Improve fatigue life due to compressive residual stress
  • Enhance wear resistance in gears, cams, dies
  • Boost corrosion resistance in mild environments
  • Enable post-machining treatment without distortion risk

Principle of the Nitriding Process

The process works on solid-state diffusion. Nitrogen is introduced from ammonia gas, plasma, or salt medium and diffuses into the lattice. Alloying elements like chromium, molybdenum, vanadium actively form stable nitrides. In practice, I always monitor time–temperature–potential balance because diffusion depth is governed by Fick’s law. Even small deviation can drop case depth below design limits.

⚠️ Field Warning: I have seen nitrided shafts failing not because of material—but because diffusion depth was miscalculated. Never approve a process without hardness profile validation (microhardness vs depth curve).

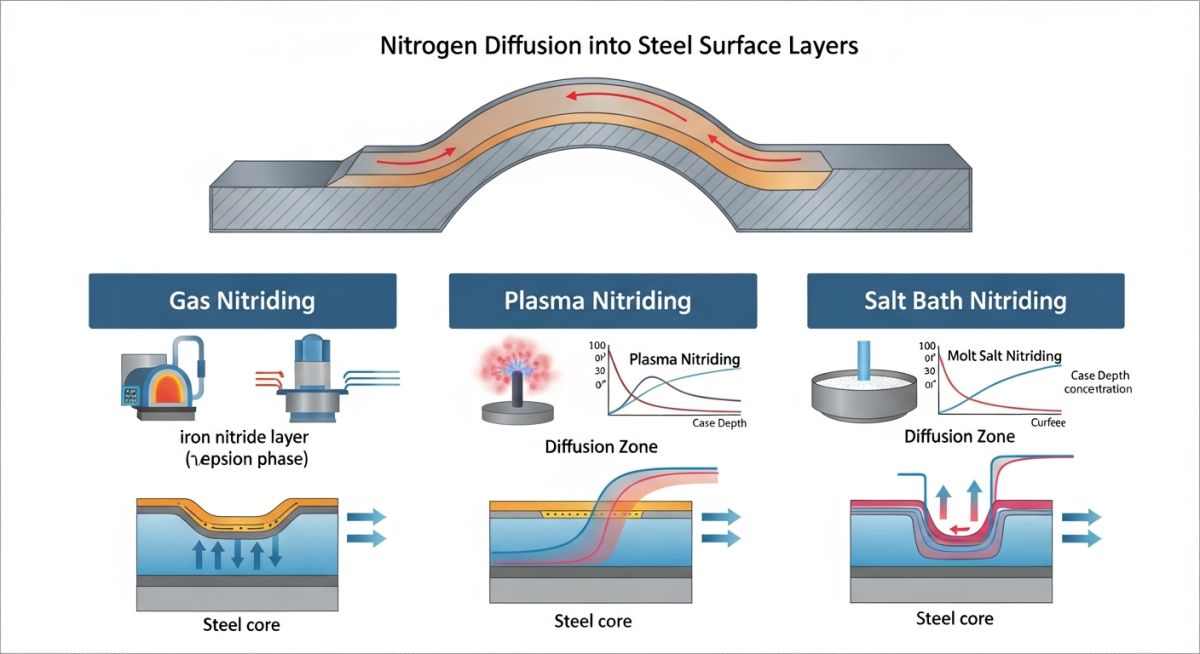

nitriding process diagram nitrogen diffusion types gas plasma salt bath

Types of Nitriding Process

Gas Nitriding Process Explained

Uses ammonia (NH3) gas at controlled dissociation rates.

Advantages and Disadvantages of Gas Nitriding

  • ✅ Uniform surface hardening
  • ✅ Suitable for large batch processing
  • ❌ Slow process (20–80 hours)
  • ❌ Limited control in complex geometries

Plasma (Ion) Nitriding Process Explained

Ionized nitrogen plasma bombards the surface under vacuum.

Advantages and Disadvantages of Ion Nitriding

  • ✅ Excellent control and uniformity
  • ✅ Minimal distortion
  • ❌ Higher capital cost
  • ❌ Requires skilled operation

Salt Bath Nitriding Process Explained

Immersion in nitrogen-rich molten salts.

Advantages and Disadvantages of Salt Bath Nitriding

  • ✅ Fast cycle time
  • ✅ Good surface finish
  • ❌ Environmental hazards
  • ❌ Risk of chemical handling failures

Prerequisites for Nitriding Process

  • Steel must contain nitride-forming elements (Al, Cr, Mo)
  • Final machining completed before nitriding
  • Surface cleanliness (oil-free, oxide-free)
  • Controlled furnace atmosphere and calibration

Advantages of Nitriding Process

  • No quenching → no distortion
  • High surface hardness
  • Extended fatigue life
  • Minimal post-processing required

Disadvantages of Nitriding Process

  • Long processing cycle
  • Limited case depth (~0.2–0.7 mm typical)
  • Costly alloy requirements

Nitriding vs Carburizing

Property Nitriding Carburizing
Temperature 500–550°C 850–950°C
Distortion Negligible High
Depth Low High
Problem Statement:
In a petrochemical plant, we observed recurring gearbox failure within 6 months. Inspection revealed inadequate nitriding depth (~0.15 mm vs required 0.4 mm).

I led the root cause analysis. Hardness mapping showed rapid drop below surface. Vendor logs revealed reduced nitriding duration and improper ammonia flow rate. We recalculated diffusion parameters and reprocessed samples with controlled cycles.

Metric Outcome:
✔ Case depth improved to 0.42 mm
✔ Gear life extended 3.5×
✔ Downtime reduced by 60%

Field Lesson Learned: Never trust process sheets blindly. Always validate nitriding depth with metallurgical testing before installation.

Technical FAQs

What steels are suitable for nitriding?
Alloy steels containing Al, Cr, Mo perform best due to nitride formation.
Does nitriding require quenching?
No. It is a low-temperature process without phase transformation.
How is nitriding depth measured?
Using microhardness testing across cross-section.
Why is plasma nitriding preferred?
Better control, uniformity, and minimal distortion in precision parts.
Can nitriding improve corrosion resistance?
Yes, especially with post-oxidation treatments.
Is nitriding expensive?
Higher initial cost, but lifecycle savings are significant.
