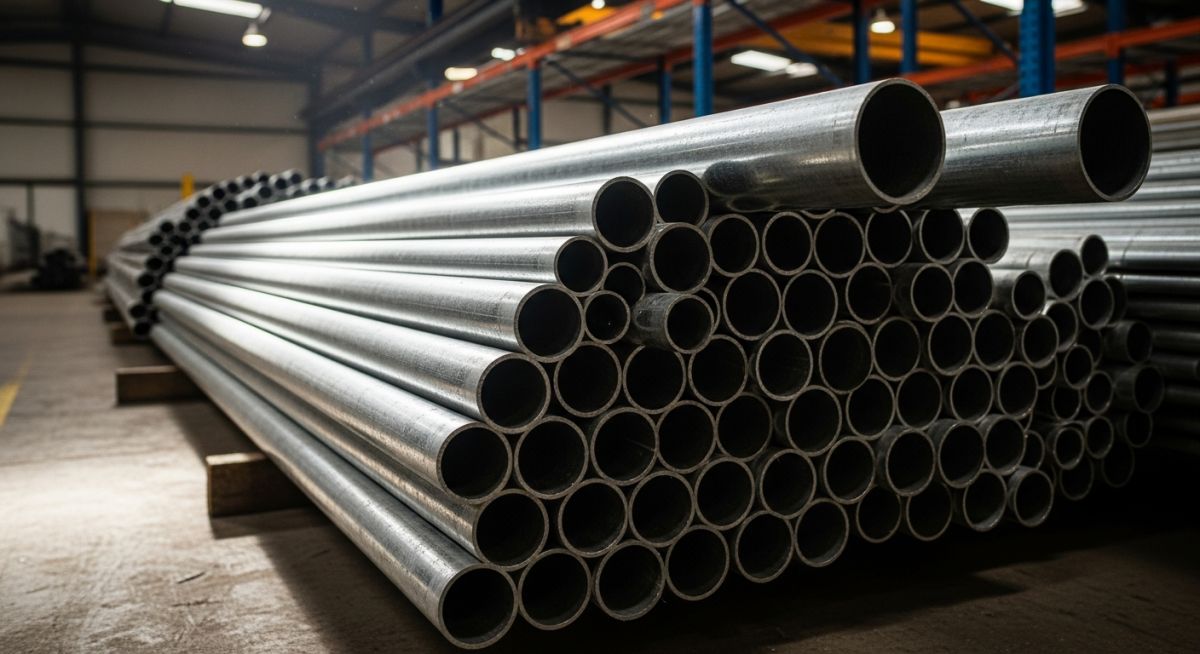

Stack of newly manufactured galvanized steel pipes in an industrial warehouse
Join telegram
Author: Atul Singla | Piping Engineering Expert | Updated: May 2026
Stack of galvanized steel pipes in an industrial warehouse

Understanding the Galvanized Pipe Meaning in Modern Piping Systems

Galvanized Pipe Meaning: This term refers to carbon steel piping that has been coated with a protective layer of metallic zinc through hot-dip galvanization or electro-galvanization to prevent atmospheric corrosion and extend service life in industrial and structural applications. The process is governed by standards such as ASTM A53 and ASTM A153 to ensure metallurgical bonding and minimum coating thickness.

Over my 20 years in the piping industry, I have seen countless materials fail prematurely because engineers underestimated atmospheric corrosion. I remember a project in a coastal chemical plant where standard carbon steel lines degraded within months. That is when we had to re-evaluate our material selection and look closely at the galvanized pipe meaning and its practical limits. Galvanizing is not just a paint job; it is a metallurgical marriage of zinc and steel.

Key Engineering Takeaways

  • Zinc acts as a sacrificial anode, protecting the underlying steel even if the surface is scratched.
  • Hot-dip galvanizing provides a much thicker, more durable coating than electro-galvanizing.
  • Galvanized pipes should not be used for high-temperature service (above 200 degrees Celsius) or for carrying highly acidic fluids.



Interactive Engineering Quiz
EPCLAND Portal
Question 1 of 3

What is the correct sequence of intermetallic zinc-iron alloy layers formed on a steel pipe during the hot-dip galvanizing process, starting from the steel substrate interface and moving outward to the exterior surface?




Complete Course on
Piping Engineering

Check Now

Key Features

  • 125+ Hours Content
  • 500+ Recorded Lectures
  • 20+ Years Exp.
  • Lifetime Access

Coverage

  • Codes & Standards
  • Layouts & Design
  • Material Eng.
  • Stress Analysis
Core Technical Deep-Dive

What is the Galvanized Pipe Meaning in Engineering?

Galvanized Steel Piping: This engineering material represents carbon steel substrates treated with a zinc barrier to resist oxidation and galvanic corrosion in non-acidic environments. The metallurgical bond created during the hot-dip process forms distinct zinc-iron alloy layers that protect the underlying steel even when minor surface scratches occur.

To truly grasp the galvanized pipe meaning, we must look at the chemistry of the hot-dip galvanizing process. When clean carbon steel is submerged in molten zinc at approximately 450 degrees Celsius (842 degrees Fahrenheit), a series of zinc-iron alloy layers form. These layers are metallurgically bonded to the steel, making them far more durable than simple painted coatings.

The Four Metallurgical Layers

The resulting coating consists of four distinct layers, each with unique properties:

  • Eta Layer (100% Zn): The outer layer, which is ductile and absorbs impact.
  • Zeta Layer (94% Zn, 6% Fe): A hard, crystalline layer that resists abrasion.
  • Delta Layer (90% Zn, 10% Fe): A dense layer providing excellent corrosion resistance.
  • Gamma Layer (75% Zn, 25% Fe): The thin alloy layer closest to the steel substrate, ensuring strong adhesion.

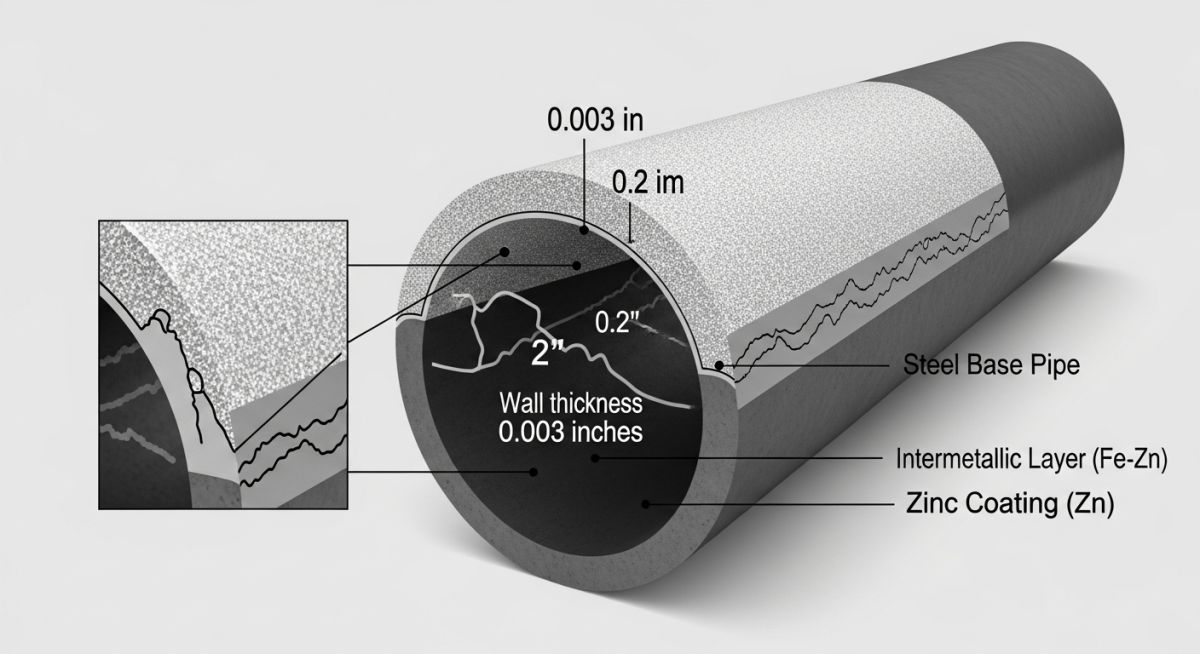

Cross-section diagram of galvanized steel pipe showing zinc-iron alloy layers

Coating Weight and Thickness Calculations

In my practice, we calculate the zinc coating weight per unit area using the standard empirical relationship:

Coating Weight (grams per square meter) = 7.06 * Coating Thickness (micrometers)

For example, if a specification requires a minimum average coating thickness of 85 micrometers (as per ASTM A53 for Schedule 40 pipes), the coating weight is calculated as:

85 * 7.06 = 600.1 grams per square meter.

Field Warning: Never weld galvanized steel without proper ventilation and personal protective equipment. The heat of welding vaporizes the zinc coating, producing highly toxic zinc oxide fumes that cause “metal fume fever” (zinc chills). Always grind away the zinc coating at least 2 inches back from the weld prep area before welding.

Engineering Standards & Specifications

Selecting the correct standard is key to ensuring the longevity of your piping system. Below are the primary standards governing galvanized piping and coatings.

Standard Scope Minimum Coating Thickness Common Application
ASTM A53 Black and Hot-Dipped Zinc-Coated Welded and Seamless Steel Pipe 85 micrometers (average) Fire protection, HVAC, utility water lines
ASTM A123 Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products Varies by material thickness (45-100 micrometers) Structural steel, handrails, large fabricated pipe spools
ASTM A153 Zinc Coating (Hot-Dip) on Iron and Steel Hardware Varies by class (typically 50-85 micrometers) Threaded fasteners, pipe hangers, brackets

Technical Mapping & Specifications Matrix

Parameter Technical Specification Engineering Limit / Value Reference Code
Maximum Operating Temperature Temperature at which zinc coating remains stable without peeling or diffusing 200 degrees Celsius (392 degrees Fahrenheit) ASME B31.3
Fluid pH Range Allowable acidity/alkalinity of the fluid carried inside the pipe pH 6.0 to pH 12.0 NACE SP0169
Joining Methods Approved methods for connecting galvanized pipe lengths Threaded, Grooved (Victaulic), Flanged ASME B1.20.1 / ASME B16.5

Site Verification Checklist

Verifying the Galvanized Pipe Meaning on Site

Galvanized Pipe Site Inspection: This quality control protocol ensures that delivered piping materials comply with specified zinc coating thicknesses, surface finishes, and thread protections before installation. Field verification prevents the installation of substandard or damaged piping in corrosive environments.

When galvanized pipes arrive at the construction site, you must perform a rigorous quality check. Do not assume that every pipe marked “galvanized” meets the engineering requirements of your project.

Field Inspection Checklist


  • Visual Surface Inspection: Check for bare spots, blisters, flux inclusions, or dross. The coating must be continuous and free of defects.

  • Thickness Verification: Use a calibrated magnetic dry-film thickness (DFT) gauge to verify coating thickness meets ASTM A53 requirements.

  • Thread Inspection: Ensure threads are clean, sharp, and free of excess zinc buildup that could prevent proper engagement.

  • Storage Check: Confirm pipes are stored off the ground with wooden spacers to prevent wet storage stain (white rust).

  • Marking Verification: Confirm each pipe length is stenciled with the manufacturer’s name, ASTM standard, and heat number.

Field Case Study

Field Case Study: Real-World Application

The Problem

A coastal chemical plant installed standard carbon steel utility water lines. Within 18 months, atmospheric salt spray and high humidity caused severe external pitting corrosion, leading to multiple pinhole leaks and unplanned shutdowns. The maintenance team had initially selected standard carbon steel to save on upfront material costs, ignoring the aggressive coastal environment.

The Solution & Outcome

I was brought in to consult on the material replacement. We specified hot-dip galvanized steel pipes conforming to ASTM A53. The zinc coating provided both barrier and sacrificial protection. After 8 years of continuous service in the same corrosive coastal environment, the lines show zero signs of corrosion or wall loss, proving that understanding the galvanized pipe meaning and its proper application saves significant maintenance costs over time.

Frequently Asked Engineering Questions

What is the difference between galvanized pipe and black steel pipe?
Black steel pipe is uncoated carbon steel, which is highly susceptible to rust and corrosion. Galvanized pipe is black steel pipe that has been coated with a protective layer of zinc to prevent oxidation. Black steel is typically used for gas lines, while galvanized steel is used for water lines and structural applications.
Can galvanized pipes be used for drinking water systems?
While historically common, modern plumbing codes generally restrict galvanized pipes for drinking water. Over time, the zinc coating corrodes internally, leading to lead and cadmium leaching (impurities in older zinc coatings) and rust buildup that restricts water flow. Copper or PEX is preferred today.
How long do galvanized pipes typically last in industrial environments?
In mild atmospheric environments, galvanized pipes can last 30 to 50 years. In highly corrosive industrial or coastal environments, their service life may be reduced to 10 to 20 years, depending on the thickness of the zinc coating and exposure to acidic pollutants.
Why does white rust form on galvanized pipes, and how can it be prevented?
White rust (wet storage stain) forms when galvanized pipes are stored in tightly packed, humid conditions without adequate air circulation. The zinc reacts with moisture to form zinc hydroxide. Prevent this by storing pipes off the ground, sloped for drainage, and with spacers to allow airflow.
Can you thread galvanized pipes after they have been galvanized?
Yes, but threading cuts through the zinc coating, exposing the raw carbon steel underneath. To maintain corrosion resistance, you must apply a zinc-rich cold galvanizing compound (conforming to ASTM A780) to the exposed threads before assembly.
What is the maximum operating temperature for galvanized steel piping?
The maximum recommended operating temperature is 200 degrees Celsius (392 degrees Fahrenheit). Above this temperature, the zinc coating can peel or diffuse into the steel substrate, which can lead to liquid metal embrittlement and catastrophic structural failure under stress.

===
