Introduction
The course on “Fluid Categories” has been developed to explain the fundamentals of fluids services & categories in a particular project in detail. The content is organized in a systematic manner so that the first timers can also understand. Course content is based on practical problems and solutions, which is created by experienced professionals with decades of experience in the relevant field.
Please Note: Few courses have been Published on Udemy platform which is learning management system (LMS) and designed for online courses. Click to check the available courses.
The purpose of this article is to give answers to the basic questions about the course which commonly comes into the mind before enrolling to the published courses. So Let’s begin with details and look at various sections of the article.
What you’ll learn in this course?
In this course 5 Types of fluid categories have been explained in detail.
In a chemical plant there are no’s of fluids those aid in running the process operation. And there is always a need to classify these in groups for easy in design, operation and safety
Fluid services definition:
Fluid service is a general term, considering the application in piping system with taking in consideration the fluid properties, pressure, temperature and service condition.
In the early stage of the projects, the flows should be categorized by the means that discrimination among possible degrees of hazards.

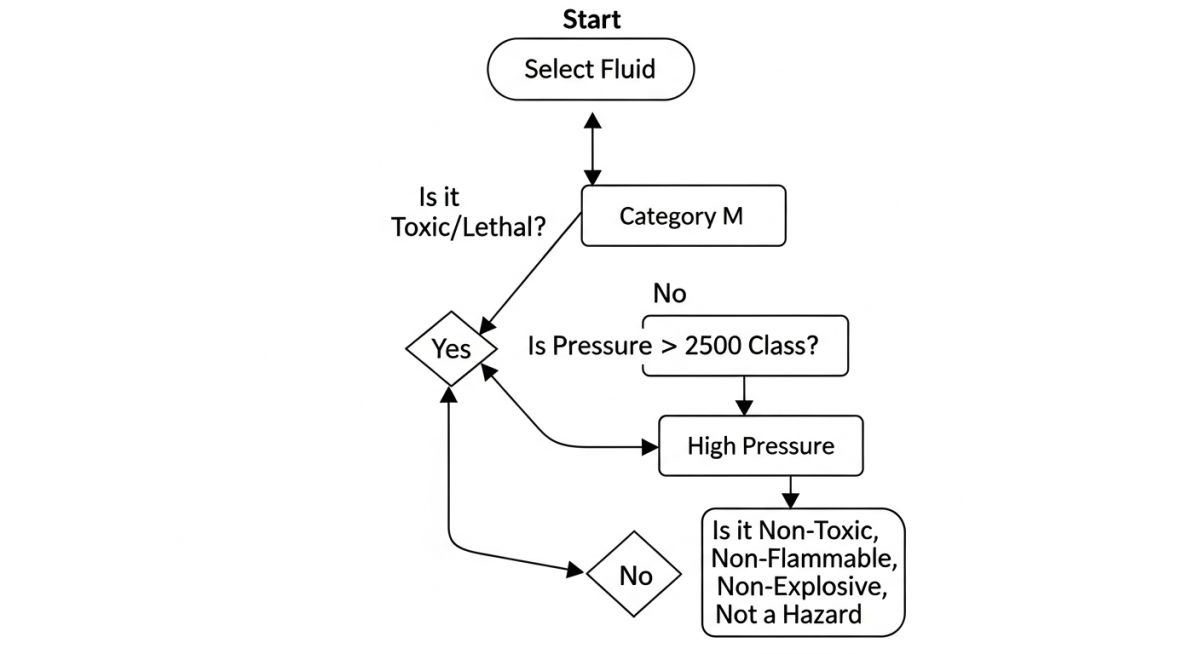

ASME B31.3 includes three fluid service Categories and three special design considerations based on pressure, Temperature and Purity (Category D, Category M, High Pressure, High Purity, Elevated Temperature and Normal Fluid service), which provides a means of discriminating among possible degrees of hazard. Less stringent design, examination, and testing are permitted for fluid service of lower hazard and requirements that are more stringent are applied for more hazardous fluid service. All fluid services are considered Normal unless the owner designates them as other categories.
The code define fluid service as a general term concerning the application of a piping system, considering the combination of fluid properties (the fluid nature such as flammability, toxicity, etc.), operating condition, and other factors (such as experience, service conditions, and location involved) that establish the basis for design of the piping system.
What is the duration of course
Total duration of the course is 1.5 hours. However, it is recommended to watch the lecture at least thrice, so that the fundamentals covered can be easily grabbed.
Dont Miss Discount Coupons :
Try Applying Month name’s 3 Letters followed by 4 digits of current year. Example: SEP2022, OCT2022, NOV2022 etc
FAQs: Frequently asked Questions
Category D
What is Category D fluid service? Category D fluid service refers to fluids that are considered non-toxic, non-hazardous, and operate at pressures and temperatures that are not severe.
What are typical examples of Category D fluids? Examples include water, air, and certain inert gases like nitrogen.
What are the design considerations for piping systems carrying Category D fluids? Piping systems for Category D fluids typically have less stringent design requirements, focusing more on basic mechanical integrity and less on corrosion or high-pressure containment.
Category M
What defines a Category M fluid? Category M fluids are highly toxic or hazardous materials that pose significant health risks if released.
What special precautions are taken for piping systems with Category M fluids? Systems must have stringent leak detection, high-quality materials, and robust containment measures to prevent leaks and ensure safety.
High Pressure
What constitutes a high-pressure fluid service? High-pressure fluid service involves fluids that operate at pressures significantly higher than standard atmospheric pressure, often above 600 psi (41 bar).
What materials are suitable for high-pressure fluid service? Materials used must have high tensile strength and be able to withstand the stress and potential for fatigue, such as certain high-grade stainless steels and alloys.
High Purity
What is high purity fluid service? High purity fluid service involves fluids that must remain free from contaminants, typically used in industries like pharmaceuticals, semiconductors, and food processing.
What are the key considerations for maintaining high purity in fluid systems? Systems must be designed to prevent contamination, using clean-in-place (CIP) procedures, high-quality materials like stainless steel, and maintaining a sterile environment.
Elevated Temperature
What are elevated temperature fluids? Elevated temperature fluids operate at temperatures significantly above ambient, often above 250°F (121°C).
What are the challenges associated with elevated temperature fluid service? High temperatures can cause thermal expansion, increased corrosion rates, and reduced material strength, necessitating the use of specialized materials and design considerations.
Normal Fluid Service
What is considered normal fluid service? Normal fluid service involves fluids that are not hazardous, not at extreme pressures or temperatures, and generally do not pose significant risks.
What are typical examples of normal fluid service applications? Examples include potable water distribution, HVAC systems, and standard industrial cooling and heating loops.
General Questions
How do fluid categories impact the selection of materials and components for piping systems? Different fluid categories dictate specific requirements for material compatibility, pressure ratings, temperature resistance, and safety measures to ensure reliable and safe operation.
What standards and regulations govern the design and operation of piping systems for various fluid categories? Standards such as ASME B31.3 for Process Piping, and regulations from bodies like OSHA and EPA, provide guidelines for designing and maintaining piping systems based on the fluid category.
How do you determine the appropriate fluid category for a specific application? The fluid category is determined by assessing the fluid’s properties, including toxicity, pressure, temperature, and purity requirements, as well as the potential risks associated with its use.
Why is it important to correctly categorize fluids in a piping system? Correct categorization ensures that the piping system is designed, constructed, and maintained to handle the specific properties and risks of the fluid, thereby ensuring safety, reliability, and compliance with regulations.
- How are fluid flow classified?
The different types of fluid flow are: Steady and Unsteady Flow. Uniform and Non-Uniform Flow. Laminar and Turbulent Flow.
- What fluid service is covered under B31 3?
ASME B31. 3 includes three fluid service Categories and three special design considerations based on pressure, Temperature and Purity (Category D, Category M, High Pressure, High Purity, Elevated Temperature and Normal Fluid service), which provides a means of discriminating among possible degrees of hazard.
- What is fluid system service?
Fluid System means a power transmission system that uses the force of flowing liquids and gases to transmit power. Fluid systems include hydraulic systems and pneumatic systems.
- What is normal fluid service?
Normal Fluid Service: a fluid service pertaining to most piping covered by this Code, i.e., not subject to the rules for Category D, Category M, Elevated Temperature, High Pressure, or High Purity Fluid Service.
- What is category K fluid?
Category “K” fluid service: Fluid service for which the owner specifies the temperature and pressure rating more than 2500# or it specifies to use of chapter ix for piping design.
Recommendations to proceed further
- It is highly recommended that watching all the lecture continuously in a single sitting should be avoided.
- Prepare a schedule of 1-2 hours on daily basis.
- Write down the learning in short or in the form of your own notes
- List out the queries or doubts and share at Forums of Engineers Land.
- Join Telegram group and register to keep yourself updated with the latest published content on EPCLand and Engineers Land.
Top Benefits of Piping Engineering course
- Lifetime access once enrolled
- Same lecture can be watched as many times as you want
- Flexibility of time and location
- Readymade notes which can be referred before interviews and working on live projects
- Become part of professional communities on Telegram & Engineers Land.
Prerequisites of this course
- Willingness to learn
- Complete clarity on where you see yourself after 3-5 years
- Awareness of Energy sector (Click here to read about Scope of Piping Engineers)
How to be an expert in piping engineering
Recommended courses (Published on EPCLand):
- Basics of Piping Engineering
- Piping Layout Engineering
- Piping Material Engineering
- Material Requisitions
- Piping Material Specifications
- Piping Stress Analysis
- Complete Course on Piping Engineering
Don’t miss 7 Free courses available for Enrolment
Along with the above mentioned recommend courses, there are 7 free course which available on EPCLand platform. These courses are just published so that the candidates can get use to the interface of EPCLand and get a feel how the lectures are available and organised on this platform. Following are the links to the free courses:
Recommended YouTube Playlists
- 2 minutes FundasSeries: Explains hundreds of Piping Engineering fundamentals in less than 2 minutes
- Piping questions and answers: It talks about various Questions & Answers to understand the engineering fundamentals
- Piping Engineering Interview preparation: This Section talks about the various questions which are generally aske during interviews
- Subscribe YouTube Channel: Highly recommended to subscribe the Oil and Gas Fundas YouTube channel for various updates
Summary
To conclude, this article talks about the course details on Fluid Categories explaining what is covered and how to approach after Enrollment. Moreover, it explains how to be part of various professional communities related to piping engineering where candidates can join various ongoing discussions and share the queries.
