Types, Applications, and Selection of Choke Valves for Oil and Gas Operations

Heavy-duty automated Choke Valves for Oil and Gas installed on an offshore production manifold

Imagine a wellhead kicking with 10,000 PSI of reservoir pressure, carrying a volatile mix of crude, corrosive CO2, and abrasive formation sand. Without the precision of high-spec Choke Valves for Oil and Gas, this raw energy would vaporize downstream piping in minutes. You aren’t just choosing a valve; you are designing the primary barrier that dictates the life cycle and safety of your production manifold.

This guide moves beyond basic definitions to provide an engineering-grade breakdown of trim selection, API 6A compliance, and the thermodynamic realities of the Joule-Thomson effect in modern 2026 oilfield operations.

Key Engineering Takeaways

  • Pressure Management: Understand how Choke Valves for Oil and Gas handle extreme pressure drops through staged trim designs.
  • Material Integrity: Why tungsten carbide and specialized alloys are non-negotiable for erosion resistance in high-velocity flow.
  • Operational Logic: The critical distinction between fixed beans for steady production and adjustable chokes for well cleanup.

What are Choke Valves for Oil and Gas?

Choke Valves for Oil and Gas are specialized flow control devices used primarily at wellheads and manifolds to regulate fluid production and manage downstream pressure. They function by creating a deliberate pressure drop, utilizing adjustable or fixed orifices to control flow rates and protect downstream equipment from high-pressure reservoir surges.

“In my 20 years across offshore assets, I’ve seen more manifold failures due to poor choke sizing than almost any other component. In 2026, as we push into deeper, high-pressure reservoirs, your understanding of trim exit velocity is what stands between steady production and a catastrophic washout.”

– Atul Singla, Founder

Table of Contents

Complete Course on
Piping Engineering

Check Now

Key Features

  • 125+ Hours Content
  • 500+ Recorded Lectures
  • 20+ Years Exp.
  • Lifetime Access

Coverage

  • Codes & Standards
  • Layouts & Design
  • Material Eng.
  • Stress Analysis

Engineering Check: Choke Valves for Oil and Gas

Test your technical knowledge on API 6A flow control.

Question 1 of 5

Which API specification primarily governs the design and material requirements for Choke Valves for Oil and Gas?

Critical Applications of Choke Valves for Oil and Gas

In the upstream sector, Choke Valves for Oil and Gas serve as the primary interface between high-pressure reservoirs and atmospheric or low-pressure processing facilities. Their application is dictated by the need to manage severe pressure drops while maintaining a stable flow rate. On wellheads, these valves are utilized during the initial flow-back period to filter out completion fluids and solids, protecting the downstream separators from damage. Furthermore, in gas lift operations, Choke Valves for Oil and Gas precisely meter the injection of high-pressure gas into the wellbore to optimize lift efficiency.

Beyond the wellhead, these valves are critical in production manifolds where multiple wells of varying pressures converge into a single flowline. By adjusting the choke settings, engineers can prevent high-pressure wells from “back-pressuring” lower-pressure wells, ensuring total field production is maximized. In 2026, the integration of smart actuators with Choke Valves for Oil and Gas allows for real-time reservoir management, adapting to fluctuating water cuts and gas-oil ratios (GOR) without manual intervention. For detailed design requirements, engineers frequently reference the API Standards for Production Equipment.

Major Types of Choke Valves for Oil and Gas

The classification of Choke Valves for Oil and Gas is fundamentally split between their adjustability and their internal trim geometry. Selecting the wrong type can lead to premature failure via erosion or cavitation, particularly in “dirty” service where sand or proppant is present.

Regulating Choke Valves for Oil and Gas

Regulating (or adjustable) Choke Valves for Oil and Gas allow for continuous variation of the orifice size while the valve is under pressure. This is achieved through several mechanical designs, most commonly the needle-and-seat or the cage-and-plug. The needle-and-seat design is ideal for fine control in low-flow gas applications but is highly susceptible to erosion in sandy fluid streams. Conversely, the cage-and-plug design utilizes a perforated cylinder (the cage) and a moving plug to reveal or hide flow ports. This design dissipates energy within the center of the cage, significantly reducing the impact of high-velocity fluid on the valve body itself.

Engineering cross-section diagram showing trim types of Choke Valves for Oil and Gas

Non-regulating Choke Valves for Oil and Gas

Non-regulating (or fixed) Choke Valves for Oil and Gas utilize a “choke bean”—a replaceable insert with a fixed-diameter hole. These are the workhorses of steady-state production. Because there are no moving internal parts in the flow stream, fixed chokes are inherently more robust and less prone to mechanical failure. In 2026 operations, fixed chokes are preferred for mature fields where reservoir pressure has stabilized, and the flow rate remains consistent over long durations. Replacing a bean requires the valve to be isolated and depressurized, making them less flexible than their adjustable counterparts but far more cost-effective for long-term service.

Design Standards of Choke Valves for Oil and Gas

The engineering integrity of Choke Valves for Oil and Gas is strictly governed by the API Spec 6A (Specification for Wellhead and Tree Equipment). This standard defines the Material Class (AA through HH) based on the concentration of CO2 and H2S, ensuring the valve body and internals can withstand sour service without sulfide stress cracking. Furthermore, the ASME B16.34 standard provides the framework for pressure-temperature ratings, while NACE MR0175 compliance is mandatory for any Choke Valves for Oil and Gas operating in environments where hydrogen-induced cracking is a risk.

Standard Symbols for Choke Valves for Oil and Gas

In Process and Instrumentation Diagrams (P&IDs), Choke Valves for Oil and Gas are represented by a standard valve butterfly symbol with an additional “Z” or a diagonal line to indicate a throttle or choke function. An adjustable choke typically includes an arrow pointing through the valve, signifying its variable orifice capability. Accurate symbology is vital for 2026 digital twin integration, where automated control systems must distinguish between a standard isolation gate valve and a modulating Choke Valve for Oil and Gas.

Essential Functions of Choke Valves for Oil and Gas

The primary function is the management of the Joule-Thomson Effect. As high-pressure gas expands across the orifice of Choke Valves for Oil and Gas, the temperature drops significantly. Engineers must calculate this drop to prevent hydrate formation, which can plug the line. Secondary functions include:

  • Back-pressure Maintenance: Preventing reservoir sand influx by maintaining a minimum bottom-hole pressure.
  • Flow Measurement: Using the pressure differential across a known bean size to estimate production rates.
  • Equipment Protection: Shielding downstream separators and heaters from upstream pressure surges.

Working Principle of Choke Valves for Oil and Gas

The working principle relies on the conversion of potential energy (pressure) into kinetic energy (velocity). As fluid passes through the restricted orifice of Choke Valves for Oil and Gas, its velocity increases to a maximum at the “vena contracta.” This high-velocity jet is where the majority of pressure energy is dissipated. In 2026, advanced “Multi-stage” trims are used to break this pressure drop into several smaller steps, preventing cavitation bubbles from collapsing against the valve wall and causing “pitting” damage.

Engineering Selection of Choke Valves for Oil and Gas

Feature Needle & Seat Cage & Plug
Primary Fluid Clean Gas / Light Oil Heavy Oil / Sandy Crudes
Erosion Resistance Low (Edge Wear) High (Center-stream Dissipation)
Control Precision Excellent (Fine Increments) Moderate to High
Common Rating API 5,000 – 10,000 PSI API 10,000 – 20,000 PSI

Strategic Advantages of Choke Valves for Oil and Gas

Utilizing high-performance Choke Valves for Oil and Gas ensures operational longevity. By selecting trims made from Tungsten Carbide or Stellite, operators reduce the Frequency of Intervention (FoI). Furthermore, modern adjustable chokes allow for “automated well-ramping,” which prevents the sudden pressure shocks to the reservoir that often lead to premature water breakthrough. For further study on valve reliability, consult the ISO 10423 Standards for Drilling and Production.

Choke Valve Sizing Estimator (Liquid Service)

Estimate the required Flow Coefficient (Cv) for Choke Valves for Oil and Gas based on your production parameters.

EPCLand YouTube Channel

2,500+ Videos • Daily Updates

Subscribe 💎 Join Exclusive Education
Videos Playlists Community Posts Youtube Courses

Case Study: Mitigating Severe Erosion in Choke Valves for Oil and Gas

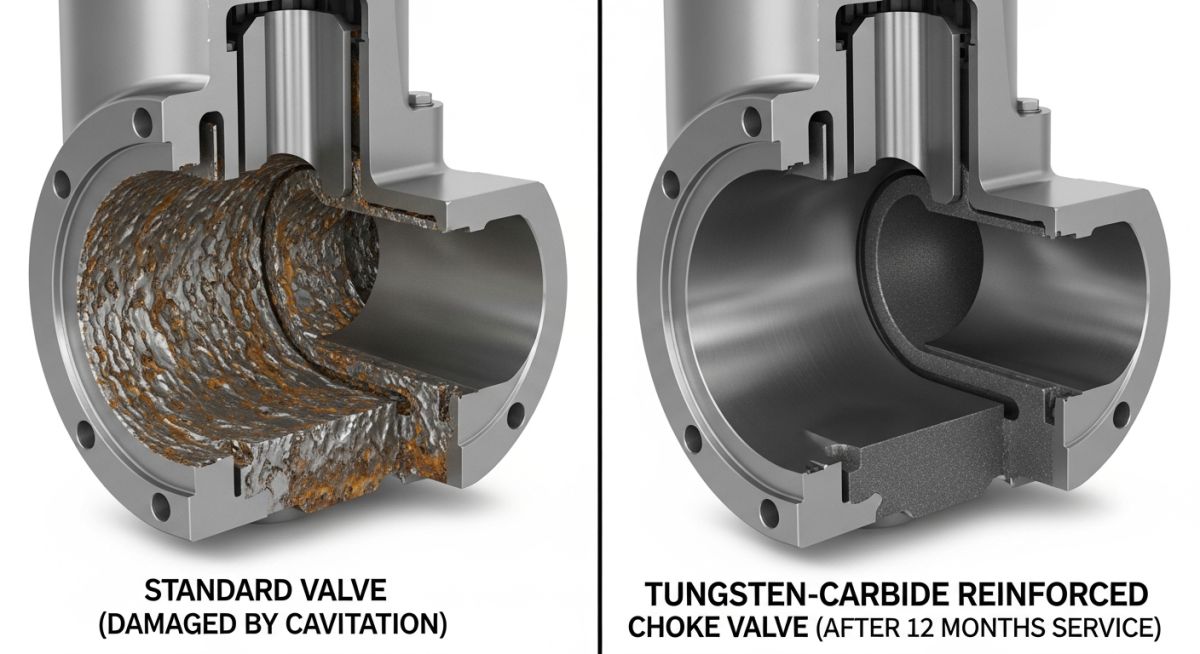

Erosion comparison in Choke Valves for Oil and Gas case study

The Challenge

An operator in the Permian Basin experienced weekly failures of needle-style Choke Valves for Oil and Gas due to high proppant (sand) returns following a hydraulic fracturing campaign.

The Solution

Replacement of standard needle trims with Tungsten Carbide Cage and Plug designs. The cage was engineered with sacrificial thickness to absorb particle impact energy.

The Result

Mean Time Between Failure (MTBF) increased from 7 days to 14 months. Production uptime improved by 12%, saving approximately $450,000 in annual maintenance and deferred oil.

Engineering Analysis

The failure was attributed to "exit velocity" exceeding 150 ft/s. By utilizing multi-stage cage trims in the Choke Valves for Oil and Gas, the pressure drop was segmented, keeping local velocities below the threshold where sand becomes highly erosive. This transition is a standard recommendation in 2026 for unconventional well completions.

Operators should verify trim materials against the API 6A surface hardness requirements to ensure longevity in such abrasive environments.

Don't miss this video related to Choke Valves

Promo II 20 of 21 II Material of Construction (MOC)II Valve Design II Certification Course II Piping

Summary: Master Piping Engineering with our complete 125+ hour Certification Course: ......

✅ 2500+ VIDEOS View Playlists →
JOIN EXCLUSIVE EDUCATION SUBSCRIBE

Expert Insights: Lessons from 20 years in the field

Velocity is the Silent Killer

In high-pressure Choke Valves for Oil and Gas, the trim doesn't usually fail from pressure—it fails from fluid velocity. Always calculate the trim exit velocity; if it exceeds 100 ft/s in sandy service, you are looking at a washout within months, regardless of material hardness.

Hydrate Management in 2026

The Joule-Thomson cooling effect can drop temperatures below 32°F even in desert environments. Ensure your Choke Valves for Oil and Gas are positioned upstream of the line heater or have dedicated methanol injection points to prevent catastrophic hydrate plugging.

Automation Lag

When transitioning to automated Choke Valves for Oil and Gas, ensure your actuator duty cycle matches the reservoir pulsing. A standard hydraulic stepping actuator is far superior to cheap electric alternatives for high-frequency adjustments.

References & Standards

Frequently Asked Questions: Choke Valves for Oil and Gas

What is the primary purpose of Choke Valves for Oil and Gas? ▼
The primary purpose is to regulate fluid flow and control downstream pressure from the high-pressure reservoir. Choke Valves for Oil and Gas create a deliberate pressure drop to ensure production rates match the capacity of the processing facilities and to protect equipment from surges.
How do I choose between a fixed and an adjustable choke? ▼
Selection depends on the well lifecycle. Use an adjustable Choke Valve for Oil and Gas during well cleanup and early production where flow parameters fluctuate. Transition to a fixed (bean) choke for mature, steady-state production to minimize maintenance costs and mechanical complexity.
What materials are best for erosive choke service? ▼
For high-velocity or sandy service, Choke Valves for Oil and Gas should utilize Tungsten Carbide or specialized ceramics for the trim components. The valve body should be forged steel, often cladded with Inconel 625 for superior corrosion and erosion protection in 2026 standards.
Can the Joule-Thomson effect cause Choke Valves for Oil and Gas to freeze? ▼
Yes. The rapid expansion of gas across the orifice leads to a significant temperature drop. If the temperature falls below the hydrate formation point, ice-like crystals can form, plugging the Choke Valve for Oil and Gas. This is why heat tracing or chemical injection is often required.
Why does my choke valve vibrate excessively at low openings? ▼
Vibration in Choke Valves for Oil and Gas at low openings is often caused by "cavitation" or high-frequency acoustic energy. When the valve is nearly closed, the velocity is highest, creating localized low-pressure zones where vapor bubbles form and collapse violently.
What is the significance of the 1/64th inch bean size? ▼
Industry standard for fixed Choke Valves for Oil and Gas measures the orifice diameter in 64ths of an inch (e.g., a size 32 bean has a 0.5-inch opening). This allows for highly precise, standardized increments when adjusting production flow rates across different well sites.
