What Will You Do if Carbon Steel Pipe is Installed in Place of LTCS: Carbon Steel vs LTCS Pipe Substitution Guide

Identifying the Root Cause: Why Carbon Steel vs LTCS Pipe Mix-ups Occur

In complex industrial projects during 2026, the logistical handling of piping materials remains a significant risk factor. The confusion between Carbon Steel vs LTCS Pipe typically stems from the physical similarity of the materials. Standard carbon steel, such as ASTM A106 Grade B or A53 Grade B, looks nearly identical to Low Temperature Carbon Steel (LTCS), such as ASTM A333 Grade 6, to the naked eye.

Mix-ups often occur during the procurement or warehousing phase where color-coding systems fail or stenciling becomes obscured. Because both materials are technically "carbon steels," personnel without specific metallurgical training may assume they are interchangeable. However, the lack of grain refinement and specific alloying elements in standard carbon steel makes it susceptible to sudden, catastrophic failure when exposed to temperatures below its designed threshold.

Immediate Engineering Actions: What to Do if Carbon Steel vs LTCS Pipe is Swapped

Once a discrepancy in Carbon Steel vs LTCS Pipe application is identified, the engineering team must follow a strict protocol governed by ASME B31.3 or local jurisdictional codes. The first step is a complete isolation of the affected system and a verification of all Material Test Reports (MTRs) for the batch in question.

• Verify Material Grade: Perform Positive Material Identification (PMI) to confirm the chemical composition, focusing on Silicon and Manganese levels which differ between A106 and A333.
• Review MDMT: Identify the actual Minimum Design Metal Temperature (MDMT) of the process fluid compared to the material's rated temperature.
• Impact Test Review: Check if the installed standard carbon steel underwent any supplemental Charpy V-Notch testing at the mill.

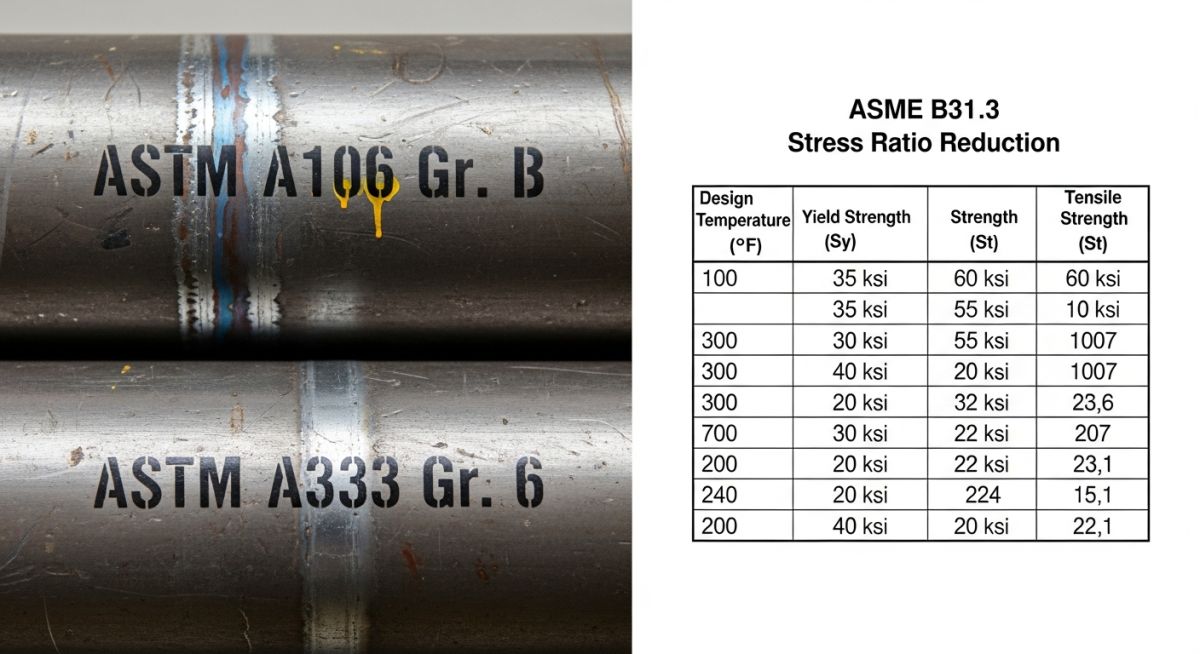

The Role of Stress Ratio in Evaluating Carbon Steel vs LTCS Pipe Safety

When evaluating a Carbon Steel vs LTCS Pipe substitution, the Stress Ratio (SR) is the most powerful tool in an engineer's arsenal. Under ASME B31.3 Paragraph 323.2.2, if a pipe is operating significantly below its design pressure, it is under-stressed. This lack of stress allows the material to behave more predictably even at lower temperatures.

Calculating the MDMT Reduction Using ASME B31.3 Standards

The Stress Ratio is defined as the ratio of the design pressure at the MDMT to the maximum allowable pressure at that temperature. In 2026, automated FEA and piping stress software simplify this calculation, but the fundamental principle remains: if the stress ratio is less than 1.0, a temperature reduction (offset) can be applied to the material's curve temperature.

Technical Comparison: Material Property Differences between Carbon Steel vs LTCS Pipe

Understanding the metallurgical variance in Carbon Steel vs LTCS Pipe is essential for justifying a substitution. While both materials are iron-based, the manufacturing process for Low Temperature Carbon Steel (LTCS) includes specific steps to ensure ductility at sub-zero temperatures. In 2026, the use of ASTM A333 Grade 6 remains the industry standard for these demanding conditions.

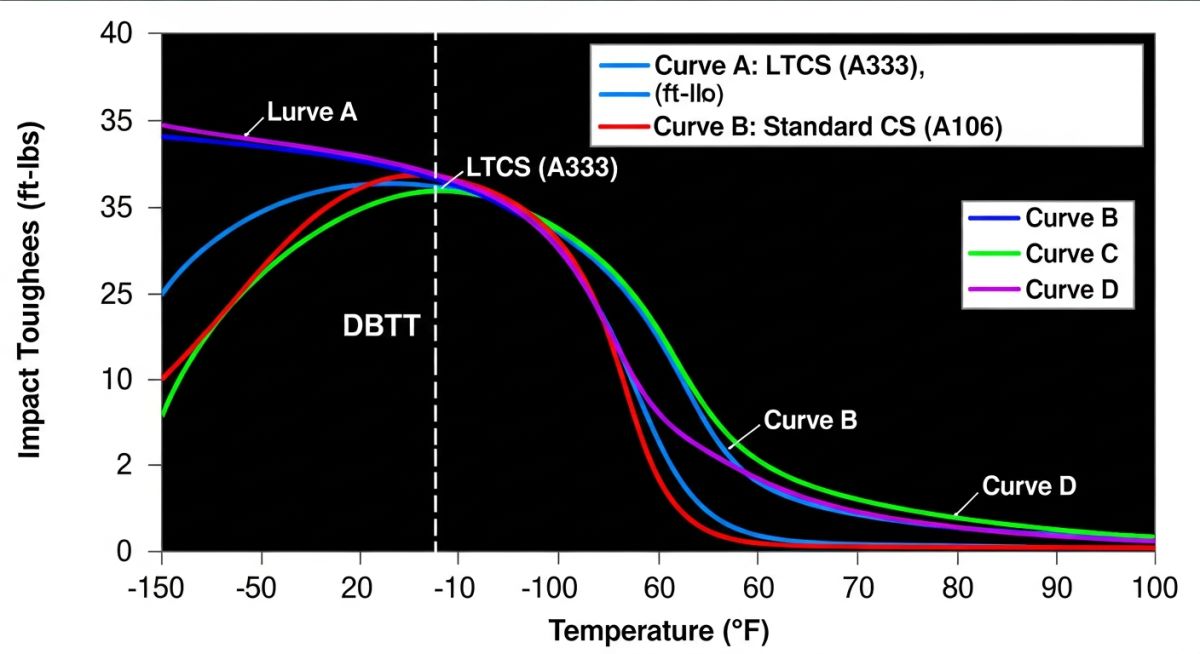

Impact Testing and Ductile-to-Brittle Transition Temperature (DBTT)

The primary differentiator for Carbon Steel vs LTCS Pipe is the Charpy V-Notch impact requirement. Standard carbon steel undergoes a transition from ductile to brittle behavior as temperatures drop. LTCS is designed to have a much lower Ductile-to-Brittle Transition Temperature (DBTT), ensuring the material can absorb energy and deform rather than shattering under impact at cryogenic levels.

Chemical Composition and Grain Refinement in Low Temperature Carbon Steel

To achieve low-temperature toughness, LTCS typically utilizes a "fine-grain" practice. This is often achieved through the addition of Aluminum or Silicon during the killing process in the steel mill. Standard Carbon Steel vs LTCS Pipe comparisons show that LTCS maintains a more controlled Manganese-to-Carbon ratio to optimize weldability and toughness.

Resolution Strategies: Risk-Based Inspection for Carbon Steel vs LTCS Pipe Errors

If the evaluation of Carbon Steel vs LTCS Pipe determines that the stress ratio is insufficient to lower the MDMT to safe levels, engineers in 2026 typically employ one of three strategies:

1. In-Situ Impact Testing: If a sample can be safely extracted from a sacrificial component of the same heat, it can be tested to verify if the standard carbon steel naturally meets LTCS toughness requirements.
2. Operating Envelope Modification: Restricting the minimum temperature or maximum pressure of the process to ensure the material remains within the safe ASME curve.
3. Physical Replacement: If the risk of brittle fracture exceeds the facility's Risk-Based Inspection (RBI) threshold, the standard carbon steel must be replaced with certified ASTM A333 Grade 6 pipe.
