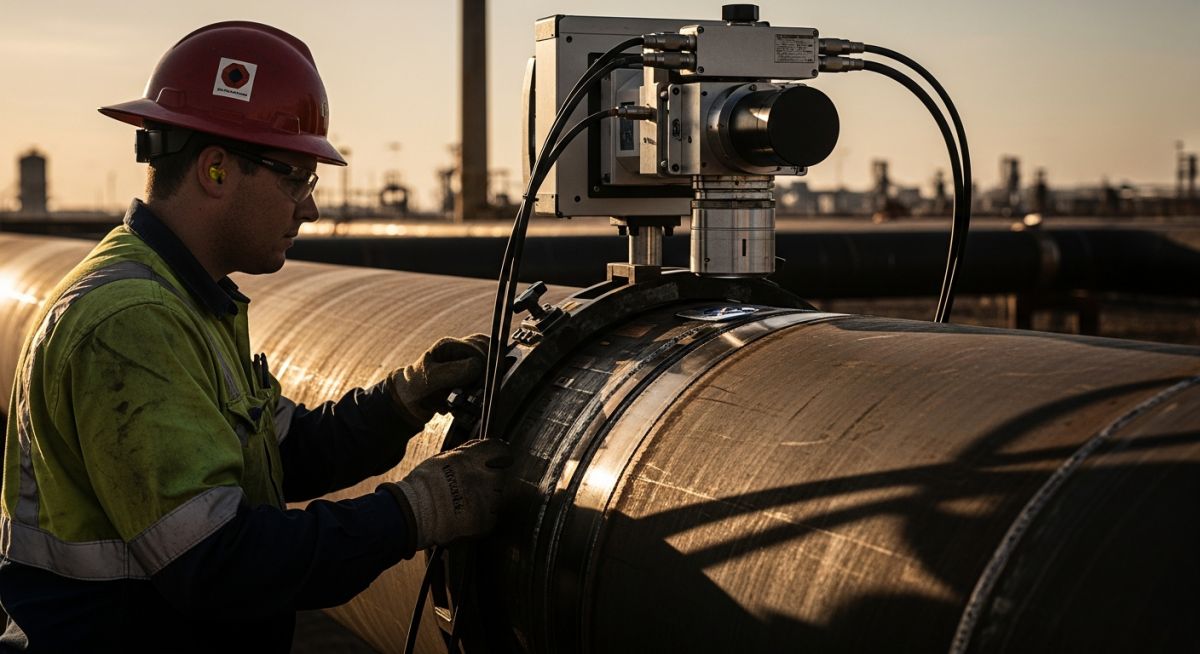

weld inspection Archives

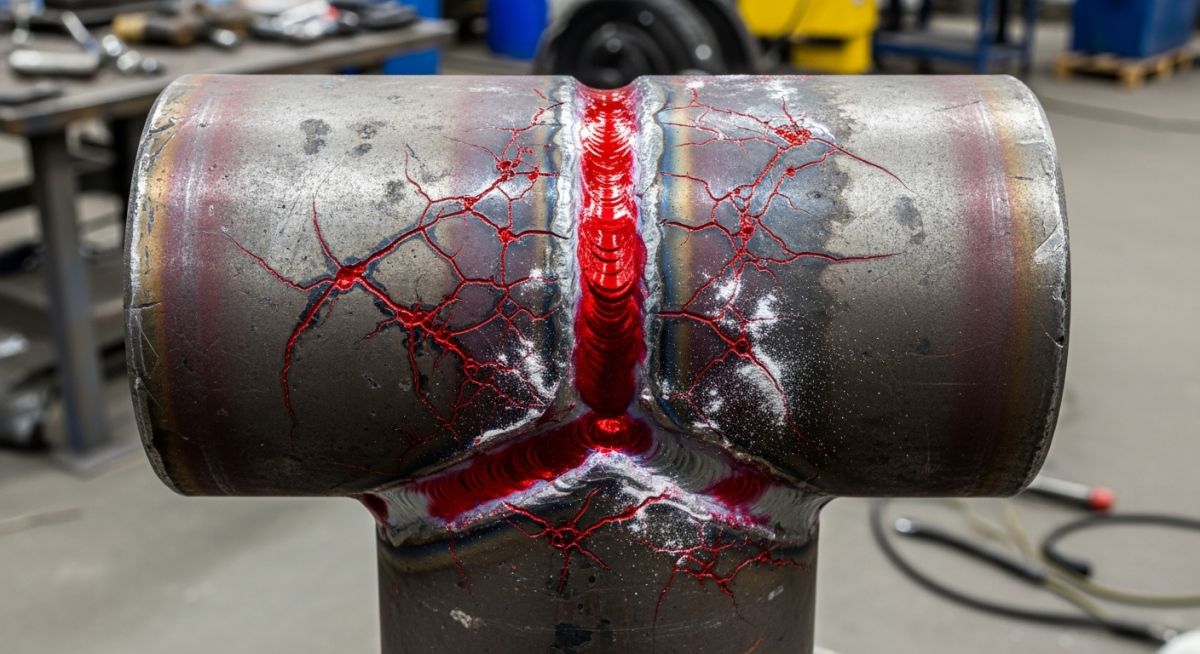

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the dye penetration test concept by showing a real-world application on an industrial weld. Description: A high-resolution, close-up photograph of a red liquid dye penetrant applied to a welded steel joint, vividly highlighting surface-breaking defects and cracks in an industrial workshop setting. SEO Alt Text: Red dye penetrant applied to a steel weld joint during a non-destructive dye penetration test. Image Slug: dye-penetration-test-weld-inspection Filename URL: https://epcland.com/wp-content/uploads/2026/06/dye-penetration-test-weld-inspection.jpg Technical Infographic: Purpose: To illustrate the step-by-step scientific principle and procedure of the liquid penetrant testing process. Description: A clean, step-by-step vector infographic diagram showing the five main stages of the dye penetration test: surface preparation, penetrant application, excess penetrant removal, developer application, and final inspection. SEO Alt Text: Infographic diagram illustrating the steps of the dye penetration testing process. Image Slug: dye-penetration-test-steps-diagram Filename URL: https://epcland.com/wp-content/uploads/2026/06/dye-penetration-test-steps-diagram.jpg Meta Data: Focus Keyword: Dye Penetration Test Title: Dye Penetration Test: Principles, Procedure, Standards, and Key Advantages Slug: dye-penetration-test Meta Description: Learn the principles, step-by-step procedure, standards, and pros/cons of the dye penetration test for non-destructive material inspection. Tags: dye penetration test, liquid penetrant testing, non-destructive testing, ndt, weld inspection, material testing, engineering standards Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 Dye Penetration Test Guide for Piping and Weld Inspection Dye Penetration Test: A non-destructive testing method used to detect surface-breaking defects in non-porous materials by applying a highly visible or fluorescent liquid dye that penetrates surface discontinuities through capillary action. This inspection technique is governed by international standards such as ASME Section V Article 6 and ASTM E165 to ensure structural integrity in critical piping and pressure vessel welds. In my 20 plus years of managing piping integrity on high-pressure steam lines and chemical process plants, I have seen minor surface cracks escalate into catastrophic field failures. Visual inspection alone is never enough. When dealing with non-magnetic alloys like austenitic stainless steel, duplex steel, or nickel alloys, magnetic particle testing is out of the question. That is where the dye penetration test becomes my primary line of defense. It is a simple, highly effective, and field-proven method to expose micro-cracks, porosity, and cold laps before a system is pressurized. Throughout my career, I have relied on this method to verify weld root passes and completed weldments. While the process seems straightforward, its success depends entirely on the technician's attention to detail. A single skipped step or a rushed dwell time can easily mask a critical defect, leading to premature failure during service. Key Takeaways for Field Engineers: The test only detects surface-breaking defects; subsurface discontinuities require volumetric methods like radiography or ultrasonic testing. Surface preparation is the most critical phase; any grease, rust, or paint will block the penetrant from entering the crack. Dwell times must be strictly controlled based on material type and ambient temperature. Fluorescent penetrants offer much higher sensitivity compared to visible red dyes under ambient light. Post-test cleaning is mandatory to prevent chemical corrosion, especially on stainless steel piping systems. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 According to ASME Boiler and Pressure Vessel Code (BPVC) Section V, Article 6, what is the standard allowable temperature range for both the penetrant materials and the part surface during a standard (non-qualified) liquid penetrant examination? 32°F to 100°F (0°C to 38°C) 40°F to 125°F (5°C to 52°C) 50°F to 150°F (10°C to 66°C) 60°F to 135°F (16°C to 57°C) Next Question → Question 2 of 3 During a liquid penetrant inspection, the developer plays a critical role in drawing the trapped penetrant back to the surface via capillary action (blotting). Why are non-aqueous wet developers (solvent-suspended) generally considered to offer the highest sensitivity among all developer types? They chemically react with the penetrant to increase its fluorescence or color intensity. The solvent carrier dissolves surface contaminants that were missed during the pre-cleaning stage. The solvent evaporates rapidly, leaving a highly uniform, thin particle layer that maximizes capillary drive and prevents excessive lateral bleed-out. They have a higher viscosity which prevents the penetrant from spreading too quickly on the test surface. Next Question → Question 3 of 3 When performing a liquid penetrant examination on austenitic stainless steels or nickel-base alloys under ASME Section V, Article 6, what specific chemical limitation is imposed on the penetrant materials to prevent subsequent stress corrosion cracking or intergranular degradation? Total halogens must not exceed 5% by weight, and total sulfur must not exceed 5% by weight. Total halogen content (chlorine plus fluorine) must not exceed 1% by weight for stainless steels/titanium, and total sulfur content must not exceed 1% by weight for nickel-base alloys. No chemical limitations exist; post-cleaning with demineralized water is the only requirement. Total halogens must not exceed 0.01% by weight, and total sulfur must not exceed 0.05% by weight. 🎉 Quiz Completed! You have passed the engineering review criteria. Core Technical Principles and Mechanics What is a Dye Penetration Test? Liquid Penetrant Inspection: A highly sensitive surface inspection methodology designed to reveal surface-breaking discontinuities in metallic and non-metallic components. This non-destructive evaluation relies on capillary action to draw a liquid dye into surface openings, which are subsequently made visible using a developer agent under appropriate lighting conditions. The fundamental physics of this test rely on capillary action, which is the ability of a liquid to flow into narrow spaces without the assistance of, or even in opposition to, external forces like gravity. The relationship governing this fluid movement is described by Washburn's equation, which determines the penetration depth of a liquid into a capillary pore: Penetration depth squared (l^2) = (gamma * r * cos(theta) * t) / (2 * eta) Where: • gamma represents the surface tension of the penetrant fluid. • r represents the capillary radius or crack width. • theta represents the contact angle between the fluid and the crack wall. • t represents the dwell time allowed for penetration. • eta represents the dynamic viscosity of the penetrant fluid. To maximize the sensitivity of the test, the penetrant must have a very low contact angle (close to zero degrees), meaning it has excellent wetting ability. It must also possess high surface tension and low viscosity to rapidly migrate into micro-cracks. In my experience, selecting a penetrant with the correct chemical balance is critical when inspecting high-alloy steels, as halogenated compounds can cause stress corrosion cracking over time. FIELD WARNING: Never use mechanical wire brushing or grit blasting as the sole method of surface preparation on soft metals like aluminum, copper, or austenitic stainless steel. These aggressive mechanical methods can smear the metal surface, effectively cold-working and closing up the narrow entries of surface cracks, making it impossible for the penetrant to enter. Always follow mechanical cleaning with chemical etching or solvent degreasing. How Does the Dye Penetration Test Work? Capillary Action Testing: The physical process where low-viscosity liquid enters narrow surface-breaking cracks against gravity due to adhesive forces between the liquid and solid surface. This mechanism requires precise dwell times and meticulous surface preparation to ensure the penetrant fully occupies the defect volume before developer application. The entire testing sequence is a delicate balance of chemistry and timing. I have broken down the standard field procedure into seven distinct phases that must be executed sequentially without shortcutting: Initial Surface Preparation: The test surface must be completely free of oil, grease, rust, scale, paint, and weld spatter. I always insist on using high-quality solvent cleaners compliant with ASTM E165. Penetrant Application: The liquid penetrant is applied by spraying, brushing, or dipping. The entire area of interest must remain completely wet during the entire dwell period. Penetrant Dwell Time: The penetrant must be left on the surface for a specified duration to allow capillary action to take place. This typically ranges from 5 to 30 minutes depending on the material and expected defect type. Excess Penetrant Removal: This is the most sensitive step. The excess surface penetrant must be removed without washing the penetrant out of the cracks. For solvent-removable systems, use a clean, lint-free cloth moistened with solvent—never spray solvent directly onto the test surface. Developer Application: A thin, uniform layer of developer is applied. The developer acts as a blotter, drawing the trapped penetrant back out of the cracks to the surface, where it spreads and becomes visible. Developing and Inspection: The developer must be allowed to work for a minimum development time (usually half of the penetrant dwell time). Inspection is then conducted under adequate lighting (minimum 1000 lux for visible dye, or UV-A light of at least 1000 microwatts per square centimeter for fluorescent systems). Post-Test Cleaning: Once the inspection is complete and documented, the developer and penetrant residues must be thoroughly cleaned off to prevent future corrosion or interference with subsequent welding operations. Standard Dwell Times and Material Classifications What Standards Govern Liquid Penetrant Testing? NDT Inspection Standards: The regulatory frameworks established by international bodies to standardize penetrant materials, testing procedures, and acceptance criteria for industrial components. Compliance with these codes ensures consistency, safety, and reliability across global manufacturing and construction projects. In my projects, I strictly enforce the dwell times specified by ASME Section V Article 6. The table below outlines the minimum dwell times required for various materials and product forms at temperatures between 50 degrees Fahrenheit and 125 degrees Fahrenheit. Material Type Product Form Type of Discontinuity Penetrant Dwell (Min) Developer Dwell (Min) Aluminum, Copper, Brass Welds, Castings Cracks, Porosity, Laps 5 minutes 10 minutes Stainless Steel, Nickel Alloys Welds, Piping Cracks, Lack of Fusion 10 minutes 10 minutes Carbide-Tipped Tools Brazed Joints Lack of Bond, Cracks 5 minutes 10 minutes Plastic Materials Molded Parts Cracks, Porosity 5 minutes 10 minutes Glass, Ceramics All Forms Cracks, Thermal Shock 5 minutes 10 minutes Technical Mapping & Specifications Matrix To select the correct testing system for your specific application, you must understand the classifications defined by ASTM E165 and AMS 2644. The matrix below maps these systems to their typical industrial applications. System Parameter Classification Type Technical Description Typical Application Standard Reference Penetrant Type Type I Fluorescent dye requiring UV-A light source Aerospace, high-pressure gas piping AMS 2644 / ASTM E1417 Penetrant Type Type II Visible red dye visible under white light General structural welds, field piping ASME Sec V Art 6 / ASTM E165 Removal Method Method A Water-washable penetrant containing emulsifiers Rough castings, high-volume parts ASTM E165 Removal Method Method C Solvent-removable requiring manual wipe Field weld inspection, localized repairs ASME Sec V Art 6 Developer Form Form d Non-aqueous wet developer (solvent-based spray) High-sensitivity field inspections AMS 2644 Field Verification and Quality Control Checklist How to Perform Dye Penetration Testing? Field Inspection Protocol: The systematic execution of surface preparation, chemical application, and visual assessment under controlled environmental conditions. Adhering to a structured field checklist ensures that no critical steps are bypassed, minimizing false positives and missed defects. Before signing off on any weld inspection report, I run through this checklist on-site to verify that the testing was performed in strict compliance with ASME Section V. Site Verification Checklist: Temperature Verification: Confirm that the surface and chemical temperatures are between 40 degrees Fahrenheit and 125 degrees Fahrenheit. If outside this range, special low/high-temperature penetrants must be qualified. Surface Dryness: Ensure the surface is completely dry after solvent cleaning. I recommend waiting at least 5 minutes for the solvent to fully evaporate before applying the penetrant. Dwell Time Compliance: Verify that the penetrant dwell time matches the approved procedure (minimum 10 minutes for stainless steel welds). Removal Technique: Ensure the technician does not spray solvent directly onto the weld. It must be wiped with a dry cloth first, followed by a cloth dampened with solvent. Developer Application: Check that the developer is applied in a thin, uniform, translucent layer. A thick, heavy white coat will mask small indications. Light Intensity: Measure the ambient light intensity at the test surface. It must be a minimum of 100 foot-candles (1000 lux) for visible dye inspections. Post-Cleaning: Confirm that the inspected area is thoroughly cleaned of all developer and penetrant residues to prevent localized pitting corrosion. Field Case Study and Engineering Analysis Field Case Study: Real-World Application The Problem: During the pre-commissioning phase of a chemical processing plant, a 12-inch Schedule 40S Type 316L stainless steel piping system carrying highly corrosive nitric acid began weeping during the hydrostatic test at 450 psi. Visual inspection of the circumferential butt welds showed no obvious defects. The welding logs indicated that all parameters were within the welding procedure specification (WPS), but the weeping persisted at three distinct weld joints. The Outcome: I was called to the site to investigate. I ordered an immediate dye penetration test using a Type II, Method C solvent-removable visible red dye system. After meticulous solvent cleaning and a 15-minute penetrant dwell time, we applied a non-aqueous wet developer. Within 3 minutes, distinct, continuous red linear indications appeared along the heat-affected zone (HAZ) of the welds. The indications revealed intergranular stress corrosion cracking (IGSCC) caused by sensitization during welding. The welder had exceeded the maximum interpass temperature, allowing chromium carbides to precipitate at the grain boundaries. Based on these findings, we gouged out the affected weld zones, re-welded the joints using strict interpass temperature controls (below 350 degrees Fahrenheit), and verified the root and final passes using the same dye penetration test protocol. The system successfully passed the subsequent hydrostatic test without any leakage. This case proved to the project team that visual inspection is completely inadequate for detecting micro-fissures in high-alloy piping. What are the Advantages and Disadvantages? Method Evaluation: The comparative analysis of liquid penetrant testing against other non-destructive testing methods to determine its suitability based on material type, cost, speed, and defect orientation. Understanding these trade-offs is key to selecting the most efficient inspection program. Like any non-destructive testing method, the dye penetration test has distinct strengths and limitations that you must weigh during the engineering planning phase. Key Advantages: Extremely high sensitivity to small, tight surface-breaking cracks. Applicable to a wide range of materials, including magnetic and non-magnetic metals, plastics, and ceramics. Highly portable and cost-effective; does not require heavy electrical equipment or radiation shielding. Provides immediate, easy-to-interpret visual indications directly on the part surface. Can inspect complex shapes and large surface areas rapidly in a single operation. Key Limitations: Strictly limited to surface-breaking defects; cannot detect subsurface cracks or internal voids. Cannot be used on porous materials like concrete, wood, or highly porous sintered metals. Requires direct physical access to the surface being inspected. Extremely sensitive to surface cleanliness; contaminants can easily mask defects. Chemical residues can cause corrosion if post-cleaning is not performed thoroughly. Frequently Asked Engineering Questions What is the difference between Type I and Type II penetrants? Type I penetrants use fluorescent dyes that glow brightly under ultraviolet (UV-A) light, offering extremely high sensitivity for detecting micro-defects in critical aerospace and high-pressure piping components. Type II penetrants use highly visible red dyes that are inspected under normal white light, making them highly portable and ideal for general field weld inspections where UV light is impractical. Why is surface preparation so critical in dye penetration testing? Because the test relies entirely on capillary action, the entry point of the crack must be open to the surface. Any contaminants like oil, grease, rust, scale, or paint will physically block the penetrant from entering the defect, resulting in a false-negative test. Proper cleaning with approved solvents is mandatory under ASTM E165. Can dye penetration testing detect subsurface defects? No, this method is strictly limited to surface-breaking defects. If a crack or void is completely enclosed within the weld metal or base material, the penetrant cannot make contact with it, and no indication will appear. For subsurface or volumetric defects, you must use radiography (RT) or ultrasonic testing (UT). What is the minimum dwell time for a dye penetration test? The minimum dwell time depends on the material and the governing code. According to ASME Section V Article 6, the standard dwell time for steel and stainless steel welds is 10 minutes. For very tight cracks or cold-worked materials, this time may be extended up to 30 minutes to allow full capillary migration. How does temperature affect the dye penetration test? Temperature significantly affects the viscosity and evaporation rate of the penetrant. Standard testing must be performed within a temperature range of 40 degrees Fahrenheit to 125 degrees Fahrenheit (5 degrees Celsius to 52 degrees Celsius). Low temperatures increase viscosity, slowing down capillary action, while high temperatures can cause the penetrant to dry out prematurely on the surface. What are the main limitations of liquid penetrant testing? The main limitations include its inability to inspect porous materials (which absorb the penetrant completely, causing overall background bleed-out), the requirement for direct physical access to the surface, the necessity of meticulous pre- and post-cleaning, and the inability to detect subsurface defects. ===
