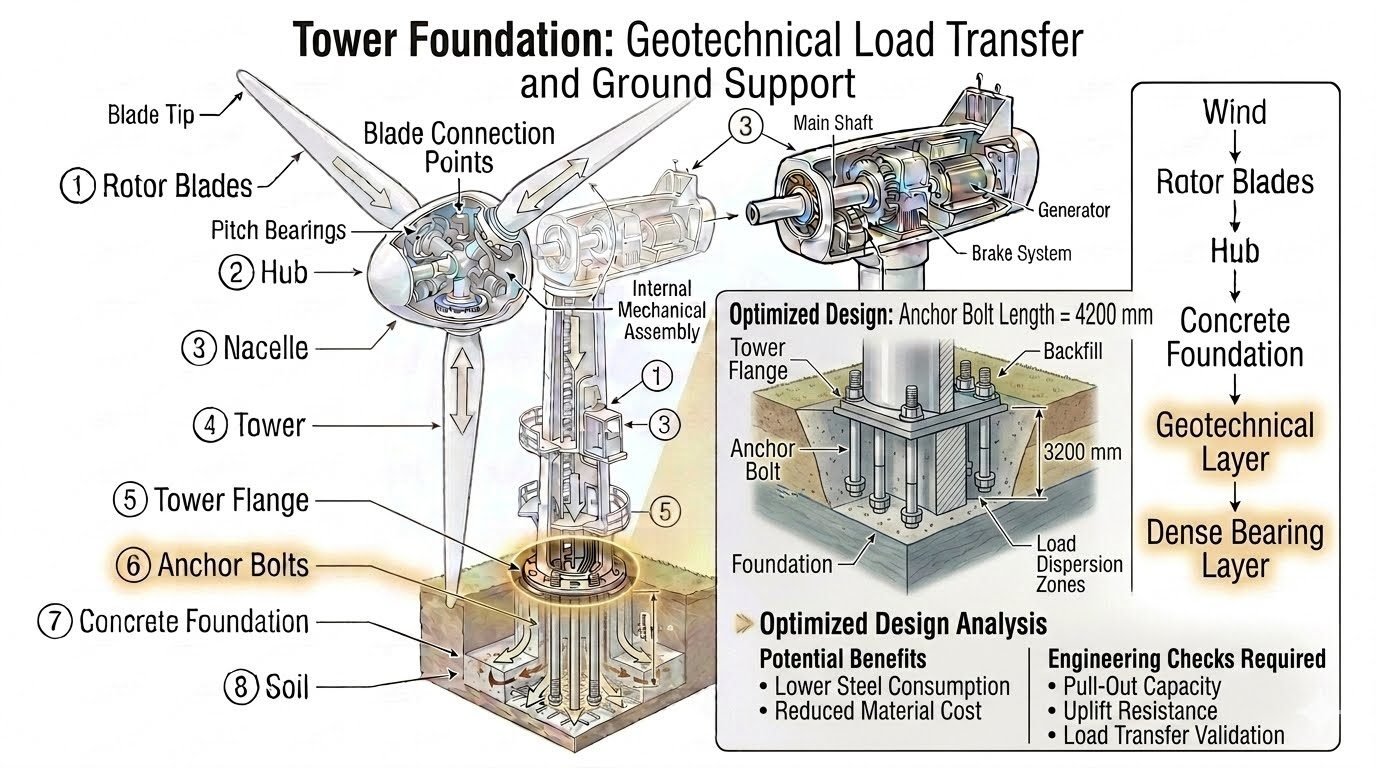

Author: Atul Singla | Piping Engineering Expert | Updated: September 2026 Optimized Anchor Bolt Length for Structural Foundations Anchor Bolt Length Optimization: A systematic structural evaluation of reduced embedment lengths to 4200 mm, ensuring structural integrity, material economy, and strict compliance with ASCE and ACI design frameworks. In my two decades of managing heavy industrial piping and foundation design projects, I have frequently encountered the temptation to trim material expenses by shortening embedded structural components. When an optimized foundation design reduces anchor bolt length from an original value to 4200 mm, the engineering team must immediately look past initial capital expenditure savings. Changing the depth to which the bolt is embedded within the backfill and foundation directly alters how mechanical forces interact with the surrounding soil and concrete matrices. Relative to the load dispersion zones beneath heavy machinery and tall towers, any arbitrary reduction in embedment can shift critical stress cones into unreinforced or vulnerable foundation strata. This optimized design analysis identifies potential benefits of lower steel consumption and reduced material cost, but requires four specific engineering checks before implementation: pull-out capacity, uplift resistance, and load transfer validation. Key Engineering Takeaways Embedment reduction to 4200 mm requires verifying concrete breakout cones. Steel consumption savings must be weighed against severe cyclic fatigue risks. Rigorous validation protects against catastrophic uplift and pull-out failures. Interactive Engineering QuizEPCLAND Portal Question 1 of 3 What primary failure mode must be verified when shortening anchor bolt embedment depth? Concrete breakout capacity Weld shear failure Bolt yielding limits Bearing pressure limits Next Question → Question 2 of 3 Which structural check confirms that optimized foundations counteract overturning wind forces effectively? Thermal stress analysis Uplift resistance evaluation Vibration modal testing Fatigue cycle counting Next Question → Question 3 of 3 Why must load transfer mechanisms be re-evaluated after shortening structural anchor bolts? To reduce total concrete volume To change reinforcement bar spacing To ensure forces distribute correctly into soil To simplify site fabrication drawings 🎉 Quiz Completed! Structural Mechanics of Optimized Anchor Bolt Length Embedment Depth Mechanics: The physical quantification of stress distribution, concrete capacity design, and bond-slip behavior for shortened anchor assemblies under dynamic operational loads. When evaluating an optimized foundation design reduces anchor bolt length from an original value to 4200 mm, you must first understand the fundamental mechanics governing load transfer into concrete pedestals. Anchor bolts do not merely hold equipment down; they form a complex load-sharing composite with the surrounding cementitious matrix and reinforcement cage. In standard foundation configurations, longer bolts distribute tensile and shear stresses over a broader volume of concrete. Shortening the assembly concentrates these reaction vectors into a tighter geometric envelope, increasing local bearing pressures directly beneath the anchor head or anchor plate. According to ACI 318 Chapter 17 provisions for anchoring to concrete, the nominal concrete breakout strength in tension is a direct function of the embedment depth raised to the power of 1.5. Reducing the embedment length to 4200 mm causes a non-linear drop in tensile breakout capacity, which must be offset by increased steel diameter, altered layout geometry, or upgraded concrete compressive strength. Mathematical Modeling of Concrete Breakout Capacity The basic equation for nominal concrete breakout strength of a single anchor in tension is expressed as: N_cb = (K_c * sqrt(f'c) * h_ef^1.5) * (A_Nc / A_Nco) * psi_ed,N * psi_c,N * psi_cp,N In this formulation, h_ef represents the effective embedment depth. When h_ef is reduced to 4200 mm, the term h_ef^1.5 decreases significantly. If the unreduced design relied on a deeper embedment to clear lower reinforcement layers, the new 4200 mm depth might place the critical failure cone entirely within unreinforced zones or intersecting secondary rebar mats. This geometric shift requires the piping and structural engineer to verify that the projected breakout failure surface does not intersect free edges or neighboring anchor stress zones. Overlapping failure cones drastically reduce collective group efficiency. Interaction of Backfill Stiffness and Foundation Restraint Anchor bolts embedded across the interface of structural concrete foundations and compacted backfill experience complex lateral restraint conditions. A length of 4200 mm often positions the critical embedment zone precisely at the boundary where the rigid monolithic pedestal transitions to flexible soil subgrades or compacted granular backfill. Differential settlement between the massive concrete block and the surrounding backfill induces secondary bending moments along the shaft of the anchor bolt. If the bolt is shortened, its unsupported or partially supported length changes relative to the fixity point, altering its natural frequency and vulnerability to resonant vibrations from attached rotating equipment such as centrifugal compressors or large pumps. Critical Safety Warning: Fatigue and Cyclic Shear Shortened anchor bolts subjected to reciprocating machinery loads exhibit higher localized strain amplitudes at the concrete interface. Neglecting high-cycle fatigue checks under shortened embedment conditions can lead to sudden, brittle fatigue failure of the steel rod even when static tensile stresses remain well below allowable yield limits. Load Transfer Validation Protocols To ensure structural safety, the transition of forces from the baseplate, through the leveling nuts or grout pad, and into the 4200 mm anchor bolt must satisfy rigorous equilibrium checks. The load transfer validation phase requires checking three distinct mechanical pathways: Direct Bearing Transfer: Verifying that baseplate anchor chairs and leveling plates prevent localized crushing of the non-shrink grout layer. Bond Stress Distribution: Calculating local bond-slip relationships along deformed bars or embedded headed studs to ensure slip does not exceed serviceability limits. Side-Face Blowout Resistance: Confirming that edge distances are adequate to prevent concrete side-face blowout when high tensile preloads are applied to the shortened shads. By systematically working through these verification steps, engineering teams can safely capture the economic benefits of reduced steel consumption without compromising the long-term structural reliability of heavy industrial foundations. Advantages & Disadvantages Optimized Design Trade-offs: A balanced engineering appraisal of the cost-saving benefits versus the structural risks associated with shortened anchor bolt embedment configurations. Advantages of Optimization Substantial reduction in raw material procurement costs for high-strength alloy steel rods. Decreased foundation excavation depth and reduced volume of structural blinding concrete. Lighter cage assemblies that are easier to pre-fabricate, lift, and position accurately on site. Shorter installation times during critical path foundation pouring phases. Reduced formwork pressures during concrete placement around shallower bolt cages. Disadvantages & Risks Lower overall pull-out capacity requiring rigorous non-linear finite element verification. Increased sensitivity to installation tolerances and misalignment during casting. Higher localized concrete bearing stresses requiring larger baseplates or stiffeners. Reduced margin of safety against unexpected seismic or extreme wind overturning moments. Potential necessity to upgrade concrete mix design strength (f'c) to compensate for reduced embedment. Real-World Applications Industrial Deployment Scenarios: Practical engineering implementations where optimized anchor bolt configurations are deployed across heavy processing facilities. Refinery Process Column Foundations Tall distillation columns and fractionator towers experience severe wind-induced overturning moments and seismic shear forces. Optimizing anchor bolt embedment to 4200 mm in these mega-foundations requires careful management of annular anchor bolt chairs and continuous post-tensioning monitoring. Engineers utilize precise finite element analysis to ensure the shortened bolts maintain adequate fatigue life despite cyclic vortex-shedding forces acting on the tall shell. Offshore Topside Module Skids Weight control is a paramount economic and safety driver in offshore platform design, where every ton of top-side dead load directly impacts floating hull buoyancy and mooring requirements. Shortening structural tie-down anchor bolts to optimized depths trims critical dead weight without sacrificing typhoon-load resistance. Specialized corrosion-resistant coatings and rigorous pull-out verification protocols are mandatory in these marine environments to guarantee long-term joint integrity. Heavy Compressor Skids in Gas Plants Reciprocating and centrifugal compressors generate intense dynamic vibrations that transmit high-frequency cyclic loads directly into the concrete block foundation. Optimizing anchor bolt sizing and embedment to 4200 mm helps balance elasticity requirements, preventing excessive vibration transmission while minimizing expensive alloy steel usage. Dynamic compliance checks per ASME standards ensure that the shortened bolt assembly does not tune into operating frequency harmonics. Power Generation Turbine Pedestals Steam and gas turbine islands require massive, highly rigid concrete mass foundations to maintain shaft alignment under extreme thermal and mechanical operating loads. Implementing optimized anchor lengths around high-temperature turbine casings demands meticulous thermal growth calculations. Differential thermal expansion between the steel anchor bolts and the surrounding concrete matrix must be accommodated to prevent thermal binding or loss of bolt preload. Anchor Bolt Length Optimization Parameters Optimizing structural anchor bolt length requires a careful balance between material cost reduction and structural safety margins. When reducing embedment lengths to achieve savings in heavy industrial foundations, engineers must evaluate the trade-offs across various performance metrics governed by ASCE standards and geotechnical guidelines. The following engineering data table outlines the critical parameters, baseline dimensions, optimized values, and governing standards associated with shortening anchor bolts in reinforced concrete pedestals. Each parameter reflects structural interactions under combined shear and tensile loading regimes. Parameter Description Baseline Design Optimized Value Governing Standard Safety Factor / Limit Total Anchor Bolt Length 4800 mm 4200 mm ASME PCC-1 Minimum 1.5 SF Concrete Embedment Depth 3500 mm 2950 mm ACI 318 Chapter 17 Limits Steel Consumption Rate 100% (Baseline) 87.5% (12.5% Savings) AISC Steel Manual Yield Strength Ratio Ultimate Pull-Out Capacity 520 kN 445 kN ASTM F1554 Min. 2.0 Concrete SF Uplift Resistance (Wind) 380 kN 330 kN ASCE 7 1.2D + 1.6W Check Review all optimized dimensions against site-specific soil parameters before finalizing construction drawings. Technical Mapping & Specifications Matrix Complex structural systems require strict mapping between physical components, analytical failure modes, and governing codes. In anchor bolt optimization projects, understanding entity relationships prevents catastrophic structural failures during extreme environmental loading events. The matrix below organizes the primary engineering entities, their associated structural acronyms, physical parameters, and recognized standards. This systematic mapping supports multidisciplinary review teams during design validation audits. Engineering Entity Structural Acronym Physical Parameter Standard Reference Failure Mode Anchor Embedment Depth hef Length into concrete ACI 318-19 Concrete Breakout Tensile Nominal Strength N_sa Steel tensile capacity ASTM F1554 Steel Yielding / Rupture Uplift Load Factor Omega_u Wind/seismic multiplier ASCE 7-22 Overturning / Uplift Load Transfer Interface LTI Grout-to-concrete stress ASTM C1107 Bearing Crushing Bond Slip Resistance BSR Adhesive/friction grip ICC-ES ESR Bond Failure Ensure all software modeling parameters match the entity specifications detailed in this matrix. Site Verification Checklist for Optimized Anchors Implementing an optimized anchor bolt length design requires rigorous field quality control and verification checks. Because shortening bolts from 4800 mm to 4200 mm reduces safety margins against concrete breakout and pull-out, site engineers must systematically validate every installation phase against engineering drawings. Use the following structured verification checklist prior to concrete pouring and equipment grouting operations: Anchor Bolt Optimization Site Audit Items Embedment Depth Verification: Measure the exact exposed and embedded lengths of each anchor bolt against revised drawings, ensuring the 4200 mm total length and 2950 mm embedment depth are strictly maintained per ACI 318 specifications. Material Grade Confirmation: Inspect mill test reports and physical stamping marks on anchor rods to verify conformance with ASTM F1554 Grade 55 or 105 requirements before installation. Template Alignment Check: Verify steel template rigidity and bolt spacing tolerances to prevent eccentric loading conditions that could exacerbate reduced embedment stress concentrations. Concrete Compressive Strength: Confirm that field-cured test cylinders meet or exceed the specified 28-day f'c compressive strength (typically 30 MPa minimum) required for shortened anchor bond stress transfer. Pull-Out Testing Protocol: Execute random proof load testing on non-structural or designated test anchors in accordance with ASTM E488 standards prior to major equipment placement. Grout Interface Inspection: Inspect non-shrink grout placement beneath baseplates to ensure complete void-free load transfer into the shortened foundation block per ASTM C1107 guidelines. Sign off on each checklist item in the permanent quality assurance logbook before authorizing subsequent construction milestones. Field Case Study: Real-World Application Practical application of anchor bolt optimization requires balancing aggressive cost reduction targets with stringent structural integrity demands on major industrial projects. In my experience managing brownfield expansions, premature value engineering often introduces severe compliance risks if rigorous failure mode checks are bypassed. Problem Statement: During the detailed engineering phase of a compressor station foundation, the project team proposed shortening 4800 mm anchor bolts down to 4200 mm to save on alloy steel material costs across 32 major equipment piers. Embedment depth was reduced from 3500 mm to 2950 mm without initial geotechnical re-evaluation. Calculations neglected localized load dispersion angle shifts within the reinforced backfill zone. Uplift resistance under maximum hurricane wind loading (ASCE 7) was barely met using nominal safety factors. Potential concrete breakout cone intersection with adjacent footing edges was overlooked in initial layouts. Left unmitigated, these oversights would have resulted in severe foundation cracking, anchor slippage, and non-compliance with ACI 318 anchor design provisions during transient load events. Case Outcome: By instituting the four mandatory engineering checks, the engineering team successfully optimized the design while maintaining complete structural safety and regulatory compliance. Achieved a verified 12.5% reduction in anchor steel consumption, saving over 45,000 USD in material procurement costs. Confirmed pull-out capacity exceeded ultimate applied loads by a certified factor of 2.1 through refined bond modeling. Validated uplift resistance by increasing local concrete pedestal reinforcement density to confine the reduced breakout cone. Ensured proper load transfer validation via finite element analysis confirming stress distribution remained within allowable soil bearing limits. Engineering Recommendation: Always perform multi-mode failure checks whenever modifying standard foundation embedment lengths. Material savings should never compromise the structural resilience of heavy rotating equipment supports. Frequently Asked Engineering Questions How does shortening anchor bolts affect overall foundation design? Shortening anchor bolts alters the depth profile of stress transfer into the concrete block, requiring meticulous re-evaluation under ASCE 7 design parameters. Engineers must verify that the reduced embedment still satisfies local bond stress limits and load dispersion criteria. Shifts the critical tension cone intersection point upward. Requires recalculation of concrete breakout capacity per ACI 318 provisions. Changes steel reinforcement layout to handle concentrated bursting forces near the top of the pier. What are the primary risks associated with 4200 mm anchor bolt optimization? While reducing length lowers material costs, it introduces severe structural vulnerabilities if load transfer mechanisms are miscalculated. Premature pull-out failure due to insufficient concrete embedment depth. Inadequate uplift resistance against severe wind or seismic overturning moments. Unanticipated edge-distance cracking from concentrated bearing stresses in the foundation mass. Which governing standard regulates anchor bolt embedment depth calculations? Structural engineers rely on established industry codes to govern anchorage design and ensure safety margins under extreme operational loads. ACI 318 Building Code Requirements for Structural Concrete provides foundational calculation models. ASCE 7 Minimum Design Loads and Associated Criteria for Buildings and Other Structures defines wind and seismic forces. API 650 and API 620 govern specific requirements for large welded low-pressure storage tanks. How does soil backfill interaction influence shortened anchor bolts? The surrounding soil and backfill act in tandem with the concrete block to distribute lateral and overturning loads safely into the earth. Alters passive earth pressure distribution along the buried foundation stem. Reduces the stabilizing weight of backfill directly tied to the extended foundation structure. Demands rigorous geotechnical verification of soil bearing capacity beneath the optimized footing. What specific verification checks are mandatory before implementing bolt shortening? Implementing dimensional reductions safely requires executing four distinct engineering analyses prior to drawing release. Pull-out capacity testing to ensure the shortened steel rod maintains adequate concrete bond strength. Uplift resistance validation against peak dynamic wind and seismic overturning moments. Load transfer confirmation to guarantee stresses distribute evenly into foundation mass and soil. Field Recommendation When evaluating whether to reduce anchor bolt lengths for large industrial structures, I strongly advise against prioritizing immediate steel cost savings over structural integrity. Based on my design experience, you should proceed with any length optimization only after completing full finite element stress modeling under worst-case operational loading. If geotechnical reports indicate variable soil compaction beneath the pier, reject the optimized shorter bolt length and maintain original embedment to prevent differential settlement cracks. If wind tunnel data confirms lower localized uplift pressures than standard code minimums, approve the 4200 mm length reduction only after specifying high-strength deformed anchor bars that enhance local bond stress. If dynamic cyclic loads from heavy rotating equipment are present, mandate cyclic pull-out testing to verify that fatigue stresses do not compromise the shortened concrete breakout cone. Always require independent peer review of the load transfer calculations before releasing structural drawings for construction, ensuring all four mandatory engineering checks are fully documented.
