physics Archives

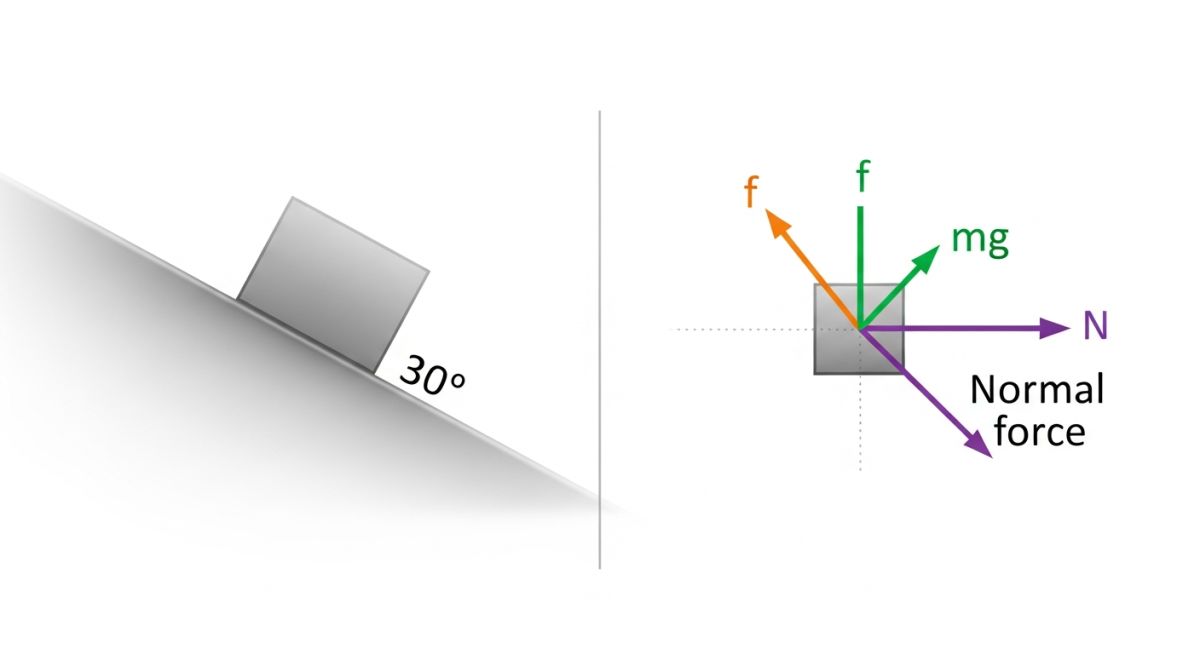

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the concept of a free body diagram by comparing a real-world physical system to its simplified vector representation. Description: A clean, modern graphic showing a physical object, such as a block on an inclined plane, on the left, and its corresponding isolated free body diagram with labeled force vectors (gravity, normal force, and friction) on the right. SEO Alt Text: A side-by-side comparison of a physical block on an inclined plane and its corresponding free body diagram showing force vectors. Image Slug: free-body-diagram-introduction-concept Filename URL: https://epcland.com/wp-content/uploads/2026/06/free-body-diagram-introduction-concept.jpg Technical Infographic: Purpose: To provide a clear, step-by-step visual guide on how to isolate a body and correctly apply force vectors. Description: An educational infographic detailing the four essential steps to draw a free body diagram: isolating the body, establishing a coordinate system, identifying active forces, and identifying reactive forces, complete with illustrative icons. SEO Alt Text: An infographic detailing the step-by-step process of drawing a free body diagram with clear engineering icons. Image Slug: steps-to-draw-free-body-diagram-infographic Filename URL: https://epcland.com/wp-content/uploads/2026/06/steps-to-draw-free-body-diagram-infographic.jpg Meta Data: Focus Keyword: free body diagram Title: How to Draw a Free Body Diagram: Definition, Examples, and Steps Slug: free-body-diagram Meta Description: Learn how to draw a free body diagram. Discover its definition, purpose, step-by-step instructions, and solved engineering examples. Tags: free body diagram, engineering mechanics, physics, statics, dynamics, structural analysis Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 How to Master the Free Body Diagram in Engineering Analysis Free Body Diagram: A foundational graphical tool used in structural engineering and physics to isolate a system or component and visualize all external forces, moments, and reaction vectors acting upon it. This analytical method ensures compliance with structural integrity codes like ASME B31.3 and AISC 360 by establishing static equilibrium before executing stress calculations. In my 20 years of designing high-pressure piping systems and heavy industrial structures, I have seen brilliant engineers fail at complex finite element analysis (FEA) simply because they skipped a basic step. They did not draw a proper free body diagram. It is easy to trust modern software, but if your boundary conditions and force vectors are wrong in your head, they will be wrong in your simulation. I remember a project where a massive steam line support kept buckling during thermal cycles. The design team had modeled the support as a simple rigid anchor in their software. When I sat down with a pencil and drew a physical sketch of the isolated pipe segment, the issue became obvious. We had completely ignored the friction force vector acting along the pipe axis. That simple sketch saved us millions in potential downtime. Key Takeaways for Field Engineers: Always isolate the system from its physical surroundings before applying force vectors. Never assume a support is perfectly rigid without verifying its physical stiffness and boundary conditions. Ensure your coordinate system is clearly defined before resolving force components. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 In the context of structural analysis of a multi-body system, which of the following statements correctly describes the treatment of internal constraints and forces when constructing a Free Body Diagram (FBD) of a single isolated component? Internal forces within the isolated component must be explicitly represented as external vectors acting at the component's center of mass. Only the external loads applied directly to the overall system are shown, while constraint forces at the boundary of the isolated component are omitted. Constraint forces and moments exerted by the removed adjacent components must be replaced with equivalent reaction forces and moments acting at the boundary interfaces. The isolated component's internal stress distribution must be integrated and represented as a single concentrated force at the geometric centroid. Next Question → Question 2 of 3 When applying d'Alembert's principle to perform dynamic analysis on an accelerating rigid body, how are the inertial effects represented on a dynamic Free Body Diagram (or Kinetic Diagram)? Inertial forces (ma) and inertial torques (Ia) are treated as real physical forces applied by external agents at the boundary interfaces. Inertial forces (-ma) and moments (-Ia) are applied as fictitious external loads acting at the center of mass to establish a state of quasi-static equilibrium. The acceleration vector is drawn directly on the standard static FBD as a force vector acting at the center of pressure. Inertial terms are omitted from the diagram entirely and are only introduced during the integration of the equations of motion. Next Question → Question 3 of 3 When constructing a Free Body Diagram for a rigid block on a rough inclined plane where sliding is imminent, which of the following correctly represents the orientation and relationship of the normal force (N) and the static friction force (fs)? N acts parallel to the inclined plane, and fs acts perpendicular to the plane with a magnitude of fs < us*N. N acts perpendicular to the inclined plane, and fs acts parallel to the plane in the direction of potential motion with a magnitude of fs = us*N. N acts perpendicular to the inclined plane, and fs acts parallel to the plane opposing the direction of imminent motion with a magnitude of fs = us*N. Both N and fs act perpendicular to the inclined plane, forming a force couple that balances the gravitational component. 🎉 Quiz Completed! You have passed the engineering review criteria. Constructing the Diagram: Step-by-Step Engineering Methodology How to Construct a Free Body Diagram Correctly Constructing a Free Body Diagram: The systematic process of isolating a mechanical element and applying vector forces to resolve static equilibrium equations. This step-by-step methodology prevents structural over-design and guarantees compliance with AISC 360 load path requirements. To build a mathematically sound model, you must follow a strict sequence. Skipping any of these steps introduces errors that propagate through your shear and bending moment calculations. Step 1: Isolate the Body Identify the specific component you need to analyze. Draw its outline simplified as a single line, a beam, or a rigid block. Remove all surrounding structures, supports, and connections. The body must float in your sketch, completely free from its physical environment. Step 2: Establish Your Coordinate System Define a clear Cartesian coordinate system (X, Y, Z). This is not just a formality. Without a defined coordinate system, assigning positive and negative signs to your force vectors becomes chaotic, leading to sign errors in your equilibrium equations. Step 3: Apply Known External Forces Draw vectors representing all known forces acting on the body. This includes gravity (acting through the center of mass), wind loads, fluid pressures, and pre-tensioned bolts. Label each vector with its magnitude and direction angle. Step 4: Replace Supports with Reaction Forces This is where most mistakes happen. You must replace every physical support you removed in Step 1 with the corresponding reaction forces and moments it exerts on the body. For example, a pinned support restricts translation in X and Y, so you must draw reaction forces R_x and R_y. A fixed support restricts translation and rotation, requiring R_x, R_y, and a reaction moment M. Field Warning: The Danger of Over-Constraining Models In my field audits, I often find engineers modeling piping guides as rigid anchors. This mistake artificially inflates the calculated reaction forces, leading to massive, expensive support structures that are completely unnecessary. Always match your mathematical reactions to the actual physical degrees of freedom of the support. Practical Engineering Calculation Example Let us calculate the reaction forces for a cantilevered pipe support bracket holding a heavy valve. The bracket is a steel beam of length L = 1.5 meters, welded to a structural column. The valve exerts a downward point load P = 12 kN at the very tip of the bracket. The self-weight of the bracket is represented as a uniform load w = 0.5 kN/m. To find the reaction force (R_y) and reaction moment (M_A) at the welded connection (Point A), we apply the equations of static equilibrium: 1. Sum of Vertical Forces (ΣF_y = 0): R_y - w * L - P = 0 R_y - (0.5 kN/m * 1.5 m) - 12 kN = 0 R_y - 0.75 kN - 12 kN = 0 R_y = 12.75 kN (acting upward) 2. Sum of Moments about Point A (ΣM_A = 0): M_A - (w * L * (L / 2)) - (P * L) = 0 M_A - (0.5 kN/m * 1.5 m * 0.75 m) - (12 kN * 1.5 m) = 0 M_A - 0.5625 kN-m - 18 kN-m = 0 M_A = 18.56 kN-m (counter-clockwise reaction) These calculated values are used directly to size the structural weld at Point A in compliance with AWS D1.1 structural welding codes. Standard Boundary Conditions for Structural Analysis Boundary Condition Modeling: The mathematical representation of physical supports to determine reaction forces in structural systems. Accurate boundary modeling is required by ASME B31.1 to prevent localized overstressing at anchor points. Support Type Translational DOF Rotational DOF Reaction Forces Typical Application Fixed Anchor Restrained (X, Y, Z) Restrained (X, Y, Z) 3 Forces, 3 Moments Piping battery limits, vessel nozzles Pinned / Hinge Restrained (X, Y, Z) Free (X, Y, Z) 3 Forces, 0 Moments Truss joints, structural column bases Roller Support Restrained (Vertical) Free (X, Y, Z) 1 Force (Vertical) Bridge expansion joints, pipe sleepers Guided Support Restrained (Lateral) Free (Axial) 2 Forces (Lateral) Long straight pipe runs Technical Mapping & Specifications Matrix Entity / Acronym Physical Parameter Governing Standard Analytical Purpose FBD Force & Moment Vectors ASME B31.3 Isolating system boundaries for stress analysis DOF Degrees of Freedom AISC 360 Defining boundary constraints in structural nodes FEA Stiffness Matrix & Mesh ASME Section VIII Numerical validation of complex stress profiles Site Verification Checklist Verifying Your Free Body Diagram on Site Field Verification Protocol: The physical inspection of piping and structural supports to validate that analytical assumptions match real-world installations. This field-level audit ensures that actual piping movements do not exceed the design limits specified in ASME B31.3. Before signing off on any structural or piping design, I perform a physical walkdown. You must verify that what was drawn on paper matches what was built in the field. Use this checklist during your next site inspection. Support & Boundary Condition Audit Checklist: Verify Support Clearances: Ensure guided supports have the specified physical gap (typically 1.5 mm to 3 mm) to allow axial movement without binding. Inspect Spring Hanger Travel: Confirm that spring hangers are set to their cold load positions and that travel stops have been removed before commissioning. Check Anchor Bolt Torque: Verify that structural baseplate anchor bolts are torqued to design specifications to prevent rotational slip. Validate Friction Coefficients: Ensure slide plates (PTFE or graphite) are clean, level, and free of paint overspray that could increase friction forces. Field Case Study: Real-World Application Field Case Study: Real-World Application Structural Failure Analysis: The forensic investigation of mechanical failures caused by incorrect boundary condition assumptions in design models." Correcting these assumptions using verified field data restores compliance with API 570 piping inspection codes. The Problem: Severe Vibration and Support Cracking At a major petrochemical facility, a 24-inch cooling water header was experiencing severe vibration during pump startup. Within six months, the welds on the primary anchor support began to crack. The original design team had modeled the system as a static load case, completely omitting the dynamic hydraulic transient forces (water hammer) from their initial free body diagram. The Outcome: Redrawn FBD and System Stabilization I was brought in to lead the forensic engineering team. We redrew the free body diagram of the header, adding the transient force vector (F = ΔP * A) calculated from the fluid velocity change. This revealed a dynamic force of 45 kN acting axially on the pipe. We redesigned the support system by replacing the rigid anchor with a dynamic snubber support, which absorbed the transient shock while allowing normal thermal expansion. The cracking stopped immediately. My direct recommendation to all design leads: never treat dynamic systems as purely static. If your system contains fast-acting valves or high-capacity pumps, your analytical model must include dynamic force vectors. Common Questions on Free Body Diagram Methods Common Questions on Free Body Diagram Methods Analytical Mechanics FAQ: A curated compilation of technical clarifications addressing complex boundary conditions and force resolutions in structural design. These answers align with the structural design principles outlined in AISC 360. How do you handle internal forces in a free body diagram? Internal forces must not be shown on a free body diagram of the whole system. They only appear when you physically cut the body to expose internal shear forces, axial forces, and bending moments. This is the standard method used when transitioning from an FBD to a shear and bending moment diagram. What is the difference between a free body diagram and a kinetic diagram? A free body diagram shows only the external forces and moments acting on a body. A kinetic diagram shows the resulting inertial forces (mass multiplied by acceleration, or m*a) and inertial moments (I*alpha) of the body. In dynamic analysis, we equate the FBD to the kinetic diagram to solve equations of motion. How do friction forces change the FBD in dynamic piping systems? Friction forces act parallel to the contact surface and oppose the direction of relative movement. In piping systems, thermal expansion causes the pipe to slide over steel supports. This generates a friction force equal to the normal force multiplied by the friction coefficient (typically 0.3 for steel-on-steel). This force must be included in your FBD as an axial load acting on the pipe and support. Why are thermal expansion forces modeled as external forces on a piping FBD? Thermal expansion itself is an internal strain. However, when physical supports restrict this expansion, they exert external reaction forces back onto the pipe. On your FBD, these reaction forces are modeled as external compressive or bending loads acting at the support locations, in compliance with ASME B31.3. How does ASME B31.3 govern the load combinations derived from an FBD? ASME B31.3 requires that all sustained loads (weight, pressure) and occasional loads (wind, seismic) identified on your FBD be combined mathematically. The resulting stresses must not exceed the allowable stress limits of the material at the design temperature. Can a free body diagram be used for non-rigid, deformable bodies? Yes. While the equations of static equilibrium assume a rigid body, we use the same FBD principles for deformable bodies. The external forces identified on the FBD serve as the boundary conditions for calculating internal stress, strain, and deformation using mechanics of materials or finite element analysis. ===FAQ_BLOCK===
