Tag: construction materials

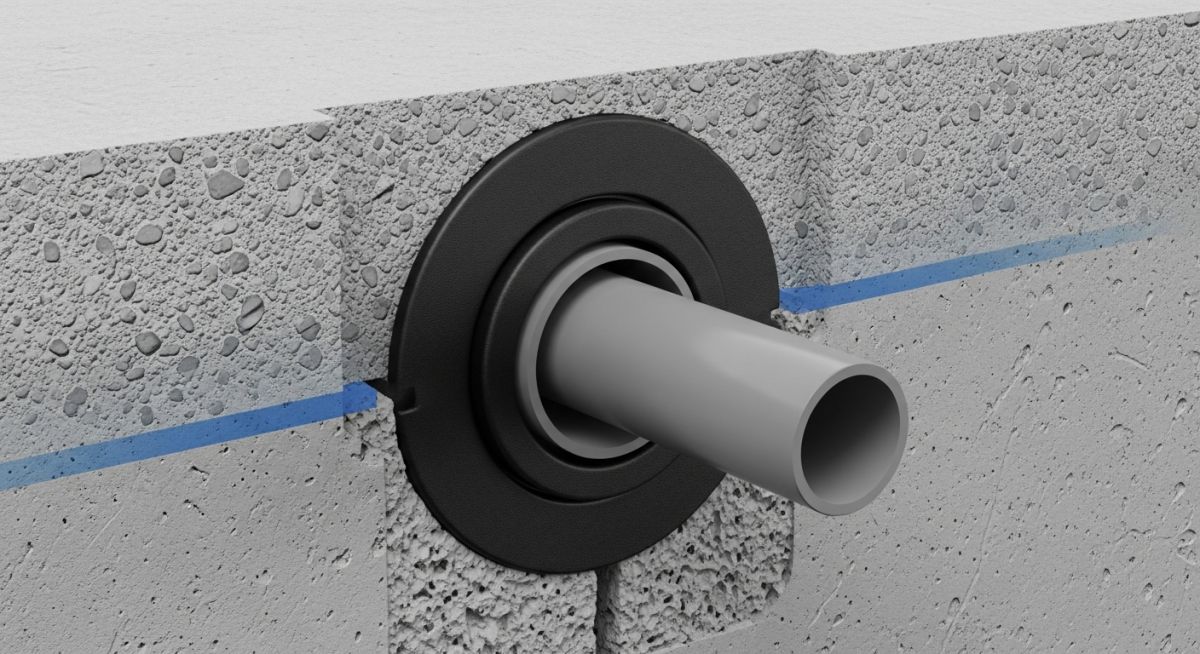

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the concept of a puddle flange installed on a pipe passing through a concrete wall. Description: A high-quality 3D render of a black EPDM rubber puddle flange fitted tightly around a PVC pipe, embedded within a cross-section of a concrete foundation wall to demonstrate water barrier protection. SEO Alt Text: A puddle flange installed on a PVC pipe embedded in a concrete wall cross-section Image Slug: puddle-flange-concrete-wall-installation Filename URL: https://epcland.com/wp-content/uploads/2026/06/puddle-flange-concrete-wall-installation.jpg Technical Infographic: Purpose: To illustrate and compare the different types of puddle flanges based on their materials. Description: A technical studio shot displaying three types of puddle flanges side-by-side: a flexible EPDM rubber collar, a fabricated stainless steel puddle flange, and a molded plastic variant, each clearly labeled. SEO Alt Text: Different types of puddle flanges including EPDM rubber, stainless steel, and plastic Image Slug: types-of-puddle-flanges-comparison Filename URL: https://epcland.com/wp-content/uploads/2026/06/types-of-puddle-flanges-comparison.jpg Meta Data: Focus Keyword: puddle flange Title: What is a Puddle Flange? Types, Applications, and Key Advantages Slug: what-is-a-puddle-flange Meta Description: Learn what a puddle flange is, its main types, key applications in waterproofing, and the advantages of using them in concrete structures. Tags: puddle flange, concrete waterproofing, pipe penetration, civil engineering, plumbing, waterstop flange, construction materials Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 What is a Puddle Flange? Types, Applications, and Key Advantages Puddle Flange Waterproofing: A puddle flange is a specialized circular collar or barrier integrated onto the external surface of a pipe passing through concrete structures to prevent water ingress along the pipe-concrete interface. This mechanical waterstop complies with BS 8007 and BS EN 1992-3 standards to ensure hydrostatic pressure resistance in water-retaining structures. In my 20+ years of piping engineering, I have seen countless basements, water tanks, and subterranean vaults compromised not by pipe failures, but by water bypassing the pipe entirely. When you pour concrete around a smooth plastic or metallic pipe, a microscopic gap inevitably forms due to concrete shrinkage during curing. This gap becomes a path of least resistance for pressurized groundwater. That is where the puddle flange becomes your primary line of defense. Whether you are dealing with high-density polyethylene (HDPE), PVC, ductile iron, or stainless steel piping, installing a dedicated waterstop collar is a non-negotiable requirement for structural integrity. In this guide, I will break down the engineering mechanics, material selections, and installation practices that make these components successful in the field. Key Engineering Takeaways Shrinkage Mitigation: Concrete shrinks by approximately 0.03% to 0.06% during curing, creating a micro-annulus around smooth pipes. Path Extension: A puddle flange increases the water travel path by up to 50%, reducing the hydraulic gradient below critical leakage thresholds. Standard Compliance: Essential for meeting water-tightness criteria specified in BS EN 1992-3. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 When a pipe penetrates a concrete structure, what primary physical phenomenon during the concrete curing process necessitates the installation of a puddle flange to prevent fluid migration along the pipe-concrete interface? Concrete expansion due to delayed ettringite formation (DEF) creating tensile cracks. Autogenous and drying shrinkage of concrete creating a micro-gap at the smooth outer boundary of the pipe. Thermal expansion of the pipe material exceeding the tensile strength of the green concrete. Capillary action induced solely by the hydrostatic pressure of the concrete mix during placement. Next Question → Question 2 of 3 In a wastewater treatment plant design where a pipe passes through a reinforced concrete aeration tank wall subjected to dynamic loads and aggressive chemical exposure, which puddle flange configuration and material selection provides the optimal balance of corrosion resistance, leak prevention, and stress relief? A rigid, welded carbon steel puddle flange coated with standard red oxide primer. A solvent-welded UPVC puddle flange with a smooth surface finish to minimize concrete adhesion. A stainless steel (Grade 316) puddle flange continuously welded to the pipe, or a heavy-duty EPDM puddle collar with stainless steel clamping bands. A cast iron puddle flange secured with non-shrink grout packing without mechanical fastening. Next Question → Question 3 of 3 From a hydraulic design perspective, how does the addition of a puddle flange mathematically mitigate the risk of water bypass along a pipe penetration under hydrostatic pressure? It reduces the hydrostatic pressure of the fluid by inducing localized turbulent flow at the entry point. It increases the hydraulic path of travel (seepage path) for water, thereby reducing the hydraulic gradient across the concrete-pipe interface. It acts as a sacrificial anode, electrochemically preventing water molecules from bonding with the concrete matrix. It decreases the density of the surrounding concrete, allowing the concrete to absorb and dissipate the water. 🎉 Quiz Completed! You have passed the engineering review criteria. Engineering Mechanics & Design Principles How Does a Puddle Flange Prevent Water Ingress? Puddle Flange Mechanism: The puddle flange functions by extending the physical flow path of water along the pipe exterior, thereby creating an impassable mechanical barrier within the concrete wall. This design effectively stops hydrostatic pressure from forcing water through the micro-annulus formed by concrete shrinkage. To understand why a puddle flange is necessary, we must look at the physics of concrete curing. As concrete hydrates and dries, it undergoes volumetric contraction. Because the thermal expansion and contraction coefficients of plastic or metal pipes differ significantly from concrete, a microscopic separation gap forms at the interface. Under hydrostatic pressure, water acts as a fluid seeking the path of least resistance. Without a barrier, water easily migrates along the smooth outer wall of the pipe. By introducing a perpendicular flange, we force the water to travel outward, around the flange, and back inward. This is known as creating a "tortuous path." The Hydraulic Gradient Calculation The rate of water seepage through a porous medium or micro-gap is governed by Darcy's Law, where the hydraulic gradient (i) is defined as: i = H / L Where: H = Hydrostatic head pressure (meters of water) L = Path of water travel (meters) If a concrete wall is 300 mm (0.3 m) thick, the path of travel without a flange is exactly 0.3 m. If we install a puddle flange with a radial projection height (h) of 50 mm (0.05 m), the new effective path length (Leff) is calculated as: Leff = L + (2 * h) = 0.3 + (2 * 0.05) = 0.4 meters By increasing the path length from 0.3 m to 0.4 m, we increase the flow resistance by 33.3%, which drastically reduces the hydraulic gradient and prevents water from piping through the interface. Primary Types of Puddle Flanges Depending on the pipe material and project specifications, several types of puddle flanges are utilized in modern construction: Molded EPDM/NBR Rubber Collars: These are flexible, stretchable rings secured to the pipe using stainless steel band clamps. They are highly versatile and accommodate thermal expansion and minor structural settlement. Fabricated Metallic Flanges: Typically made of carbon steel or stainless steel (Grade 304 or 316), these are welded directly to metallic carrier pipes before the concrete pour. They offer maximum structural strength and are ideal for high-pressure applications. Monolithic Plastic Flanges: Often manufactured from PVC, PP, or HDPE, these are solvent-welded or butt-fused directly to plastic piping systems, ensuring a seamless, leak-proof bond. Field Warning: Avoid Makeshift Solutions In my field audits, I occasionally catch contractors attempting to weld scrap metal plates or wrap waterstop tape around pipes as a substitute for a certified puddle flange. These makeshift solutions lack the verified pressure ratings and chemical resistance required by BS 8007, often leading to costly structural remediation later. Material Specifications & Selection Criteria Selecting the Right Puddle Flange Material Puddle Flange Selection: Choosing the correct puddle flange material depends on the pipe substrate, chemical exposure, and hydrostatic pressure requirements of the project. Standard options include EPDM rubber, stainless steel, and fabricated carbon steel to match the pipeline's design life. Selecting the wrong material can lead to galvanic corrosion, chemical degradation, or mechanical failure under load. The table below outlines the engineering parameters for the most common puddle flange materials used in industrial and civil applications. Material Type Applicable Pipe Materials Max Pressure Rating Chemical Resistance Key Standard EPDM Rubber PVC, HDPE, DI, Steel Up to 10 Bar (145 PSI) Excellent for water, dilute acids ISO 48 (Hardness) Stainless Steel 316L Stainless Steel, Carbon Steel Unlimited (Matches Pipe) Outstanding (Corrosive/Wastewater) ASTM A240 Carbon Steel (Galvanized) Ductile Iron, Carbon Steel Unlimited (Matches Pipe) Moderate (Requires coating) ASTM A36 / EN 10025 HDPE / PP HDPE, PP (Fused) Up to 16 Bar (232 PSI) High chemical resistance EN 12201 Technical Mapping & Specifications Matrix To assist design engineers in specifying these components within piping layouts and structural drawings, the following matrix maps key technical entities and physical parameters. Technical Entity Acronym Physical Parameter / Value Standard Reference Concrete Drying Shrinkage CDS 0.03% to 0.06% volumetric reduction ASTM C157 Rubber Hardness (EPDM) IRHD 50 to 60 Shore A ISO 48 Hydrostatic Head Resistance HHR Up to 80 meters of water head BS EN 1992-3 Minimum Flange Projection MFP 50 mm radial height from pipe OD Standard Civil Practice Quality Control & Site Verification Site Installation Checklist for Puddle Flanges Puddle Flange Installation: Proper installation of a puddle flange requires precise positioning, surface preparation, and secure fastening before the concrete pour. These steps ensure the flange remains perpendicular to the pipe and fully embedded without voids. In my years of supervising field installations, I have found that even the highest quality puddle flange will fail if the concrete surrounding it is poorly consolidated. Voids or honeycombing near the flange create direct bypass channels for water. Use this checklist on-site to ensure zero-leak performance. Pre-Pour Verification Checklist Surface Preparation: Ensure the outer surface of the carrier pipe is completely clean, free of grease, mud, rust, or loose scale where the flange will sit. Positioning: Place the puddle flange in the exact center of the concrete wall or slab thickness to maximize the concrete cover on both sides. Clamp Tensioning (for EPDM): Tighten the stainless steel band clamps evenly using a calibrated torque wrench to prevent localized deformation of plastic pipes. Perpendicular Alignment: Verify that the flange is oriented at exactly 90 degrees to the pipe axis to prevent uneven stress distribution during concrete compaction. Rebar Clearance: Maintain a minimum clearance of 50 mm between the puddle flange edge and the nearest reinforcement steel to prevent aggregate trapping. Compaction Protocol: Ensure mechanical vibrators are used carefully around the pipe penetration to eliminate air pockets without directly striking the puddle flange. Field Case Study & Engineering Analysis Field Case Study: Real-World Application Puddle Flange Case Study: This field analysis evaluates the remediation of a municipal water treatment tank where omitted puddle flanges caused severe bypass leakage. The implementation of retrofitted EPDM puddle flanges successfully restored structural integrity and stopped water loss. The Problem: Severe Bypass Leakage in a Water Treatment Tank During the commissioning of a municipal wastewater treatment plant, a 400 mm ductile iron inlet pipe passing through a 450 mm thick concrete wall began leaking heavily. The contractor had omitted the puddle flanges, relying solely on standard concrete pouring around the pipe. Under a hydrostatic head of 6 meters, water bypassed the pipe-concrete interface at a rate of 12 liters per minute, threatening to flood the adjacent dry pump room. The Outcome: Retrofit and Complete Seal I was called in to design a remediation plan. We excavated the exterior soil, core-drilled a concentric 600 mm pocket around the existing pipe, and installed a heavy-duty, split-type EPDM puddle flange collar secured with dual 316 stainless steel bands. The pocket was then packed with non-shrink, high-strength micro-concrete. Upon refilling the tank, the leak was completely arrested, demonstrating the critical role of the mechanical waterstop barrier. This case highlights a vital lesson: attempting to save a small amount on component costs during initial construction almost always results in exponentially higher remediation costs later. Always insist on specifying and verifying puddle flanges during the design phase. Frequently Asked Engineering Questions Puddle Flange FAQs: These technical answers address common field queries regarding puddle flange sizing, pressure ratings, and concrete consolidation. All recommendations align with standard civil and piping engineering practices. 1. Can a puddle flange be used on any pipe material? Yes, they can be adapted to virtually any pipe material including PVC, HDPE, ductile iron, cast iron, copper, and steel. The key is matching the flange type and connection method (e.g., flexible EPDM collars for plastic/metal, or welded steel flanges for metallic systems) to ensure compatibility and prevent galvanic action. 2. What is the minimum concrete wall thickness required for installation? Generally, the concrete wall or slab should be at least 150 mm thick. This ensures adequate concrete cover (typically a minimum of 50 mm on either side of the flange) to prevent structural cracking and allow proper aggregate consolidation around the penetration. 3. How do puddle flanges compare to hydrophilic waterstops? Hydrophilic waterstops rely on chemical swelling when exposed to water to create a seal, which can degrade over time or fail if dry-wet cycles occur frequently. Puddle flanges provide a permanent, non-degradable mechanical barrier that does not rely on chemical reactions, making them far more reliable for long-term infrastructure projects. 4. Are puddle flanges suitable for high-temperature pipelines? Standard EPDM rubber flanges are rated up to approximately 120 degrees Celsius. For high-temperature steam or process lines, you must use fabricated stainless steel or carbon steel puddle flanges welded directly to the carrier pipe, ensuring the assembly can withstand thermal expansion without losing its seal. 5. Do puddle flanges provide structural support to the pipe? No, their primary function is strictly waterproofing. They are not designed to act as structural anchors or pipe supports. Piping systems must be independently supported on both sides of the wall penetration to prevent shear loads from transferring to the flange or concrete wall. 6. What standards govern the design of these components? The design and application of puddle flanges are governed by BS 8007 (Code of practice for design of concrete structures for retaining aqueous liquids) and BS EN 1992-3 (Eurocode 2 - Liquid retaining and containment structures). ===
