Ultimate Guide to Septic Tank Systems: Design, Working Principles, and Maintenance Standards

What are Septic Tank Systems? (Engineering Definition)

In the realm of environmental engineering, Septic Tank Systems are defined as decentralized, primary treatment infrastructures designed to manage wastewater at the source. Unlike municipal sewage grids that rely on massive lift stations and centralized treatment plants, these systems utilize a combination of settling, flotation, and anaerobic biological degradation. A standard system consists of a watertight vessel—the septic tank—and a subsurface soil absorption area, commonly referred to as a drainfield or leach field.

The engineering integrity of Septic Tank Systems is governed by specific material standards, such as ASTM C1227 for precast concrete tanks. These standards ensure that the vessel can withstand soil overburden loads, hydrostatic pressure from groundwater, and the corrosive internal environment caused by hydrogen sulfide (H₂S) gas. From a functional perspective, the system acts as a biological reactor where complex organic compounds are broken down into simpler organic acids and eventually into methane and carbon dioxide.

The Physics and Biology: How Septic Tank Systems Work

The operation of Septic Tank Systems relies on a fundamental principle of fluid mechanics: Retention Time. As wastewater enters the tank, the flow velocity is dramatically reduced, allowing gravity to perform its primary function. This quiescent state facilitates the separation of waste into three distinct horizontal zones based on density and buoyancy.

Within Septic Tank Systems, the separation occurs as follows:

• The Scum Layer (Top): Composed of fats, oils, grease (FOG), and light buoyant solids. This layer floats at the surface and undergoes limited aerobic decomposition at the air-liquid interface.
• The Effluent Layer (Middle): Also known as the "clarified zone," this is the relatively clear liquid that contains dissolved organic matter, suspended solids, and nitrogen/phosphorus compounds. In a healthy system, only this layer is permitted to exit the tank.
• The Sludge Layer (Bottom): Consists of heavy solids and un-decomposed organic matter. This is where anaerobic bacteria (bacteria that thrive in oxygen-free environments) reside, performing a process called liquefaction to reduce the total volume of solids.

The biological "engine" of Septic Tank Systems is a complex colony of microbes. These organisms consume the organic carbon in the waste, but because they operate without oxygen, the process is slower than aerobic treatment. This is why Septic Tank Systems must be sized correctly to allow enough time—typically 24 to 48 hours—for the solids to settle and for the bacteria to begin their work before the liquid moves to the soil for final filtration.

Primary Types of Septic Tank Systems and Materials

Material selection is critical when specifying Septic Tank Systems for different geographical terrains. The three most prevalent materials in 2026 include:

Sizing and Capacity Calculations for Septic Tank Systems

The engineering design of Septic Tank Systems is never arbitrary; it is a function of the peak daily flow and the required Hydraulic Retention Time (HRT). In 2026, regulatory frameworks typically mandate a minimum 24-hour retention period, though 48 hours is preferred for optimal sludge digestion. Sizing is usually calculated based on the number of bedrooms in a residential dwelling, assuming a standard occupancy of two persons per bedroom and a flow rate of 75 to 110 gallons per person per day.

Critical Septic Tank Systems Maintenance and Inspection Protocols

Preventative maintenance is the only safeguard against the premature failure of the Soil Treatment Area (STA). Within Septic Tank Systems, the "Accumulation Rate" determines the pumping frequency. As sludge builds up, the effective volume of the tank decreases, which in turn reduces the retention time. When the retention time drops below the critical threshold, solids begin to wash out into the drainfield—a phenomenon known as "carryover"—which causes irreversible soil clogging.

Soil Treatment Area (STA) Integration in Septic Tank Systems

While the tank performs the primary separation, the true purification happens in the soil. The effluent discharged from Septic Tank Systems contains pathogens and nutrients that the soil's natural microbial community must process. The Percolation Rate (Perc Rate)—the speed at which water moves through the soil—determines the size of the drainfield.

In 2026, many jurisdictions now require "Pressure Distribution" systems in Septic Tank Systems. Instead of relying on gravity, which can saturate the beginning of a trench (leading to a "biomat" clog), a small pump doses the entire field evenly, ensuring the full soil volume is utilized for treatment.

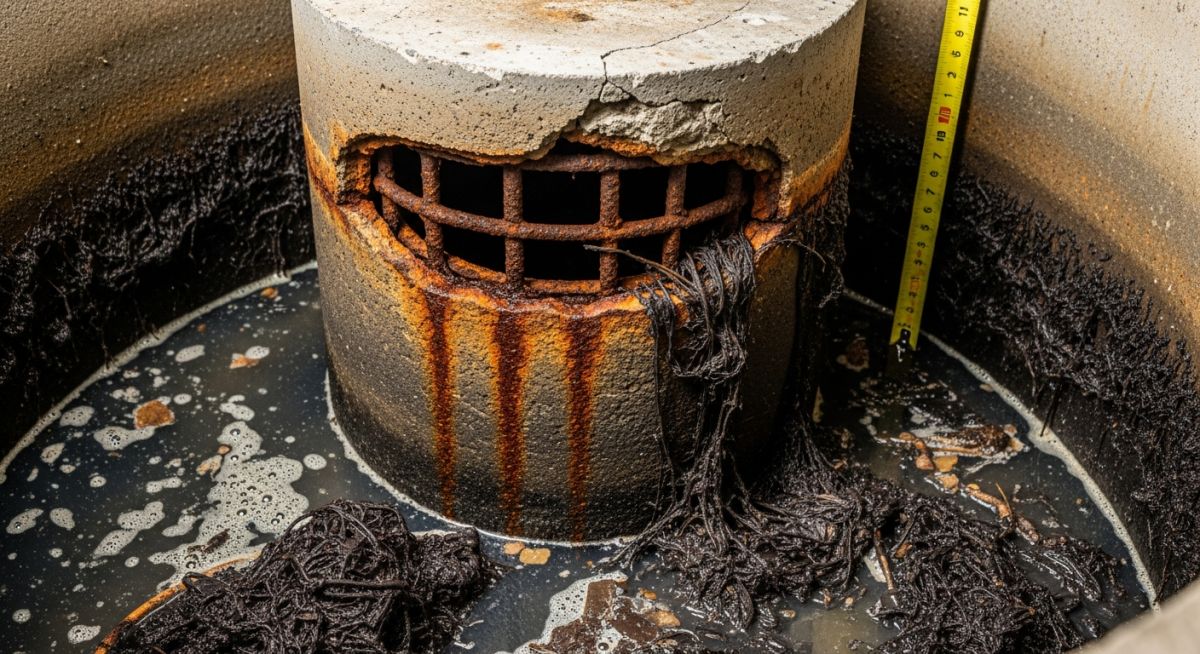

Common Failure Modes in Septic Tank Systems
