Refinery Storage Tanks: Engineering Principles, API Standards & Selection Guide

Figure 1: Modern refinery tank farm layout compliant with NFPA 30 spacing.

Refinery Storage Tanks are the critical cardiovascular system of any downstream facility, serving as the primary buffer between incoming crude oil feedstocks and outgoing refined products. Unlike simple containment vessels, these atmospheric storage units are complex engineering systems designed to handle volatile hydrocarbons while mitigating emission losses and fire risks. Whether utilizing a fixed roof vs external floating roof design, the integrity of these assets relies heavily on strict adherence to API 650 tank design standards and rigorous lifecycle management.

1. Engineering Theory & API Design Standards

The structural integrity of Refinery Storage Tanks is not merely a matter of plate thickness; it is a complex interaction between hydrostatic pressure, wind loads, seismic activity, and soil bearing capacity. The global hydrocarbon industry relies almost exclusively on the API 650 tank design standards for atmospheric storage. Unlike pressure vessels (ASME VIII), these tanks operate at pressures ranging from atmospheric to slightly above (up to 2.5 PSI if designed per API 620).

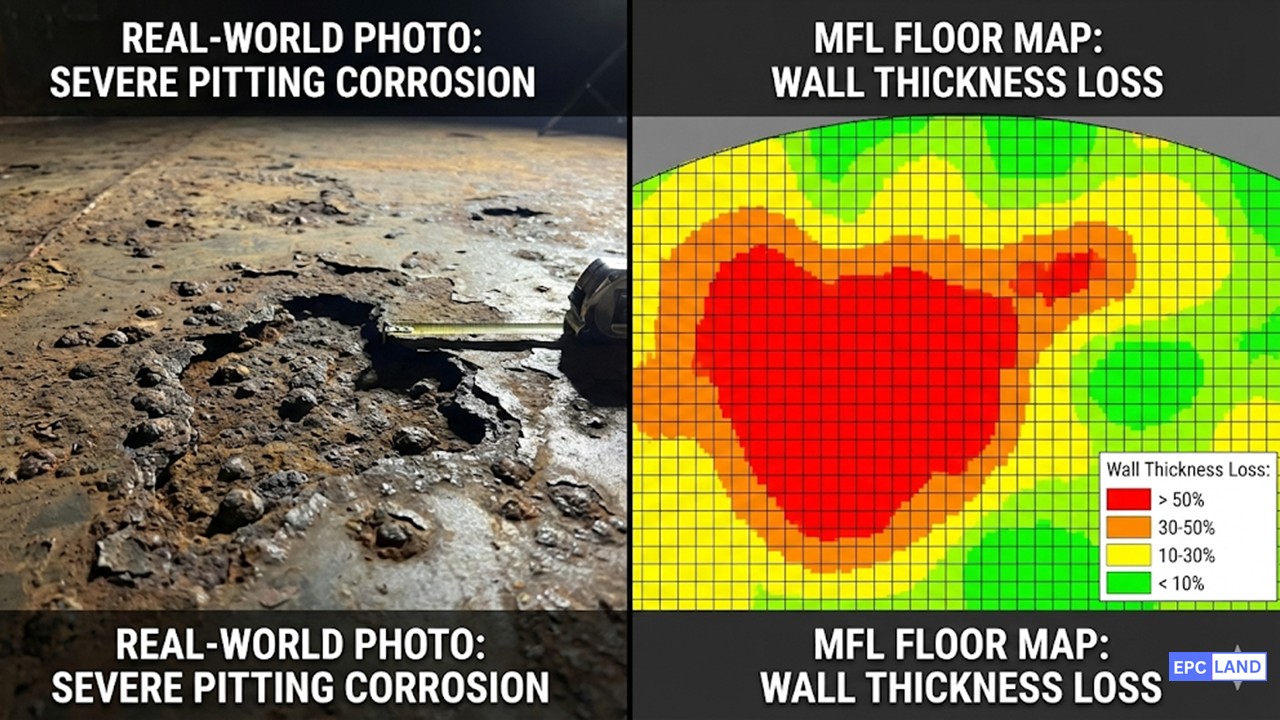

When selecting a design code, engineers must differentiate between construction, low-pressure storage, and in-service inspection. The hierarchy of standards ensures that every Refinery Storage Tank maintains containment integrity throughout its 30+ year lifecycle.

Table 1: The “Big Three” API Standards governing Refinery Storage Tanks.

2. Tank Types: Fixed vs. Floating Roof Selection

Choosing the correct architecture for Refinery Storage Tanks depends heavily on the vapor pressure of the stored product (TVP). The primary design decision typically revolves around a Fixed roof vs external floating roof configuration.

The Floating Roof Mechanism

For volatile products like Gasoline, Naphtha, or Crude Oil, a floating roof is mandatory to reduce evaporation losses and prevent the formation of an explosive vapor cloud. The Floating roof tank mechanism relies on a pontoon or double-deck structure that floats directly on the liquid surface, rising and falling with the product level.

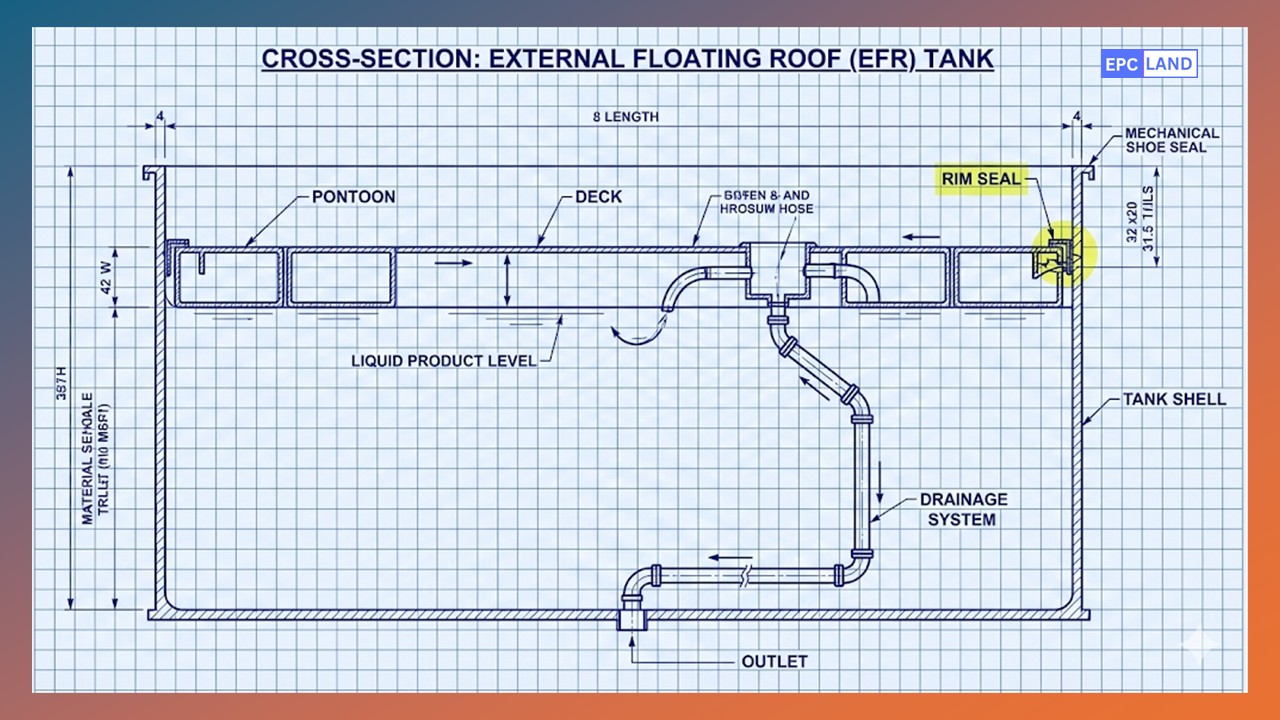

Figure 2: Components of an External Floating Roof (EFR) Tank including Primary and Secondary Seals.

The critical component in this mechanism is the Rim Seal. Since the roof must move freely inside the shell, a gap exists between the roof edge and the tank wall. Mechanical shoe seals or liquid-filled tube seals are installed in this gap to prevent vapor leakage. Failure of this seal is a leading cause of rim fires.

Tank Farm Layout & Safety Distances

Safety in a refinery setting begins with layout. Engineers must strictly adhere to tank farm safety distances outlined in NFPA 30 and IP 19. These codes dictate the minimum spacing between adjacent tanks (Shell-to-Shell) and between tanks and property lines to prevent a “domino effect” during a fire.

Typically, for floating roof tanks, the minimum spacing is 0.5 × Diameter of the adjacent tank. Additionally, the containment dyke (bund wall) must be sized to hold 110% of the largest tank’s volume to capture spills, preventing hazardous runoff.
