ASME B31.1 vs B31.3: The 2026 Engineering Selection Guide

Deciding between ASME B31.1 vs B31.3 is one of the most critical jurisdictional choices a piping engineer will face in 2026. While both codes fall under the ASME B31 Pressure Piping umbrella, they serve fundamentally different thermodynamic environments and risk profiles. Misidentifying the boundary between power piping vs process piping standards can lead to catastrophic design failures, non-compliance with regional safety laws, or massive cost overruns during the commissioning phase.

Direct Answer: ASME B31.1 (Power Piping) focuses on high-pressure steam-water cycles and boiler external piping (BEP) with a conservative safety factor of ~3.5 to 4:1. ASME B31.3 (Process Piping) covers chemical, refinery, and pharmaceutical plants, offering a flexible risk-based approach with a safety factor of ~3:1.

📑 Quick Navigation

Piping Code Proficiency Quiz

Question 1/5

Which code typically utilizes a higher safety factor (more conservative) for design?

Complete Course on
Piping Engineering

Check Now

Key Features

  • 125+ Hours Content
  • 500+ Recorded Lectures
  • 20+ Years Exp.
  • Lifetime Access

Coverage

  • Codes & Standards
  • Layouts & Design
  • Material Eng.
  • Stress Analysis

I. Engineering Theory & Jurisdictional Scope

Understanding the theoretical foundations of ASME B31.1 vs B31.3 requires a dive into the philosophy of risk. B31.1, or Power Piping, is designed for high-energy piping systems where a failure could lead to a massive release of stored energy, such as high-pressure steam in a power plant. Conversely, B31.3 focuses on the chemical nature of the fluid. The Power piping vs process piping standards diverge most significantly when considering the relationship between temperature, pressure, and the specific fluid’s toxicity.

ASME B31.1 vs B31.3 Engineering Standards Comparison 2026

Figure 1: Visual boundary between Power Generation (B31.1) and Process Refining (B31.3).

In 2026, the ASME B31.3 fluid service categories remain the benchmark for process safety. These categories—Normal, Category D, Category M, High Pressure, and High Purity—allow engineers to tailor the design rigor to the specific hazard. B31.1 does not utilize this categorical system; instead, it relies on strict adherence to Boiler External Piping (BEP) rules and Non-Boiler External Piping (NBEP) divisions, often governed by the ASME Section I Power Boiler code.

II. Calculation Methodology

Piping Wall Thickness Comparison

While both codes use variations of the Barlow formula, the ASME B31.1 allowable stress calculation typically incorporates a more conservative safety factor (S). The required thickness (t) is calculated as follows:

t = (P * D) / (2 * (S * E + P * y)) + A
  • t = Minimum required thickness
  • P = Internal design gage pressure
  • D = Outside diameter of pipe
  • S = Allowable stress value from code tables
  • E = Quality factor (longitudinal weld)
  • y = Wall thickness coefficient
  • A = Additional thickness for corrosion/threading

Note: In 2026, B31.3 allows for higher stress utilization (lower safety factor), which can lead to thinner walls compared to B31.1 for identical process parameters.

III. Comparative Engineering Data

To ensure compliance with piping inspector certification requirements 2026, engineers must reference the following differences in examination and testing:

Feature ASME B31.1 (Power) ASME B31.3 (Process)
Primary Safety Factor 3.5 – 4.0 3.0
Fluid Classification Steam/Water Cycle Focus Detailed (Normal, D, M, High Pressure)
NDE Requirements Strict based on Temp/Pressure Risk-based Random Radiography (5%)
Materials Allowed Limited to high-integrity metals Includes non-metallics/composites
Hydrotest Pressure 1.5 x Design Pressure 1.5 x Design Pressure (adjusted for temp)
Power piping vs process piping standards design factor diagram

Figure 2: Diagram highlighting jurisdictional transitions and safety factor variances.

When performing non-destructive examination (NDE) for B31.3, the code permits a “random” sampling approach for most services, whereas B31.1 often demands 100% volumetric examination for high-pressure/high-temperature steam lines (HPS). This fundamental difference in 2026 allows B31.3 to be more cost-effective for large-scale refineries while maintaining acceptable safety margins.

VI. SIF Deep Dive: In-Plane vs. Out-of-Plane

A pivotal technical divergence in the ASME B31.1 vs B31.3 debate is how each code handles Stress Intensification Factors (SIFs). While B31.1 remains anchored in a simplified approach to ensure maximum reliability for the power grid, B31.3 leverages more complex physics to optimize material usage in massive refinery networks.

  • 1.
    B31.1 Simplified Logic: Power piping applies a single SIF (the larger of the two calculated) to all three moments—including torsion. This “one-size-fits-all” conservatism ensures that even complex vibration in high-pressure steam headers does not lead to premature fatigue.
  • 2.
    B31.3 Directional Logic: Process piping distinguishes between in-plane and out-of-plane moments. By recognizing that the stress magnitude in an elbow depends on the direction of the load, B31.3 allows for a more precise—and often less conservative—stress evaluation.

VII. 2026 Fatigue Design Updates

In 2026, the industry has seen significant shifts in fatigue assessment. One of the most impactful changes in ASME B31.3 fluid service categories and overall design is the adjustment of the fatigue slope. B31.3 has moved toward a steeper fatigue slope (–0.333) compared to the traditional –0.2 used in B31.1, bringing process piping assessments closer to long-term service realities.

Design Parameter ASME B31.1 (Power) ASME B31.3 (Process)
Design Life Expectancy 40+ Years (Conservative) 20 – 30 Years (Flexible)
Cyclic Stress Factor (f) Maximum f = 1.0 Maximum f = 1.2
Impact Testing (MDMT) Fixed cutoff at -20°F (-29°C) Variable based on Material Curves
Corrosion Allowance in Z Uses Nominal Thickness Reduces thickness for Z calculation

💡 Pro-Inspector Tip for 2026

When performing non-destructive examination (NDE) for B31.3, remember that B31.3 permits pneumatic testing under strictly controlled ratios (1.1 to 1.33x design pressure). Conversely, B31.1 mandates a higher pneumatic test range (1.2 to 1.5x), reflecting its focus on high-energy containment. Always check the fluid service category—Normal vs. Category M—before finalizing your NDE percentage.

Ultimately, these nuances in power piping vs process piping standards define the economic and safety success of a project. While a B31.1 design will always be “safer” in terms of raw wall thickness, the flexibility of B31.3 is what makes modern chemical and LNG facilities financially viable in the competitive 2026 landscape.

EPCLand YouTube Channel

2,500+ Videos • Daily Updates

Subscribe 💎 Join Exclusive Education
Videos Playlists Community Posts Youtube Courses

VIII. Fabrication & Welding Compliance Matrix

In the 2026 construction landscape, the divergence between ASME B31.1 vs B31.3 becomes most apparent on the fabrication shop floor. While both codes reference ASME Section IX for welder qualification, the acceptance criteria for weld discontinuities—such as undercut, porosity, and reinforcement height—vary significantly based on the intended service environment.

B31.1 Welding Rigor

Focuses on high-temperature creep and thermal fatigue resistance in steam cycles.

  • ●Mandatory Preheat for most P-Numbers.
  • ●Strict reinforcement limits to prevent stress risers.
  • ●Post-Weld Heat Treatment (PWHT) governed by strict thickness thresholds.

B31.3 Fabrication Flexibility

Tailored to corrosion resistance and B31.3 Category M fluid requirements.

  • ●Allows for specific “Severe Cyclic” weld criteria.
  • ●Extensive rules for exotic alloys and thermoplastics.
  • ●Visual examination (VT) is the primary NDE for Normal Service.

IX. 2026 Field Inspection Protocols

Adhering to piping inspector certification requirements 2026 requires a granular understanding of “progressive examination.” In B31.3, if a random 5% radiographic test fails, the code mandates an additional two samples of the same kind. If these fail, 100% radiography is required for that specific lot. B31.1 does not typically follow this “spot check” progression for high-pressure systems, often requiring 100% coverage from the outset for critical welds.

Engineering Formula: Hydrostatic Test Pressure

While the base multiplier is 1.5x, the 2026 application of temperature correction (St/S) differs:

P_test = 1.5 * P * (St / S)

ASME B31.1 Approach:

The ratio St/S is often capped at 1.0 for certain boiler external piping to prevent yielding of components during the test.

ASME B31.3 Approach:

Full temperature correction is typically applied, reflecting the wide range of metallurgy found in power piping vs process piping standards.

As of January 2026, the integration of digital twin technology in piping inspection has made the distinction between non-destructive examination (NDE) for B31.3 and B31.1 even more data-driven. Real-time ultrasonic data is now mapped directly to the code-specific allowable stress tables to predict the remaining life of the asset under cyclic loading.

🔬 Case Study: ASME B31.1 vs B31.3 Failure Analysis

Location

Gulf Coast Petrochemical Hub

Equipment

Hydrogen Cyanide (HCN) Transfer Line

Condition

Highly Toxic / Category M

Problem: The Boundary Identification Error

In early 2026, a refinery expansion project faced a critical compliance gap during the final commissioning of an HCN transfer system. The design team had incorrectly applied B31.1 (Power Piping) standards to a section of piping connected to a steam-traced heat exchanger, assuming the steam utility connection mandated B31.1 jurisdiction. This oversight meant the system was not built to satisfy the stringent B31.3 Category M fluid requirements, which are mandatory for lethal substances.

B31.3 Category M fluid requirements piping installation for hydrogen cyanide

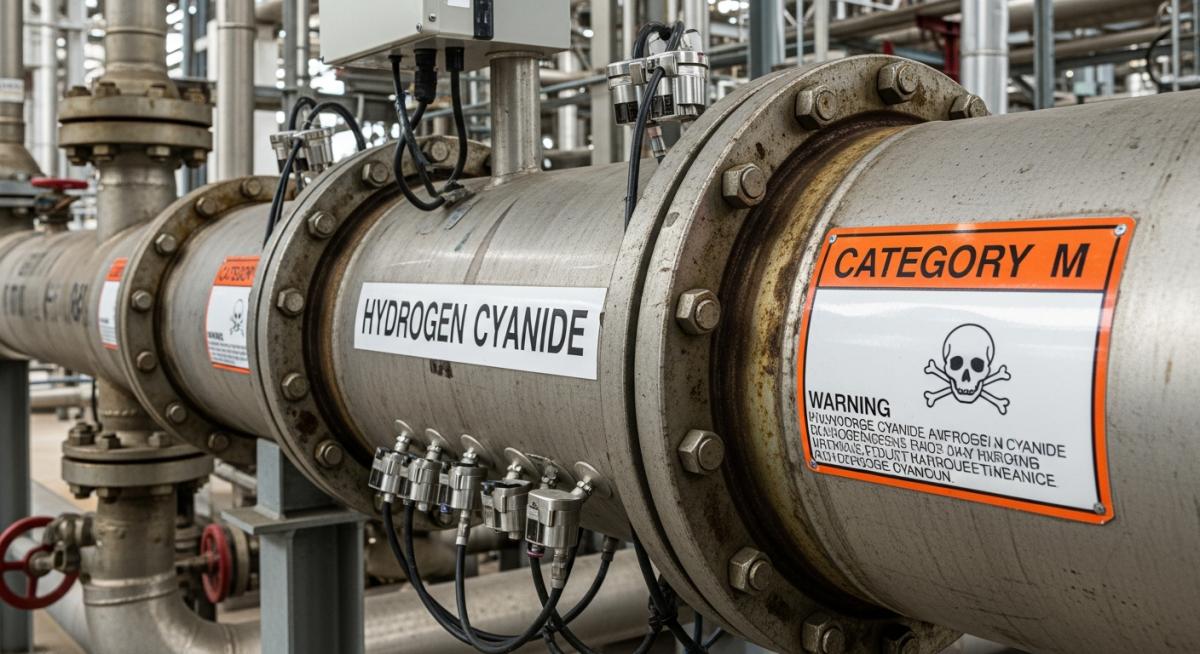

Figure 3: High-toxicity piping assembly requiring Category M verification.

Technical Analysis & Gap Discovery

Upon audit, it was discovered that the “Power Piping” designation lacked the essential “Sensitive Leak Test” required by B31.3 for toxic services. While B31.1 is robust for pressure, it does not provide the specific “Owner’s Inspector” oversight or the rigorous valve-closure testing inherent to Category M. The non-destructive examination (NDE) for B31.3 Category M requires 100% radiography, whereas the misapplied B31.1 code only called for visual and hydrotest for this pressure class.

Critical Risk: A weld defect in the HCN line, undetected by B31.1 visual standards, could have resulted in a lethal atmospheric release within the process unit.

The 2026 Solution & ROI

The engineering architect ordered an immediate re-classification. The team implemented the following “Fix” protocol:

  • Re-Testing: Performed 100% Radiographic Testing (RT) on all butt welds to meet B31.3 Category M mandates.
  • Component Replacement: Swapped standard valves for bellows-sealed valves to ensure zero-leakage stems.
  • Administrative: Updated the P&ID and data sheets to reflect the correct jurisdictional boundary at the steam-utility-to-process-interface.

Final Result

Despite a 12% increase in immediate NDE costs, the project avoided a potential multi-million dollar environmental lawsuit and secured its 2026 Operating Permit on the first inspection attempt.

Regulatory Compliance: 100% Safety Rating: Platinum

V. 2026 Regulatory FAQ

How do ASME B31.3 fluid service categories impact material selection in 2026?
In 2026, material selection under B31.3 is highly dependent on the fluid category. For instance, Category M (toxic) services strictly prohibit the use of certain materials like cast iron or ductile iron for pressure-containing parts, requiring high-ductility alloys. Normal fluid service allows for a broader range of carbon steels, provided they meet impact test requirements for the design temperature.
Can I use B31.3 for a power plant’s high-pressure steam line?
While technically possible under specific owner agreements, it is generally non-compliant if the piping is considered “Boiler External Piping.” B31.1 is the legally mandated code for most jurisdictional steam-water cycles. Using B31.3 might result in a thinner pipe wall, which would fail to meet the more conservative ASME B31.1 allowable stress calculation safety margins required by boiler insurance underwriters.
What are the latest piping inspector certification requirements 2026?
As of 2026, inspectors must maintain updated API 570 certifications with specific endorsements for ASME B31.3 Section IX welding and B31.1 power piping. There is an increasing focus on digital radiography and Phased Array Ultrasonic Testing (PAUT) proficiency as part of the non-destructive examination (NDE) for B31.3 and B31.1 qualification tracks.
Why are B31.3 Category M fluid requirements so much stricter than B31.1?
The distinction lies in the fluid’s lethality. B31.1 manages energy (high pressure/temperature steam), where the main risk is a physical explosion. B31.3 Category M manages chemical toxicity, where even a microscopic leak of a substance like Hydrogen Cyanide can be fatal to personnel. Therefore, Category M mandates 100% RT and specialized leak tests that go beyond standard power piping hydrotests.

Conclusion: Selecting the Right Path

The choice between ASME B31.1 vs B31.3 is not merely a technical preference but a legal and safety mandate. In 2026, as industrial systems become more integrated, the lines between power piping vs process piping standards may blur at the interface. However, by strictly applying the jurisdictional definitions—focusing on the energy cycle for B31.1 and the chemical process for B31.3—engineers can ensure both the longevity of their assets and the safety of their personnel.
