Understanding PN in HDPE Pipes: The 2026 Engineering Standard
In modern hydraulic design, the term PN in HDPE Pipes refers to the “Pressure Nominal” rating, representing the maximum allowable internal pressure (in bar) that a pipe can withstand when conveying water at a reference temperature of 20°C. This classification is the cornerstone of fluid transport safety, ensuring that high-density polyethylene systems are matched correctly to their operational environment to prevent catastrophic wall failure or long-term creep deformation.
Key Definition:
PN (Pressure Nominal) is a numerical designation used in ISO 4427 piping standards to indicate the internal pressure rating. For example, a PN16 pipe is designed to handle 16 bar of pressure at 20°C for a service life of 50 years.
Quick Navigation
Knowledge Check: HDPE Pressure Ratings
1. What does the “PN” value specifically represent in HDPE piping?
Complete Course on
Piping Engineering
Check Now
Key Features
- 125+ Hours Content
- 500+ Recorded Lectures
- 20+ Years Exp.
- Lifetime Access
Coverage
- Codes & Standards
- Layouts & Design
- Material Eng.
- Stress Analysis
The Engineering Physics of PN in HDPE Pipes
The designation of PN in HDPE Pipes is governed globally by ISO 4427 piping standards and DIN 8074. Unlike metallic pipes, HDPE is a viscoelastic material, meaning its strength is a function of both time and temperature. The “PN” rating represents the hydrostatic strength of the pipe material (typically PE80 or PE100) after 50 years of continuous operation at 20 degrees Celsius.
Figure 1: Standardized markings for PN and SDR on industrial HDPE pipelines.
The Relationship Between PN and SDR
One cannot discuss PN without mentioning the Standard Dimension Ratio (SDR). The PN vs SDR relationship formula is the primary tool used by engineers to calculate wall thickness requirements. As the SDR decreases, the wall thickness increases, allowing the pipe to achieve a higher PN rating.
// PN vs SDR Relationship Formula
PN = (20 * MRS) / (C * (SDR – 1))
- PN: Pressure Nominal (bar)
- MRS: Minimum Required Strength (MPa) – e.g., 10 MPa for PE100
- C: Overall Design Coefficient (Standard safety factor is 1.25)
- SDR: Standard Dimension Ratio (OD / Minimum Wall Thickness)
HDPE Pipe Pressure Rating Chart 2026
When selecting materials for 2026 infrastructure projects, referencing the latest HDPE pipe pressure rating chart 2026 is mandatory for compliance. Below is a simplified data matrix for PE100 material, which is the industry standard for high-performance applications.
| SDR Rating | PN Rating (Bar) | Pressure Rating (PSI) | Application Level |
|---|---|---|---|
| SDR 41 | PN 4 | 58 PSI | Gravity Sewer / Drainage |
| SDR 26 | PN 6.3 | 91 PSI | Low Pressure Irrigation |
| SDR 17 | PN 10 | 145 PSI | Standard Water Mains |
| SDR 11 | PN 16 | 232 PSI | Industrial Effluent / Fire Mains |
| SDR 7.4 | PN 25 | 362 PSI | Mining & High-Head Hydro |
Figure 2: Visual mapping of wall thickness (SDR) relative to internal pressure capacity (PN).
Temperature Derating: The Silent Failure Factor
While a PE100 PN16 meaning suggests a 16-bar capacity, this is strictly at 20°C. In industrial scenarios where fluid temperatures reach 40°C or 50°C, the Temperature derating factors for HDPE must be applied. For example, at 40°C, the allowable pressure may drop to 70% of the nominal PN value. Failing to adjust the Maximum allowable operating pressure (MAOP) results in thermal expansion and wall thinning.
Case Study: PN in HDPE Pipes Failure Analysis

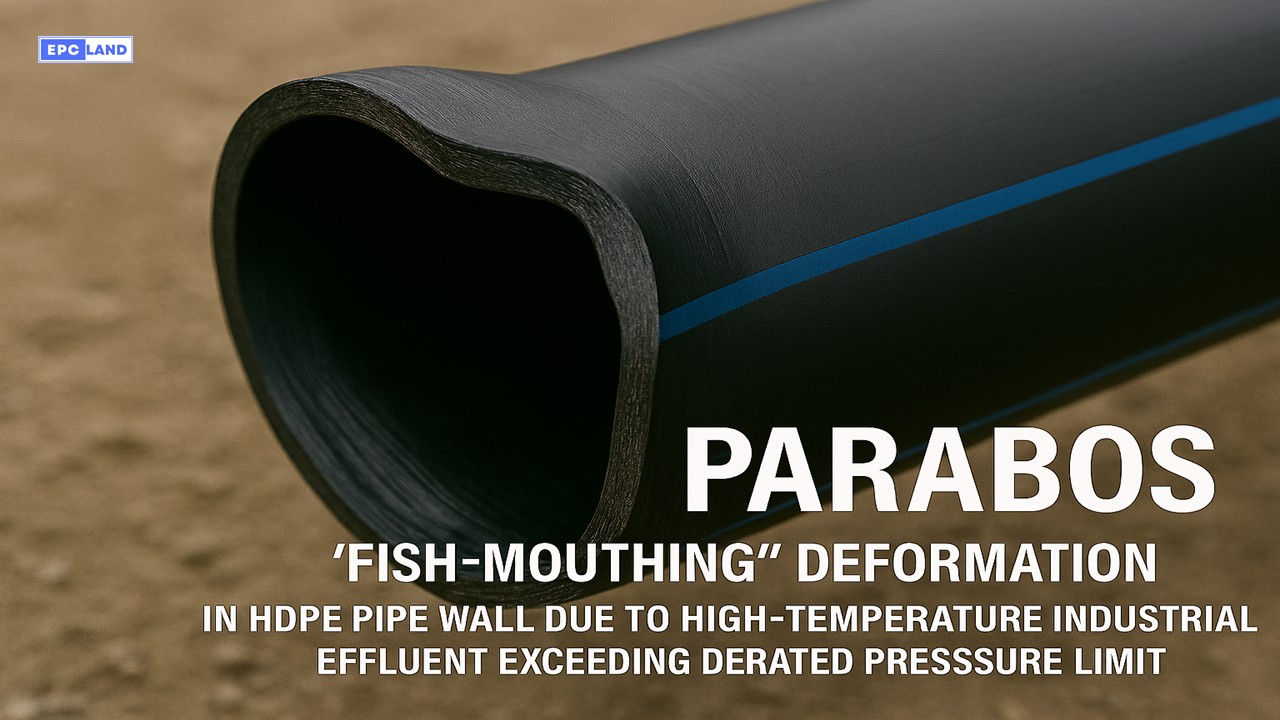

Figure 3: Ductile rupture and wall deformation in an HDPE line handling high-temperature effluent.
Location
Industrial Complex, Germany
Equipment
PE100 PN16 (SDR 11)
Condition
45°C @ 12.5 Bar
1. The Problem
A chemical processing facility utilized a PN16 rated HDPE pipeline to transport processed effluent. While the operating pressure of 12.5 bar was technically below the 16-bar nominal rating, the pipeline experienced severe wall thinning and eventual rupture within 14 months of commissioning. The design team failed to account for Temperature derating factors for HDPE, assuming the PN rating was static across all thermal ranges.
2. Engineering Analysis
Upon forensic review in early 2026, it was discovered that at a constant 45°C, the derating factor (fT) for PE100 is approximately 0.63. The actual Maximum allowable operating pressure (MAOP) was calculated as follows:
MAOP = 16 bar * 0.63
MAOP = 10.08 bar
The system was operating at 12.5 bar, which was 24% over the safe limit for that specific temperature. This led to accelerated “Rapid Crack Propagation” (RCP) and localized bulging.
3. The Solution & ROI
- The line was replaced with PN25 (SDR 7.4) pipe to maintain safety margins.
- Installed thermal monitoring sensors to auto-throttle pumps if effluent exceeds 40°C.
- Result: Zero leaks recorded in the 18 months following the upgrade.
- ROI: Despite the 40% higher material cost for PN25, the facility saved an estimated 250,000 Euros in cleanup costs and unplanned downtime.
EPCLand YouTube Channel
2,500+ Videos • Daily Updates
Engineering FAQ: PN in HDPE Pipes
What is the PE100 PN16 meaning for high-pressure water systems?
The term PE100 PN16 meaning refers to a pipe made from PE100 material with a Pressure Nominal rating of 16 bar. This indicates the pipe can safely handle 1.6 MPa of internal pressure at 20°C for a design life of 50 years, following the safety factors defined in ISO 4427 piping standards.
How do I calculate the Maximum allowable operating pressure (MAOP) for hot fluids?
To find the Maximum allowable operating pressure (MAOP), you must multiply the pipe’s PN rating by the specific Temperature derating factors for HDPE. For instance, if your fluid is 35°C, you apply a reduction coefficient (typically 0.8) to the PN to ensure the material does not exceed its long-term hydrostatic strength.
Where can I find the latest HDPE pipe pressure rating chart 2026?
The most current HDPE pipe pressure rating chart 2026 is typically provided by manufacturers adhering to ISO 4427 or DIN 8074 standards. You can also utilize the PN vs SDR relationship formula (PN = 20 * MRS / (C * (SDR – 1))) to verify ratings manually for custom SDR values.
Is PN rating affected by surge or water hammer?
Yes. While PN ratings provide a baseline for static pressure, transient surge pressures must be evaluated. In many engineering codes, the total pressure (Static + Surge) should not exceed 1.5 times the PN rating for short durations, though a more conservative 1.0 or 1.2 factor is recommended for high-frequency fatigue scenarios.
Summary of PN Classification
Correctly identifying and applying PN in HDPE Pipes is the difference between a resilient infrastructure and a costly failure. By understanding the interplay between the PN vs SDR relationship formula and environmental conditions like temperature, engineers in 2026 can design piping systems that meet their full 50-year service life expectancy without compromise.
