Tag: Wellhead

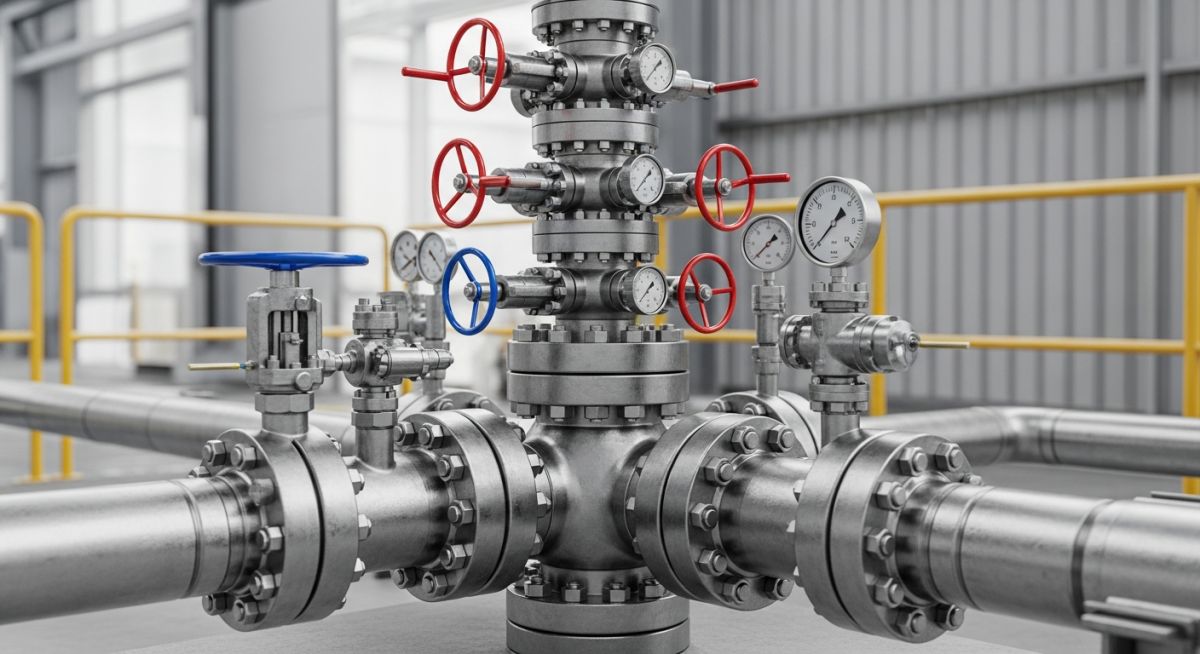

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the complete wellhead and Christmas tree assembly in a real-world industrial setting, establishing immediate engineering context. Description: A high-resolution, professional 3D render of a surface wellhead and Christmas tree assembly installed on an active oil and gas well, showcasing the intricate valves, pressure gauges, and heavy-duty piping flanges against a clean industrial background. SEO Alt Text: Surface wellhead and Christmas tree assembly with valves and pressure gauges on an oil and gas well site. Image Slug: surface-wellhead-and-christmas-tree-assembly Filename URL: https://epcland.com/wp-content/uploads/2026/06/surface-wellhead-and-christmas-tree-assembly.jpg Technical Infographic: Purpose: To provide a clear, labeled technical schematic that distinguishes the boundary, components, and functional differences between the wellhead and the Christmas tree. Description: A detailed engineering diagram comparing the wellhead section (casing heads, tubing hanger) at the bottom with the Christmas tree section (master valves, wing valves, swab valve, choke) at the top, clearly marking the boundary interface and API 6A design elements. SEO Alt Text: Labeled engineering diagram showing the components and differences between a wellhead and a Christmas tree. Image Slug: wellhead-vs-christmas-tree-diagram Filename URL: https://epcland.com/wp-content/uploads/2026/06/wellhead-vs-christmas-tree-diagram.jpg Meta Data: Focus Keyword: wellhead and christmas tree Title: Wellhead and Christmas Tree: Functions, Components, Differences, and Codes Slug: wellhead-and-christmas-tree-guide Meta Description: Learn the key differences, functions, components, and API design codes for the wellhead and christmas tree in oil and gas engineering. Tags: Wellhead, Christmas Tree, Oil and Gas, Drilling Engineering, API 6A, Petroleum Engineering, Well Control Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 Understanding Wellhead and Christmas Tree Systems in Oil and Gas Wellhead and Christmas Tree Assembly: The combined pressure-containing and flow-controlling surface equipment installed at the top of an oil or gas well to provide structural support, casing suspension, and barrier isolation in strict compliance with API Specification 6A standards. In my 20 years of managing high-pressure piping systems and wellhead installations, I have seen many young engineers confuse these two distinct components. They often treat them as a single piece of equipment. On the construction site, however, they serve entirely different purposes. The wellhead is the structural foundation of your well, while the christmas tree is the control center for production. When you are dealing with surface pressures exceeding 10,000 psi, understanding the boundary between these two systems is not just academic. It is a matter of operational safety and regulatory compliance. Let us break down their functions, components, and design codes so you can confidently specify, inspect, and operate them in the field. Key Engineering Takeaways The wellhead is installed during drilling to suspend casing strings and seal the wellbore. The christmas tree is installed after completion to control fluid flow and provide intervention access. Both systems must comply with API Specification 6A for pressure and temperature ratings. The tubing hanger acts as the physical and functional bridge between the wellhead and the tree. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 Under API 6A (ISO 10423), which component represents the critical boundary interface between the wellhead system and the Christmas tree system, and what is its primary dual-functionality? The Tubing Head Spool; it suspends the intermediate casing string and provides the primary structural support for the production tree. The Tubing Hanger; it suspends the production tubing string, isolates the tubing-by-casing annulus pressure, and provides an internal profile for a back-pressure valve (BPV) to allow safe removal or installation of the Christmas tree. The Lower Master Valve; it isolates the reservoir pressure from the wellhead and provides a landing shoulder for the casing hanger. The Casing Spool; it seals off the production casing and provides the structural connection to the flowline. Next Question → Question 2 of 3 During well intervention operations (such as wireline or coiled tubing) on a flowing production well, which valve on the Christmas tree is designated as the primary access point to the wellbore, and why is the Lower Master Valve (LMV) typically kept open and untouched during these operations? The Swab Valve; the LMV is kept open to prevent wireline tools from getting stuck in the master valve bore and to preserve the LMV as an undamaged, ultimate backup barrier. The Production Wing Valve; the LMV is kept open to allow continuous chemical injection through the kill wing valve during intervention. The Upper Master Valve; the LMV is kept open because it is pneumatically actuated and will automatically close upon a surface ESD signal, cutting the wireline. The Choke Valve; the LMV is kept open to maintain a constant pressure drop across the tree during tool string deployment. Next Question → Question 3 of 3 An offshore production wellhead and Christmas tree system is being designed for a sour service environment with a partial pressure of H2S exceeding 0.05 psi (0.3 kPa). According to API 6A and NACE MR0175/ISO 15156, which material class must be specified for the pressure-containing carbon or low-alloy steel components, and what is the primary metallurgical restriction? Material Class AA (General Service); requires carbon steel with a maximum hardness of 35 HRC to prevent chloride stress corrosion cracking. Material Class DD (Sour Service); requires carbon or low-alloy steels to be qualified under NACE MR0175/ISO 15156 with strict hardness limits (typically ≤ 22 HRC) to mitigate sulfide stress cracking (SSC). Material Class EE (Sour Service); requires solid nickel-based alloys with no hardness restrictions, as long as the yield strength exceeds 100 ksi. Material Class ZZ (Extreme Service); requires duplex stainless steels with a minimum pitting resistance equivalent number (PREN) of 40, regardless of H2S partial pressure. 🎉 Quiz Completed! You have passed the engineering review criteria. Core Technical Deep-Dive What Distinguishes the Wellhead and Christmas Tree? Wellhead and Christmas Tree Differences: The structural and functional boundary where the wellhead suspends casing strings and seals the wellbore, while the christmas tree controls the production fluid flow and provides vertical access for intervention under API 6A guidelines. To understand the difference, we must look at the sequence of operations. The wellhead is the permanent metal structure welded or threaded onto the conductor pipe during the earliest stages of drilling. It remains in place for the entire life of the well. Its primary job is to support the massive hanging weight of the casing strings and to seal off the annular spaces between them. The christmas tree, on the other hand, is bolted or clamped to the top of the wellhead assembly after the well is completed. If the wellhead is the foundation, the tree is the plumbing manifold. It regulates the flow of oil, gas, or water out of the well, and allows operators to inject chemicals or perform wireline and coiled tubing interventions. Structural Load and Pressure Calculations As a piping engineer, I always look at the mechanical loads. The wellhead must support the combined weight of the casing strings. Let us calculate the suspended load of a typical casing string to understand the forces at play. Example: Casing Hanger Load Calculation Casing Size: 9-5/8 inches Unit Weight: 47 lb/ft Total Depth: 12,000 feet Mud Density: 11.5 ppg (pounds per gallon) 1. Calculate Air Weight (W_air): W_air = 47 lb/ft * 12,000 ft = 564,000 lbs 2. Calculate Buoyancy Factor (BF) in 11.5 ppg mud: BF = 1 - (Mud Density / Steel Density) BF = 1 - (11.5 / 65.5) = 0.824 3. Calculate Buoyed Weight (W_buoyed): W_buoyed = 564,000 lbs * 0.824 = 464,736 lbs (approx. 210.8 Metric Tons) This massive load of 464,736 lbs is suspended entirely by the casing hanger inside the casing head. The wellhead body must transfer this load safely to the conductor pipe and the surrounding soil without collapsing or deforming the casing. Field Warning: Hanger Slippage If the casing hanger is not set correctly or if the wellhead bowl is contaminated with drilling mud, the hanger slips can fail. This causes the casing string to drop, leading to catastrophic wellbore collapse and loss of primary pressure containment. Always clean and inspect the wellhead bowl before landing the hanger. The Anatomy of a Christmas Tree The christmas tree consists of a series of gate valves and a choke valve. The lower master valve is your primary barrier; it is rarely operated and is kept open during production. The upper master valve is the secondary barrier, used for routine isolation. The wing valves control daily flow, while the choke valve regulates the pressure and flow rate of the fluids. API 6A Material and Pressure Ratings How Do API 6A Specifications Apply? API 6A Design Standards: The international manufacturing and testing specifications governing pressure ratings, material classes, and temperature ranges for surface wellhead and christmas tree equipment to ensure structural integrity under extreme operating conditions. When specifying equipment under API 6A, you must select the correct material class and temperature rating based on the well fluid composition and environmental conditions. The table below outlines the standard API 6A material classes for wellhead and tree components. Material Class Minimum Service Conditions Primary Material Requirements AA - General Service Non-corrosive fluids Carbon or low-alloy steel BB - General Service Slightly corrosive (CO2) Stainless steel lined or solid stainless DD - Sour Service Sour service (H2S), non-corrosive Alloy steel complying with NACE MR0175 EE - Sour Service Sour service (H2S) and corrosive (CO2) Stainless steel complying with NACE MR0175 HH - Extreme Sour Highly corrosive and sour fluids Nickel-based alloys (Inconel 625 cladding) Technical Mapping & Specifications Matrix To help you map out your system design, I have compiled this technical specifications matrix. It links each major component to its primary function, design code, and typical field pressure ratings. Component Primary Function Design Code Pressure Ratings (psi) Casing Head Suspends surface casing; seals annulus API 6A / ISO 10423 2,000 to 10,000 Tubing Spool Suspends production tubing; provides alignment API 6A 5,000 to 15,000 Master Valve Primary wellbore isolation barrier API 6A / API 6D 5,000 to 20,000 Choke Valve Regulates flow rate and downstream pressure API 6A / API 17D Up to 15,000 Site Verification and Commissioning Checklist Commissioning the Wellhead and Christmas Tree Safely Wellhead and Christmas Tree Commissioning: The systematic field verification, pressure testing, and barrier validation protocol executed prior to well hand-over to guarantee zero-leakage performance under dynamic production loads. Before you hand over a well to the production team, you must perform a rigorous commissioning sequence. In my experience, skipping even a minor step on this checklist can lead to gas migration or valve leaks that are incredibly expensive to remediate once the well is online. Pre-Commissioning Field Checklist Visual Inspection: Verify that all flange bolts are fully engaged and torqued to the specified values in accordance with API 6A guidelines. Ring Gasket Verification: Ensure that only new, unused BX or RX ring gaskets are installed. Never reuse a metal ring gasket. Hydrostatic Testing: Perform a high-pressure hydrostatic test of the entire assembly to 1.5 times the rated working pressure for at least 15 minutes. Valve Functionality: Cycle all gate valves on the christmas tree from fully open to fully closed to verify smooth operation and correct torque limits. Annulus Monitoring: Confirm that pressure gauges are installed on all casing and tubing head side outlets to monitor for gas migration. Field Case Study: High-Pressure Gas Well Field Case Study: Real-World Application The Problem: Sustained Casing Pressure (SCP) On a high-pressure gas well in the Middle East, the operations team noticed a steady pressure build-up of 1,200 psi in the production casing annulus (Annulus A). Initial diagnostics suggested either a failure of the production packer downhole or a leak in the tubing hanger seal inside the wellhead spool. If the tubing hanger seal was leaking, it meant gas was bypassing the primary barrier and pressurizing the wellhead housing. The Outcome: Diagnostic and Remediation I was called in to analyze the seal integrity. We performed a selective pressure test of the tubing hanger secondary pack-off seal using the wellhead injection port. The test confirmed that the elastomer seal had degraded due to high-temperature gas exposure. Instead of killing the well and pulling the tubing, we utilized the wellhead's active sealant injection system. We injected a high-viscosity, API 6A-approved polymer sealant directly into the hanger seal channel. This successfully restored the barrier, reducing the annulus pressure to zero and saving the operator an estimated 1.5 million dollars in workover costs. This case highlights why choosing the correct elastomer material for your wellhead seals is just as important as the steel itself. For high-temperature, high-pressure (HTHP) wells, always specify Viton or metal-to-metal seals over standard nitrile rubber. Frequently Asked Engineering Questions What is the main difference between a wellhead and a christmas tree? The wellhead is the structural foundation that suspends casing and seals the wellbore during drilling. The christmas tree is the valve assembly installed on top of the wellhead after completion to control production flow and provide intervention access. Which API standard governs wellhead and christmas tree design? Both systems are primarily designed, manufactured, and tested in accordance with API Specification 6A (Specification for Wellhead and Tree Equipment), which is equivalent to the international standard ISO 10423. What is the purpose of the swab valve on a christmas tree? The swab valve is the topmost vertical valve on the christmas tree. It provides direct vertical access to the wellbore for wireline, coiled tubing, or slickline tools while keeping the well under pressure control. Can a wellhead be reused on another well? No, the wellhead housing is permanently welded or threaded to the casing strings and cemented into the ground. However, the christmas tree and some internal components like tubing hangers can be salvaged, refurbished, and reused after proper recertification. What is the difference between API 6A and API 6D valves? API 6A valves are designed for high-pressure upstream wellhead and tree applications (typically 2,000 to 20,000 psi) with strict material and testing requirements. API 6D valves are designed for pipeline and transportation systems, operating at lower relative pressures. Why are there two master valves on some christmas trees? High-pressure or high-risk wells (such as sour gas wells) require redundant barriers. The lower master valve is kept open and acts as an emergency backup, while the upper master valve is used for routine isolation to minimize wear on the primary barrier.
