Tag: piping engineer

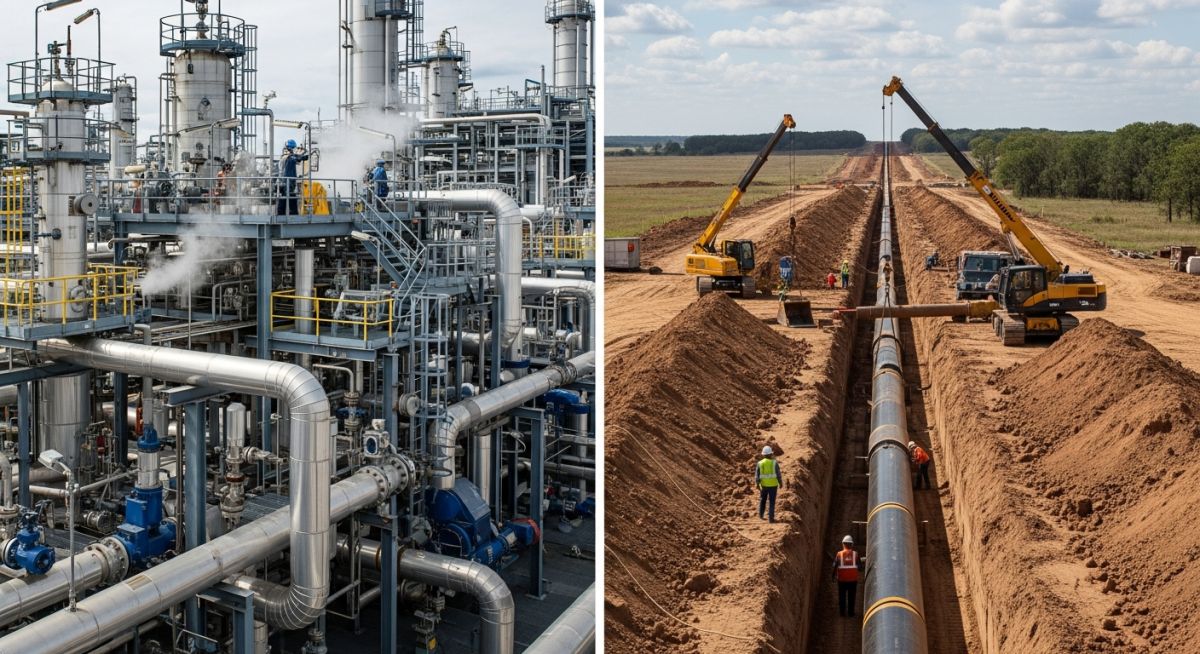

🛠️ EPCLAND WORKSPACE CONTROL PANEL ⚠️ DELETE THIS ENTIRE CONTAINER BOX BEFORE PUBLISHING THE BLOG POST Hero Image: Purpose: To visually introduce the core contrast between facility-based piping systems and cross-country pipeline infrastructure. Description: A split-screen graphic showing a complex industrial chemical plant piping system on one side and a cross-country pipeline construction site on the other. SEO Alt Text: Split-screen comparison of industrial plant piping and cross-country pipeline construction. Image Slug: piping-vs-pipeline-engineering-comparison Filename URL: https://epcland.com/wp-content/uploads/2026/07/piping-vs-pipeline-engineering-comparison.jpg Technical Infographic: Purpose: To provide a clear, structured technical comparison of the design codes, boundaries, and engineering scopes of both roles. Description: An infographic chart comparing piping and pipeline engineering across key parameters like design codes, fluid transport, and boundary limits. SEO Alt Text: Infographic chart comparing piping engineering and pipeline engineering design codes and scopes. Image Slug: piping-engineer-vs-pipeline-engineer-comparison-chart Filename URL: https://epcland.com/wp-content/uploads/2026/07/piping-engineer-vs-pipeline-engineer-comparison-chart.jpg Meta Data: Focus Keyword: piping engineer vs pipeline engineer Title: Piping Engineer vs Pipeline Engineer: Key Differences and Career Roles Slug: piping-engineer-vs-pipeline-engineer Meta Description: Discover the key differences between a piping engineer and a pipeline engineer, including their distinct roles, design scopes, and industries. Tags: piping engineer, pipeline engineer, piping vs pipeline, engineering roles, oil and gas engineering, piping design, pipeline design Author: Atul Singla | Piping Engineering Expert | Updated: May 2026 Piping Engineer vs Pipeline Engineer: Key Differences and Roles Explained [Piping Engineer vs Pipeline Engineer Roles]: This technical comparison defines the distinct boundaries between facility-bound piping design governed by ASME B31.3 and cross-country pipeline systems regulated under ASME B31.4 and ASME B31.8. Understanding these differences ensures correct code compliance, material selection, and stress analysis execution across diverse oil and gas projects. In my 20 years of experience executing major oil and gas projects, I have often noticed a common point of confusion among clients and junior engineers: the distinction between piping engineering and pipeline engineering. While both fields deal with the transport of fluids through cylindrical conduits, they operate in entirely different engineering dimensions. Confusing these roles on a project can lead to severe design mismatches, regulatory non-compliance, and cost overruns. Piping engineering is a highly concentrated, three-dimensional puzzle. It deals with complex networks of pipes confined within a plant's battery limits—such as refineries, chemical plants, or offshore platforms. On the other hand, pipeline engineering is a linear, geographical challenge. It involves transporting fluids over hundreds of kilometers across varying terrains, public roads, rivers, and international borders. Key Takeaways from an Industry Expert Code Jurisdictions: Piping design is governed by ASME B31.3, while pipelines fall under ASME B31.4 or ASME B31.8. Stress Profiles: Piping stress is dominated by thermal expansion and high-temperature gradients, whereas pipeline stress is dominated by soil-pipe interaction, geohazards, and internal pressure. Material Selection: Piping utilizes a wide array of alloy steels, stainless steels, and non-metallics; pipelines primarily rely on high-strength carbon steel line pipes (API 5L grades). Boundary Limits: The physical transition between these two disciplines occurs at the plant battery limit, typically at the first isolation valve or pig launcher/receiver flange. Interactive Engineering Quiz EPCLAND Portal Question 1 of 3 In a midstream oil and gas project, establishing the jurisdictional boundary between "piping" and "pipeline" is critical for regulatory compliance. Which of the following correctly identifies the typical code transition and design focus shift when moving from a cross-country liquid petroleum pipeline to the inside of a delivery terminal facility? Transition from ASME B31.3 (Pipeline) to ASME B31.4 (Piping); shift from soil-structure interaction to high-cycle thermal fatigue. Transition from ASME B31.4 (Pipeline) to ASME B31.3 (Piping); shift from hoop stress dominated by internal pressure and geohazards to complex 3D thermal expansion and nozzle load limitations. Transition from ASME B31.8 (Pipeline) to ASME B31.1 (Piping); shift from transient surge analysis to creep-rupture design. Transition from API 5L (Pipeline) to ASTM A106 (Piping); shift from cathodic protection design to hydraulic transient mitigation. Next Question → Question 2 of 3 A Piping Engineer and a Pipeline Engineer are performing stress analyses on their respective scopes for a gas compressor station. Which statement accurately contrasts their primary analytical considerations and software methodologies? The Piping Engineer uses CAESAR II to model discrete rigid/flexible pipe supports and thermal expansion loops under ASME B31.3; the Pipeline Engineer uses specialized software (e.g., PIPELINERS or CAESAR II soil models) to analyze continuous soil-pipe interaction, overburden loads, and geohazards under ASME B31.8. The Piping Engineer focuses primarily on transient hydraulic surge pressures using SPS; the Pipeline Engineer focuses on localized wind and seismic structural steel structural interactions using STAAD Pro. The Piping Engineer designs for hoop stress using a design factor (F) based on class location; the Pipeline Engineer designs for thermal expansion using expansion joints and spring hangers. The Piping Engineer assumes continuous elastic foundation support; the Pipeline Engineer assumes rigid anchor points at every change in direction. Next Question → Question 3 of 3 How do the roles of a Pipeline Engineer and a Piping Engineer differ regarding corrosion mitigation and material specification for a wet, sour gas service? The Piping Engineer relies primarily on external cathodic protection (impressed current) and high-density polyethylene (HDPE) solid wall pipe; the Pipeline Engineer relies on corrosion inhibitors and corrosion resistant alloys (CRA) cladding. The Piping Engineer specifies materials per ASME B31.8 using API 5L PSL2 steel with sacrificial anodes; the Pipeline Engineer specifies materials per ASME B31.3 using ASTM A106 Grade B with impressed current cathodic protection (ICCP). The Piping Engineer focuses on internal corrosion/erosion control via chemical injection, material selection (e.g., duplex stainless steel, NACE MR0175/ISO 15156 compliance), and piping geometry; the Pipeline Engineer focuses on external corrosion control via protective coatings (e.g., 3LPE/FBE) combined with Cathodic Protection (CP), alongside internal pigging program design. The Piping Engineer designs for soil resistivity and stray current interference; the Pipeline Engineer designs for localized galvanic corrosion at structural pipe shoes. 🎉 Quiz Completed! You have passed the engineering review criteria. Technical Boundaries and Code Jurisdictions Piping Engineer vs Pipeline Engineer: Core Technical Differences [Facility Piping and Cross-Country Pipelines]: Piping engineering focuses on complex, high-temperature, and high-pressure fluid transport systems within a defined plant boundary, whereas pipeline engineering manages long-distance transport networks across varying geographical terrains. Each discipline relies on unique stress profiles, soil-structure interactions, and distinct design codes to maintain system integrity. To understand the technical divide, we must look at how each discipline calculates wall thickness and manages stress. The mathematical models and safety factors used by a piping engineer are fundamentally different from those used by a pipeline engineer. 1. Wall Thickness Calculations and Design Philosophy In facility piping design under ASME B31.3, the minimum required wall thickness (t) for straight pipe under internal pressure is calculated using the following formula: t = (P * D) / (2 * (S * E * W + P * Y)) Where: • P = Internal design gage pressure • D = Outside diameter of the pipe • S = Stress value for material from Table A-1 • E = Quality factor from Table A-1A or A-1B • W = Weld joint strength reduction factor • Y = Coefficient from Table 304.1.1 Conversely, a pipeline engineer working under ASME B31.8 (for gas transmission) uses a design formula based on the Barlow equation, modified by environmental and location factors: t = (P * D) / (2 * S * F * E * T) Where: • S = Specified Minimum Yield Strength (SMYS) of the pipe • F = Design Factor (determined by the Class Location, ranging from 0.72 for sparsely populated Class 1 areas to 0.40 for densely populated Class 4 areas) • E = Longitudinal joint factor • T = Temperature derating factor FIELD WARNING: Never apply pipeline design factors (F = 0.72) inside a process plant. ASME B31.3 does not recognize location-based design factors. Doing so will result in under-designed pipe walls that cannot withstand the high thermal and cyclic stresses typical of plant operations, leading to catastrophic joint failures. 2. Stress Analysis and Support Systems Piping stress analysis is highly focused on thermal expansion. Because process plants operate at extreme temperatures (sometimes exceeding 500°C), pipes expand significantly. Piping engineers use software like CAESAR II to design expansion loops, select spring hangers, and place rigid anchors to guide this thermal growth without overloading equipment nozzles (such as pumps and compressors governed by API 610). Pipeline stress analysis, however, is dominated by soil-pipe interaction. Pipelines are buried underground, meaning the surrounding soil acts as a continuous, non-linear spring restraining the pipe. Pipeline engineers must analyze geohazards, soil settlement, seismic activity, and road crossings. They use specialized software like AutoPIPE or pipeline-specific modules to model how the soil restrains the pipe during pressure and temperature changes. Code and Design Parameter Comparison Design Parameter Piping Engineering (Plant) Pipeline Engineering (Cross-Country) Primary Design Codes ASME B31.3, ASME B31.1 ASME B31.4, ASME B31.8, ISO 13623 Material Standards ASTM A106, A333, A312, Alloy Steels API 5L (Grades X52 to X80) Dominant Stress Type Thermal expansion, cyclic fatigue, structural loads Soil restraint, hoop stress, geohazards, bending Support Methods Pipe racks, spring hangers, shoes, guides Continuous soil bedding, anchor blocks, trenching Corrosion Mitigation Corrosion allowance (1.5mm to 6mm), painting External coatings (3LPE/FBE) + Cathodic Protection Inspection & Testing Hydrotesting (1.5x design pressure), NDT (RT/UT) Hydrotesting (1.25x), Intelligent Pigging (ILI) Technical Mapping & Specifications Matrix Technical Entity Piping Application Pipeline Application Reference Standard Flanges & Fittings ASME B16.5, ASME B16.9, ASME B16.11 MSS SP-75, ASME B16.47 (Series A/B) ASME Standards Valves API 600, API 602, API 609 (Gate, Globe, Butterfly) API 6D (Full-bore Ball valves for pigging) API Standards Overpressure Protection Pressure Safety Valves (PSV) per ASME Sec VIII Surge relief systems, fast-acting gas valves API 520 / API 521 Stress Software CAESAR II, AutoPIPE (Facility mode) CAESAR II (Pipeline module), PIPENET, Stoner Industry Software Engineering Interface Verification Checklist Piping Engineer vs Pipeline Engineer Interface Checklist [Battery Limit Interface Management]: The physical and regulatory transition point between facility piping and cross-country pipelines requires strict coordination to prevent design gaps. This checklist establishes the critical verification steps for managing the battery limit interface under ASME B31.3 and ASME B31.4/B31.8 rules. When executing a project that transitions from a cross-country pipeline into a processing facility, the interface between the piping engineer and the pipeline engineer must be managed with extreme precision. Use this checklist to verify that no design parameters are missed at the battery limit. Interface Verification Checkpoints Define Code Transition Point: Clearly mark the exact physical location where ASME B31.4/B31.8 ends and ASME B31.3 begins (typically the first isolation valve or the pig launcher/receiver flange). Coordinate Design Pressures: Ensure that the pipeline design pressure matches the facility piping design pressure, taking into account potential transient surge pressures calculated via hydraulic analysis. Verify Material Compatibility: Confirm that the transition weld between high-strength pipeline steel (e.g., API 5L X65) and facility piping steel (e.g., ASTM A106 Gr. B) uses a qualified welding procedure with appropriate pre-heat and post-weld heat treatment (PWHT). Anchor Block Load Sharing: Verify that the pipeline anchor block is designed to absorb all soil-restrained axial forces, preventing them from transferring into the plant's piping system and overloading equipment nozzles. Cathodic Protection Isolation: Ensure that monolithic isolation joints are installed at the battery limit to electrically isolate the buried pipeline (which uses active cathodic protection) from the grounded plant piping system. Pigging Clearance: Confirm that all piping components upstream of the pig receiver (including valves and bends) have a constant internal diameter matching the pipeline to prevent the pig from getting stuck. Field Case Study: Real-World Application Field Case Study: Real-World Application The Problem: Battery Limit Stress Overload During the commissioning phase of a gas processing plant in the Middle East, the plant's pig receiver nozzle experienced severe distortion, leading to flange leakage. The pipeline stress engineer and the facility piping engineer had worked in silos. The pipeline engineer assumed the plant piping would absorb the thermal expansion, while the piping engineer assumed the buried pipeline was fully self-restrained by the soil. As a result, the high thermal expansion from the hot process piping pushed directly into the pipeline, causing excessive bending moments on the pig launcher nozzle that exceeded API 6D limits by 180%. The Outcome: Integrated Stress Resolution I was brought in to resolve this critical interface issue. We performed a coupled stress analysis using CAESAR II, modeling both the buried pipeline and the above-ground facility piping in a single software file. To solve the problem, we designed a massive concrete anchor block at the fence line, isolating the pipeline's soil-restrained forces from the plant's thermal movements. We also added a 3D expansion loop on the facility side. This reduced the nozzle loads by 65%, completely stopped the flange leakage, and brought the entire system into full compliance with both ASME B31.3 and ASME B31.8. This case study highlights why the roles of a piping engineer and a pipeline engineer must be coordinated. A failure to understand how soil-pipe interaction on the pipeline side affects rigid piping supports on the facility side can lead to catastrophic mechanical failures. Frequently Asked Engineering Questions Frequently Asked Engineering Questions What is the primary difference in design codes between a piping engineer and a pipeline engineer? The primary difference lies in the governing codes. A piping engineer designs systems inside industrial plants using ASME B31.3 (Process Piping) or ASME B31.1 (Power Piping). A pipeline engineer designs cross-country transport systems using ASME B31.4 (Liquid Transportation) or ASME B31.8 (Gas Transmission). These codes use different safety factors, material allowable stresses, and testing requirements. How does stress analysis differ between piping and pipeline systems? Piping stress analysis focuses on thermal expansion, high-temperature gradients, and structural steel support interactions. Pipeline stress analysis is dominated by soil-pipe interaction, geohazards (like landslides or seismic activity), and internal pressure. Pipelines are continuously supported by soil, which requires non-linear spring modeling, whereas piping uses discrete supports like hangers and guides. Can a piping engineer easily transition to a pipeline engineering role? While the fundamental principles of fluid mechanics and materials are the same, a transition requires learning new skills. A piping engineer must master soil mechanics, geohazards, pipeline routing, cathodic protection, and pipeline-specific codes like ASME B31.4/B31.8. Similarly, a pipeline engineer transitioning to piping must learn complex 3D routing, thermal expansion loop design, and plant equipment nozzle load limits. Why do pipeline designs use variable design factors while piping designs use fixed safety factors? Pipelines traverse public areas, so their design must account for population density. ASME B31.8 defines "Class Locations" (Class 1 to Class 4) based on the number of buildings near the pipeline. Denser areas require a lower design factor (higher safety margin) to protect the public. Plants are controlled industrial environments, so ASME B31.3 uses a fixed safety factor based on material properties rather than location. How is corrosion protection managed differently in piping versus pipelines? Piping systems rely heavily on internal corrosion allowances (typically 1.5mm to 6.0mm added to the wall thickness) and external painting. Pipelines, being buried, rely on high-performance external coatings (like Fusion Bonded Epoxy or 3-Layer Polyethylene) combined with active Cathodic Protection (CP) systems to prevent soil-induced corrosion. What are the typical software tools used by piping and pipeline engineers? Piping engineers use 3D modeling software like PDMS, E3D, or SmartPlant 3D, and stress analysis tools like CAESAR II. Pipeline engineers use GIS software for routing, hydraulic modeling tools like SPS (Stoner Pipeline Simulator) or PIPENET, and specialized stress analysis software like AutoPIPE or CAESAR II's pipeline module to model soil-pipe interaction.
