What is a Slurry Pump? Engineering Guide to Slurry Pump Selection and Types

A slurry pump is a specialized type of centrifugal or positive displacement pump designed specifically to handle Slurry Pump Selection challenges involving high concentrations of solid particles. Unlike standard water pumps, which suffer catastrophic failure when exposed to abrasives, slurry pumps are engineered with sacrificial wear parts and heavy-walled castings. The fluid, or "slurry," consists of a liquid carrier (typically water) and a solid phase which can range from fine silts to large, jagged rocks.

In 2026, the engineering focus has shifted toward maximizing the "Mean Time Between Failures" (MTBF) by optimizing the hydraulic profile of the pump. Slurries are categorized into two types: Settling Slurries, where particles are large enough to sink if the velocity drops, and Non-settling Slurries, which behave like a pseudo-homogeneous thick fluid. Understanding this distinction is the cornerstone of effective Slurry Pump Selection.

To achieve a high-ranking Slurry Pump Selection strategy, engineers must look beyond the Flow (Q) and Head (H) parameters. The following four variables dictate the longevity of the installation:

• Solid Concentration (Cw): Measured by weight or volume. Higher concentrations increase the fluid density and viscosity, requiring a "derating" of the pump's water-based performance curves.
• Particle Size (d50): The median particle size determines whether the pump requires a rubber liner (fine particles) or a hard metal alloy (large, sharp particles).
• Particle Shape: Angular or sharp particles accelerate erosion via "cutting wear," whereas rounded particles cause "deformation wear."
• Critical Settle Velocity: The Slurry Pump Selection must ensure that the pipe velocity remains 20-30% above the settling point to prevent "sanding up" of the lines.

Metallurgy is the "shield" of the pump. During Slurry Pump Selection, choosing the wrong material can lead to a casing breach in less than 48 hours of operation. In 2026, the industry standard for abrasive resistance remains High-Chrome White Iron (27% Cr), which provides a hardness of 600+ Brinell. This is ideal for slurries with pH values between 5 and 12.

However, for acidic slurries (pH < 4) found in leaching circuits, Natural Rubber or Polyurethane liners are preferred. Rubber liners utilize an "elastic rebound" principle: when a particle hits the liner, the rubber deforms and then bounces the particle back into the stream, absorbing minimal energy and sustaining less damage.

The architectural variety in Slurry Pump Selection is driven by the physical constraints of the plant and the rheology of the slurry. Engineers must distinguish between the kinetic energy delivery of centrifugal units and the displacement mechanism of piston-driven units. In 2026, the integration of smart sensors into these pump types allows for real-time monitoring of liner thinning.

Centrifugal Slurry Pumps

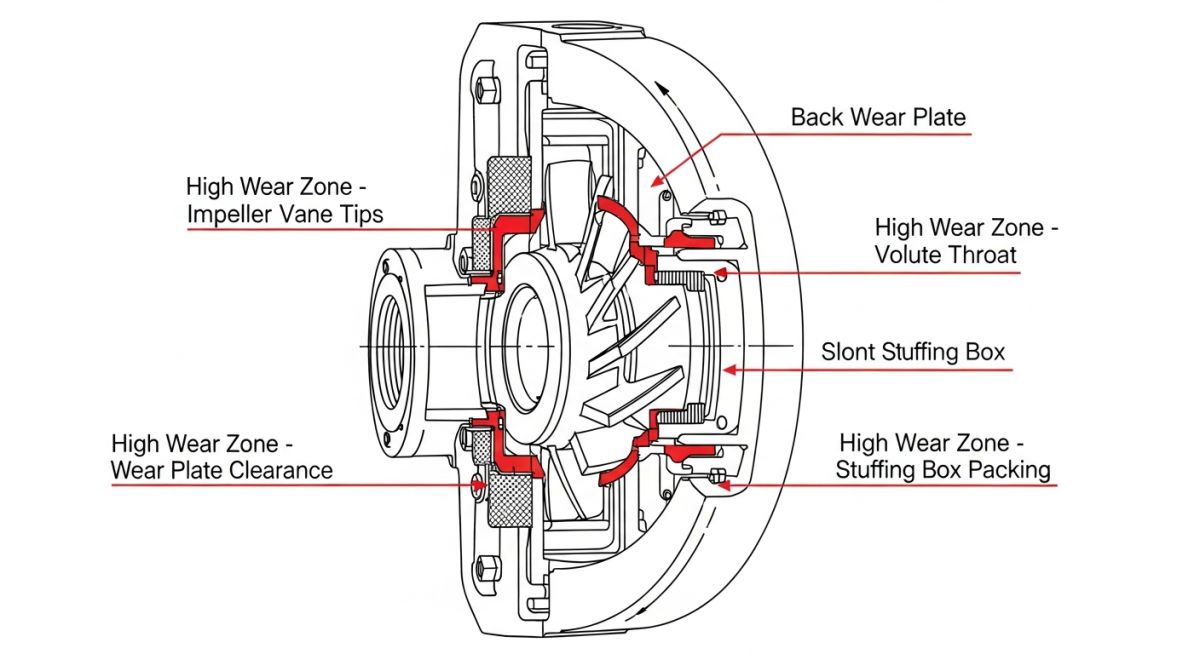

Centrifugal units are the workhorses of the mining industry. They utilize a heavy-duty impeller to impart centrifugal force to the slurry. Key to Slurry Pump Selection in this category is the impeller clearance; "expeller" vanes are often used on the back of the impeller to create a secondary seal, preventing solids from entering the gland area.

Positive Displacement Slurry Pumps

When the solids concentration (Cw) exceeds 50% or the fluid is extremely viscous (paste-like), Slurry Pump Selection shifts toward Positive Displacement (PD) pumps. These include diaphragm and piston pumps capable of generating extremely high pressures for long-distance tailings pipelines spanning several kilometers.

Horizontal vs. Vertical Slurry Pumps

Horizontal pumps are easier to maintain due to ground-level access but require significant floor space. Vertical cantilever pumps (sump pumps) are essential for Slurry Pump Selection in floor drainage or tank transfer applications where the motor must remain above the fluid level to prevent flooding.

Regulatory compliance ensures that Slurry Pump Selection meets safety and reliability benchmarks. The primary standards governing these units include:

• HI 12.1-12.6: Hydraulic Institute standards for rotodynamic slurry pumps.
• ASME B73.1: Though for chemical pumps, it provides a baseline for centrifugal pump reliability.
• ISO 5199: Technical specifications for centrifugal pumps (Class II).

Refining your Slurry Pump Selection process requires moving beyond the datasheet. Based on two decades of troubleshooting abrasive systems, here are the critical field-proven insights for 2026:

• ● The 120% Rule: Always design your suction piping to be at least one size larger than the pump suction flange to minimize friction losses and prevent NPSH-related cavitation in Slurry Pump Selection.
• ● VFD Versatility: In 2026, never install a fixed-speed slurry pump. The ability to slow down the pump as the impeller wears is the only way to maintain a constant discharge pressure without wasting energy.
• ● Gland Seal Water: Ensure gland seal water pressure is at least 10-15 PSI higher than the pump discharge pressure. If the seal fails, abrasive solids will destroy the shaft sleeve in hours.
• ● Maintenance Clearances: Always select a "back pull-out" design during Slurry Pump Selection. This allows the rotating assembly to be removed without disturbing the suction or discharge piping.
