What is Navisworks? Components, Versions, and Navisworks Software Functions

What is Navisworks in the 2026 BIM Ecosystem?

In the 2026 digital construction landscape, Navisworks stands as the premier project review software used to facilitate BIM Coordination Workflows across global engineering teams. Unlike authoring tools such as Revit or Civil 3D, Navisworks acts as a high-performance aggregator. It allows stakeholders to open and combine large 3D models from various CAD platforms into a single environment without overwhelming hardware resources.

By leveraging its unique ability to handle massive datasets, Navisworks Software Functions enable real-time navigation and visualization of complex systems. This capability is critical for large-scale infrastructure projects where structural, MEP (Mechanical, Electrical, Plumbing), and architectural models must be verified simultaneously to prevent site-level errors.

Core Navisworks Software Functions for Engineering

The technical prowess of this platform lies in its specialized Navisworks Software Functions. These functions are designed to bridge the gap between design and construction, ensuring that the theoretical model is buildable in the real world.

Clash Detection Analysis

The most powerful of all Navisworks Software Functions is the Clash Detective. This tool allows engineers to perform automated Clash Detection Analysis, identifying hard, soft, and duplicate interferences. For example, it can detect if a HVAC duct is physically intersecting a structural beam (Hard Clash) or if there is insufficient clearance for maintenance access around an electrical panel (Soft Clash).

4D Construction Simulation

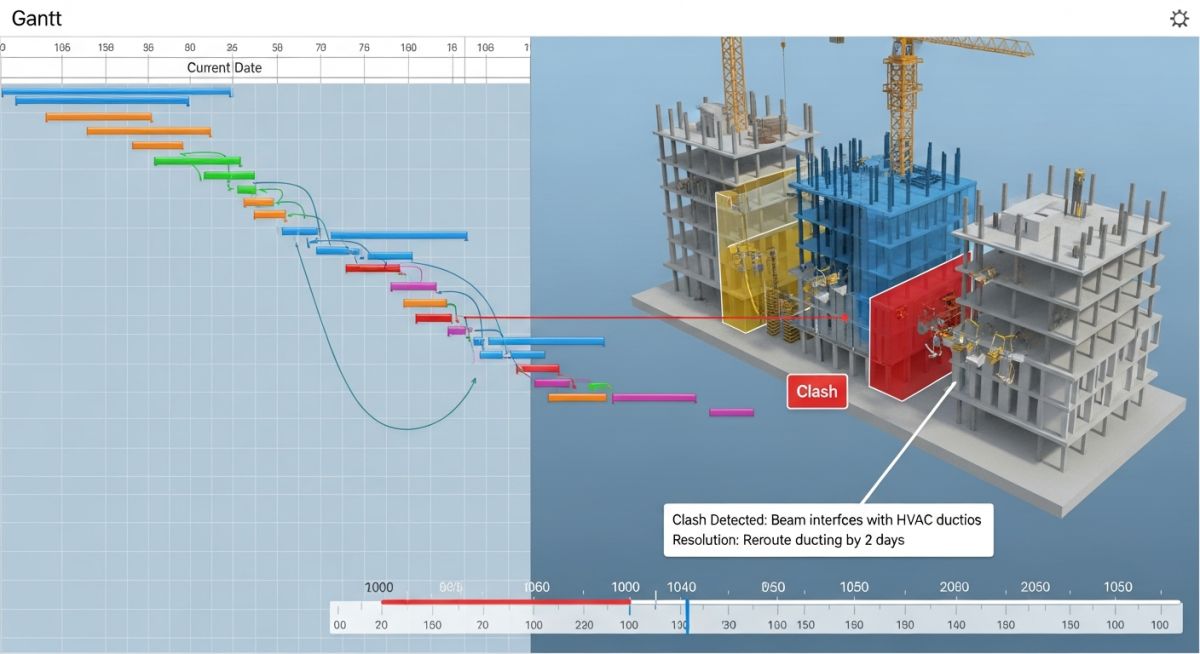

Beyond 3D space, Navisworks integrates the time dimension. Through 4D Construction Simulation, project managers can link the 3D model geometry to project schedules (such as Oracle Primavera P6 or Microsoft Project). This allows teams to visually simulate the entire construction sequence, identifying logistical bottlenecks before equipment arrives on site.

Quantification and Takeoff

Quantification is another vital Navisworks Software Function. It enables automated building material takeoffs by extracting data directly from the aggregated models. This ensures high accuracy in cost estimation and procurement by utilizing the Federated Model Integration data rather than manual measurements.

Comparing Navisworks Software Versions: Manage vs. Simulate

Choosing the right version depends on the specific Navisworks Software Functions required by the project role. While all versions support model aggregation, certain high-end features are reserved for specific licenses.

Compliance with international standards like ISO 19650 often mandates the use of Navisworks Manage during the coordination phase to ensure a clash-free Common Data Environment (CDE).

Essential Components of Navisworks Architecture

The architecture of Navisworks is built around the concept of Federated Model Integration. In 2026, the core engine is designed to handle “streaming” geometry, which means it only loads the data visible to the user, allowing for the inspection of multi-gigabyte models on standard engineering workstations.

The Navisworks Graphics Engine

The graphics component utilizes advanced occlusion culling. This ensures that Navisworks Software Functions like real-time walkthroughs remain fluid, even when the model contains millions of polygons from various sources such as Revit, Inventor, and SolidWorks.

Navisworks Software Functions for File Interoperability

Interoperability is the primary reason for the software’s industry dominance. The Navisworks Software Functions rely on three distinct file formats to manage data integrity and file size during the BIM lifecycle.

Math for Quantification: The Area Logic

One of the critical Navisworks Software Functions involves calculating surface areas for painting or insulation. The software uses the following logic to derive net areas from 3D meshes:

Engineers must ensure that the NWC export settings are configured to include internal properties, or the ³ volumes and ² areas may report incorrectly in the Quantification Workbook.

Strategic Advantages of Navisworks Software Functions in Construction

• ● Reduced On-site Rework: By using Clash Detection Analysis, projects in 2026 report up to a 15% reduction in field change orders.
• ● Enhanced Safety Planning: 4D simulations allow safety officers to visualize crane swings and hazardous zones before work commences.
• ● Hardware Efficiency: Unlike Revit, Navisworks can open a 500MB federated model with minimal RAM usage, enabling mobile onsite reviews.

Common Inquiries: Navisworks Software Functions
